This travel trailer floorplan features a rear bathroom and bunk beds with front Queen Bed.

    Hitch
    505
    UVW
    5,725
    GVWR
    7,850
    Length
    28' 11"
    Height
    11' 1"
    Sleeps
    8
    MSRP
    $50,849
    DOWNLOAD SPEC SHEET

    OVERALL SIZE
    Exterior Height11' 1"
    Exterior Height (w/opt. AC)   11' 2"
    Exterior Length28' 11"
    Exterior Width8'
    Exterior Width (w/ slide out)11'
    Interior Height81

    WEIGHTS
    Hitch / Pin Weight505
    UVW5,725
    GVWR7,850

    CAPACITY
    Fresh Water Capacity45
    Grey Water Capacity82
    Waste Water Capacity45
    Propane Tanks2
    LPG40
    Sleeping Capacity8
    APPLIANCES
    Water HeaterTankless
    Refrigerator10 cu. ft.
    Furnace30,005 BTU
    AC15,000 BTU

    RUNNING GEAR
    Axles2
    Wheel Size15 in.
    Tire SizeST225RE/75R15LRE

    CONSTRUCTION
    Construction TypeAluminum Cage
    Floor R-ValueR-30
    Wall R-ValueR-7
    Roof R-ValueR-40
    Slide Room R-ValueR-7
    DIMENSIONS
    Standard Bed60 X 80 Queen Bed

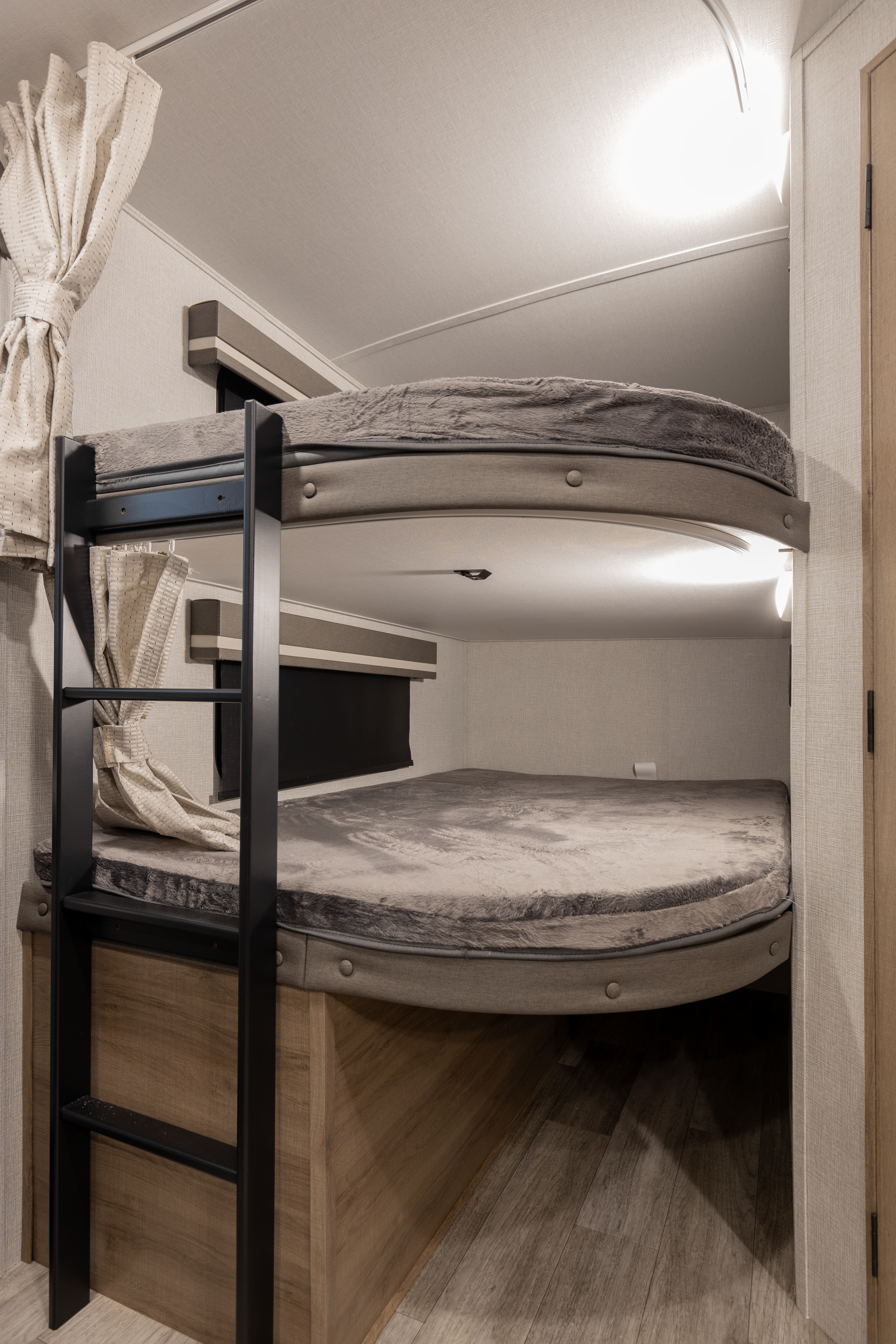

    Standard Bunk47x76
    Shower30x36

    EXTERIOR
    Slides1
    Awnings1
    Awning Length21'
    EXTERIOR
    • Roof Ladder
    • Power Tongue Jack
    • 80% Tint Radius Safety Glass Windows
    • 20# LP Bottles (2) w/ Level Gauges
    • 28" Radius Entry Door
    • 6' Coily Hose Breakaway Cable
    • Adjustable Power Awning w/ LED Lights
    • Motion Sensor Entry LED Lighting
    • Spare Tire & Carrier
    • Tuff-Ply Pass Thru Flooring
    • Sewer Hose Carrier

    CONSTRUCTION
    • Gel Coated Fiberglass Exterior
    • One-Piece Roof Membrane with Limited Lifetime Warranty
    • Easy Access Low Point Drain Valves
    • Insulated Slam Latch Baggage Doors
    • Magnetic Storage and Entry Door Latches
    • Laminated Aluminum Framed Rear Wall (R-7)
    • Laminated Aluminum Framed Side Walls (R-7)
    • Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-7)
    • Laminated Aluminum Framed Main Floor (R-30)
    • 5" Radius Wood Framed Roof (R-40)
    • Laminated Aluminum Framed Roof & End Walls in Slide Rooms & Slide Floor (R-23)
    • Heated and Enclosed Underbelly with Suspended Tanks
    • Double Insulated Roof and Front Cap
    • Heated and Enclosed Dump Valves
    • Designated Heat Duct to Subfloor
    • High Density Roof Insulation with Attic Vent
    • Moisture Barrier Floor Enclosure

    RUNNING GEAR
    • Tire Linc TPMS Prep
    • ABS

    FRAME & CHASSIS
    • 2'' Accessory Hitch Receiver
    INTERIOR
    • Solid Drawer Fronts
    • Solid Core Cabinet Stiles
    • Pre-Drilled and Screwed Face Frames
    • Ball Bearing Full Extension Drawer Glides
    • Large Panoramic Windows
    • Upgraded Residential Furniture
    • Radius Ceiling with 81" Tall Headroom
    • Wireless Pop-up Charger w/ 2 USB Outlets

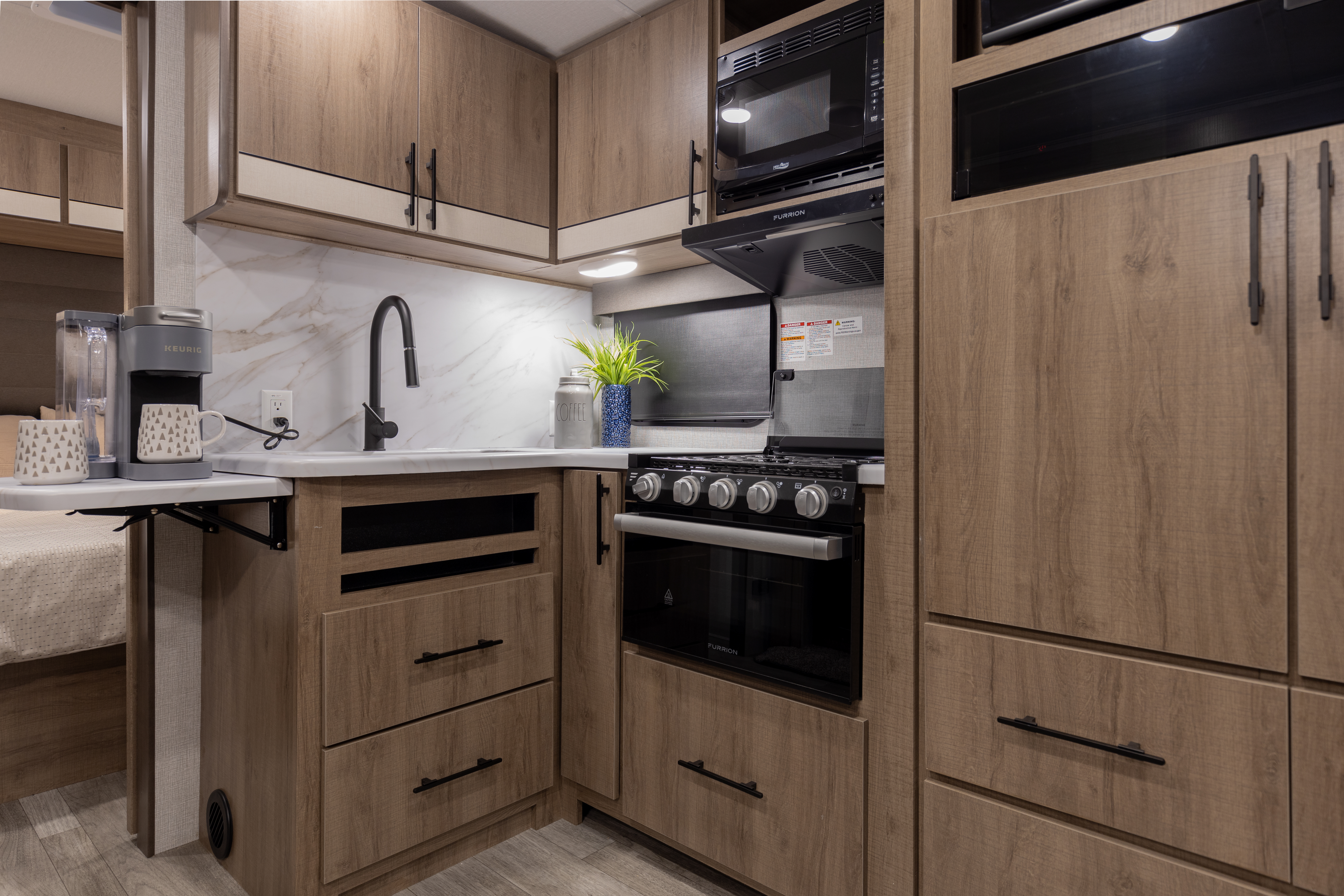

    KITCHEN
    • Sink Cover
    • Stainless Steel Sink
    • Residential Countertops

    ELECTRICAL
    • Battery Kill Switch (Pass Thru)
    • 180W Roof Mounted Solar Panel
    • Roof Mounted Quick Connect Plugs
    • 40 AMP Charge Controller
    • LED Interior Lighting
    • Detachable Power Cord
    • Compass Connect
    • 50 AMP Service

    HVAC
    • Ducted Main AC
    • High Capacity Furnace
    • Residential Heating System Throughout (Ductless)
    PLUMBING
    • Black Tank Flush
    • High-Capacity Water Pump
    • Extra Large 2” Fresh Water Drain Valve
    • Oversized Tank Capacities
    • On Demand Tankless Water Heater

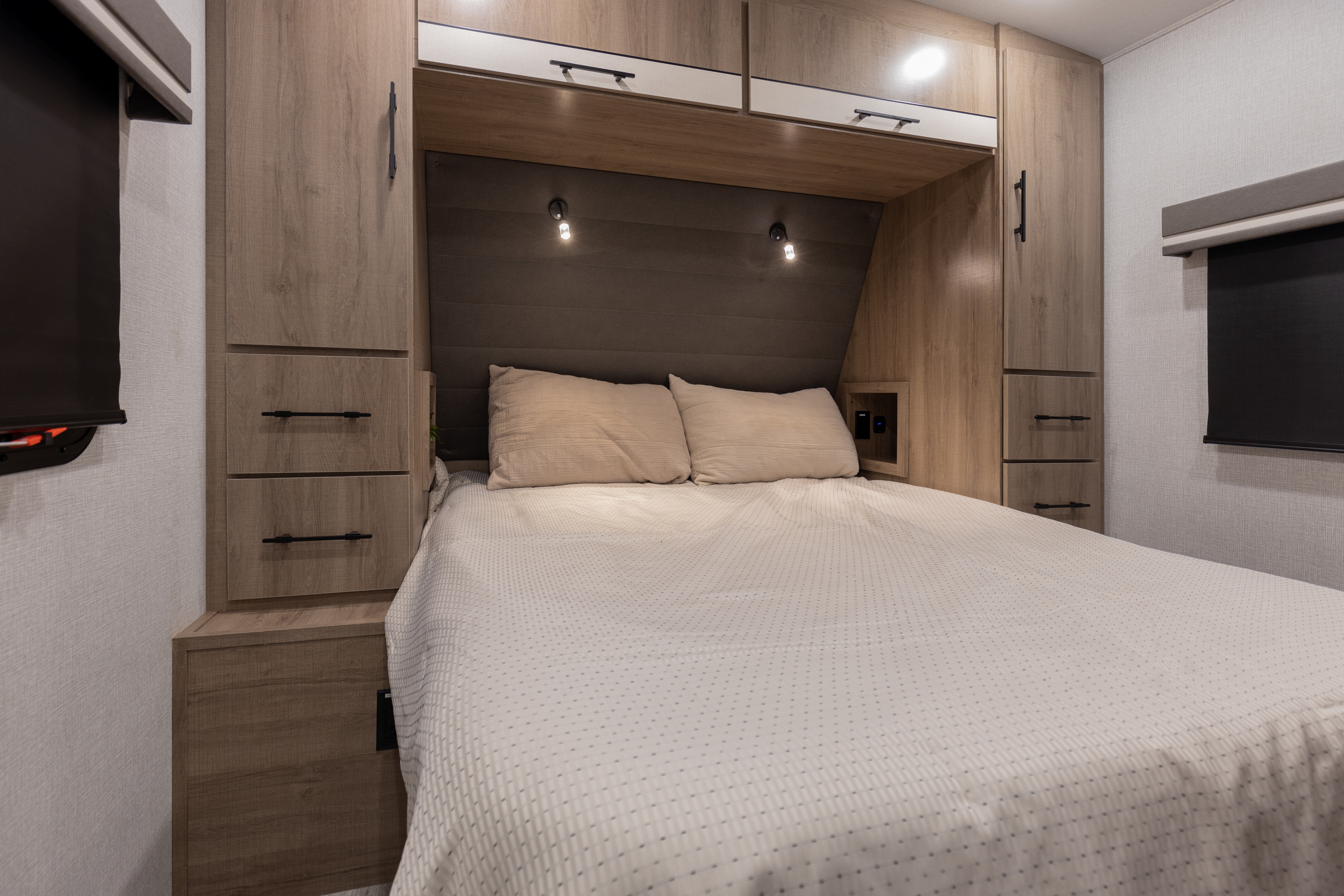

    BEDROOM
    • Master Suite with 60" x 80" Queen Bed
    • Solid Bedroom Door (Master Suite)
    • Oversized Underbed Storage w/ Sliding Cargo Tray
    • Residential Bedspread w/ Headboard
    • Built-in Wardrobe Cubby Storage w/USB-C Charging Station & 110V Outlet
    • Sliding Bed Storage Tray

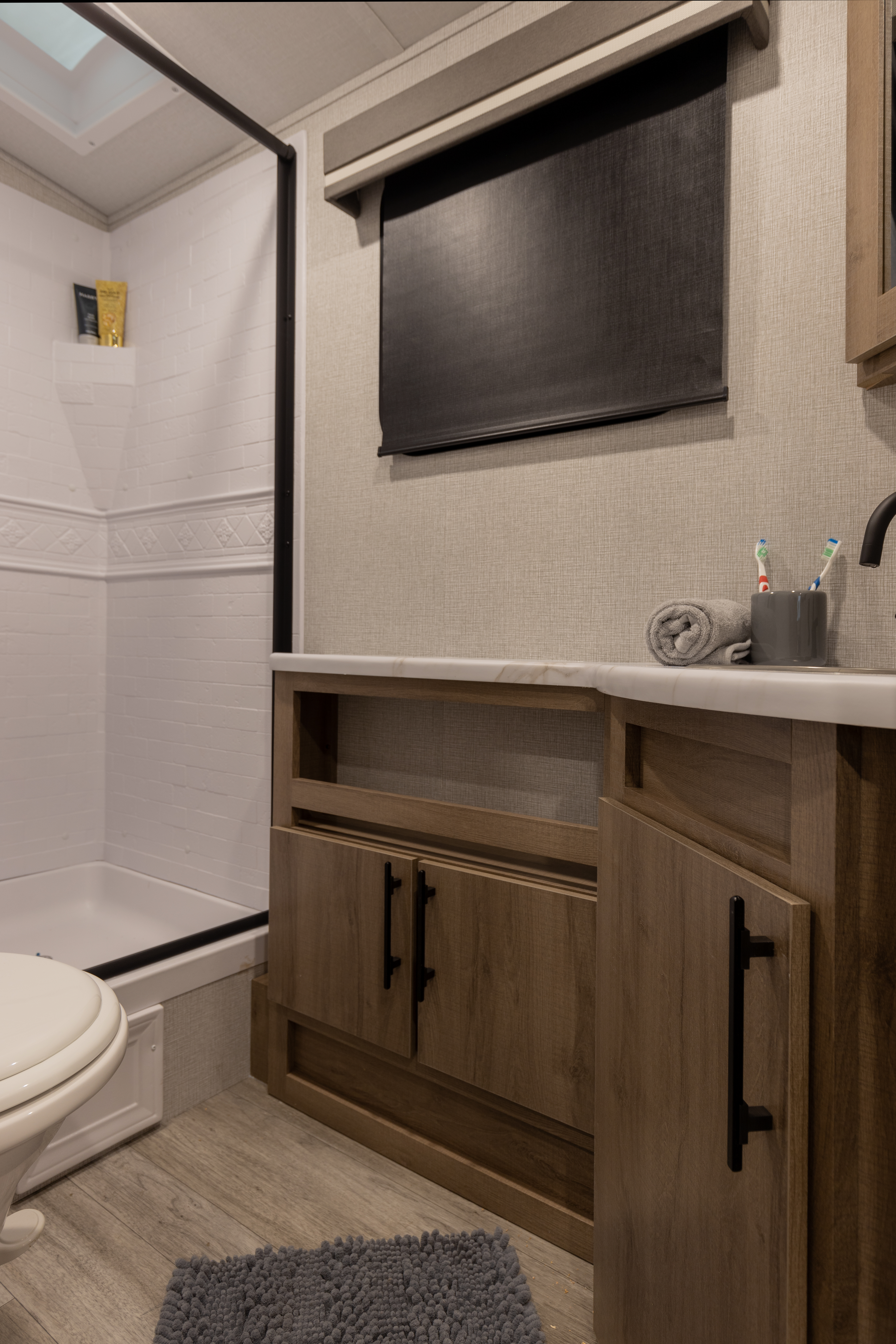

    BATHROOM
    • 30" x 36" Residential Walk-In Shower with Skylight
    • Power Vent Fan
    • Medicine Cabinet with Mirror

    APPLIANCE
    • 3-Burner Range with Oven
    • Microwave
    • 12V 10 Cu. Ft. Refrigerator

    ELECTRONICS
    • Backup Camera Prep
    • TV and Cable Prep
    • Hi Definition LED TV
    • Exterior Cable Hookup
    Peace of Mind Package
    • Deep-Seated Stainless Steel Sink
    • Drop Frame Front Pass Thru Storage
    • Residential Pull-Down Sprayer Faucet
    • On-Demand Tankless Water Heater
    • Solid-Step Entry Steps
    • Walk on Roof
    • Residential Cabinetry
    • Universal Docking Station
    • Aluminum Rims
    • Black Tank Flush
    • Spare Tire and Carrier
    • Front Rock Guard
    • Radius Interior Ceiling
    • Fiberglass Front Cap
    • Premium Window Treatments
    • Metal Slam Latch Front Cargo Doors
    • 6' Coiled Break Away Cable
    • 2" Accessory Hitch
    • Sewer Hose Carrier
    • Tuff-Ply Pass Through Flooring
    • Dual LP Tank Monitors
    Ultimate Power Package
    • Adjustable Power Awning w/ LED Lights
    • LED Interior Lighting
    • Motion Sensor Entry LED Lighting
    • 50 AMP Service
    • Hi Definition LED TV
    • Detachable Power Cord
    • Ducted Main AC
    • Power Tongue Jack
    • Exterior Cable Hookup
    • Compass Connect
    • Tire Linc TPMS Prep
    • Full Width Pass-Thru Storage LED Strip Light w/Dual Power Pressure Switches
    • Wireless Pop-Up Charger w/Dual USB Ports
    Four Season Protection Package
    • High Capacity Furnace
    • Heated and Enclosed Underbelly with Suspended Tanks
    • Double Insulated Roof and Front Cap
    • Heated and Enclosed Dump Valves
    • Designated Heat Duct to Subfloor
    • High Density Roof Insulation with Attic Vent
    • Moisture Barrier Floor Enclosure
    • Residential Heating System Throughout (Ductless)
    Solar Package
    • 180W Roof Mounted Solar Panel
    • Roof Mounted Quick Connect Plugs
    • 40 AMP Charge Controller
    • 12V 10 CU. FT. Refrigerator
