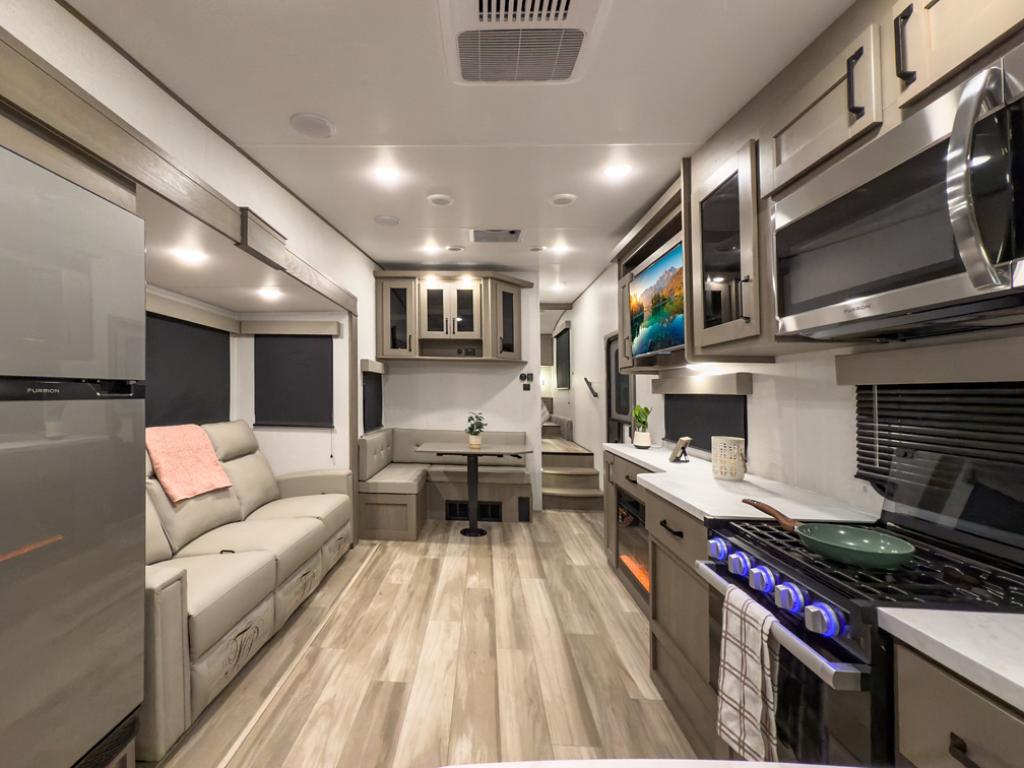

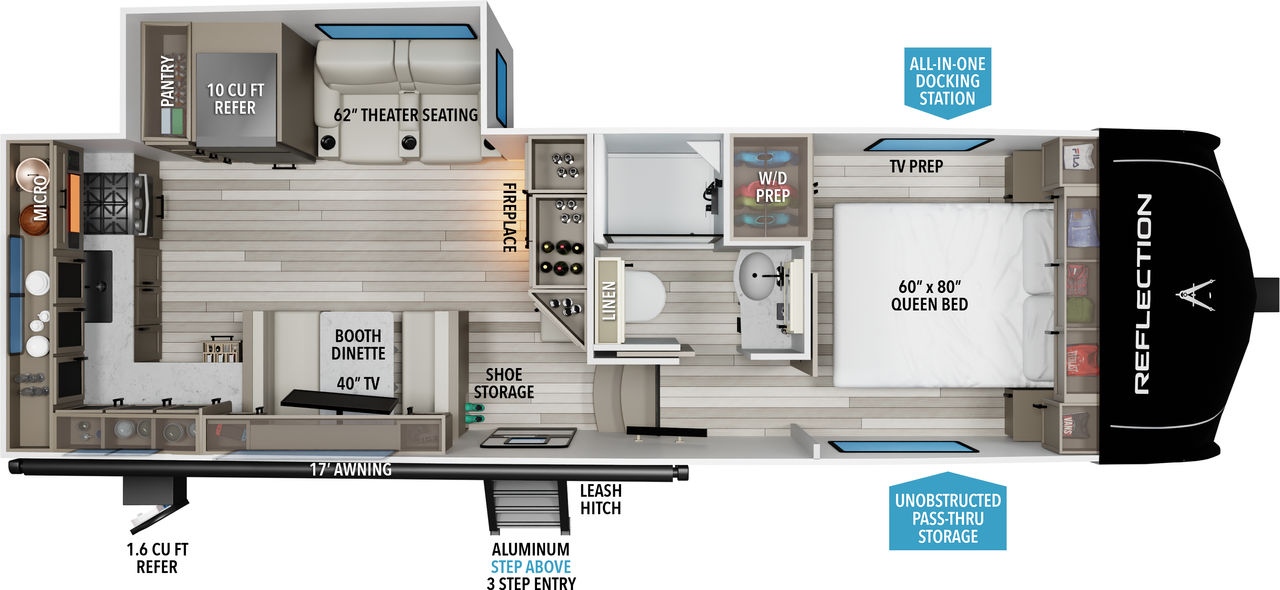

This Reflection Fifth Wheel features a rear kitchen, adjustable dinette and front bedroom with queen bed.

    Hitch
    1,200
    UVW
    8,050
    GVWR
    9,995
    Length
    29' 11"
    Height
    12'
    Sleeps
    2
    MSRP
    $67,912
    DOWNLOAD SPEC SHEET
    OVERALL SIZE
    Exterior Height12'
    Exterior Height (w/opt. AC)   12' 5"
    Exterior Length29' 11"
    Exterior Width8'
    Exterior Width (w/ slide out)11'
    Interior HeightN/A

    WEIGHTS
    Hitch / Pin Weight1,200
    UVW8,050
    GVWR9,995

    CAPACITY
    Fresh Water Capacity55
    Gray Water Capacity78
    Waste Water Capacity39
    Propane Tanks2
    LPG60
    Sleeping Capacity2
    APPLIANCES
    Water HeaterTankless
    Refrigerator10 cu. ft.
    Furnace30,000 BTU
    AC15,000 BTU

    RUNNING GEAR
    Axles2
    Wheel Size15 in.
    Tire SizeST225/75R15 LRE

    CONSTRUCTION
    Construction TypeAluminum Cage
    Floor R-ValueR-30
    Wall R-ValueR-9
    Roof R-ValueR-40
    Slide Room R-ValueR-9
    DIMENSIONS
    Standard Bed60 X 80 Queen Bed
    Standard BunkN/A
    Shower30 x 36"

    EXTERIOR
    Slides1
    Awnings1
    Awning Length17'
    EXTERIOR
    • 80% Tint Radius Safety Glass Windows
    • 90 Degree Turning Point Pin Box
    • 30# LP Bottles (2)
    • 30" Radius Entry Door
    • Outside Shower
    • Factory Installed Roof Ladder
    • Exterior Cable Hookup (Sidewall)

    CONSTRUCTION

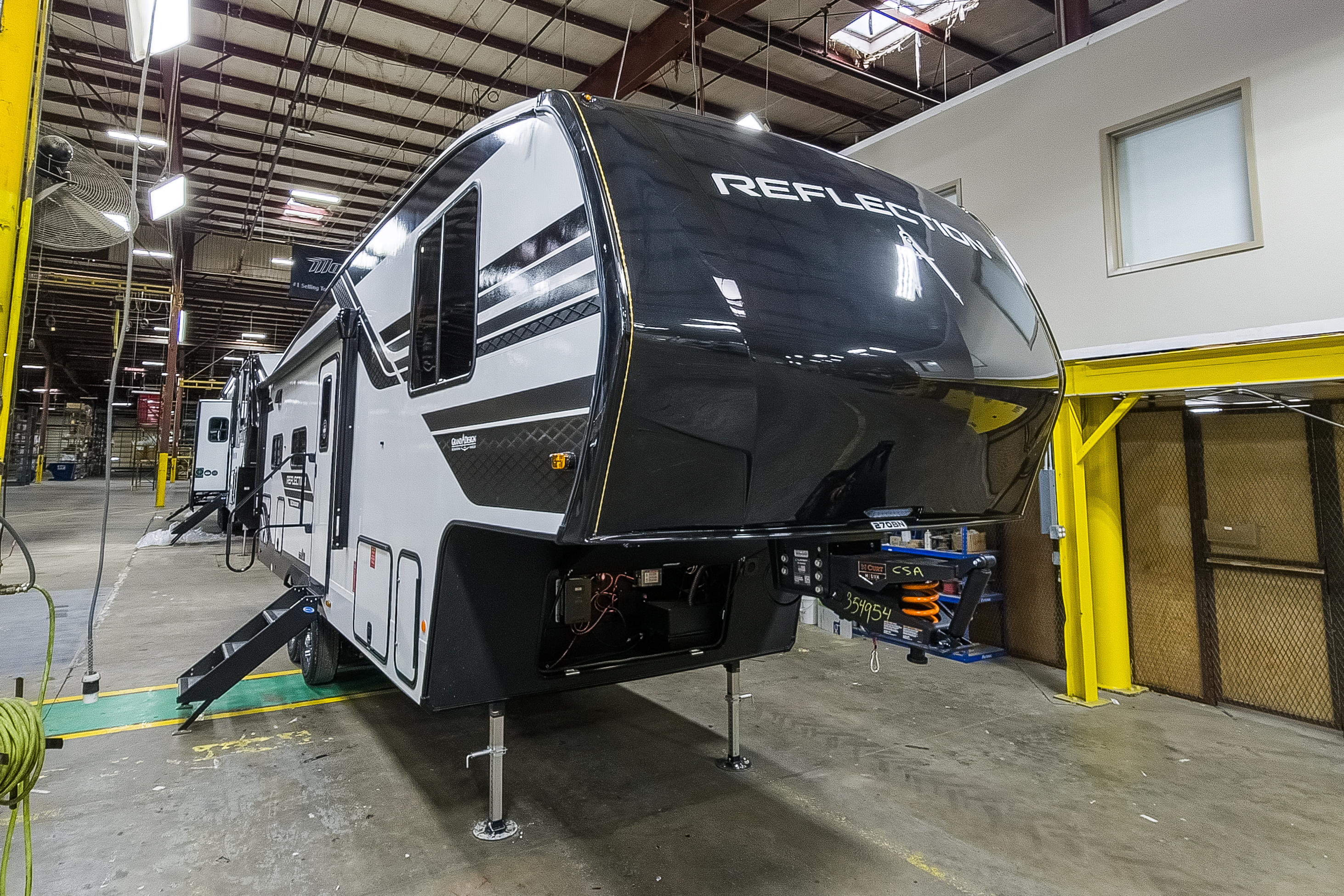

    • Aerodynamic Front Cap with Max Turn Radius
    • Gel Coated Exterior Sidewalls
    • Residential 5" Truss Rafters (16" O.C.)
    • Walk On Roof Decking
    • Fiberglass and Radiant Foil Roof and Front Cap Insulation
    • One-Piece TPO Roof Membrane with Limited Lifetime Warranty
    • Laminated Aluminum Framed Rear Wall (R-9)
    • Laminated Aluminum Framed Side Walls (R-9)
    • Laminated Alumium Framed Roof and End Walls in Slide Rooms (R-9)
    • Aluminum Framed Main Floor (R-30*)
    • Residential Wood Framed Roof (R-40*)

    RUNNING GEAR
    • Rubberized Suspension Equalizer
    • Aluminum Wheels with E-Rated Tires
    • Under Carriage Spare Tire and Carrier
    • Anti-Lock Brake System
    INTERIOR
    • Matte Black Fixtures and Hardware
    • Hardwood Galley Slide Trim Moldings
    • Solid Hardwood Drawer Fronts
    • Louvered Tread Steps to Bedroom
    • Solid Core Cabinet Stiles
    • Pre-Drilled and Screwed Cabinetry
    • Ball Bearing Full Extension Drawer Glides
    • Large Panoramic Slide Room Windows
    • Heated Theater Seats w/LED Lights & Massage (Most Models)
    • Premium Congoleum Flooring
    • Ductless Flooring Throughout Living Area
    • Residential Style Window Treatment
    • Blackout Roller Shades
    • LED Lighting with Motion Sensors (Key Areas)

    KITCHEN
    • Deep Seated Stainless Steel Sink

    ELECTRICAL
    • Marine Grade LED Hitch Light
    • Battery Kill Switch in Pass Thru Storage Area
    • 180W/370W Roof Mounted Solar Panel (floorplan specific)
    • Roof Mounted Quick Connect Plugs
    • 60 Amp Charge Controller
    • Inverter Prep
    • Solar Disconnect

    HVAC
    • Adjustable A/C Vents
    • 35K BTU High Capacity Furnace
    PLUMBING
    • High-Capacity Water Pump with Interior and Exterior Switch
    • Extra Large 2" Fresh Water Drain Valve
    • Easy Access Low Point Drain Valves

    BEDROOM
    • Functional Wardrobe Closet
    • Oversized Bed Base Storage
    • 60 x 80 Mattress with Residential Bedspread
    • Bedroom Heat Registers

    BATHROOM
    • 30 x 36 Residential Walk-In Shower
    • Heat Duct and A/C Vents in Bathroom
    • Power Vent Fan
    • Large Vanity Top w/ Deep Sink
    • Large Medicine Cabinet with Mirror

    APPLIANCE
    • 12V 10 or 16 Cu. Ft. Refrigerator (floorplan specific)

    ELECTRONICS
    • Cable/SAT Prep
    Peace of Mind Package
    • Residential Cabinetry
    • Universal All-In-One Docking Station
    • Metal Slam Latch Front Cargo Doors
    • On Demand Water Heater
    • Porcelain Toilet with Foot Flush
    • High-Rise Faucet with Pullout Sprayer
    • Aluminum Entry Steps
    • Theater Seats
    • Painted Fiberglass Front Cap
    • Residential Booth Dinette
    • LP Quick Connect
    • Blackout Roller Shades
    • 6' Coiled Break Away Cable
    • Deep Seated Stainless Steel Kitchen Sink
    • Walk-on Roof
    • Aluminum Rims
    • Spare Tire & Carrier
    • 2” Receiver Hitch Upgrade
    • 90 Degree Turn Radius Pin Box (Turning Point)
    Ultimate Power Package
    • 30" Stainless Steel Microwave
    • 15K Ducted Main A/C
    • "One-Touch" Electric LED Awning
    • Maxx Air Fan
    • AM/FM/HDMI/Bluetooth Stereo
    • 50 AMP Service, Wired and Framed for 2nd A/C
    • High Definition LED TV
    • Detachable Power Cord with LED Light
    • "One-Touch" Automatic Leveling System
    • LED Interior Lighting
    • Motion Sensor Pass Thru Lighting
    • Motion Sensor Entry Lighting
    • Compass Connect
    • Tire Linc TPMS
    Arctic 4-Seasons Protection Package
    • 35K BTU High Capacity Furnace
    • Double Insulated Roof & Front Cap
    • Heated & Enclosed Dump Valves

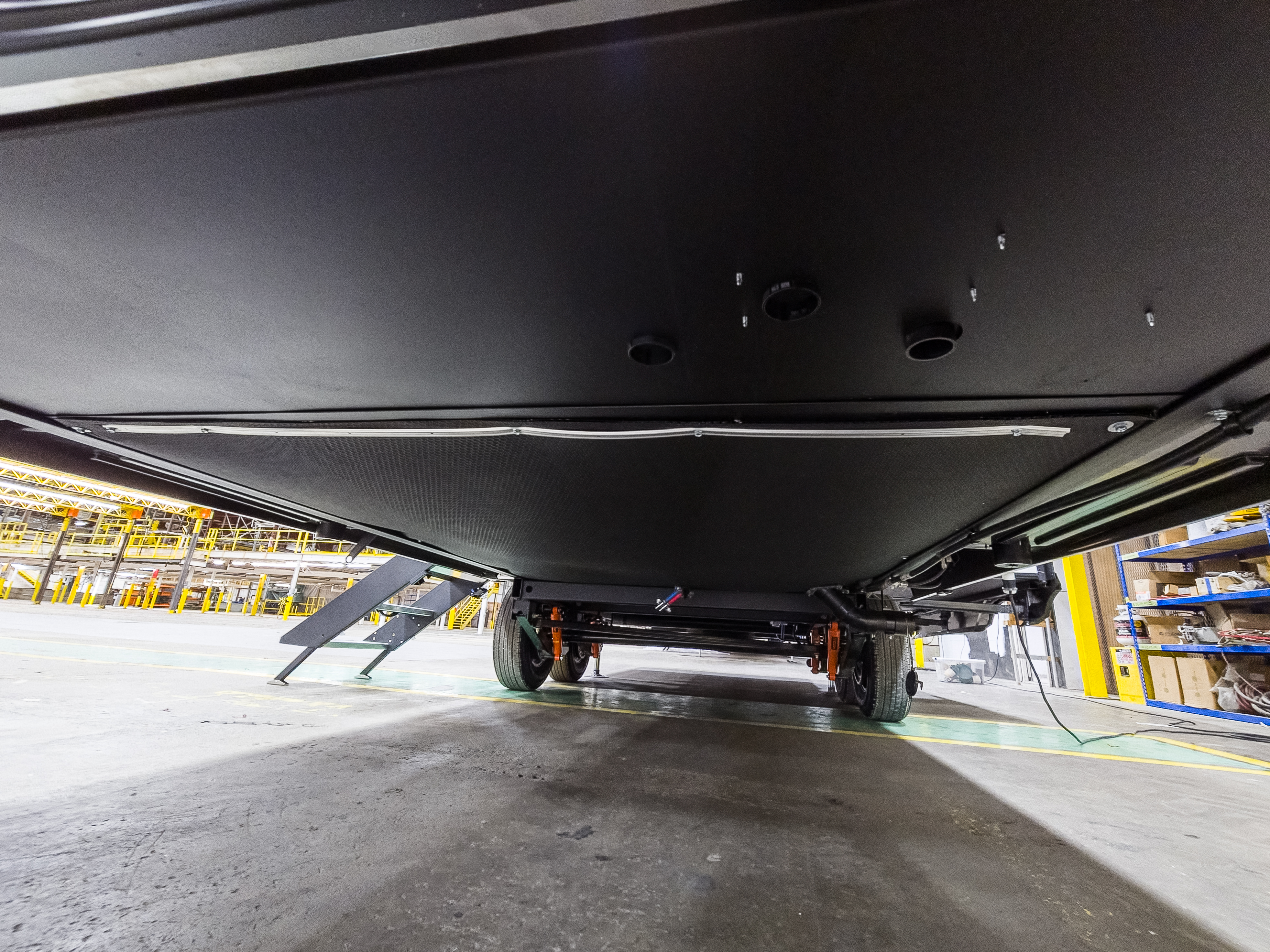

    • Heated & Enclosed Underbelly w/Circulating Heat
    • Thermofoil Insulation under Holding Tanks
    • EZ Winterization Valve in Utility Center
    • Insulated Slide-out Floors
    • Dual Attic Vents
    • 12v Heat Pads on Holding Tanks

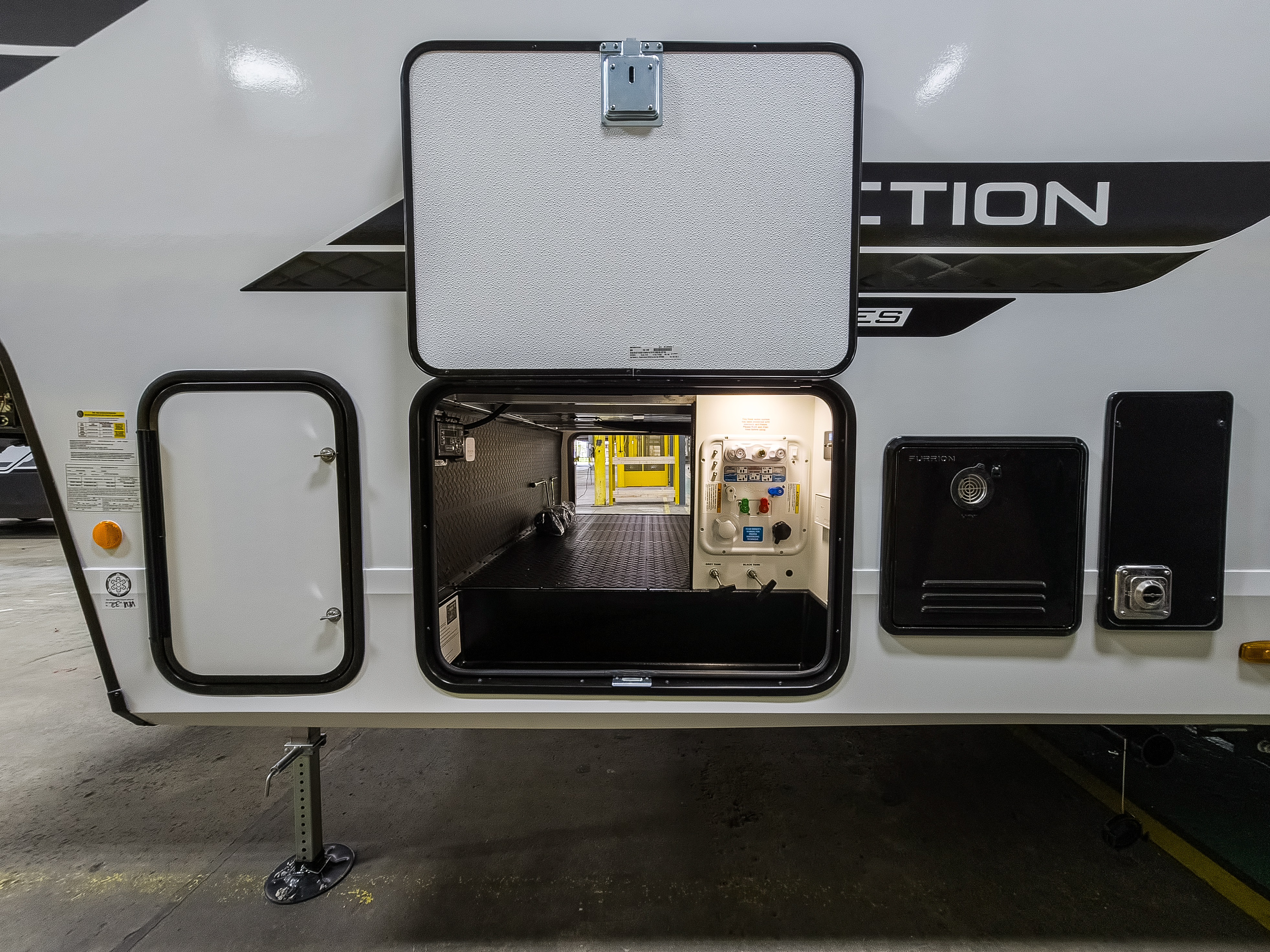

    • Heated Pass Thru Storage Area
    Solar Protection Package
    • 180W/370W Roof Mounted Solar Panel (floorplan specific)
    • Roof Mounted Quick Connect Plugs
    • 60 Amp Charge Controller
    • 12V 10 or 16 Cu. Ft. Refrigerator (floorplan specific)
    • Inverter Prep
    • Solar Disconnect
