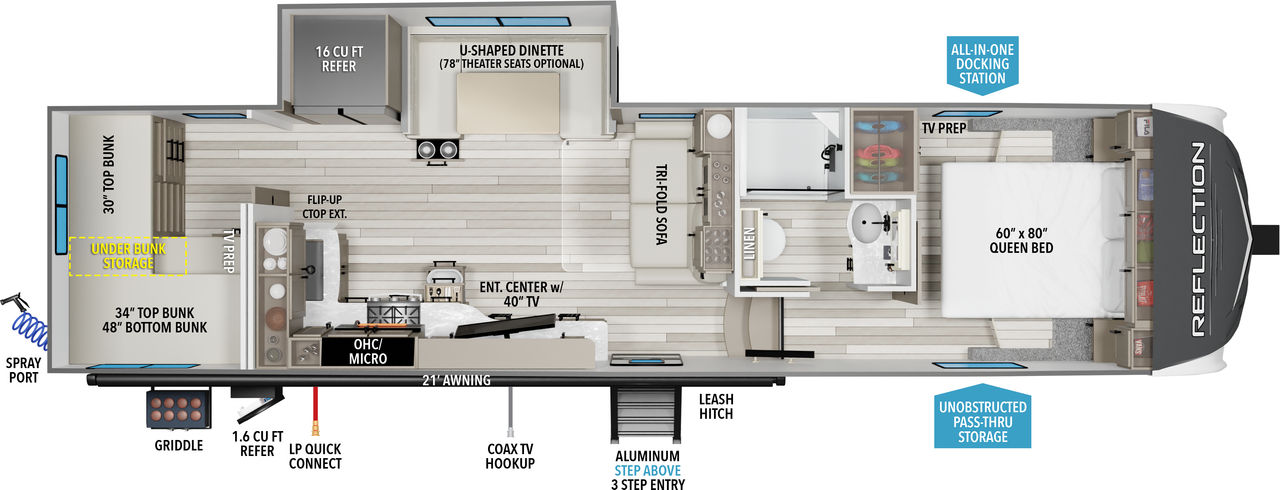

This Reflection Fifth Wheel features a rear bunkroom, mid kitchen, and front bedroom with queen bed.

    Hitch
    1,495
    UVW
    8,986
    GVWR
    10,995
    Length
    34' 9"
    Height
    12' 3"
    Sleeps
    8
    MSRP
    $70,311

    OVERALL SIZE
    Exterior Height12' 3"
    Exterior Height (w/opt. AC)   12' 10"
    Exterior Length34' 9"
    Exterior Width8'
    Exterior Width (w/ slide out)11'
    Interior HeightN/A

    WEIGHTS
    Hitch / Pin Weight1,495
    UVW8,986
    GVWR10,995

    CAPACITY
    Fresh Water Capacity55
    Gray Water Capacity78
    Waste Water Capacity39
    Propane Tanks2
    LPG60
    Sleeping Capacity8
    APPLIANCES
    Water HeaterTankless
    Refrigerator16 cu. ft.
    Furnace30,000 BTU
    AC15,000 BTU

    RUNNING GEAR
    Axles2
    Wheel Size15 in.
    Tire SizeST225/75R15LRE

    CONSTRUCTION
    Construction TypeAluminum Cage
    Floor R-ValueR-30
    Wall R-ValueR-9
    Roof R-ValueR-40
    Slide Room R-ValueR-9
    DIMENSIONS
    Standard Bed60 x 80 Queen Bed
    Standard Bunk30 x 60, 34 x 70
    Shower30 x 36

    EXTERIOR
    Slides1
    Awnings1
    Awning Length21'
    EXTERIOR
    • 80% Tint Radius Safety Glass Windows
    • 90 Degree Turning Point Pin Box
    • 30# LP Bottles (2)
    • 30" Radius Entry Door
    • Outside Shower
    • Factory Installed Roof Ladder
    • Exterior Cable Hookup (Sidewall)

    CONSTRUCTION
    • Aerodynamic Front Cap with Max Turn Radius
    • Gel Coated Exterior Sidewalls
    • Residential 5" Truss Rafters (16" O.C.)
    • Walk On Roof Decking
    • Fiberglass and Radiant Foil Roof and Front Cap Insulation
    • One-Piece TPO Roof Membrane with Limited Lifetime Warranty
    • Laminated Aluminum Framed Rear Wall (R-9)
    • Laminated Aluminum Framed Side Walls (R-9)
    • Laminated Alumium Framed Roof and End Walls in Slide Rooms (R-9)
    • Aluminum Framed Main Floor (R-30*)
    • Residential Wood Framed Roof (R-40*)

    RUNNING GEAR
    • Rubberized Suspension Equalizer
    • Aluminum Wheels with E-Rated Tires
    • Under Carriage Spare Tire and Carrier
    • Anti-Lock Brake System
    INTERIOR
    • Matte Black Fixtures and Hardware
    • Hardwood Galley Slide Trim Moldings
    • Solid Hardwood Drawer Fronts
    • Louvered Tread Steps to Bedroom
    • Solid Core Cabinet Stiles
    • Pre-Drilled and Screwed Cabinetry

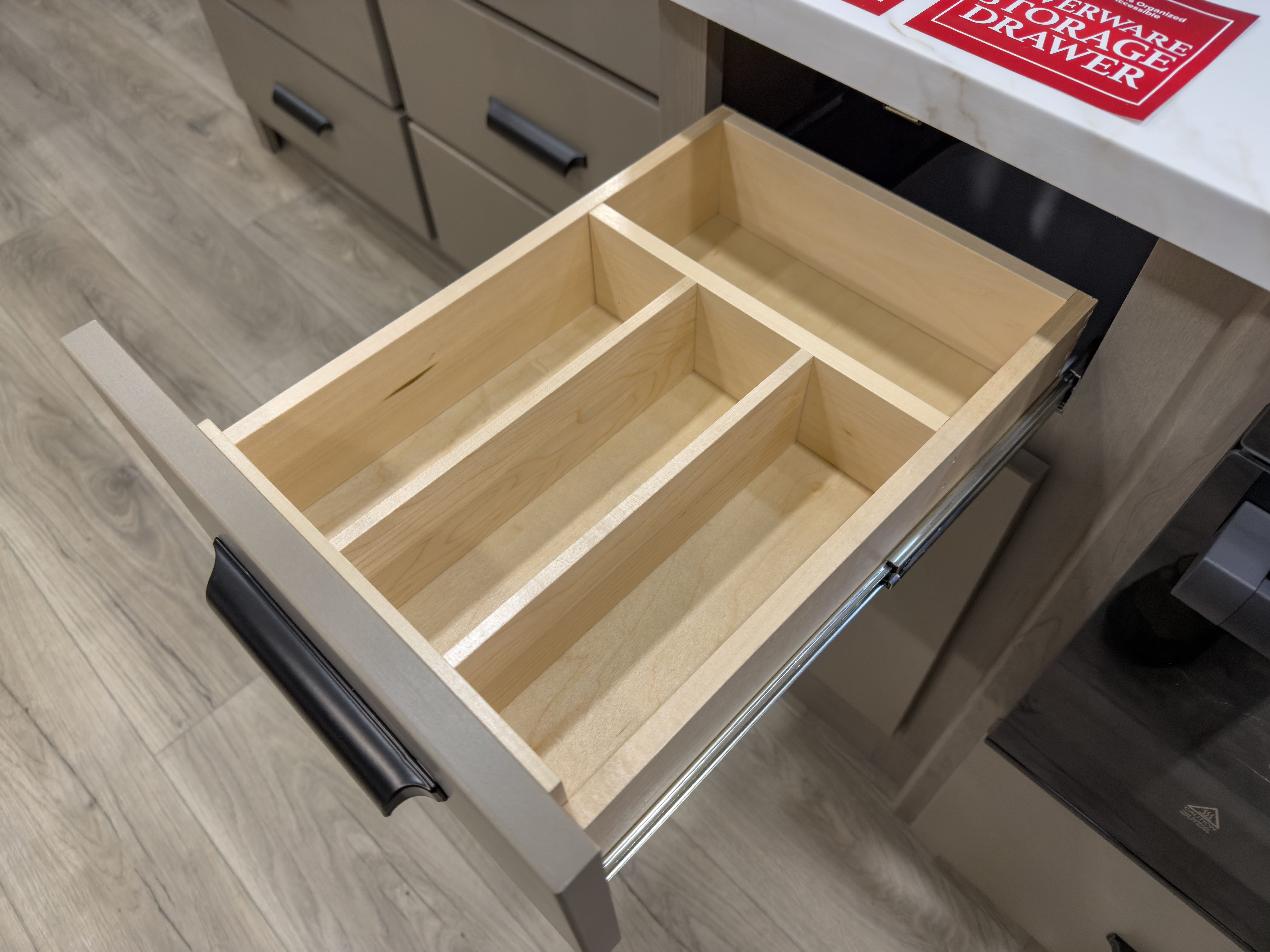

    • Ball Bearing Full Extension Drawer Glides
    • Large Panoramic Slide Room Windows
    • Heated Wall Hugger Theater Seats w/LED Lights & Massage (Most Models)
    • Premium Congoleum Flooring
    • Ductless Flooring Throughout Living Area
    • Residential Style Window Treatment
    • Blackout Roller Shades
    • LED Lighting with Motion Sensors (Key Areas)

    KITCHEN
    • Deep Seated Stainless Steel Sink

    ELECTRICAL
    • Marine Grade LED Hitch Light
    • Battery Kill Switch in Pass Thru Storage Area
    • 180W/370W Roof Mounted Solar Panel (floorplan specific)
    • Roof Mounted Quick Connect Plugs
    • 60 Amp Charge Controller
    • Inverter Prep
    • Solar Disconnect

    HVAC
    • Adjustable A/C Vents
