Lineage | 25FW

Lineage | 25FW
25FW

Length

25' 8"

Build and Price your Grand Design RV GDRV

$0

Country Code US CA

Contact Method

Yes, I would like to receive text messages from Grand Design. **Standard message and data rates may apply. You may opt out at any time.*

*MSRP shown in USD. Pricing does not include freight, tax, title, license or dealer prep charges. Because of our commitment to continuous product improvement, Grand Design Recreational Vehicles reserves the right to change prices, components, standards, options, specifications, and materials without notice and at any time. Be sure to review current product details with your local dealer before purchasing.

Features and Packages
included in the starting price:

GAWR Front
4,630

GAWR Rear
7,934

GVWR
12,125

Length
25' 8"

Height
11' 5"

Sleeps
4

MSRP
$228,776

DOWNLOAD SPEC SHEET

Specifications
Features
Packages

CHASSIS AND DRIVETRAIN
Chassis	Mercedes-Benz Sprinter 4500 Cab Chassis
Engine	Twin-Turbo 2.0 Ltr. Inline 4 Cyl
Transmisson	9G-Tronic Automatic
HP	208 HP
Torque	332 lb-ft

OVERALL SIZE
Exterior Length	25' 8"
Exterior Width	7' 11"
Exterior Height	11' 5"
Interior Height	6' 8"
Awning Length	16'

WEIGHTS
GAWR Front	4,630
GAWR Rear	7,934
GVWR	12,125
GCWR	15,249

APPLIANCES
Water Heater	Tankless
Refrigerator	12V 10 cu. ft.
Furnace	30,000 BTU
AC	15,000 BTU

CAPACITY
Diesel Fuel Capacity	24.50 gal
DEF	5.8 gal
Fresh Water Capacity	35 gal
Gray Water Capacity	34 gal
Waste Water Capacity	34 gal
LPG	20.3 gal / 88 lbs

RUNNING GEAR
Axles	2
Tire Size	LT215/85 R16 DRW
Wheel Base	170"

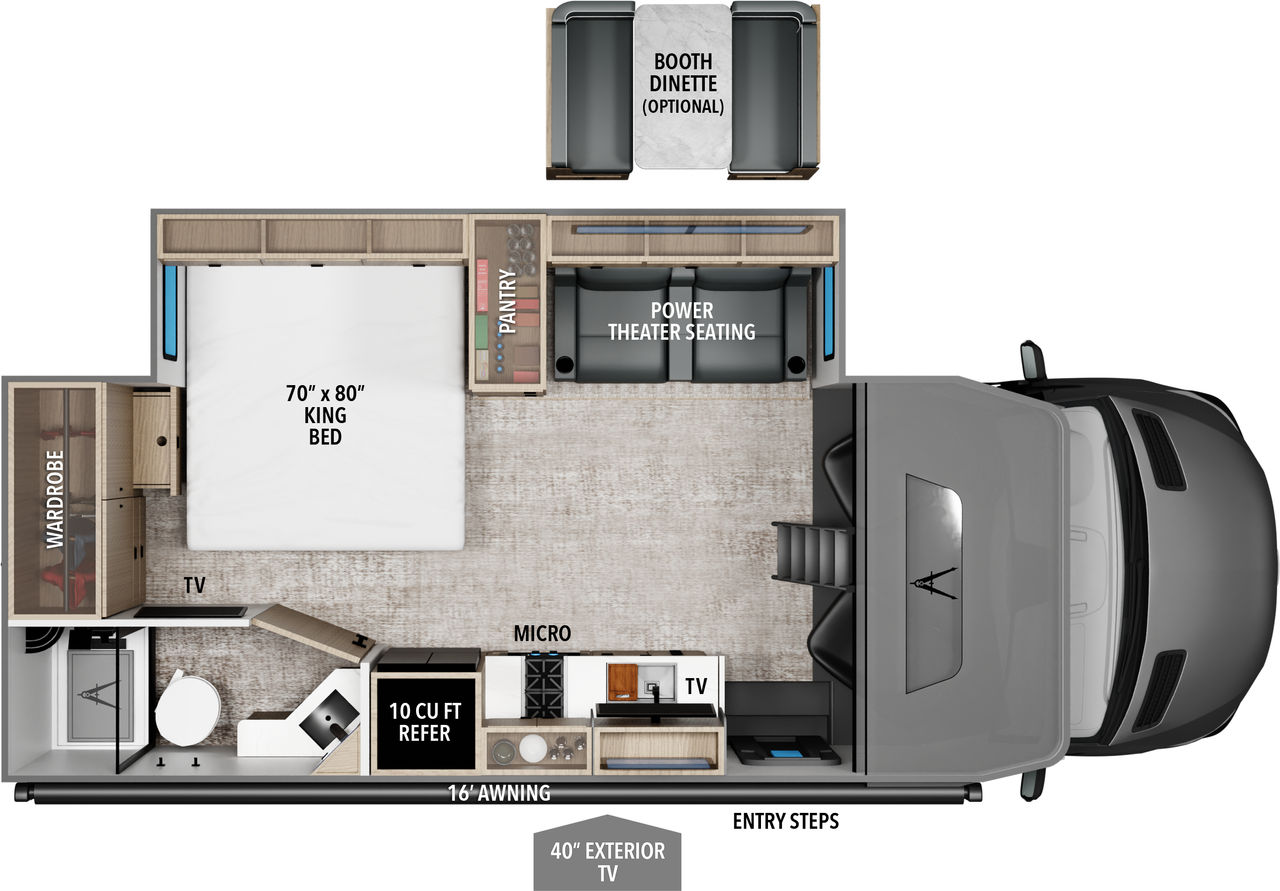

DIMENSIONS
Bed Size	70" x 80" King Bed
Dinette	68" x 42"
Sofa	68"

QUANTITIES
Slides	1
Sleeping Capacity	4
Sleeping Areas	2 to 3
Seat Belt Positions	4

POWER
Coach Batteries	260 Amp/Hr Lithium (2x130 Batteries)
Solar	600 Watts Solar (3x200 Panels)
Generator	3.6KW Onan
Shore Power	30 AMP

FRAME & CHASSIS
Mercedes-Benz® Sprinter 4500 Cab Chassis with 170" Wheelbase GVWR 12,125 lbs. / GCWR 15,250 lbs. 2.0 Ltr Inline 4-Cylinder High Output TwinTurbo Diesel (208HP/332lb-ft) 9G-TRONIC Automatic Transmission / Rear Wheel Drive Alternator 14V 280A Driver/Passenger HeadRest Safe (permanent install) Comfort Package Driver Convenience Package Power Windows & Door Locks w/ Multiple Key FABs MBUX Multimedia System w/10.25 touchscreen (AM/FM, Apple® CarPlay™ / Android® Auto™) Comfort Plus Package Thermotronic Automatic Climate Control Multifunctional Leather Steering Wheel (Heated, Adjustable - Angle) D/P Seats - Swivel, Heated, Power, Arm Rests, Storage Pockets and Lumbar Support D/P Door Mounted Assist Handles 115V Socket / USB-C Socket 5V / 12V Outlet Driver Seat Base Active Brake Assist Crosswind Assist Attention Assist Hill Start Assist Fog Lamps with cornering light function High Beam Assist LED Tail, Brake, Marker, Turn and Backup Lights LED High Performance headlamps Dual Chassis Battery 12V 92AH 850A (w/disconnect) Jump Start Terminal Electronic Stability Program (ESP) Acoustic Package Park brake lever, folding Winter Package Plus Wet Wiper System / Rain Sensor Emergency Call System (ECALL) Heated & Electrically Adjustable Exterior Mirrors Dashboard Charging Package Front Cup Holders Outside Temperature Gauge 215/85R16 All-Season Tires Tire Pressure Monitoring Lamp (TPMS x 6 tires) Front & Rear Mudflaps Axle Ratio 4,727 Cockpit Privacy Shades (Windshield, Driver & Passenger) Fiberglass Running Boards w/ traction tread and Diamond Shield® Paint Protection Twin-Turbo 2.0 Ltr. Inline 4 Cyl

CONSTRUCTION
MORryde® Tubular Steel Chassis Halo Upfit Aluminum Exterior Luggage Doors (Side Swing & Key Alike) Heavy Gauge Aluminum Framed Sidewall, Roof and Floor - Laminated w/ Block Foam Insulation Exterior Sidewall - Talon Sheet Glass w/ Azdel OnBoard Composite Interior Sidewall - Composite Elk Board w/ Decorative Wallboard Exterior Roof - Textured Fiberglass w/ Titan Gasket Seal System / Rain Gutters Interior Roof - Soft Touch Ceilings w/ 1 piece Elkboard Aluminum Skinned Slideroom End Walls w/ Windows Rigid HVAC Ductwork Throughout Dual Pane European Acrylic Windows w/ Integrated Screen, Privacy Shade & Black Trim Kit European Entry Door (Dual Latch, Poly Window, Integrated Shade, Side Slide Screen Door) Aluminum European Power Entry Step Rotocast Storage Compartments w/ timed Lighting Lippert SlimRack® Slide-Out Steel Reinforced, Insulated, Fiberglass Wingwalls w/ Diamond Shield® Paint Protection 12V (DC) w/ Spyder Controls DC Distribution panel & 120V (AC) harnesses SharkBite Evo Pex Push2Connect Plumbing System (Max SS braided shut offs) Aluminum Roof Sport Rack One piece Eternabond Slideout Roof Steel Stepwell / Battery Box with Temp Sensor Aluminum Framed Interior Walls 3500lbs Tow Hitch w/ 7 Way Round & 4 Way Flat

EXTERIOR
Fiberglass Front Cap w/ Diamond Shield® Paint Protection Front Cap Window UV reflective film & Power Shade w/ Reflective Material Fiberglass Front Rear Cap Steel Reinforced Fiberglass Running Boards w/ step treads Blackout LED Marker, Brake & Tail Lights Girard Armless Awning w/ Wind Sensor Slideout Topper Awning Rubber Entry Assist Handle Aluminum Exterior Roofline Sport Rail Quick Connect LP Connection Compartment Aluminum Power Entrance Step 40" Exterior 12V LED Smart TV Compartment w/ GFCI Receptacle & HDMI Outlet Rockford Fosgate Exterior Sound System w/ Marine Speakers Lighted Exterior Belt Rail D/P Side and Back Up Cameras Lippert On-The-Go™ Ladder Mounting Bracket

INTERIOR
Entry Assist Handle Natural Teak Wood Grain Cabinetry Aluminum Framed Interior Walls, Bed Base and Cabinetry (select locations) Technoform EPP Push/Lock Cabinet Doors Latches w/ Soft Close Door & Drawers (Hidden Hinges) Solid Maple Dovetail Drawer Boxes w/ Soft Close Ball Bearing Drawer Guides Shaw Commercial Grade Vinyl Flooring Soft-Touch Padded Ceiling (Including Sideout) Square LED Ceiling Lights 32" 12V LED Smart TV (Living Room & Bedroom) Rockford Fosgate Interior Sound System, Square Magnetic Speakers & Powered Subwoofer 4000K Interior LED Lighting Package (Square / Strip) COBRA (Cab Over Bunk Ram Air) Entry Step Battery Compartment Multiple Charging Ports (USB, USB-c, 120V) Molded front overhead bunk with Lights, Chargers, Privacy Curtain and A/C Power Theatre Seating w/ Ratcheting Head Rests, Power Recliners and Dual Composite Sofa Tables Rear Wardrobe Front Bunk Ladder

KITCHEN
10 Cu/Ft 12V 3 Door Refrigerator 2 Burner Stove w/ Glass Cover and Overhead Range Hood Air Fryer / Convection Microwave Oven Solid Surface Kitchen Countertop w/ flip up extension Matte Black pull out Kitchen Faucet MaxxAir® Power Vent with Built-In Rain Cover Stainless Steel Sink w/ countertop mounted glass washer & Cutting Board

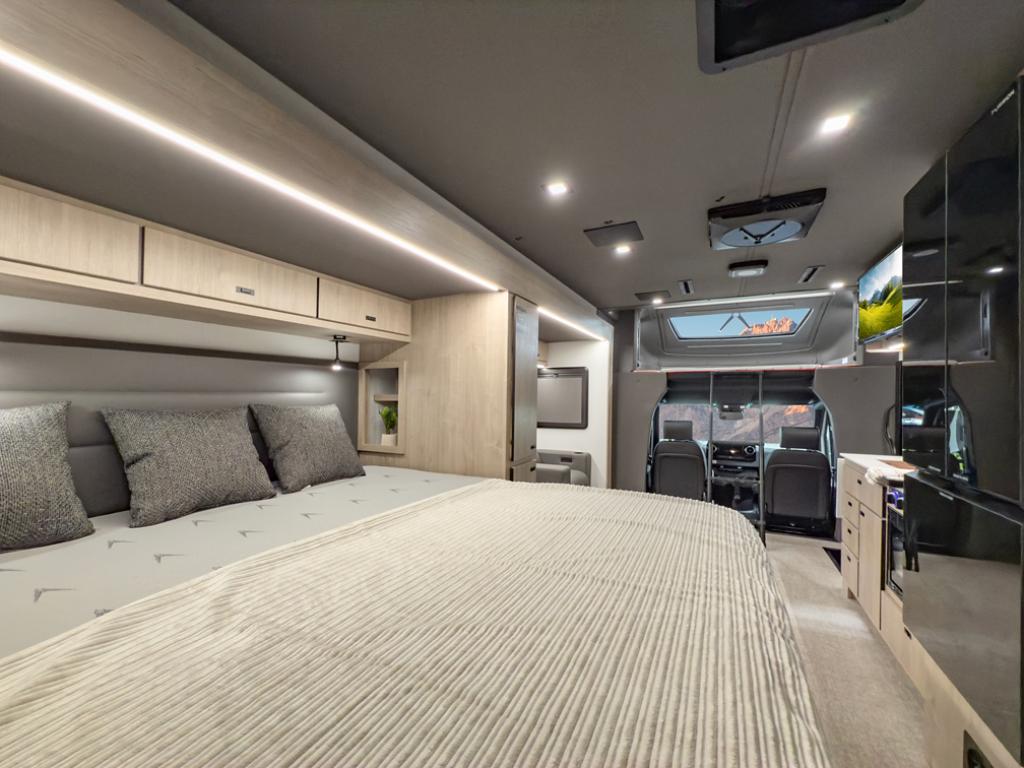

BEDROOM
70"x 80" King Bed by Indratech (Reinforced Edges, Medium Memory Foam) Under-Bed Storage (24FW) Designer Bedding Package 32" LED Smart TV LED Reading Lights USB Charging Ports Privacy Curtain

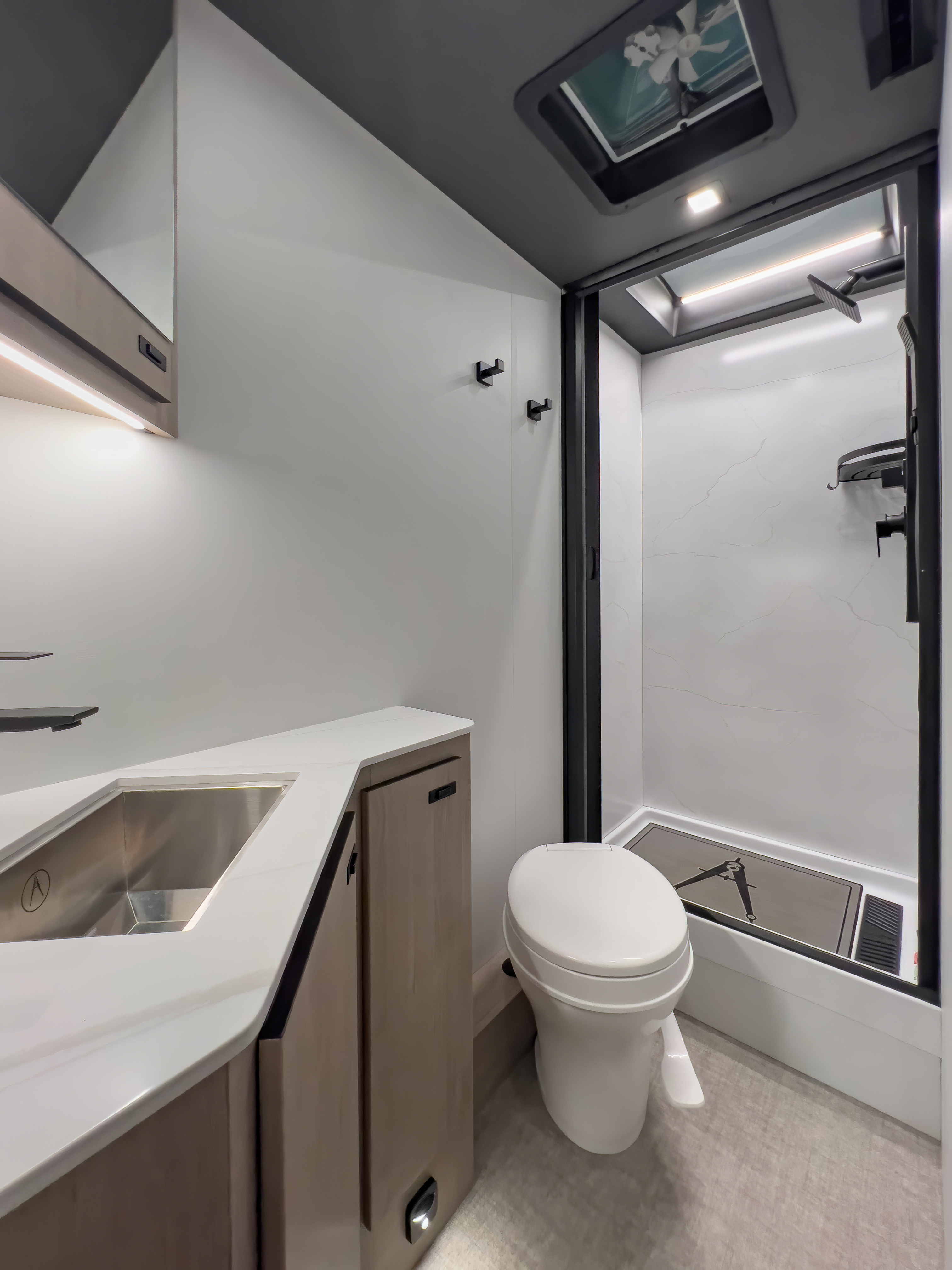

BATHROOM
Custom Shower Surround and Pan w/Linear Slot Drain, SeaDek Pad, Lighted Skylight-Shower Dome Matte Black Bathroom Faucet and Shower Tower Matte Black Retractable Shower Door Solid Surface Lav Countertop w/ Undermount Stainless Sink Porcelain Toilet Matte Black Bathroom Harwards Accessory Package 12V Power Vent

UTILITIES
Firefly Integrations® Touch Screen Command Center, Bluetooth® Switches & Smart Phone App (Global) Titan Aluminum 4-Point Hydraulic Leveling Jacks Battery Disconnects (Entry & Battery Service) 1,800 Watt Xantrax Pure Sine Wave Inverter 4500kW NPS® LP Generator with Auto Generator Start Capabilities ATG Designed Gree A/C System (Ducted 15KBTU AC w/ 12K Heat Pump, Soft Start & Dehumidifier Linear Slot Diffusers, RV Airflow Package, Custom Return Air Plenum and Insulated Ducting Truma® Aqua Go Comfort™ On-Demand Water Heater Utility Center (Water Management Valve, Exterior Shower, Cable TV Hookup, Black Tank Flush) SureLevel® Tank Level Monitoring System 12V Water Pump (4 gallons per minute) 12V Heat Pads (Fresh, Gray & Black Tanks) Carbon-Monoxide, LP/ Smoke Detectors & Fire Extinguisher Temp sensors (Battery Compartment, Interior, Exterior) (2) 130Amp/HR Lithionics Batteries 30 Amp Electrical Service w/ Southwire Transfer Switch Kisae DC-DC Charger / Solar Controller StarLink Satellite Internet (3) 180 watt (600 w Total) Merlin Solar Panels with 30-Amp Controller

Series M Package
Mercedes Benz Sprinter 4500 2WD Natural Teak Wood Grain Suspension Package StarLink Internet SafeRide RV Roadside Assistance RVIA Seal

Ultra Leather Package
Apex Theater Seating or Dinette Booth w/ Drawers & Dream Dinette Bracket Cockpit Seating HeadRest Safe D/P

Blackout Package
Black Aluminum Wheels Black Exhaust Tip Black Logo Letters

Suspension Package
Helwig Helper Springs Bilstien Shocks

Chromeout Package
Chrome Aluminum Wheels Stainless Exhaust Tip Chrome Logo Letters
