GAWR Front
    4,269
    GAWR Rear
    5,291
    GVWR
    9,350
    Length
    20' 11"
    Height
    10' 2"
    Sleeps
    4
    MSRP
    $160,291
    DOWNLOAD SPEC SHEET
    CHASSIS AND DRIVETRAIN
    ChassisRAM / STELLANTIS 3L19 (3500 159 EXT SHR)
    Engine3.6L V6 24V VVT
    TransmissonTORQUEFLITE FWD 9-Spd 948TE Auto Transmission
    HP276 HP
    Torque250 lb.-ft. @ 4400 RPM

    OVERALL SIZE

    Exterior Length

    (including spare tire carrier)

    		20' 11"
    Exterior Width6' 9"
    Exterior Height10' 2"
    Interior Height6' 10"
    Awning Length13'

    WEIGHTS
    GAWR Front4,269
    GAWR Rear5,291
    GVWR9,350
    GCWR12,000
    APPLIANCES
    Water Heater2.6gal Truma Combi Eco Plus
    Refrigerator12V 5.30 cu. ft.
    Furnace7,500 BTU
    AC18,000 BTU

    CAPACITY
    Unleaded Gasoline Capacity24 gal
    Fresh Water Capacity31.50 gal
    Gray Water Capacity26 gal
    Waste Water Capacity12 gal

    RUNNING GEAR
    Axles2
    Tire Size225/75R16C BSW All Season Tires
    Wheel Base159" in.
    DIMENSIONS
    Bed Size73” x 62”
    Upper Bed Size71” x 60”
    Dinette65” x 58”

    QUANTITIES
    Sleeping Capacity4
    Sleeping Areas1 to 2
    Seat Belt Positions6

    POWER
    House BatteriesLithionics 12V 310Ah 3,968 Wh (2nd battery optional)
    SolarMerlin 180 Watt Flex Panel
    Shore Power30 AMP
    FRAME & CHASSIS
    • 3500 Dodge Cargo Van Super High Roof (159in WB EXT)
    • GVWR 9,350 lbs / GCWR 12,000 lbs
    • 3.6L V6 24V VVT
    • Transmission: TorqueFlite FWD 9-Spd 948TE Auto Transmission

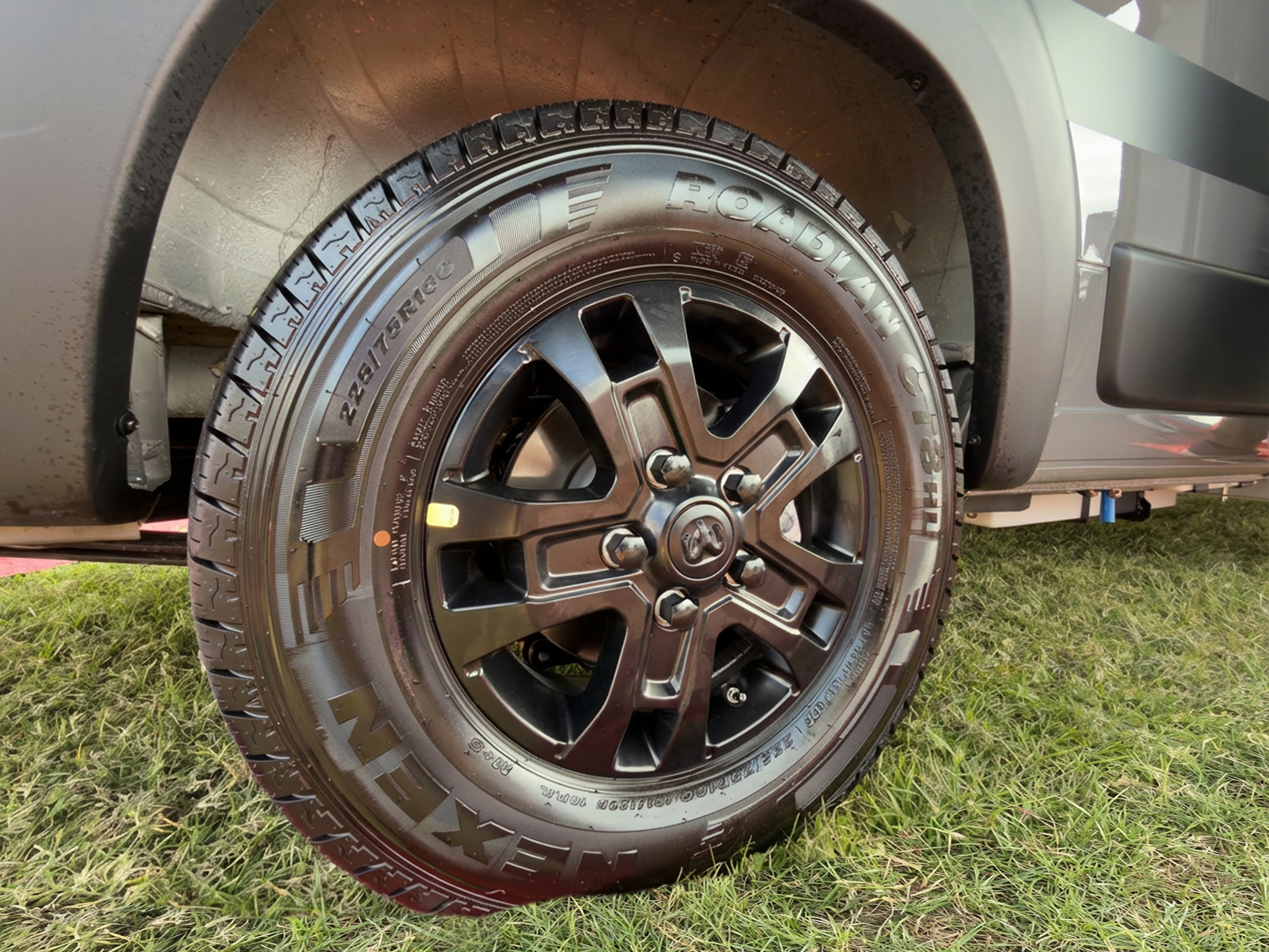

    • 225/75R16C BSW All Season Tires
    • 16 x 6-inch front and rear black aluminum wheels
    • Premium Heavy Duty Suspension
    • 220 Amp Alternator
    • Auto high beam headlamp control
    • Full size spare tire underslung
    • Blind Spot and Cross Path Detection
    • Intelligent Speed Assist
    • Digital Rearview Mirror with AutoDim
    • Lane Departure Warning Plus
    • ParkSense FR/RR Park Assist System

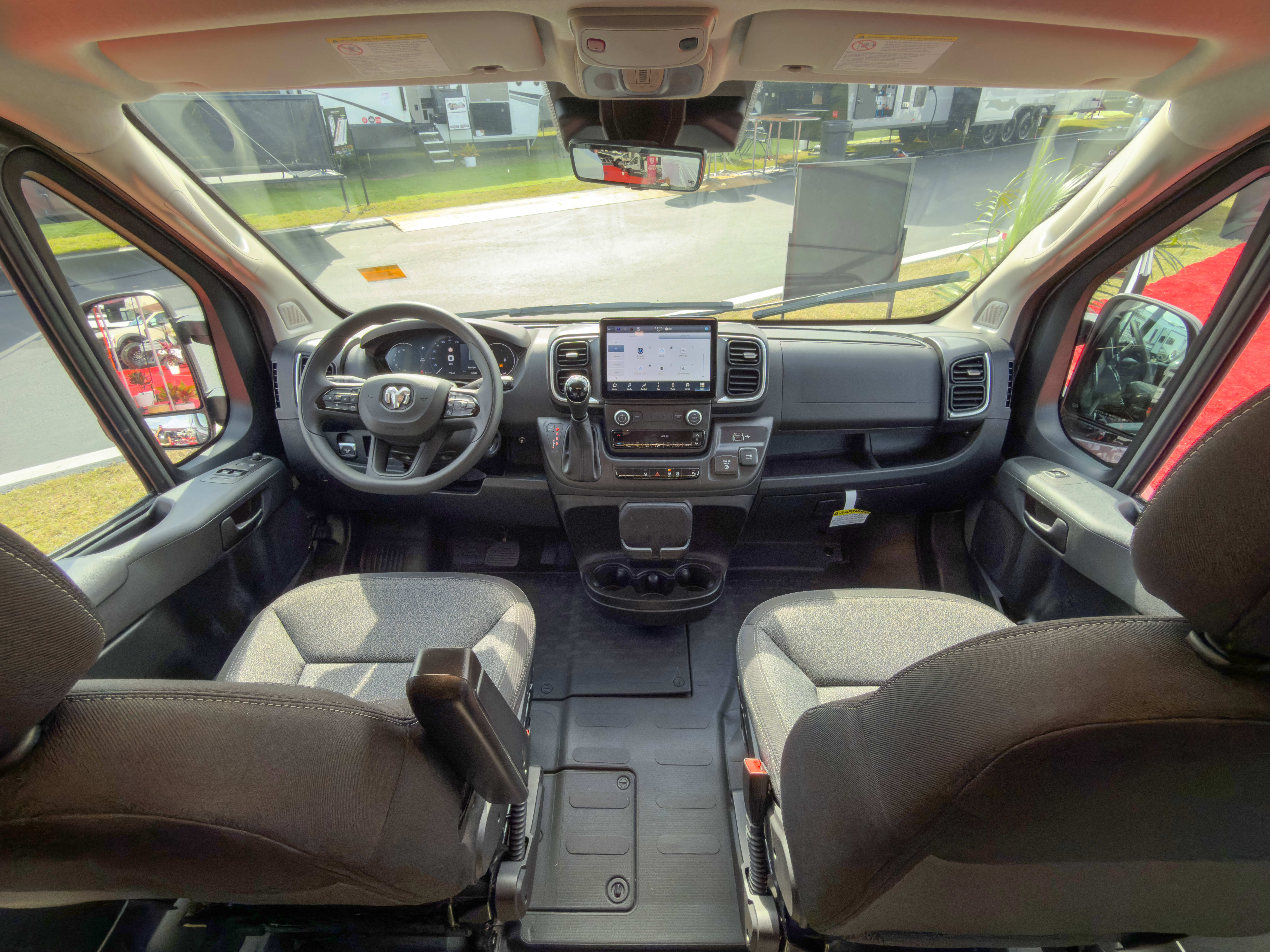

    • Uconnect 5 Nav w 10.1" Display
    • Wireless Charging Pad
    • Passive Entry
    • Swiveling Driver and Passenger Seat
    • Passive Entry
    • Apple CarPlay/Google Android Auto
    • Remote Start
    • SiriusXM Radio Service
    • Front Cup Holders
    • USB-C Socket
    • 5,000lb tow hitch

    CONSTRUCTION

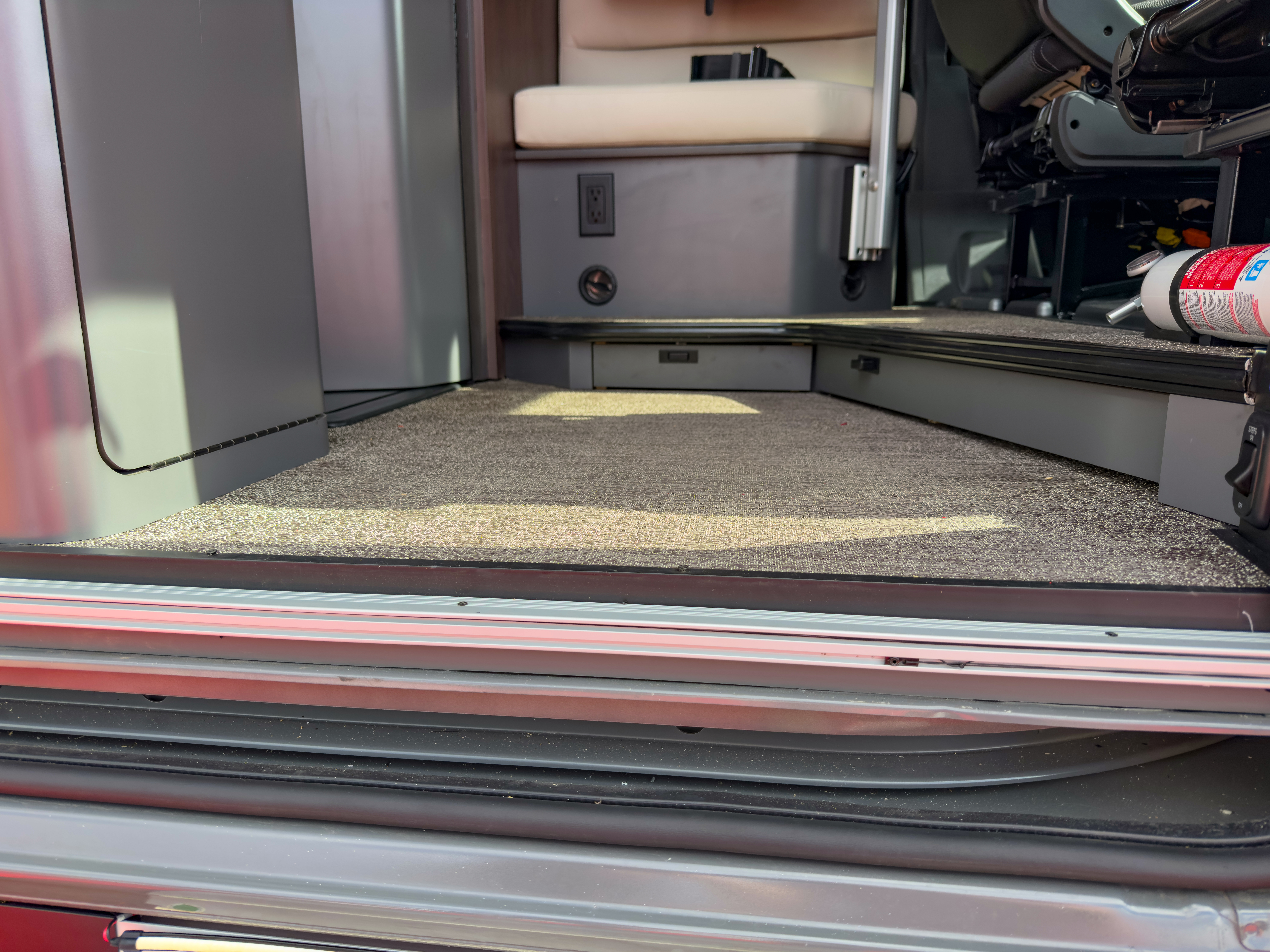

    • 2" Plascore Honeycomb composite floor with bottom radiant barrier
    • 2tec2 Woven Fabric flooring
    • Alpha insulation and 3M Thinsulate
    • CNC Routed Wall Panels
    • Thermoformed ABS kithenette panels
    • Thermoformed Automotive wall panels
    • SharkBite Evo Pex Push2Connect Plumbing System (Max SS braided shut offs)

    EXTERIOR
    • Polyplastic Double Pane acrylic operable windows
    • 13ft Girard Armless Awning with Wind Sensor
    • Starlink prep included bracket and power cord
    • Exterior Shower
    • Ladder Prep

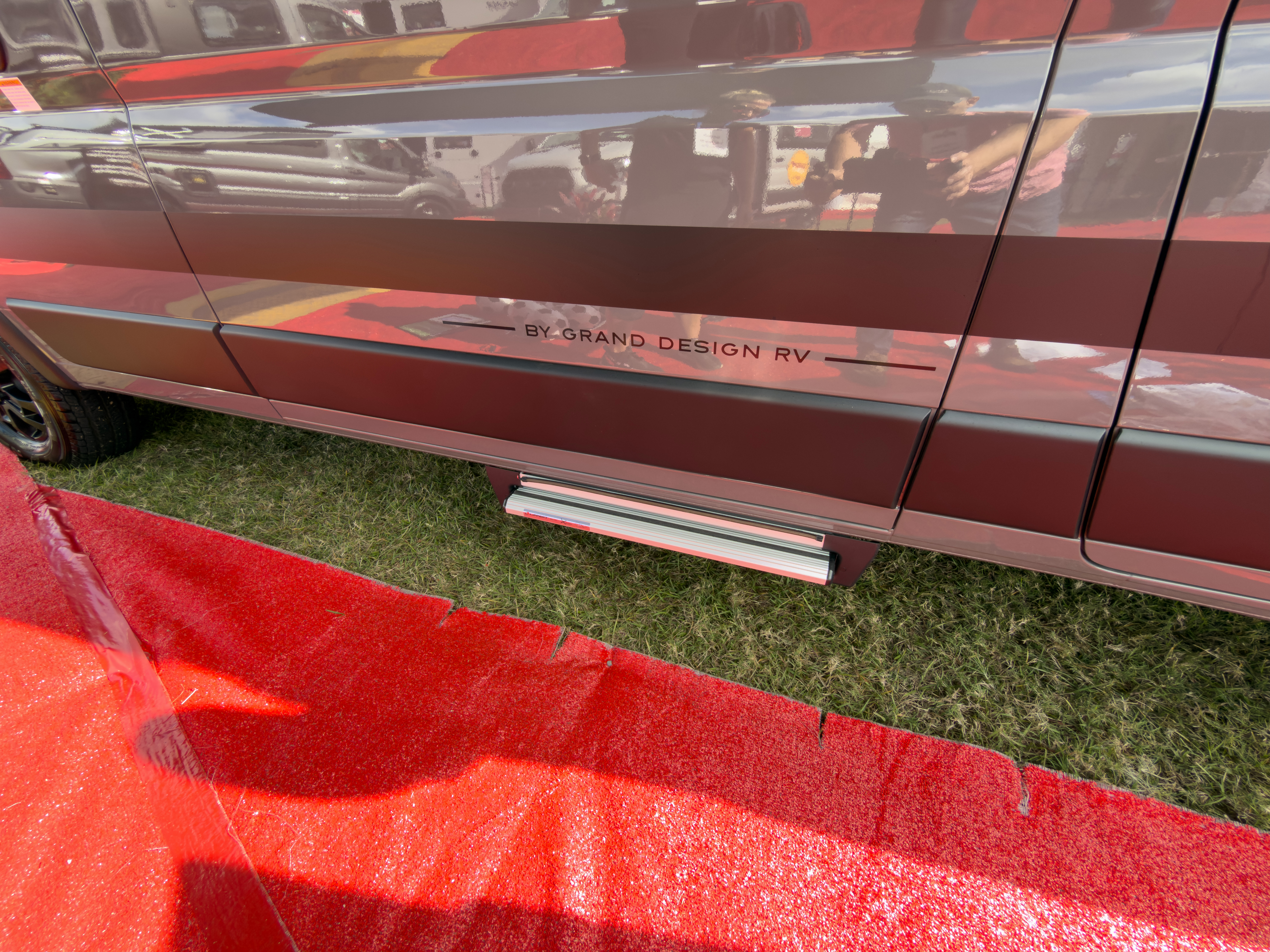

    • Power Sliding Step
    • Thule Bike Rack Carrier
    INTERIOR

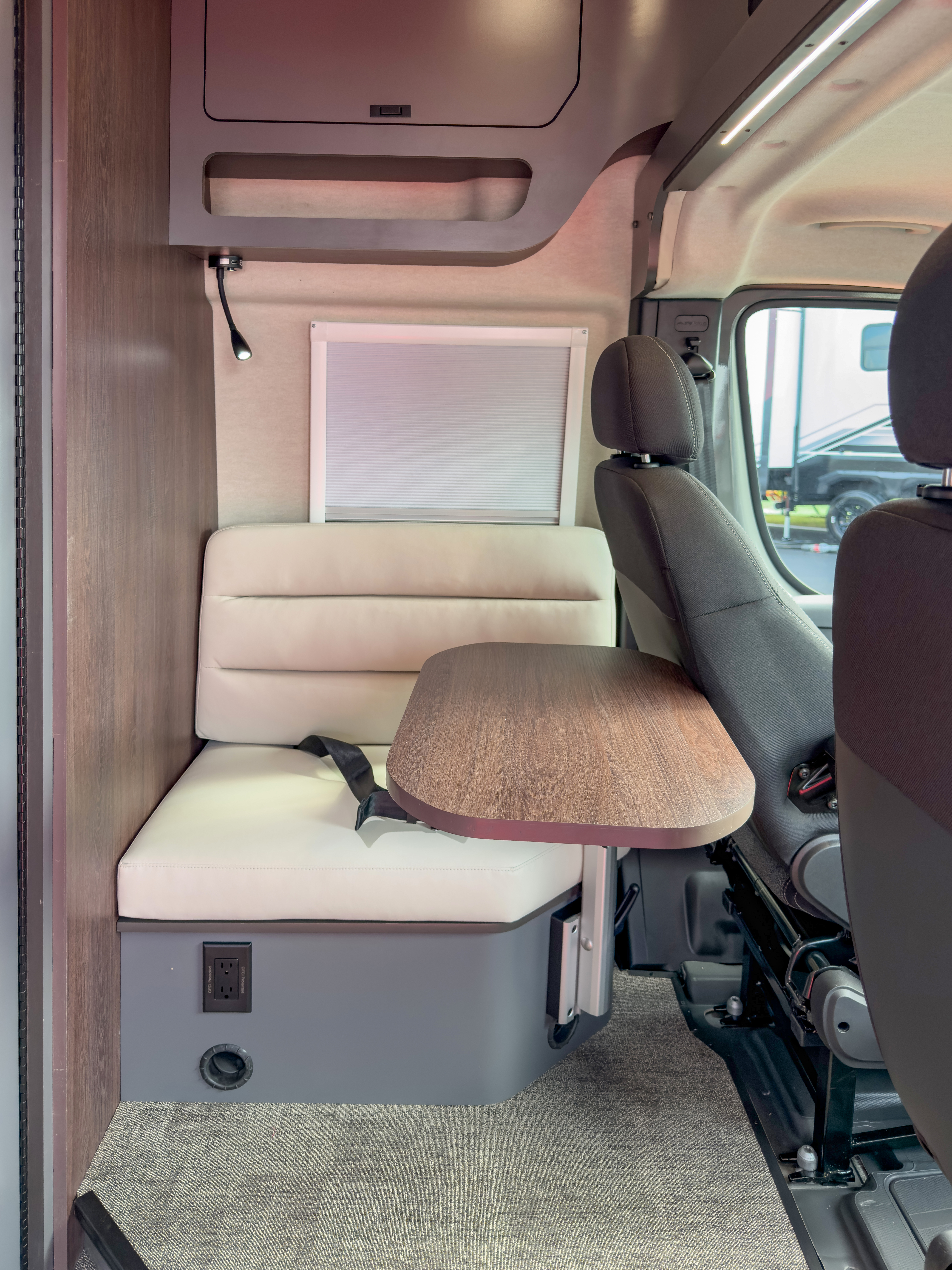

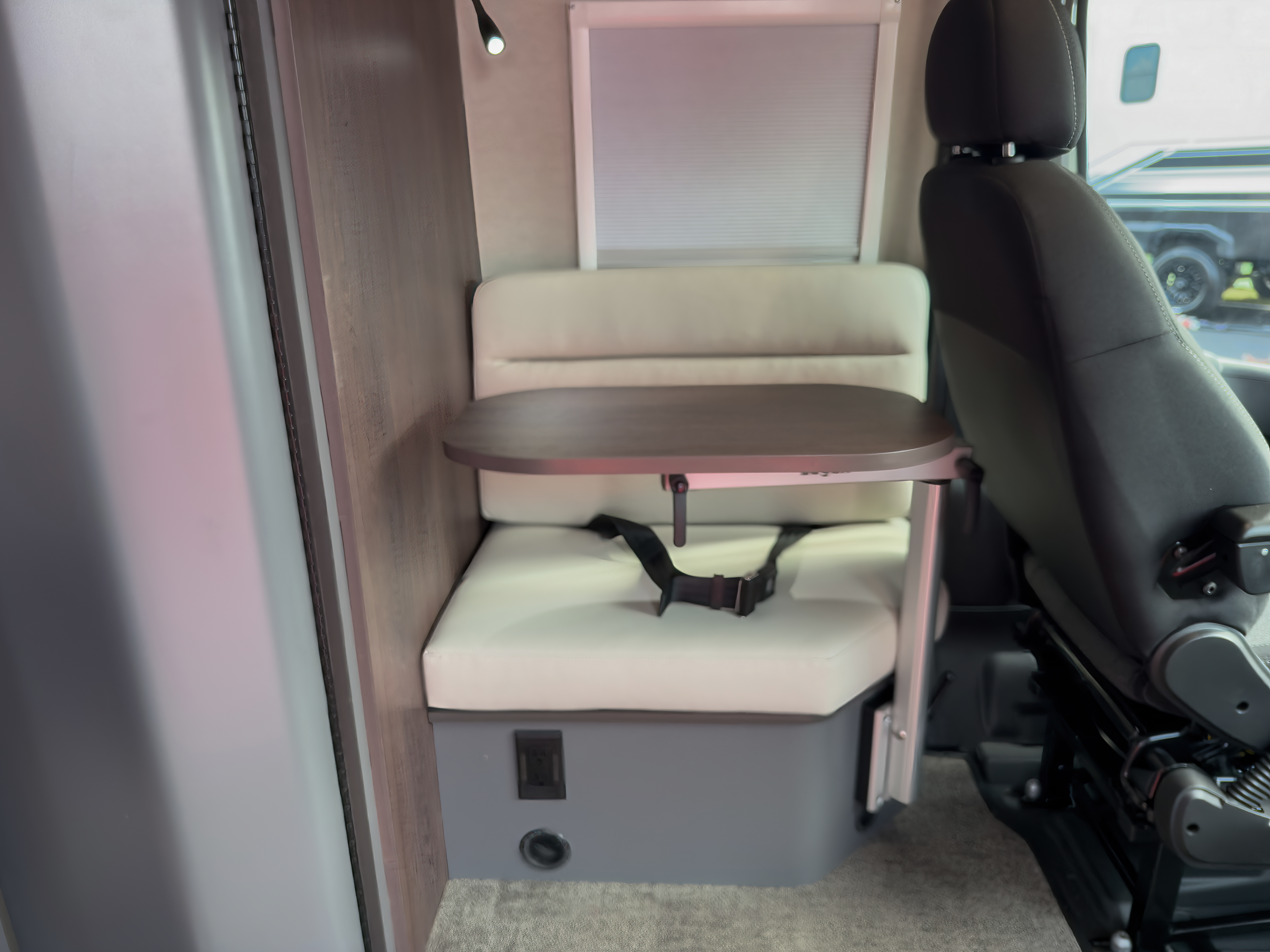

    • Side facing lounge bench w/ Lagun Table
    • Integrated black out window shades and screens
    • Multiple charging ports

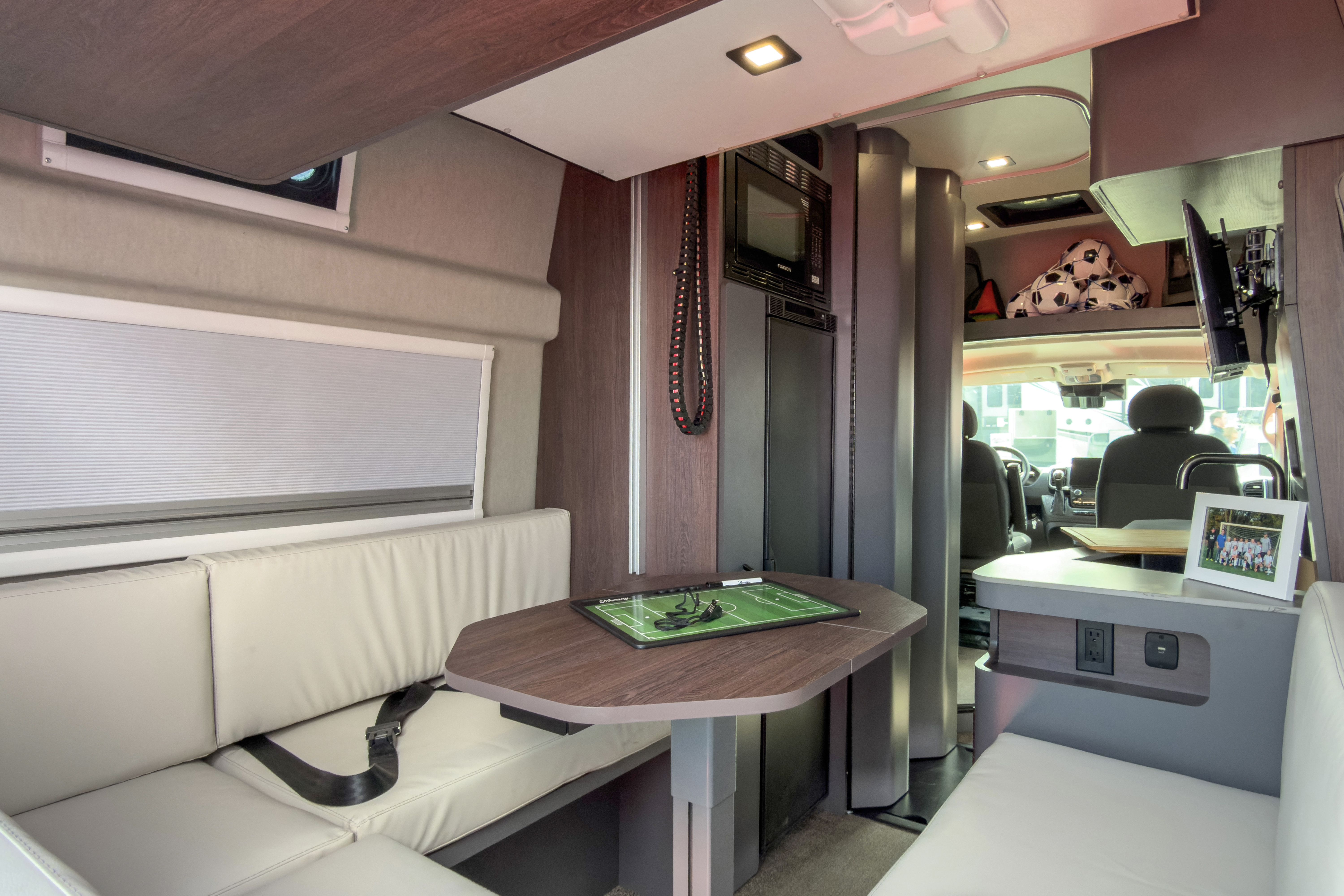

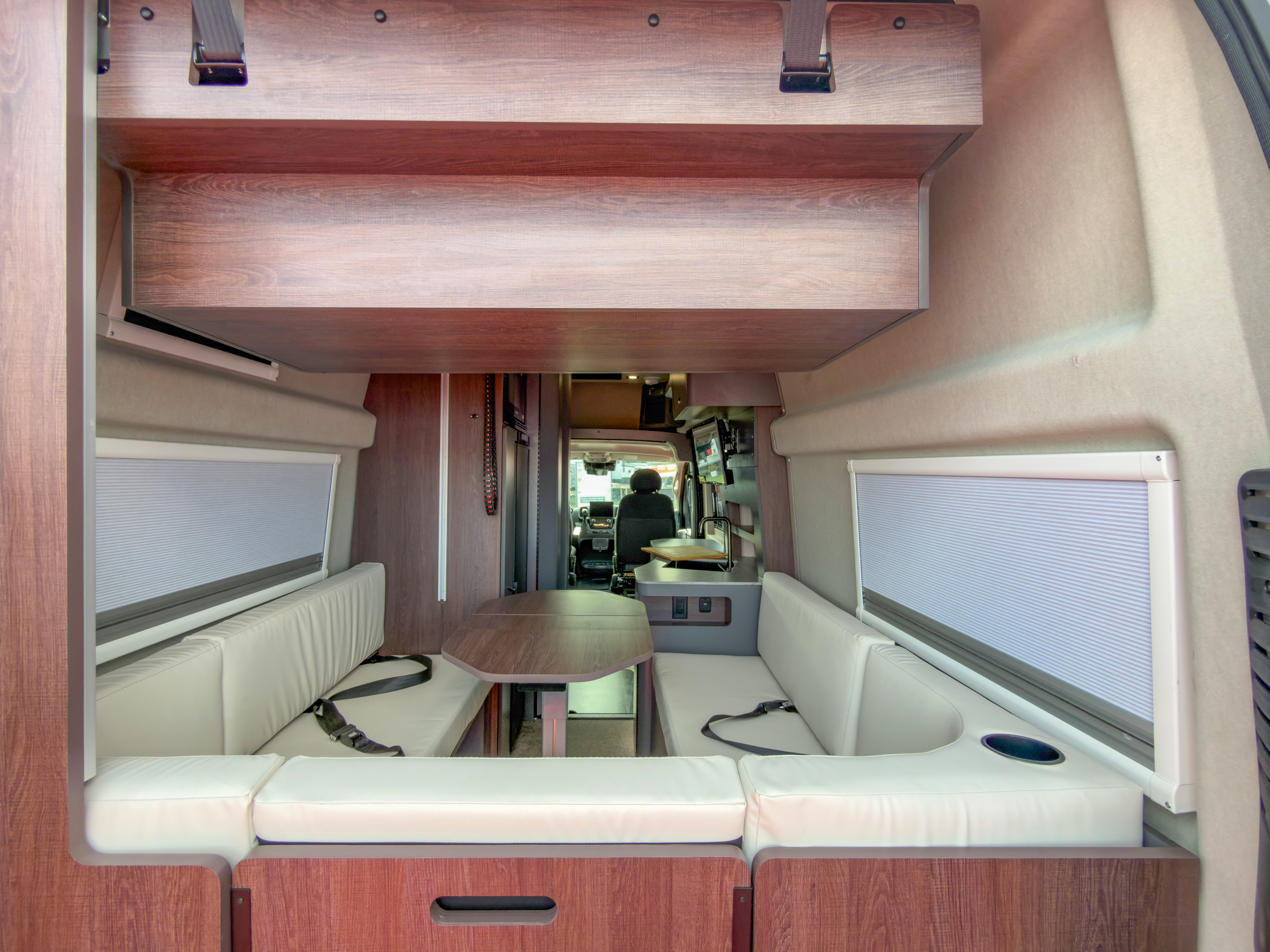

    • Rear U-Shaped dinette lounge
    • 6 seatbelt positions

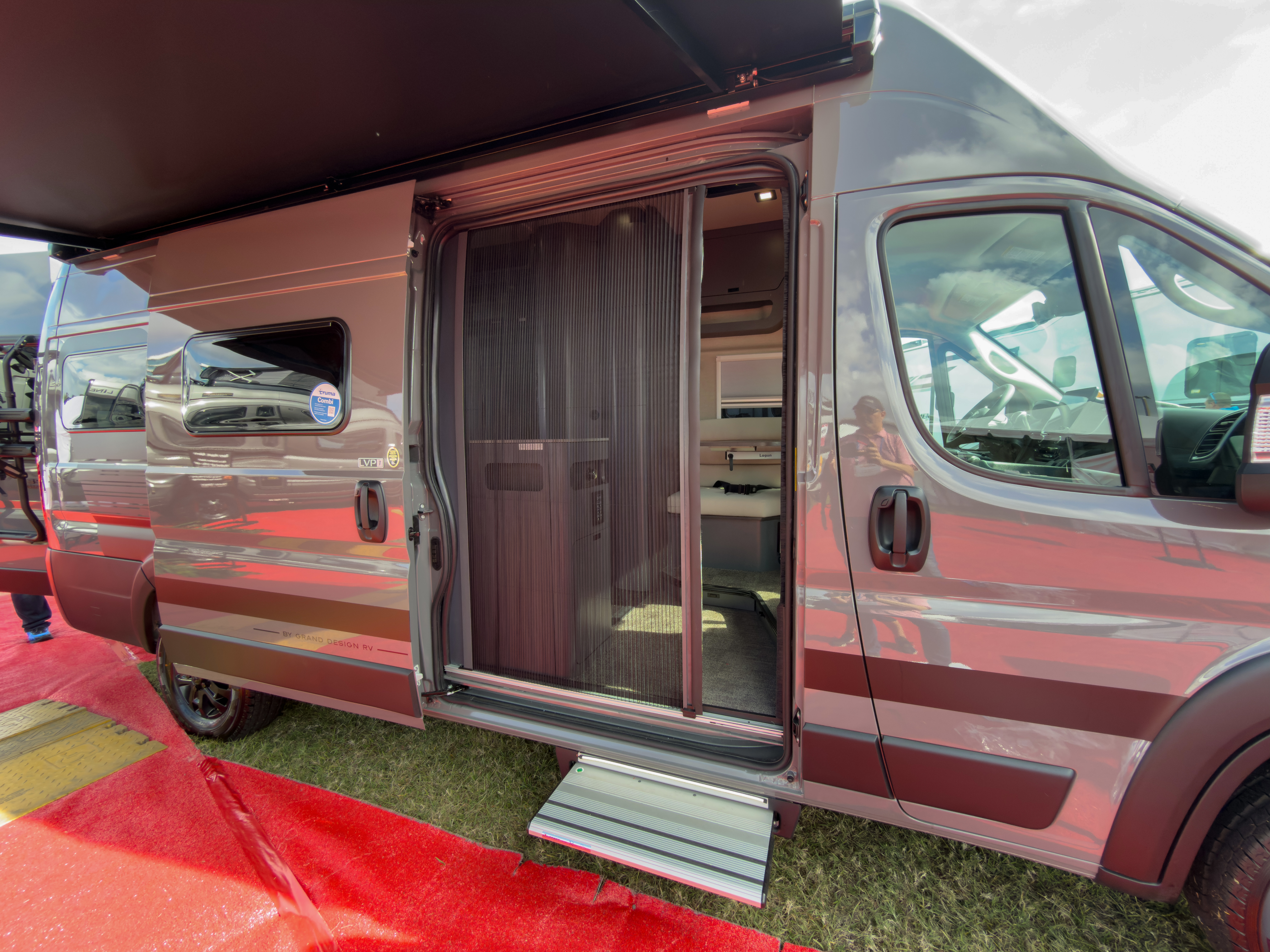

    • Pull Across Flyscreen

    KITCHEN

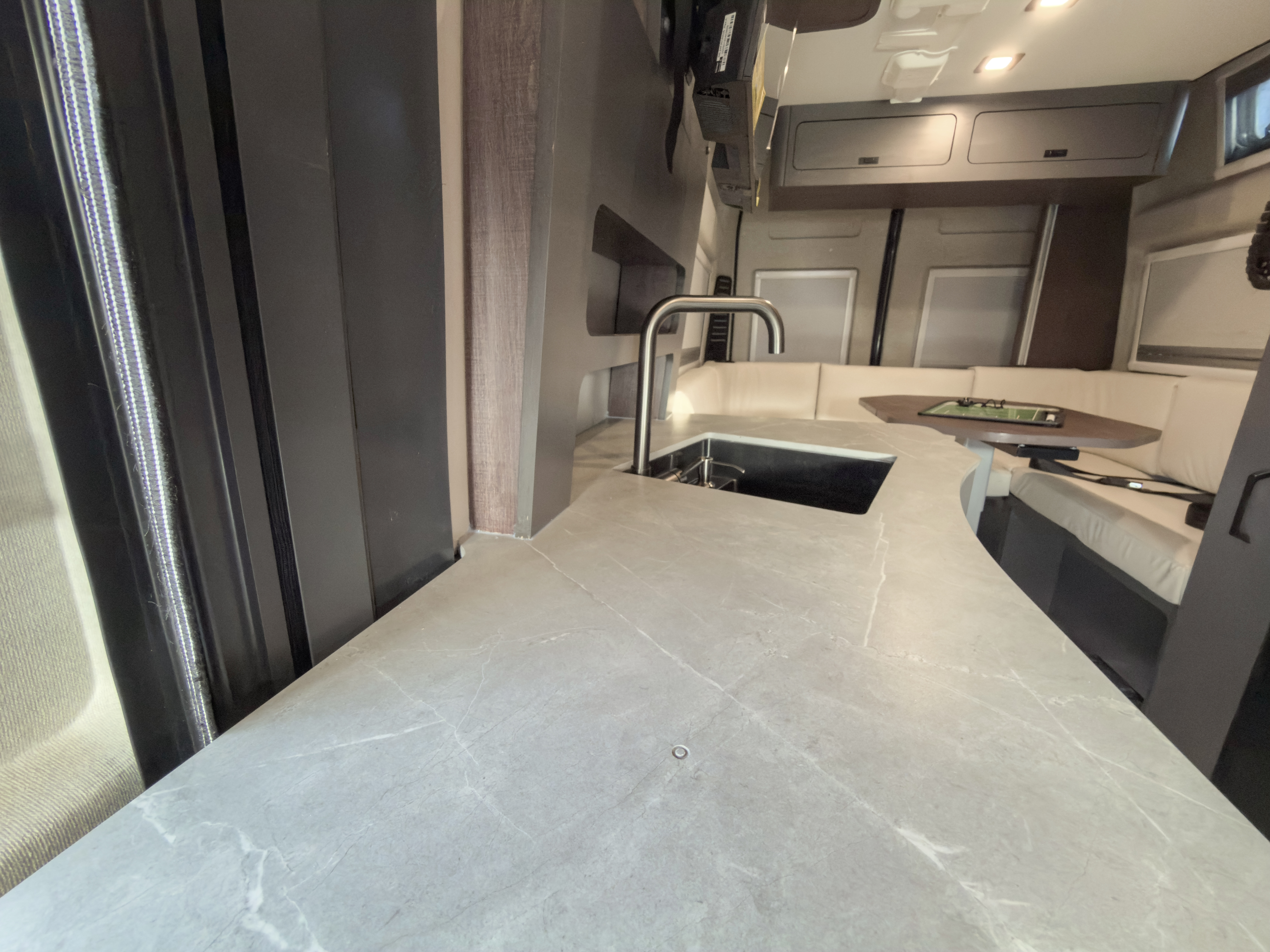

    • Invisacook Hidden Single Burner Induction Cooktop
    • Porcelain countertop
    • Furrion 0.9 cuft Air Fryer/Convection microwave
    • Positive locking latches
    • Soft-Close drawer slides

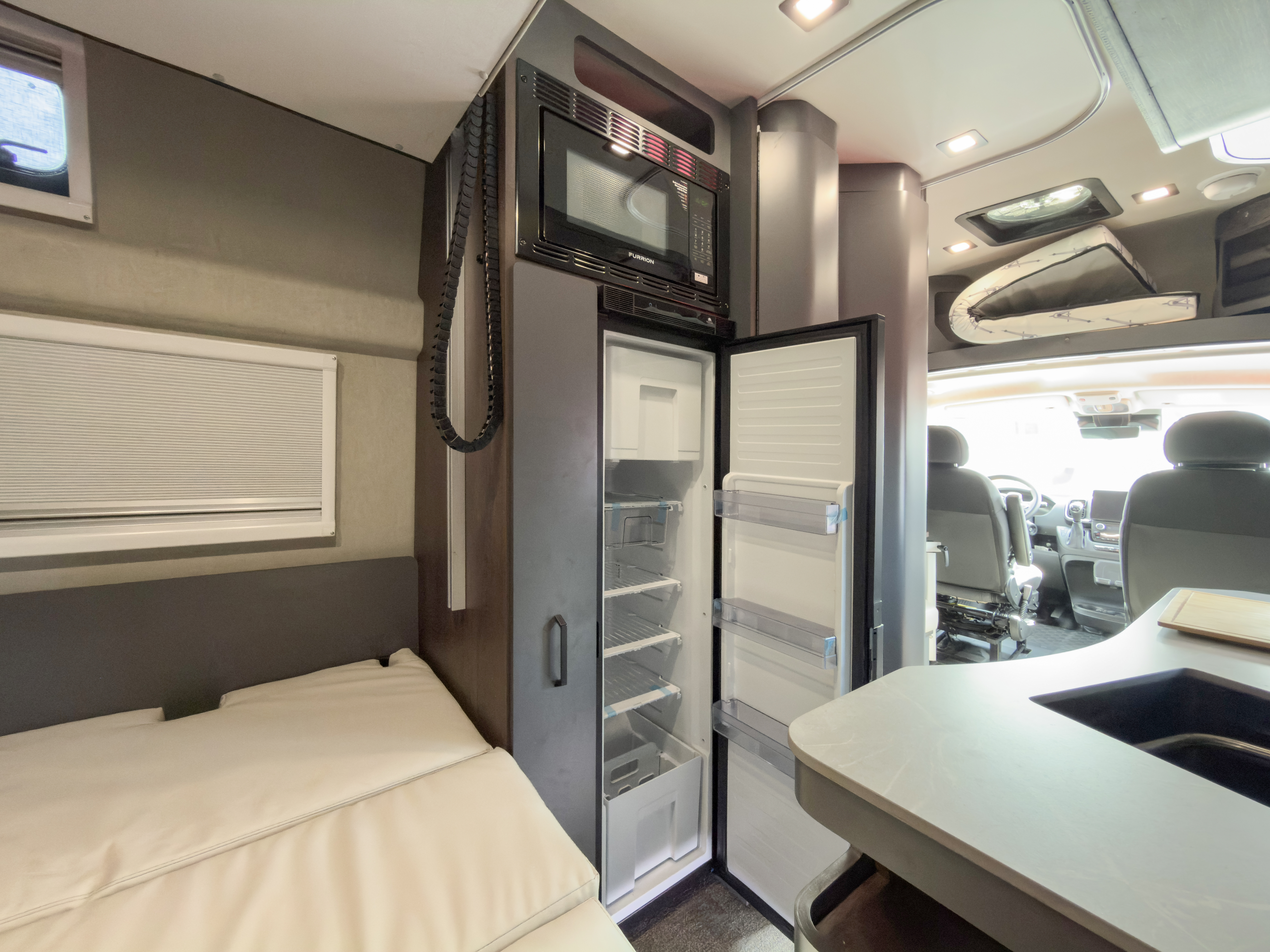

    • Norcold 5.3 cu. ft. 12V DC
    • Pull Out Pantry

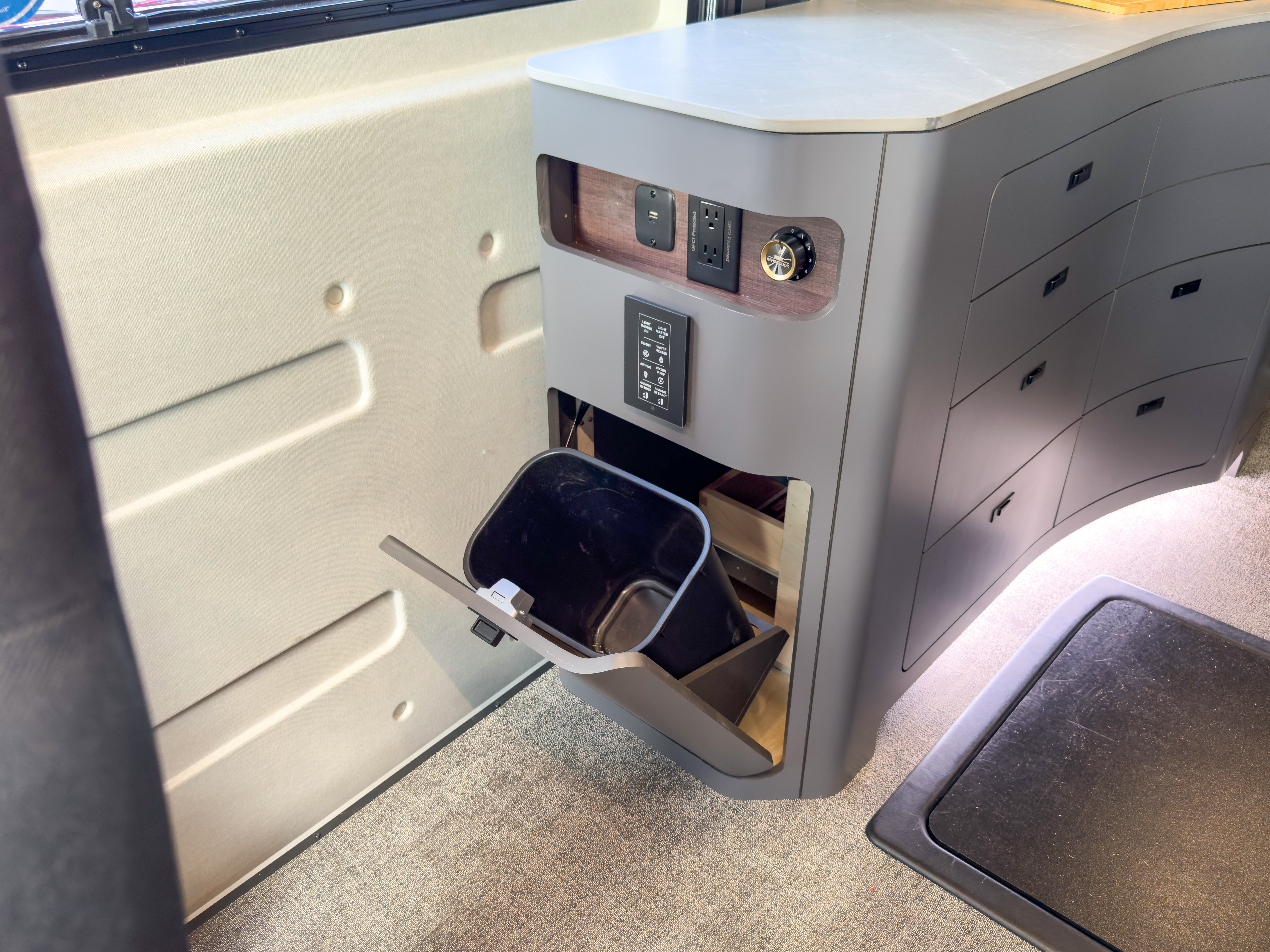

    • Tip out trash can

    BEDROOM

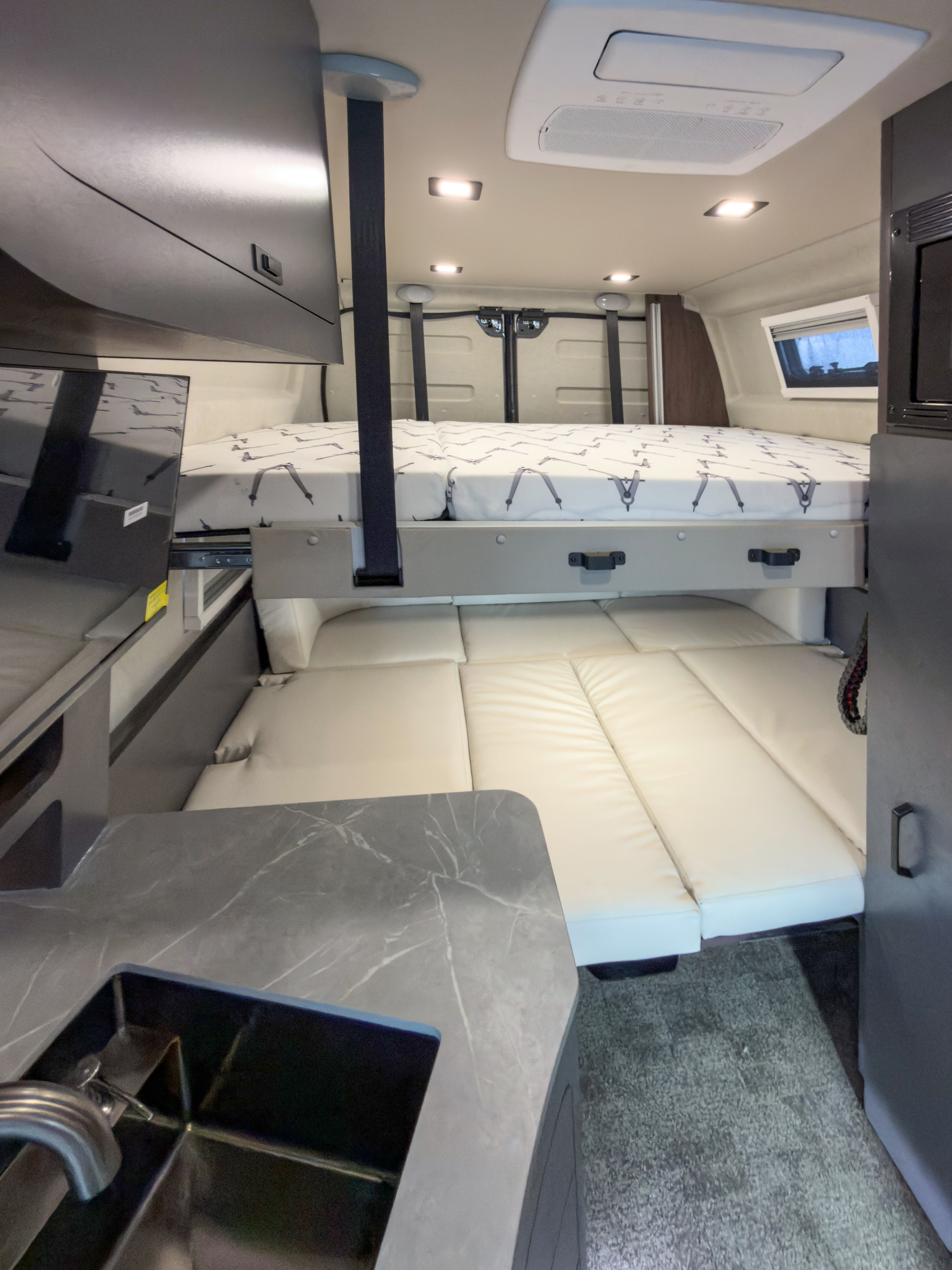

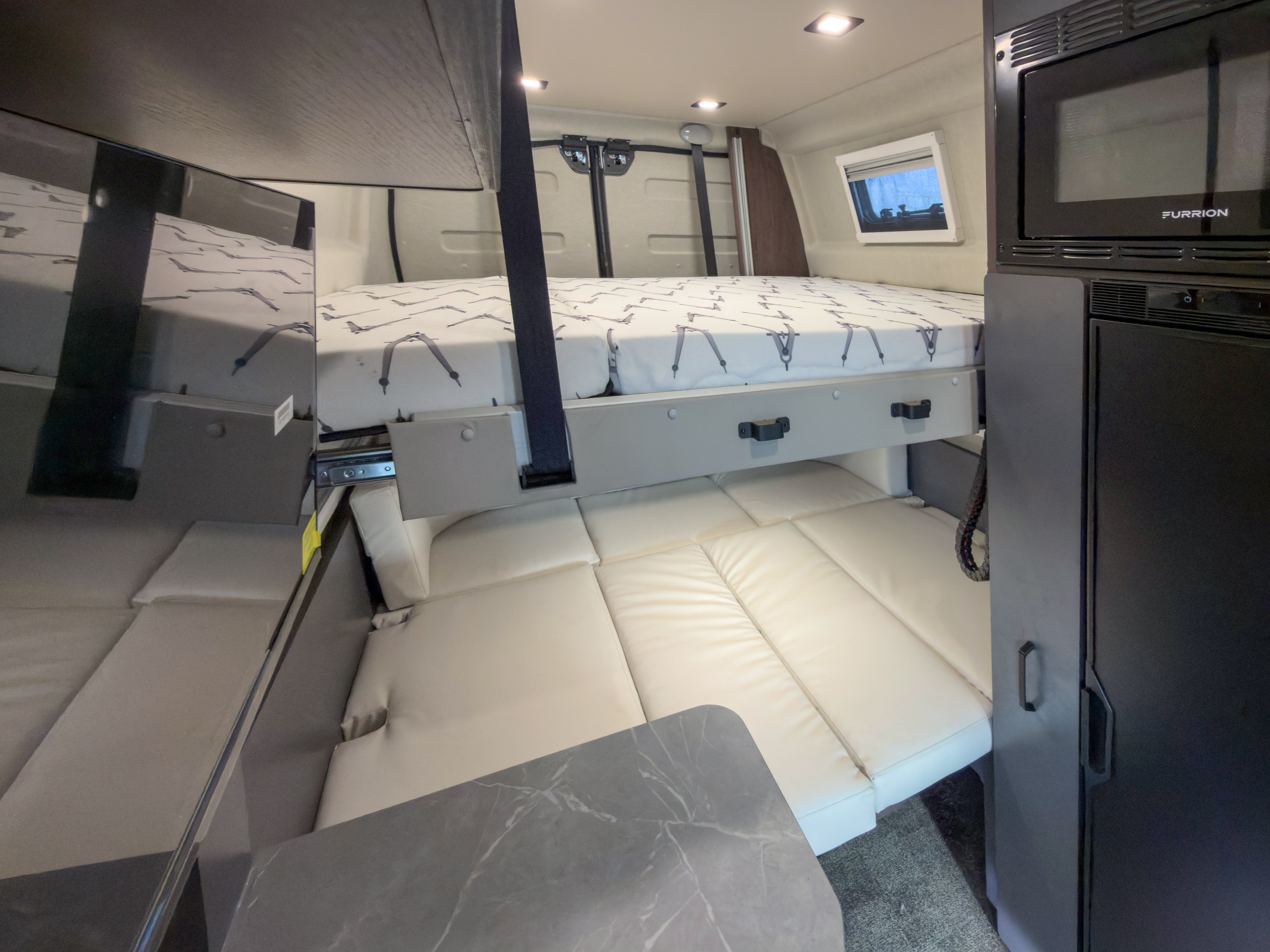

    • Expanding Lift Suite drop down bed
    • LED Reading Lights
    • USB-C Charging Ports
    • Pull Out and Telescoping Dinette Table

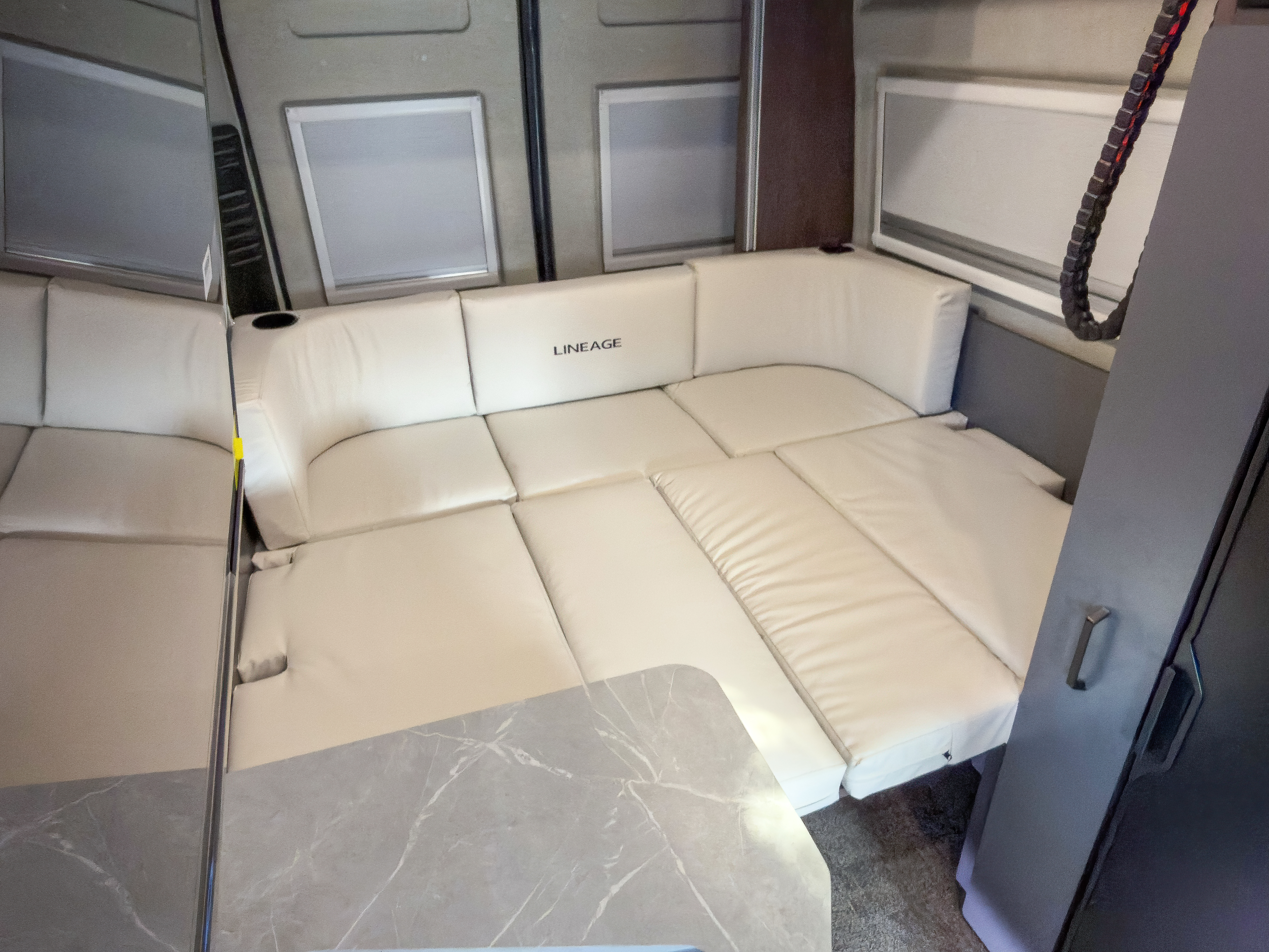

    • U shaped lounge converts to queen bed

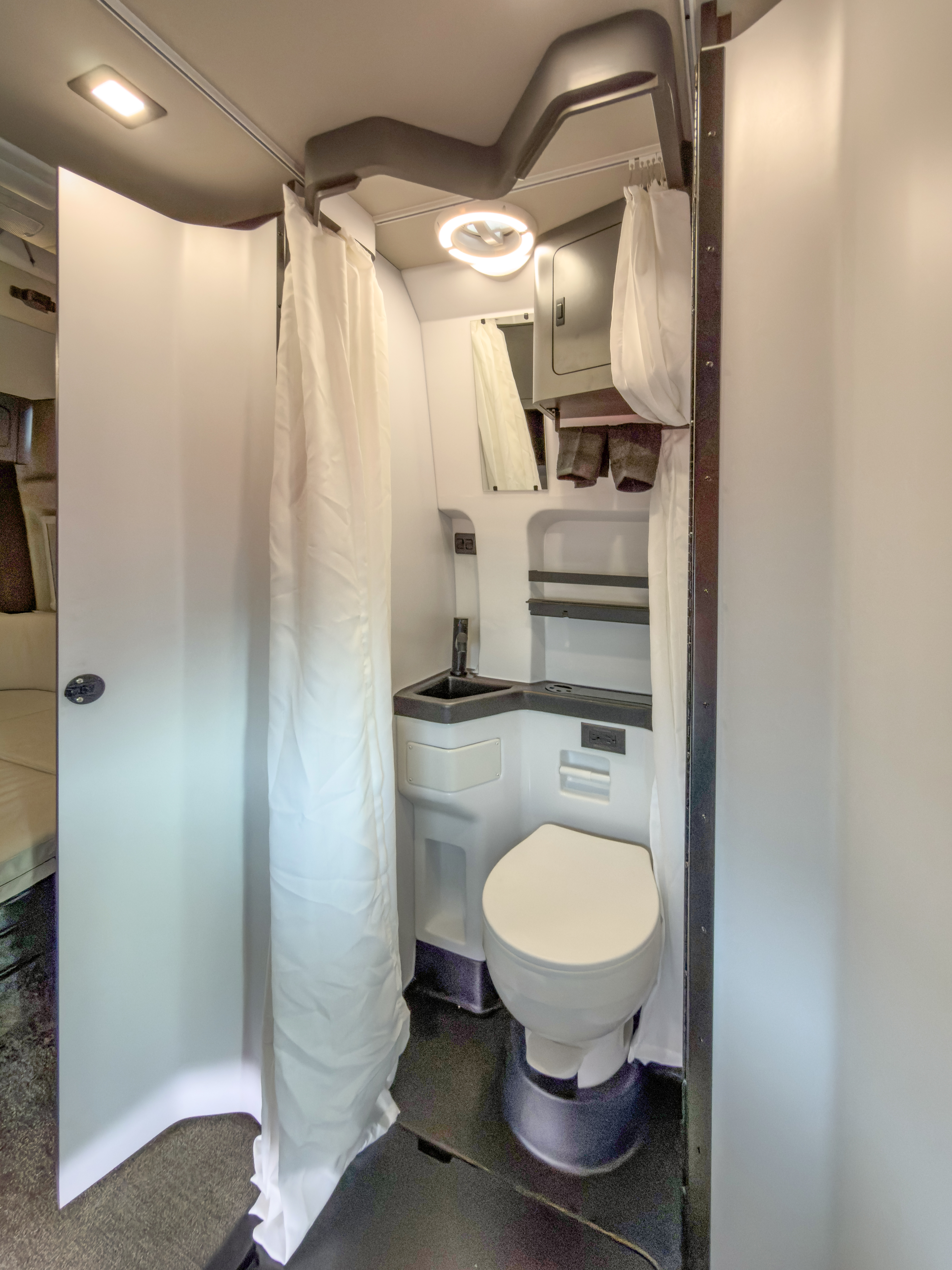

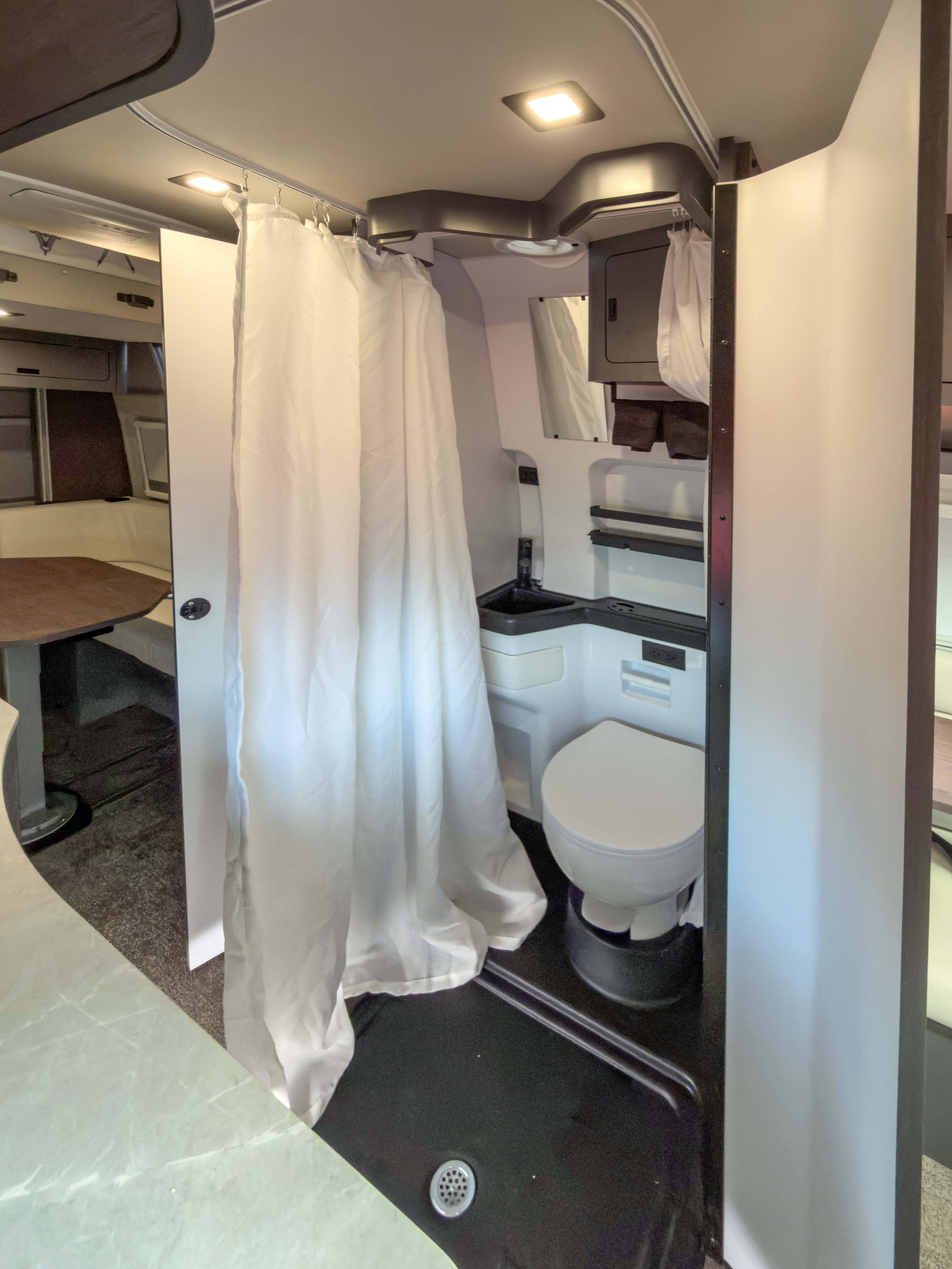

    BATHROOM
    • Thetford Toilet
    • LED Vent Fan
    • Medicine cabinet
    • Sink with pullout shower wand
    • Three position bathroom door: Travel, Toilet & Shower
    • Integrated flush floor shower pan

    UTILITIES

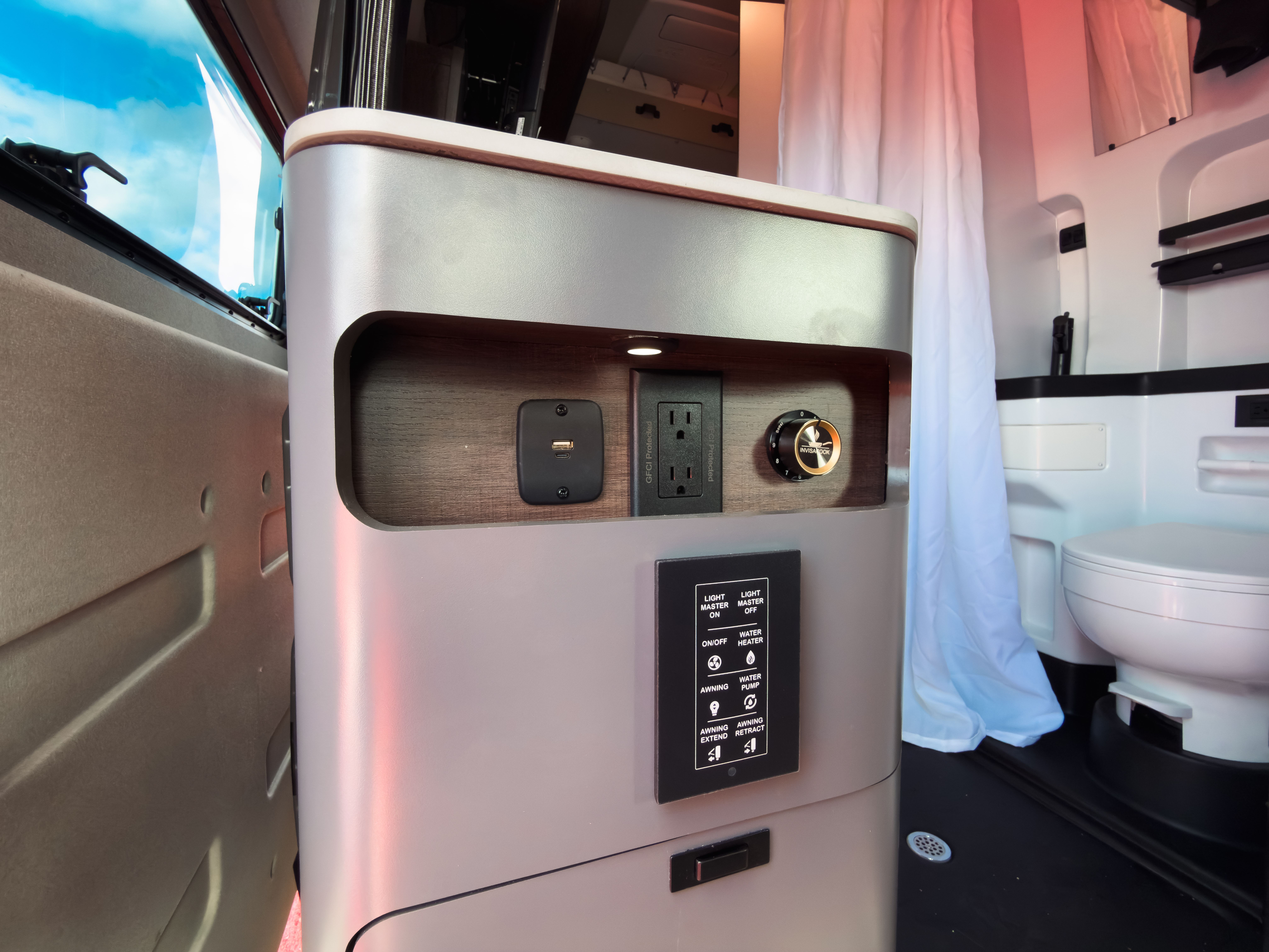

    • Firefly Integrations® Touch Screen Command Center, Bluetooth® Switches & Smart Phone App (Global)
    • 3,000 Watt 12 volt inverter charger

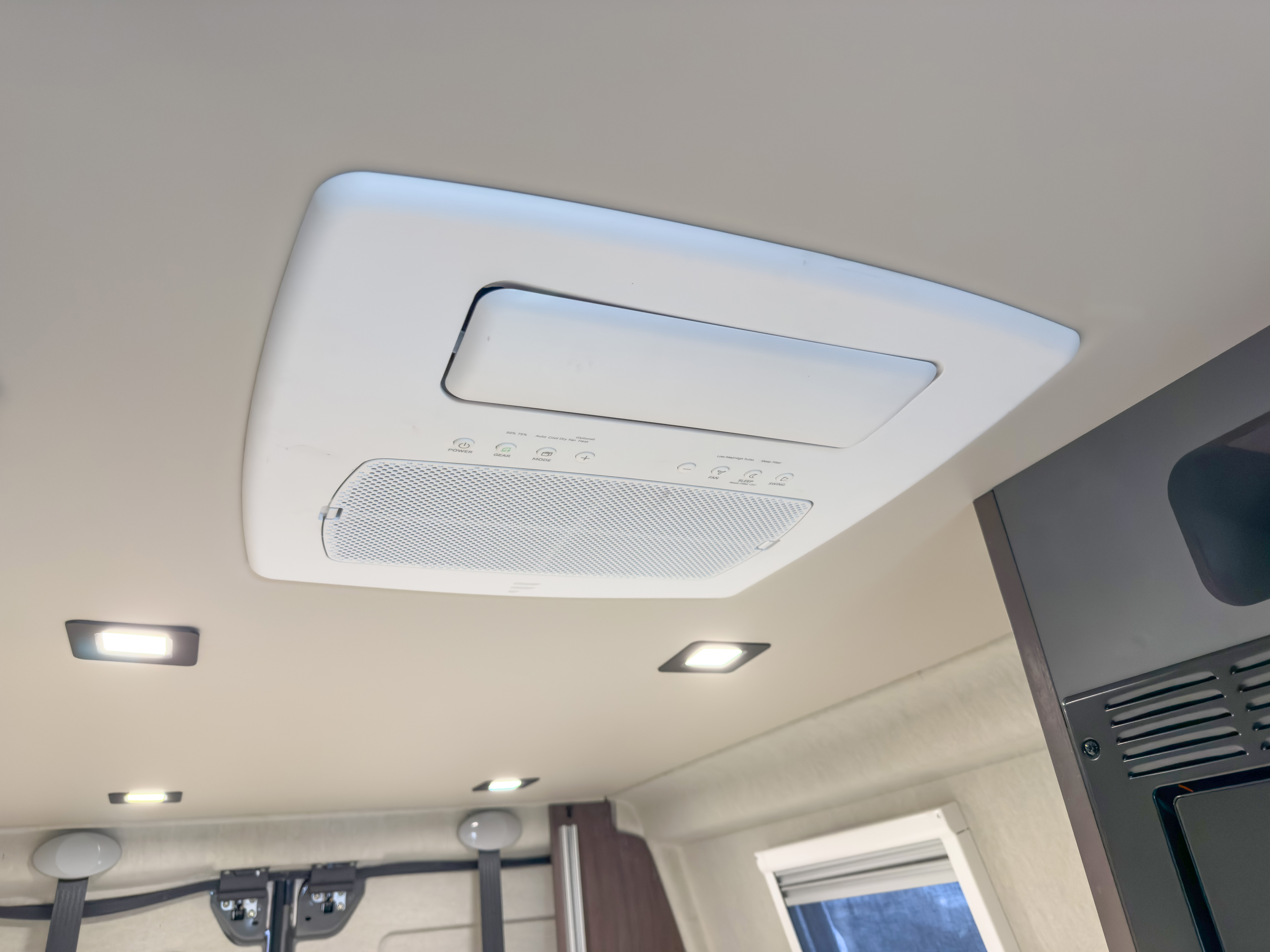

    • 18K BTU Furrion Chill Cube Variable speed with Heat Pump
    • 12V Water Pump
    • 12V Heat pads (Fresh and Gray tanks)
    • Carbon-Monoxide, LP/ Smoke Detectors & Fire Extinguisher
    • 30 Amp Electrical Service
    • Victron Solar Charge Controller
    • Maxx Air Fan
    • 3,968 Watt-Hours 12V Lithionics battery (2nd battery optional)
    • 180 Watt Merlin Solar Panel
    • Truma Combi G (Gasoline) Furnace and Hot Water Heater (2.6 gal)
    Lineage Series LVP Package
    Chassis: Ram ProMaster 3500 Super High Roof Ext.
    Standard VP Power Package
    SafeRide RV Roadside Assistance
    RVIA Seal
