Lineage | LVT2

Lineage | LVT2
LVT1

Length

20' 11"

LVT2

Length

20' 11"

Build and Price your Grand Design RV GDRV

$0

Country Code US CA

Contact Method

Yes, I would like to receive text messages from Grand Design. **Standard message and data rates may apply. You may opt out at any time.*

*MSRP shown in USD. Pricing does not include freight, tax, title, license or dealer prep charges. Because of our commitment to continuous product improvement, Grand Design Recreational Vehicles reserves the right to change prices, components, standards, options, specifications, and materials without notice and at any time. Be sure to review current product details with your local dealer before purchasing.

Features and Packages
included in the starting price:

GAWR Front
4,630

GAWR Rear
6,100

GVWR
9,950

Length
20' 11"

Height
10' 2"

Sleeps
2

MSRP
Coming Soon

DOWNLOAD SPEC SHEET

Specifications
Standard Features
Packages

CHASSIS AND DRIVETRAIN
Chassis	Ford W2XC T350 (long) HR CARGO AWD
Engine	3.5L V6 GTDi
Transmisson	10-speed automatic
HP	310 HP
Torque	400 ftlb @ 2500 rpm

OVERALL SIZE
Exterior Length (including spare tire carrier)	20' 11"
Exterior Width	6' 9"
Exterior Height	10' 2"
Interior Height	6' 4"
Awning Length	11' 6"

WEIGHTS
GAWR Front	4,630
GAWR Rear	6,100
GVWR	9,950
GCWR	12,600

APPLIANCES
Water Heater	2.5 gal
Refrigerator	12V 3.20 cu. ft.
Furnace	6,800 BTU
AC	20,000 BTU

CAPACITY
Unleaded Gasoline Capacity	25 gal
Fresh Water Capacity	34 gal
Gray Water Capacity	23 gal

RUNNING GEAR
Axles	2
Tire Size	255/70R16 120/117S
Wheel Base	148" in.

DIMENSIONS
Bed Size	54 X 80

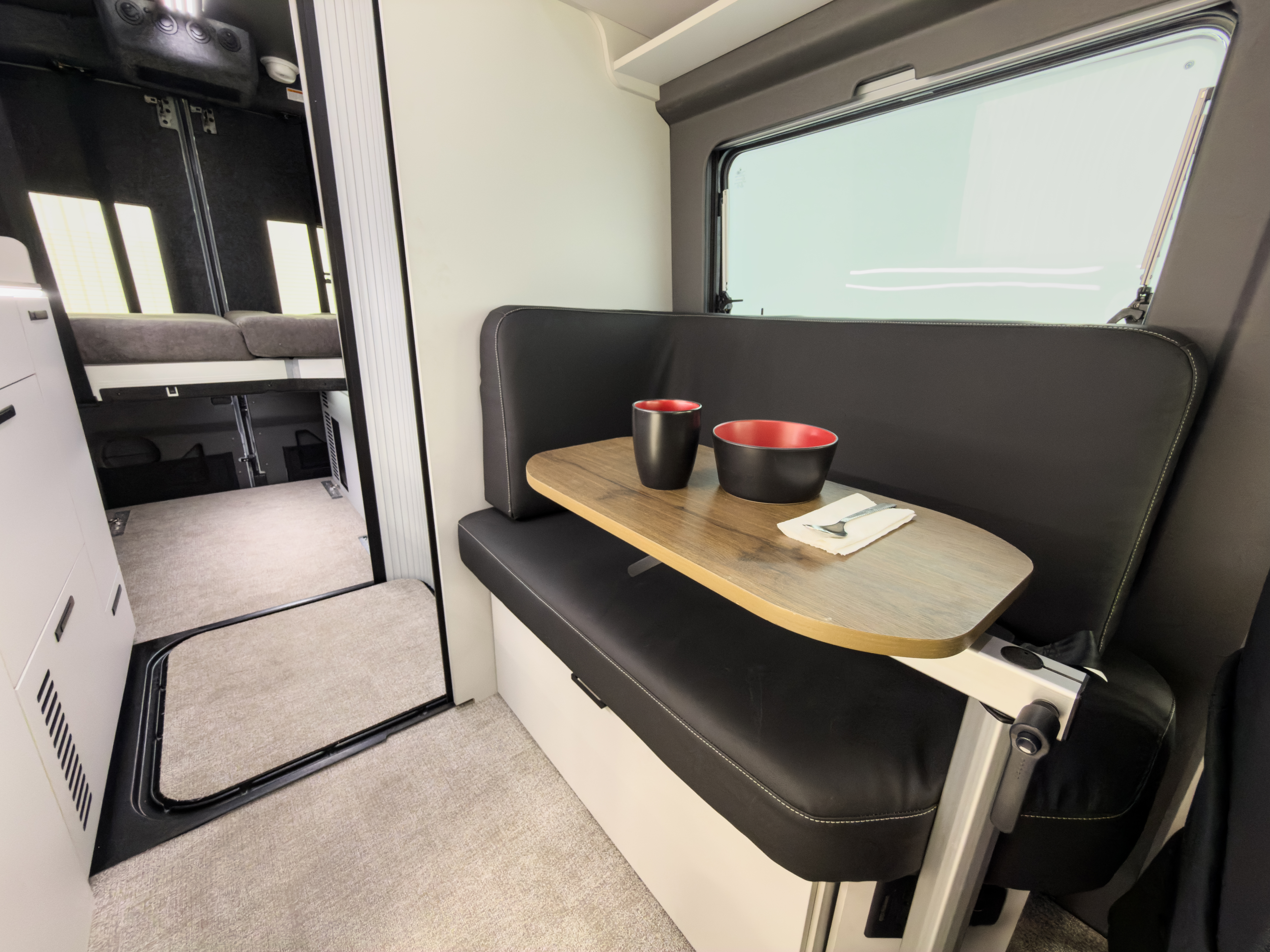

Dinette	36” bench seat, 28” x 18” dinette table, expandable to 44” x 18”

QUANTITIES
Sleeping Capacity	2 to 4 (4 with pop-top option)
Sleeping Areas	1 to 2
Seat Belt Positions	4

POWER
House Batteries	8,448 Watt-Hours 51V Lithionics battery (5,120 Watt-Hours with Pop-Top Option), prepped for 2nd battery with battery tie downs and Y harness connected to external Battery Management System - BMS

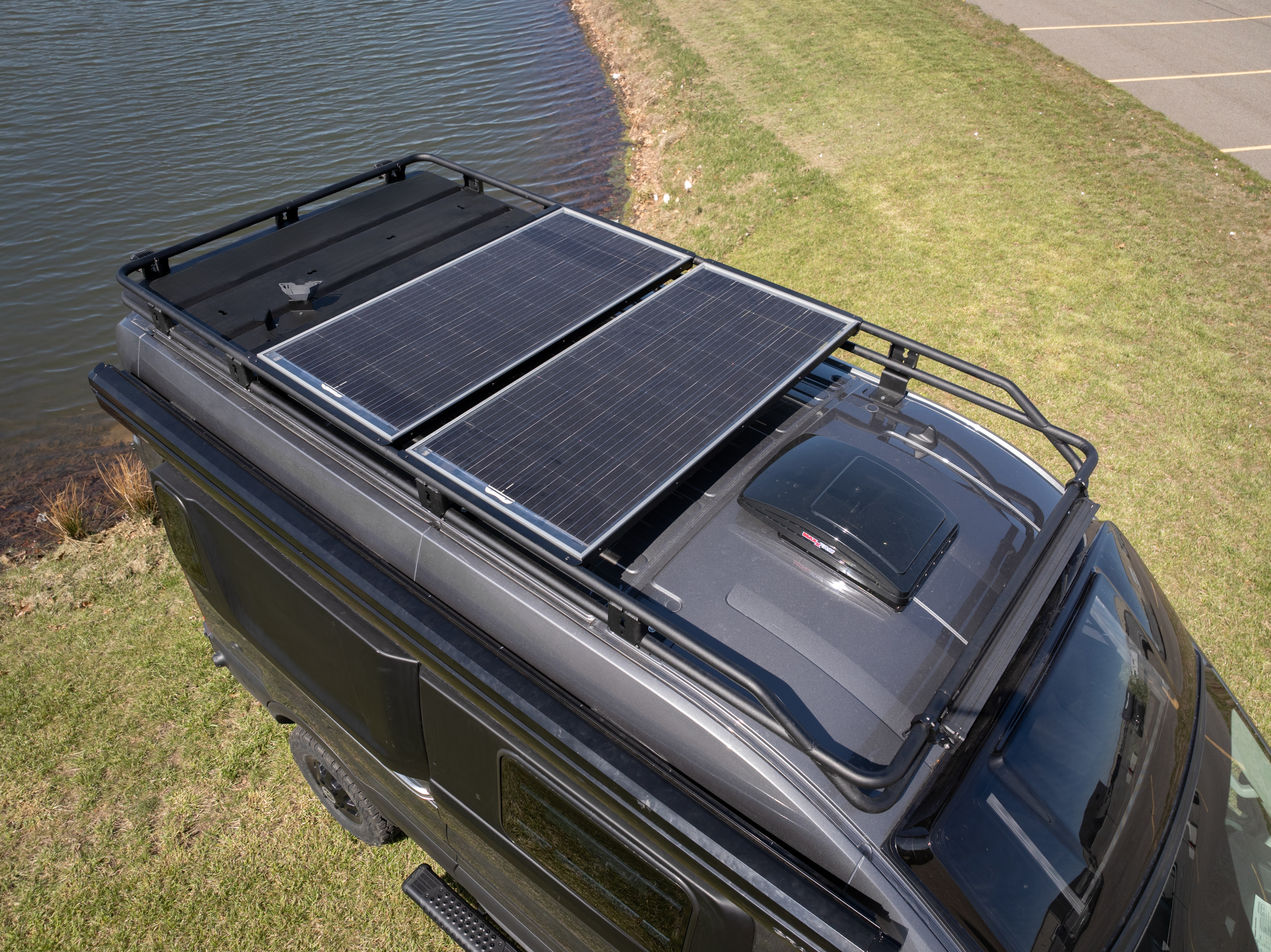

Solar	360 watts solar standard. 300 watt solar with pop-top option. 720 watt solar awning option available
Shore Power	30 AMP

FRAME & CHASSIS
Ford Transit Cargo AWD High Roof 148" Wheelbase GVWR 9,950 lbs. / GCWR 12,600 lbs. 3.5L EcoBoost V6 Transmission: 10-Spd Automatic w/OD & SelectShift 3.73 Limited-Slip Axle Ratio Ford Connectivity Package (1-Year Included) Black High-Intensity Discharge (HID) Headlamps SYNC 4 Includes 12" center display, Bluetooth, dual USB ports,wireless Apple CarPlay and Android Auto compatibility Dual Alternators (250 Amps Each) Fixed Rear Cargo Door Glass - Rear-Window Defroster Keyless Entry Keypad Adaptive Cruise Control w/Lane Centering. Includes stop and go and predictive speed assist Side Parking Sensors Blind Spot Information System w/Cross Traffic Alert Connected navigation and 360-degree camera Battery run down protection SiriusXM with 360L AM/FM/HD/Satellite radio Cockpit Privacy Shades (Windshield, Driver & Passenger) Swiveling Driver and Passenger Seat Ford Co-Pilot360 w/Side Wind Stabilization electronic stability control system with antirollover Dual AGM Batteries (70 Amp-hr Each) Heated Driver and Passenger Seats Front Cup Holders USB-C Socket Heavy Duty Trailer Tow Package Ford Upfitter switches Custom Recover on Driver and Passenger Seat

CONSTRUCTION
2" Plascore Honeycomb composite floor with bottom radiant barrier 2tec2 Woven Fabric flooring Alpha insulation and 3M Thinsulate CNC Routed Wall Panels Thermoformed ABS dinette and kithentte panels Welformed Automotive fabric bedroom panels SharkBite Evo Pex Push2Connect Plumbing System (Max SS braided shut offs) Soft Touch perforated Ceiling

EXTERIOR

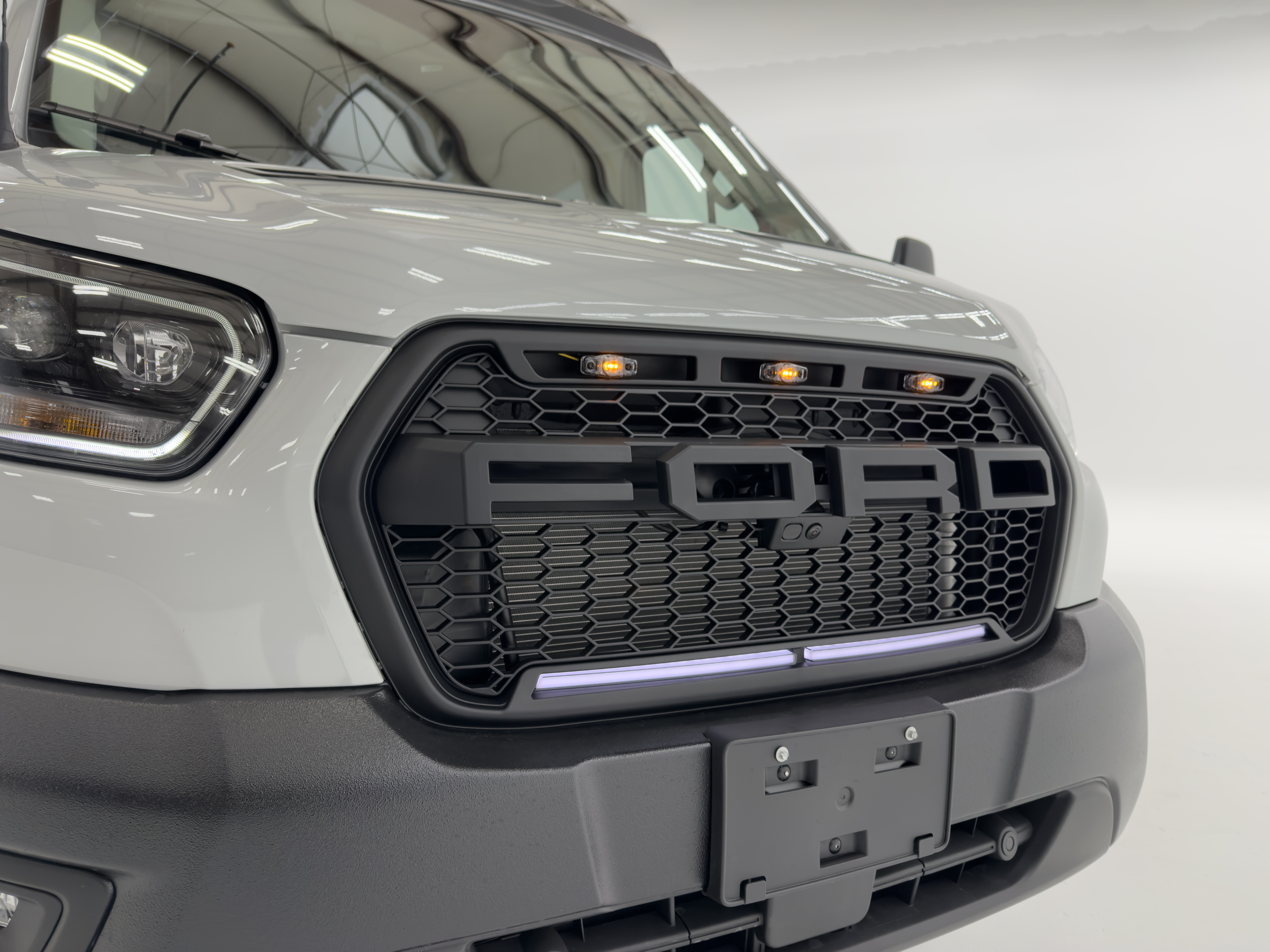

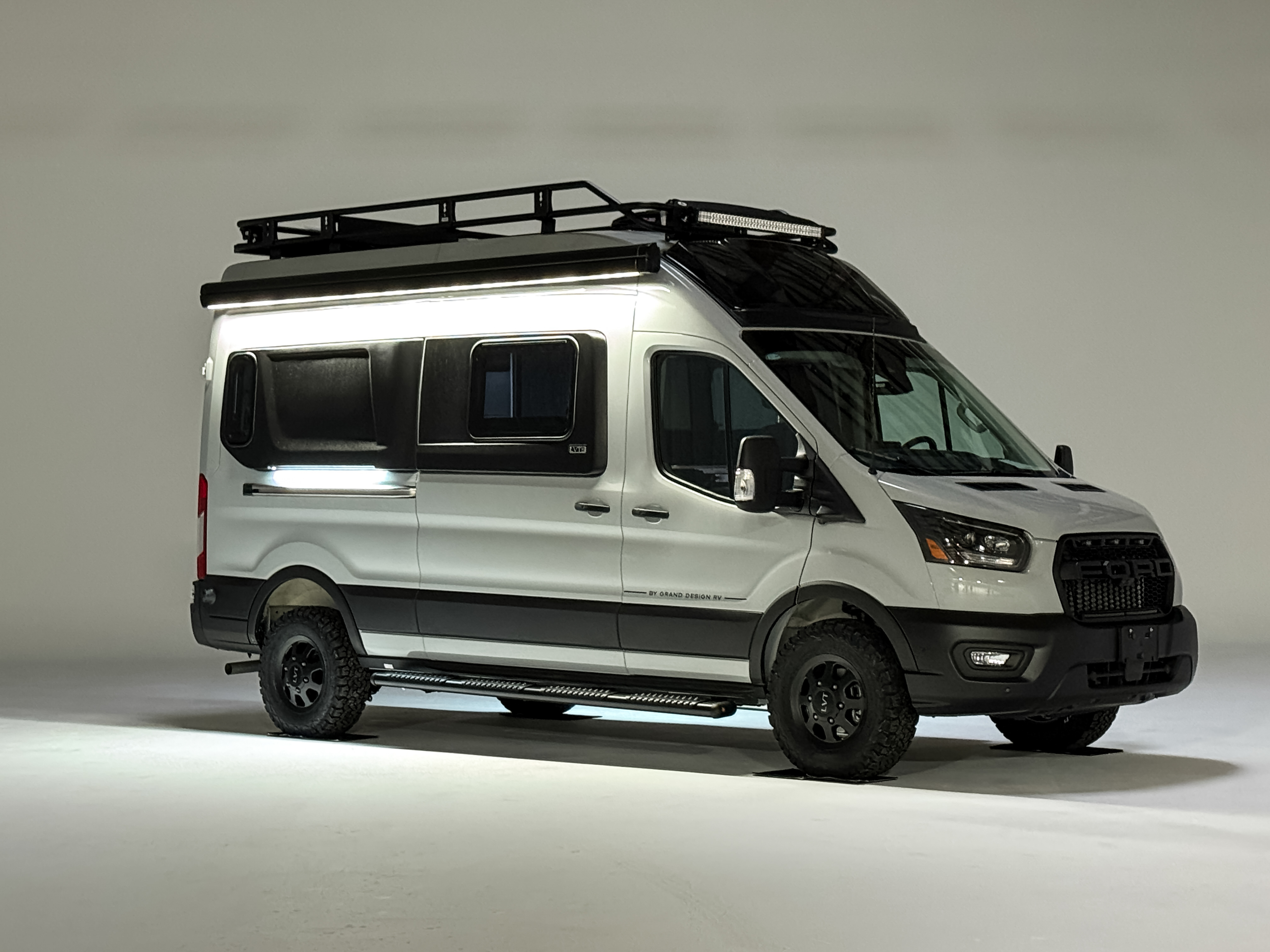

Van Compass Stage 3 Topo 2.0 Lift (Stage 4 optional) Luverne driver and passenger running boards Power rotating front light bar 15,200lm (deleted with pop-top option) (2) rear pod lights 2,850lm Vista Double Pane acrylic panoramic skylight Custom molded side capsules Spare Tire Carrier Quick connect exterior shower Rear storage deck Starlink prep included bracket and power cord

INTERIOR

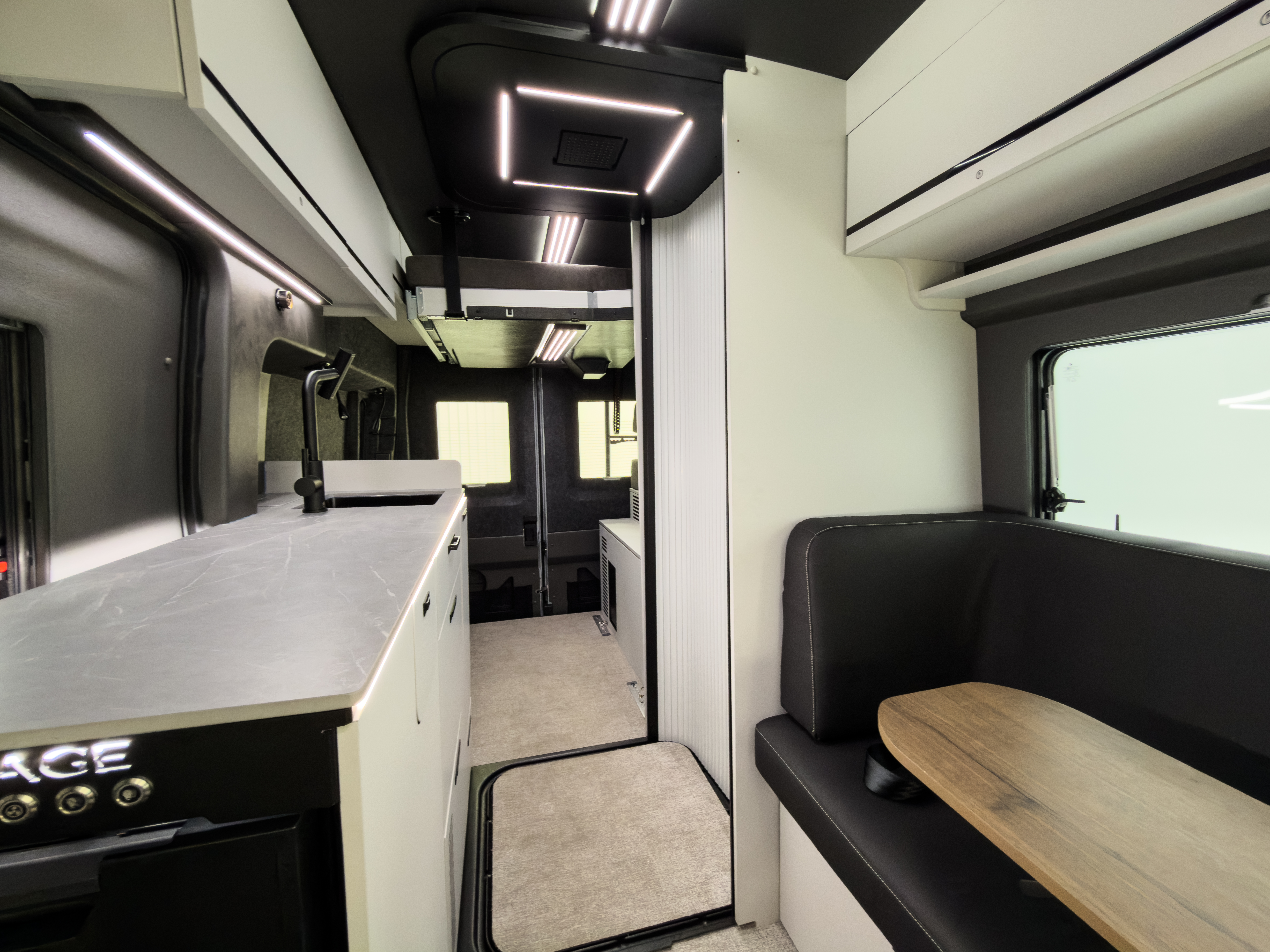

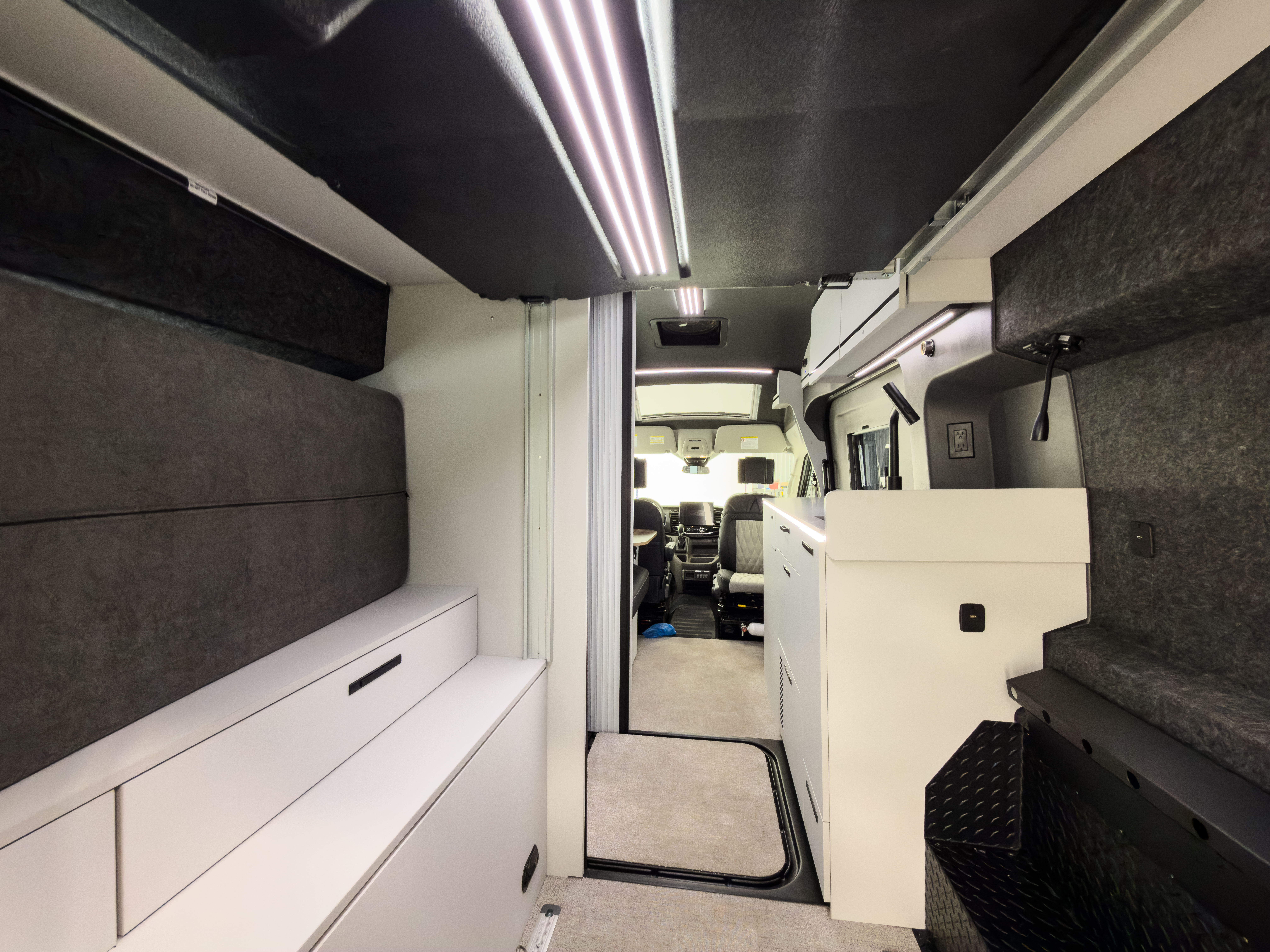

Easy Assist Handle Side facing chaise lounge bench Vinyl laminated cabinetry Under Bench pull out drawer Integrated black out window shades and screens Multiple charging ports Pull out hooks Lagun Table with two mounting locations

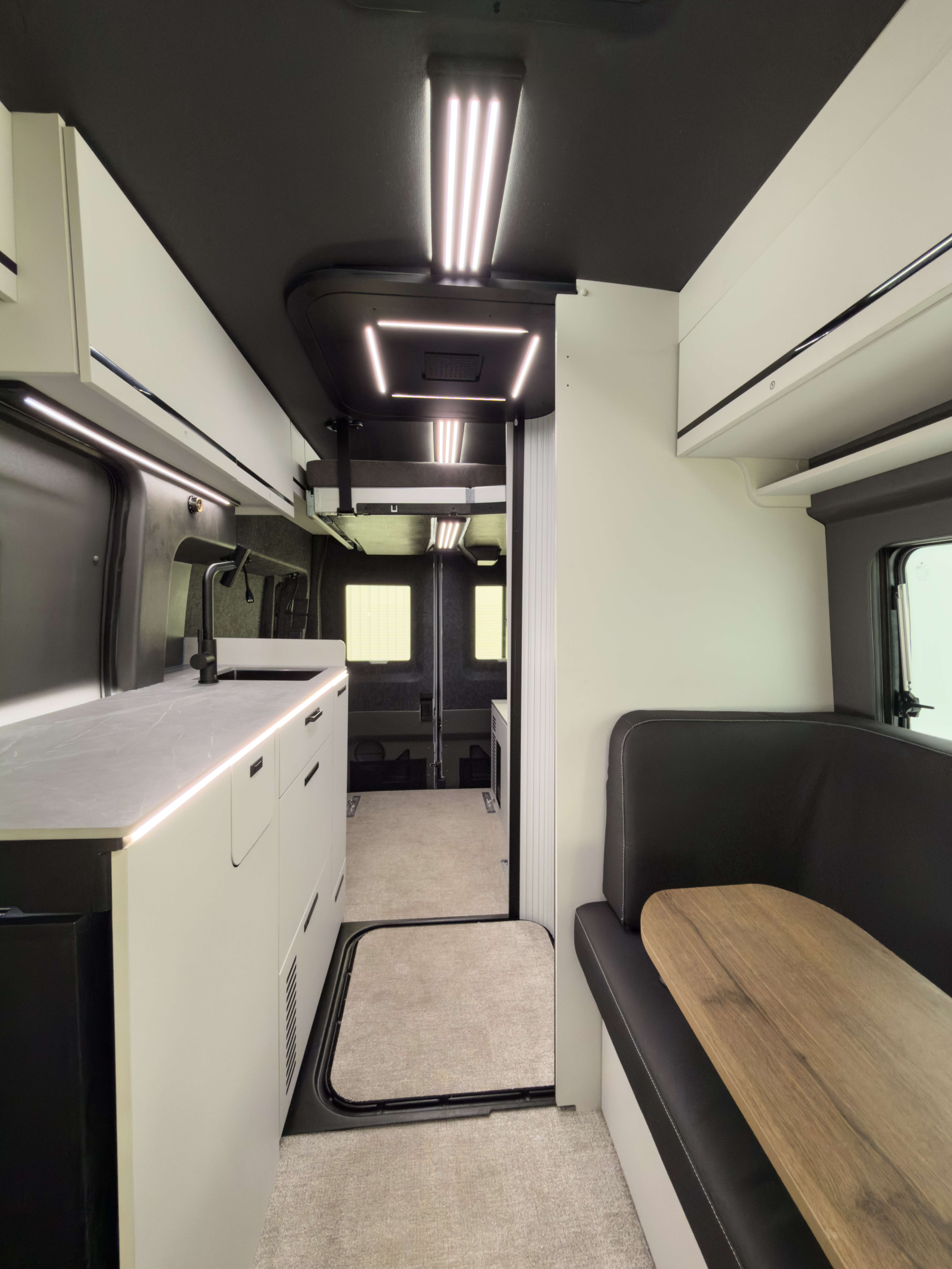

KITCHEN

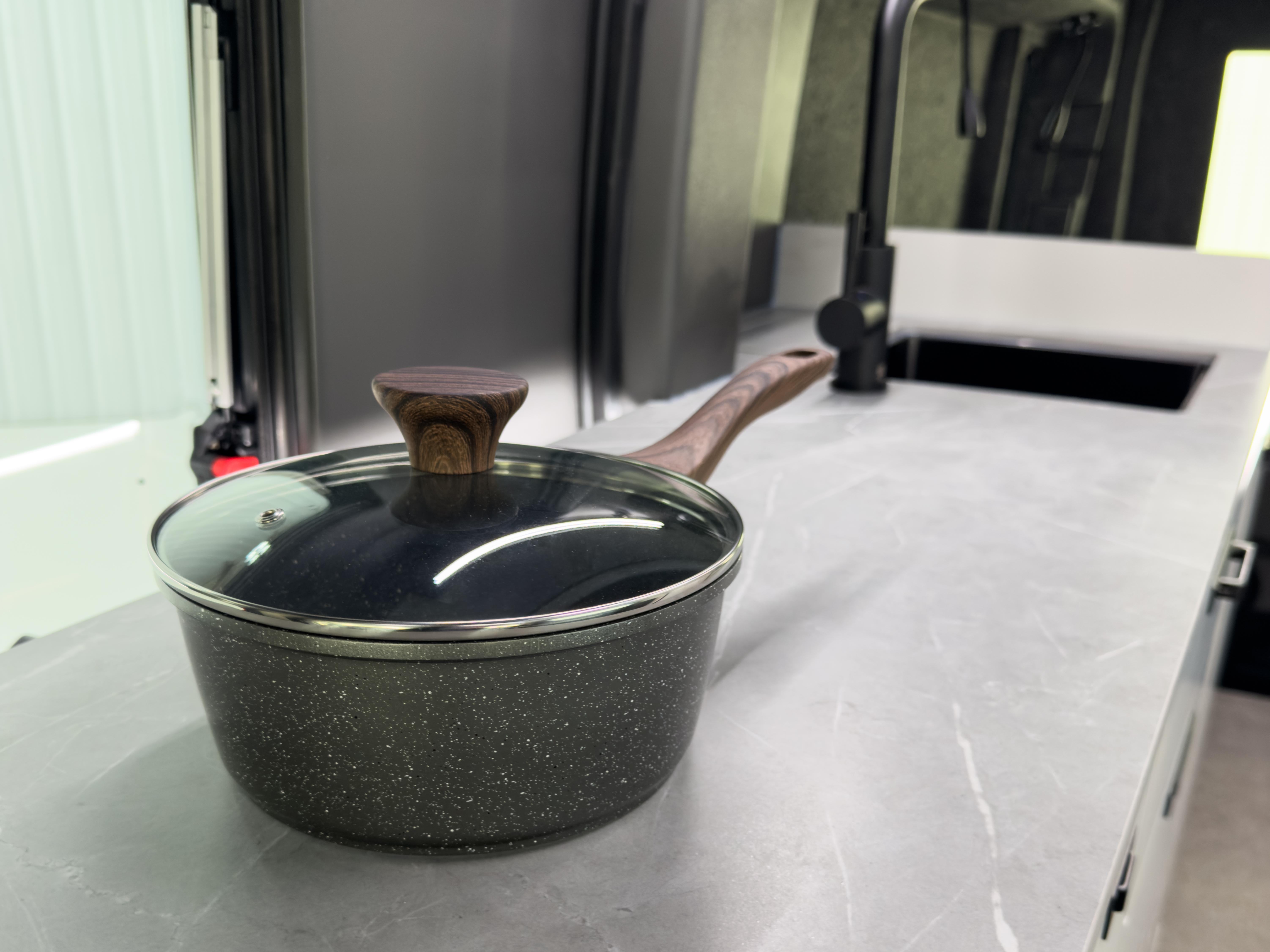

Thetford 3.18 Cu Ft 12V Drawer Style Refrigerator Invisacook Hidden Single Burner Induction Cooktop Prepped for Air Fryer/Convection Microwave Oven Porcelain countertop Stainless Steel 15" x 15" x 6" Sink with Cutting Board Cover Matte Black pull out Kitchen Faucet Pop Up Spice Rack Positive locking latches Dove Tail Drawer Box Soft-Close drawer slides

BEDROOM

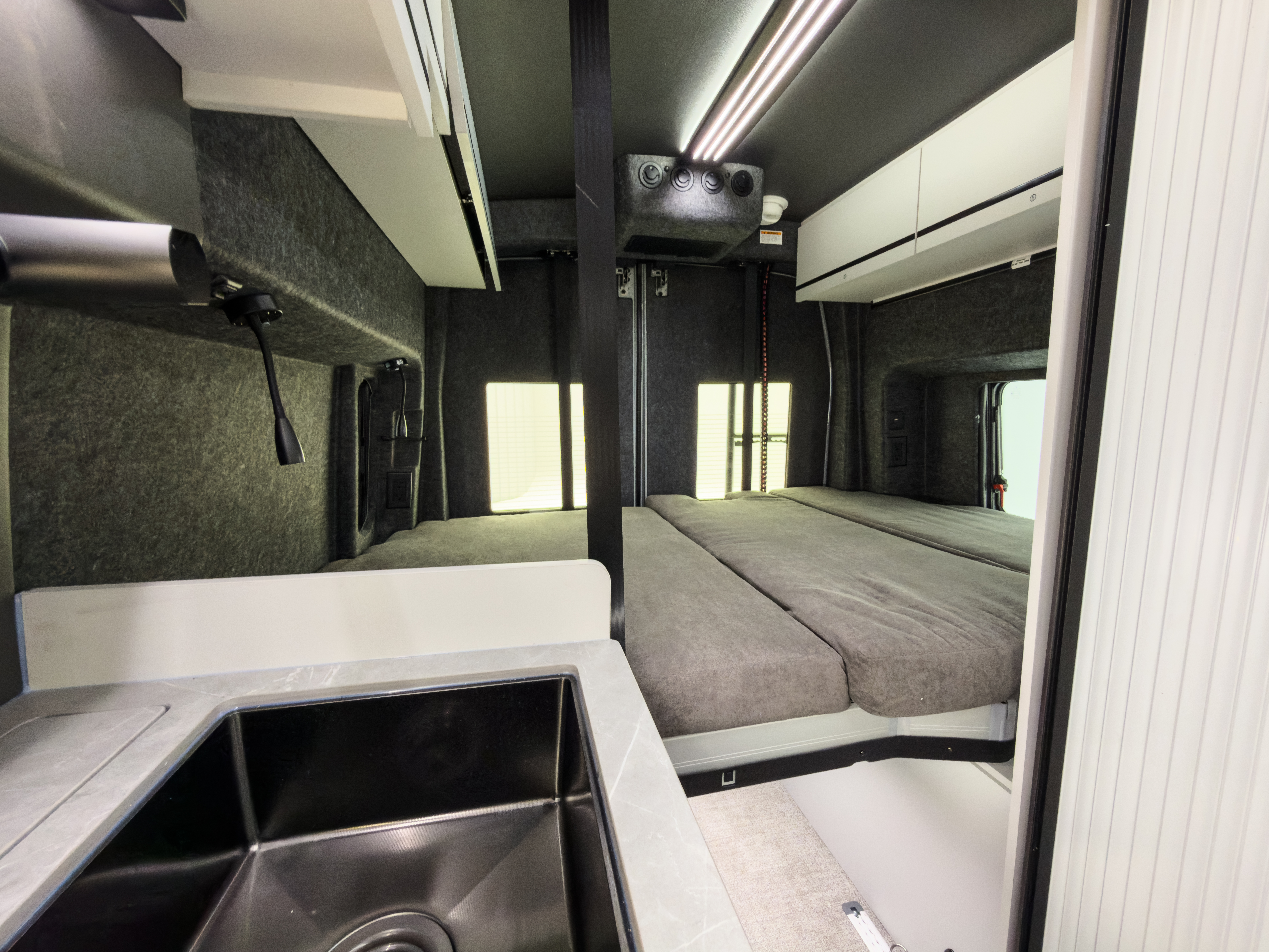

Expanding Lift Suite drop down bed Under Bed Storage LED Reading Lights USB-C Charging Ports Phone Holder Samsung Freestyle Projector Motorized 50" Projector Screen

BATHROOM

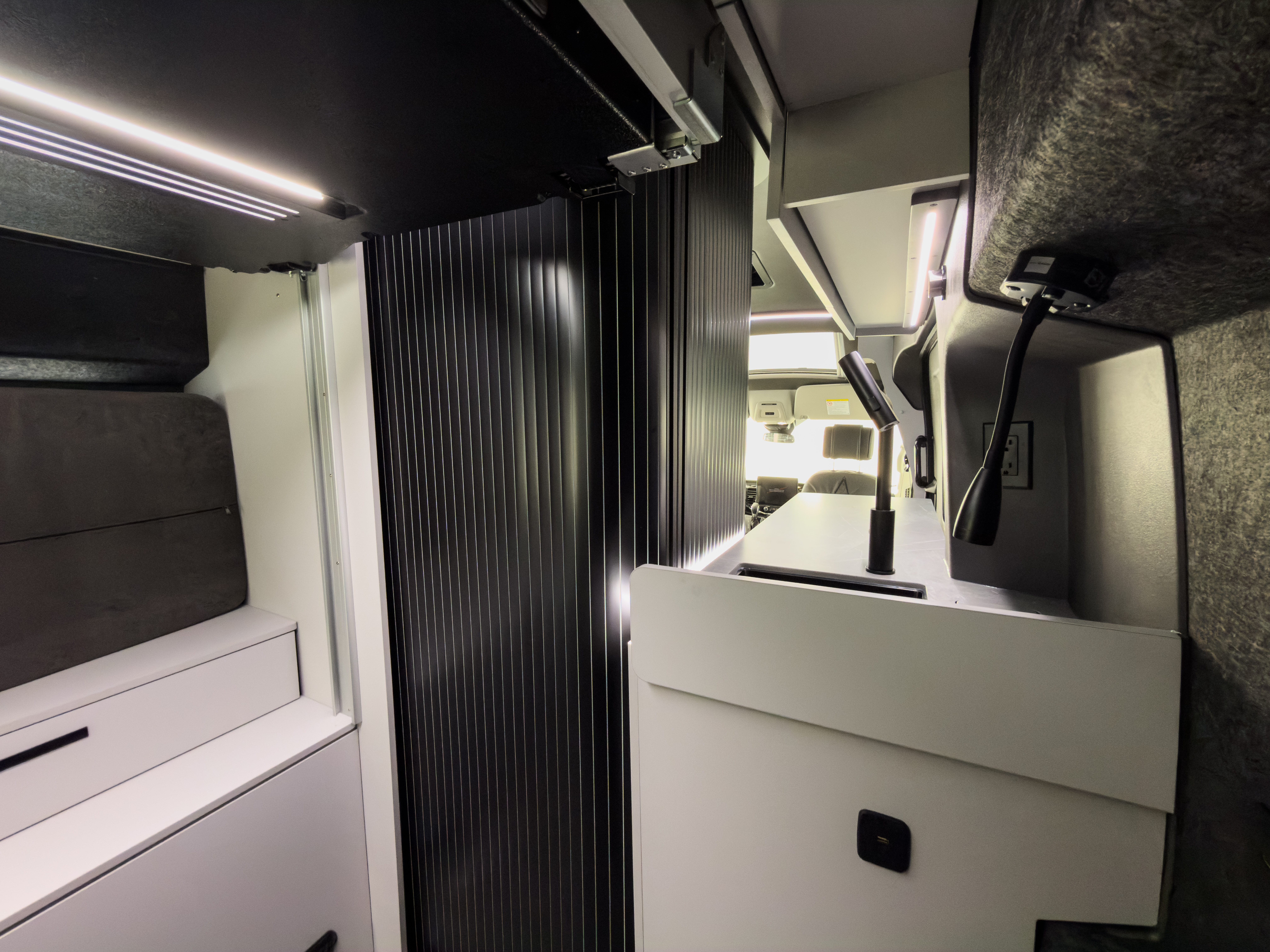

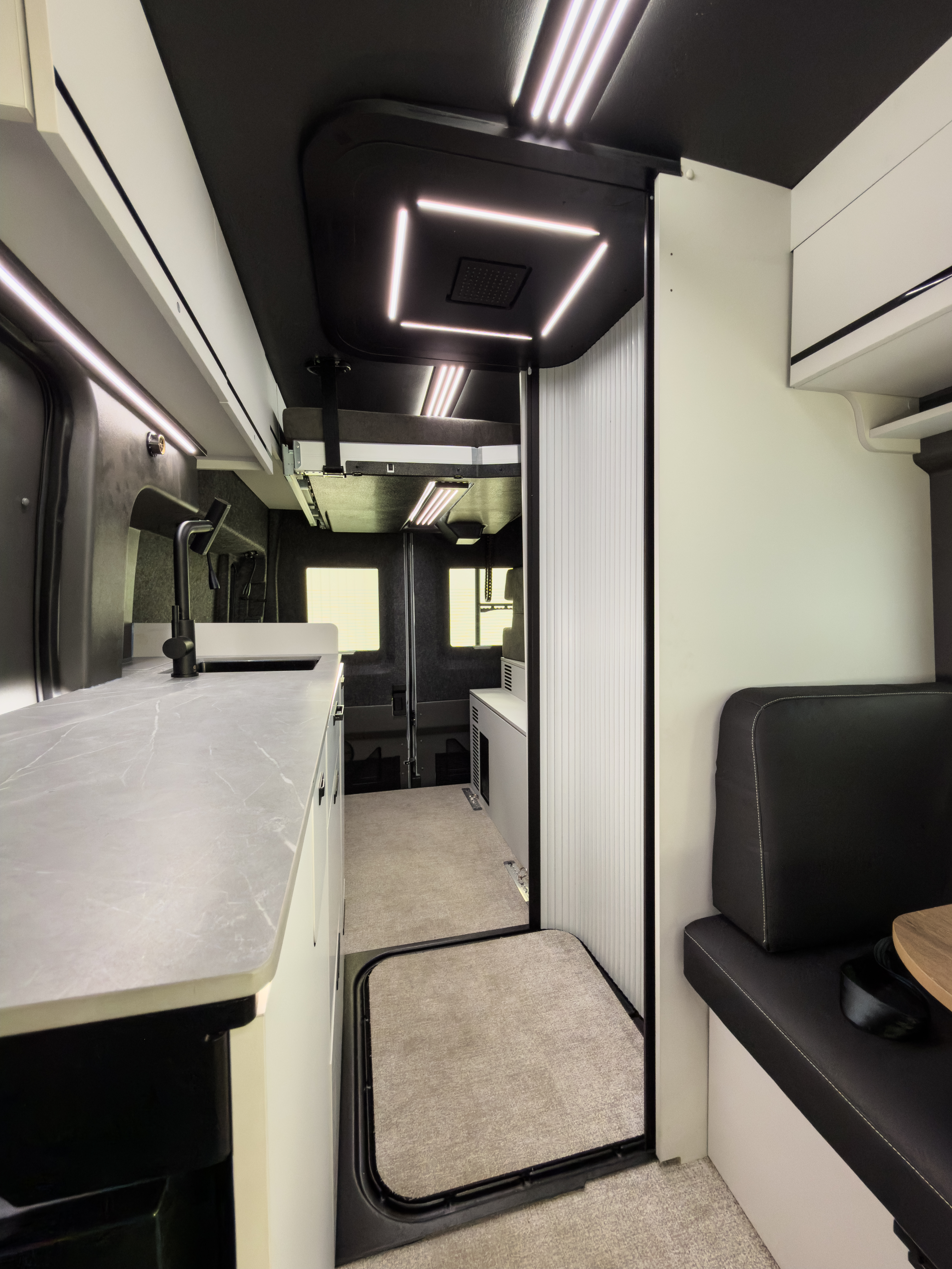

Thetford Cassette toilet with electric flush and 4.7 gal tank Venting window Rainfall shower head Medicine cabinet Mirror with integrated LED lighting Tambour style roll-away shower doors 30" x 54" enclosed overall size Built in shower wall storage cubbies

UTILITIES
Firefly Integrations® Touch Screen Command Center, Bluetooth® Switches & Smart Phone App (Global) 3,000 Watt Lithionics 51V Inverter SDG Mini Split 51V AC (20,000 BTU) Eberspacher/Espar Airtronic gasoline heater Duoetto Electric water heater 12V Water Pump 12V Heat pads (Fresh and Gray tanks) Carbon-Monoxide, LP/ Smoke Detectors & Fire Extinguisher 8,448 Watt-Hours 51V Lithionics battery (5,120 Watt-Hours with Pop-Top Option) Prepped for optional 2nd battery including Y harness for external BMS and mounting brackets 30 Amp Electrical Service Victron Solar Charge Controller Nomadic Bi Directional 12v - 51v DC to DC converter (2) 180 Watt Merlin Solar Panels (300 Watt Apollo panel with Pop-Top option) Maxx Air Fan

Lineage Series LVT Package
Chassis: Ford Transit Trail 350 AWD High Roof 148" WB Spare Tire Carrier Standard Power Package SafeRide RV Roadside Assistance RVIA Seal
