Hitch
      UVW
      8,300
      GVWR
      11,000
      Length
      33' 11"
      Height
      12' 2"
      Sleeps
      6
      MSRP
      Coming Soon
      DOWNLOAD SPEC SHEET
      OVERALL SIZE
      Exterior Height12' 2"
      Exterior Height (w/opt. AC)
        Exterior Length33' 11"
        Exterior Width8' 4"
        Exterior Width (w/ slide out)11' 6"
        Interior Height7

        WEIGHTS
        Hitch / Pin Weight0 lbs.
        UVW8,300 lbs.
        GVWR11,000 lbs.

        CAPACITY
        Fresh Water Capacity90 gal.
        Gray Water Capacity74 gal.
        Waste Water Capacity37 gal.
        Propane Tanks2
        LPG40
        Sleeping Capacity6
        Fuel CapacityN/A
        APPLIANCES
        Water HeaterOn Demand
        Refrigerator8 cu. ft.
        Furnace30,000 BTU
        AC15,000 BTU

        RUNNING GEAR
        Axles2
        Wheel Size15 in.
        Tire SizeST225/75R15LRE

        CONSTRUCTION
        Construction TypeTraditional
        Floor R-ValueR-25
        Wall R-ValueR-9
        Roof R-ValueR-40
        Slide Room R-ValueR-9
        Garage R-ValueR-25
        DIMENSIONS
        Standard Bed60" x 80" Queen Bed
        Standard BunkN/A
        Shower27" x 36"
        Garage Length10' 4"

        EXTERIOR
        Slides1
        Awnings1
        Awning Length19'
        EXTERIOR
        • Power Tongue Jack
        • Solar Power Inlet
        • 20# LP Bottles (2) with Cover
        • Friction Hinge Entry Door
        • Battery Kill Switch (Pass Thru)
        • Oversized Tank Capacites
        • Walk-on Roof
        • Easy Access Low Point Drain Valves
        • Main Floor Insulation (R-11)
        • Undermount Spare Tire
        • Magnetic Storage Door Catches
        • Extended Grab Handle
        • Power Awning
        • Power Tongue Jack
        • Dual 20#LP Tanks w/ Cover
        • All in One Utility Center
        • LP Quick Connect

        CONSTRUCTION
        • TPO Roof Membrane w/ Limited Lifetime Warranty
        • Insulated Storage Doors
        • Side Walls Insulation (R-9)
        • Slideroom Roof and End Wall Insulation (R-9)
        • Roof Insulation (R-40)
        • Tinted Windows
        • TV Prep with Backer
        • Heated & Enclosed Underbelly w/Suspended Tanks
        • Dedicated Heat Duct to Subfloor
        • Hi-Density Roof Insulation w/Thermofoil
        • Moisture Barrier Floor Enclosure
        • No Wheel Wells in Garage

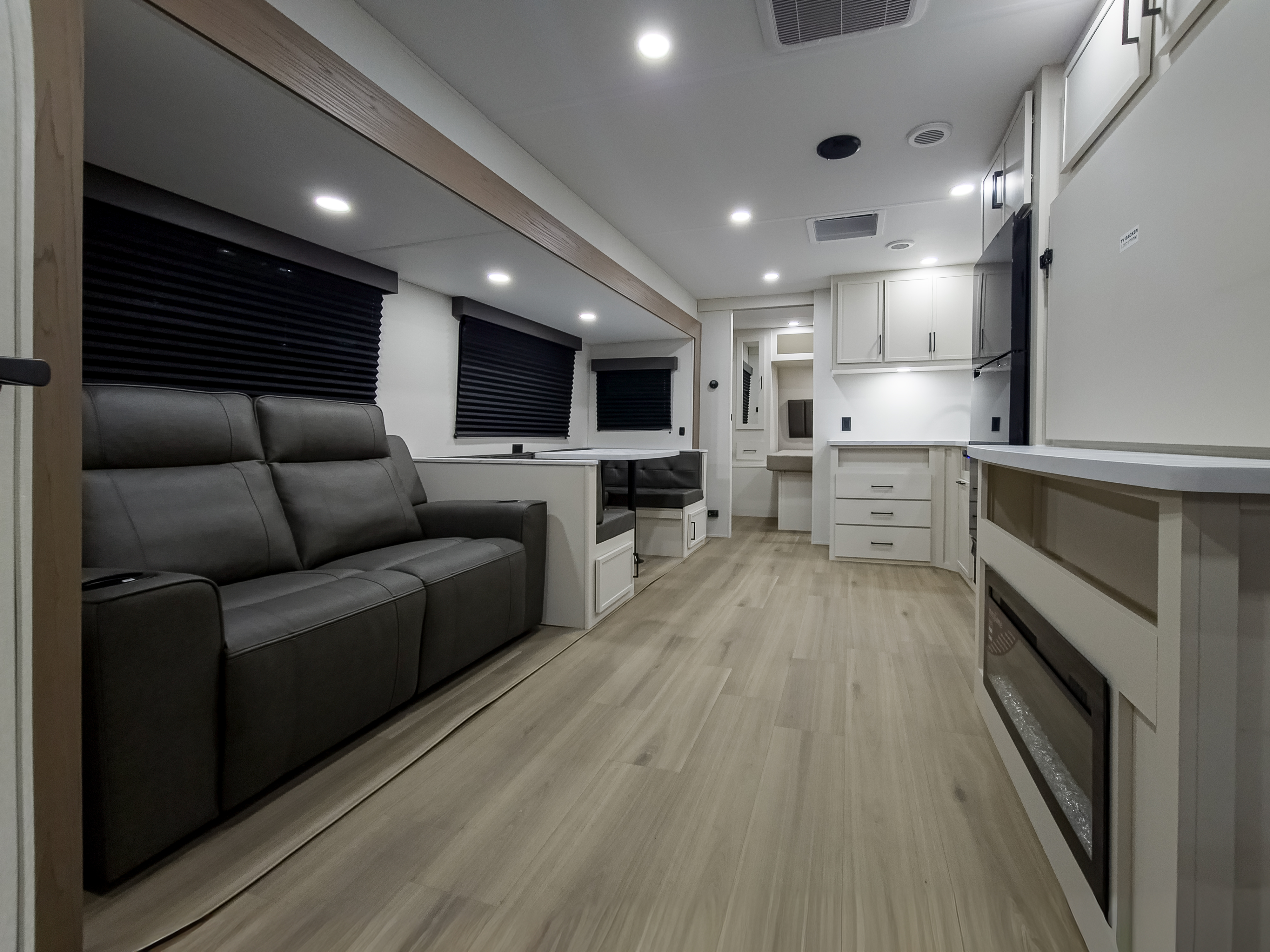

        INTERIOR
        • Large Solid Bedroom Door (27MAV)
        • Residential Bedspread
        • Cable/Sat Prep
        • Walk-in Shower
        • Power Vent Fan in Bath and Living Area
        • Medicine Cabinet with Mirror
        • ABS Tub Surround
        • Solid Hardwood Drawer Fronts
        • Solid Core Cabinet Stiles
        • Pre-Drilled and Screwed Cabinetry
        • Ball Bearing Full Extension Drawer Glides
        • Residential Countertops
        • Microwave
        • 3 Burner Range
        • USB Ports (2)
        • Upgraded Residential Furniture
        • More Power Outlets
        • 84" Interior Height
        • LED Interior Lights

        KITCHEN
        • Deep Seated Stainless Steel Sink

        ELECTRICAL
        • Motion Sensor Lights in Key Areas
        • Detachable 50AMP Power Cord (N/A 17MAV & 22MAV)
        • Battery Disconnect Switch
        • HD TV Antenna

        HVAC
        • 15K Main AC Ducted
        • 30K BTU Furnace
        • Attic Vent
        • EvenFlow Ductless Heating Throughout
        PLUMBING
        • High-Capacity Water Pump
        • Extra Large 2" Fresh Water Drain Valve
        • 90 Gal. Fresh Water Capacity
        • Black Tank Flush
        • High Rise Faucet
        • On Demand Water Heater
        • Easy Winterization

        BEDROOM
        • 60 x 80 Queen Bed (N/A 22MAV)
        • Gas Strut Lift Bed Storage (27MAV)

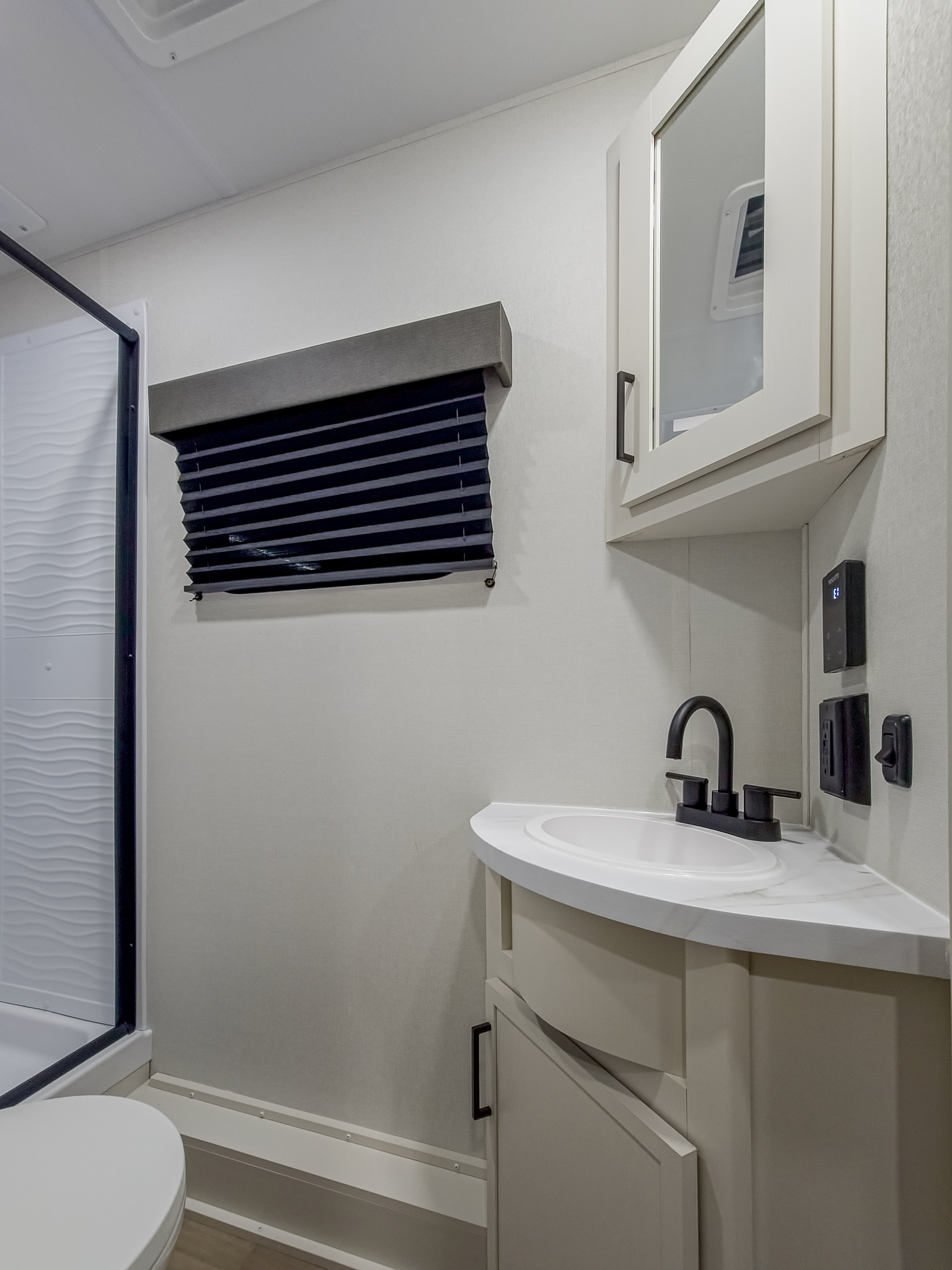

        BATHROOM
        • Foot Flush Toilet

        APPLIANCE
        • 12V 8 Cu. Ft. Refer

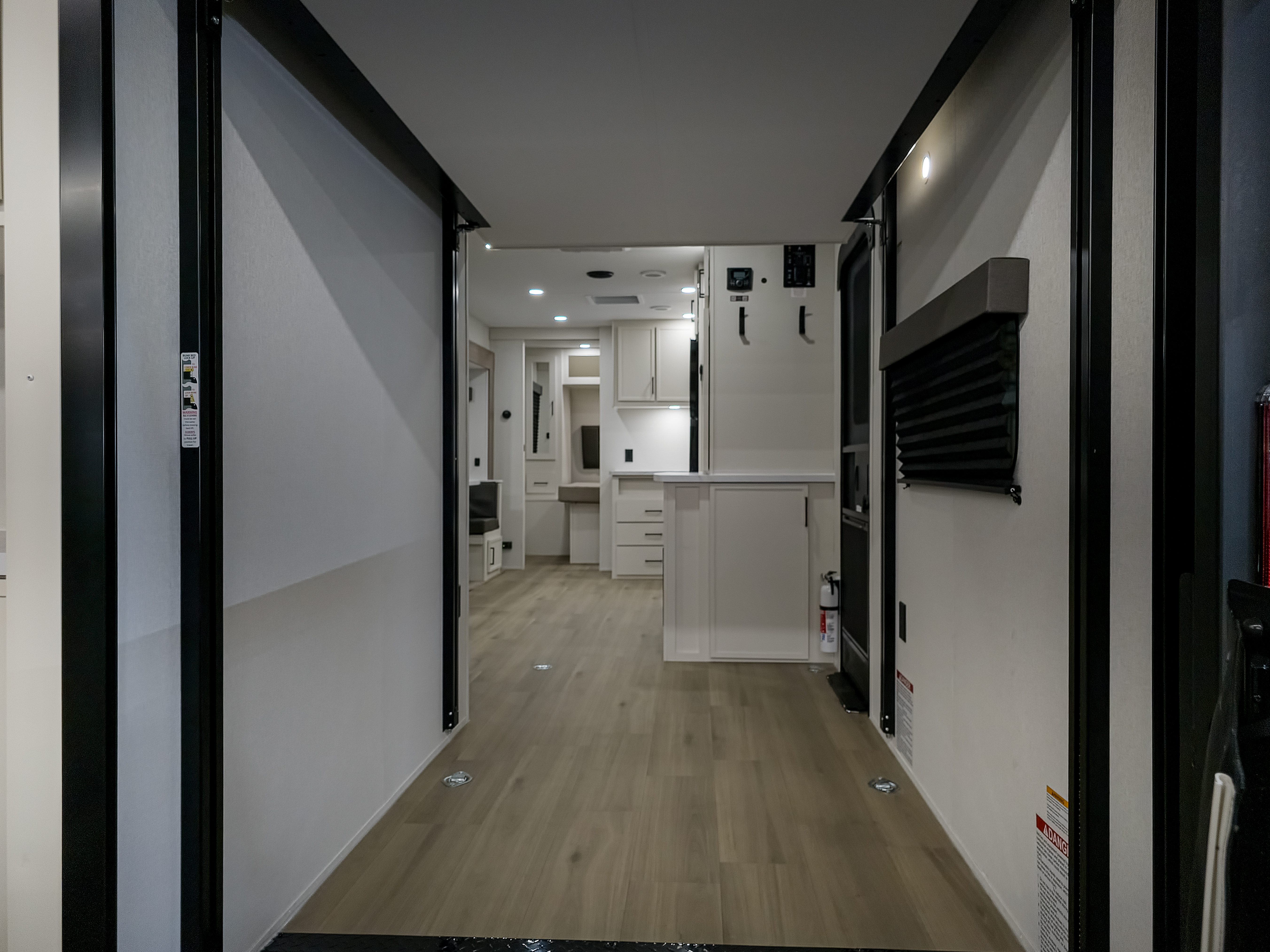

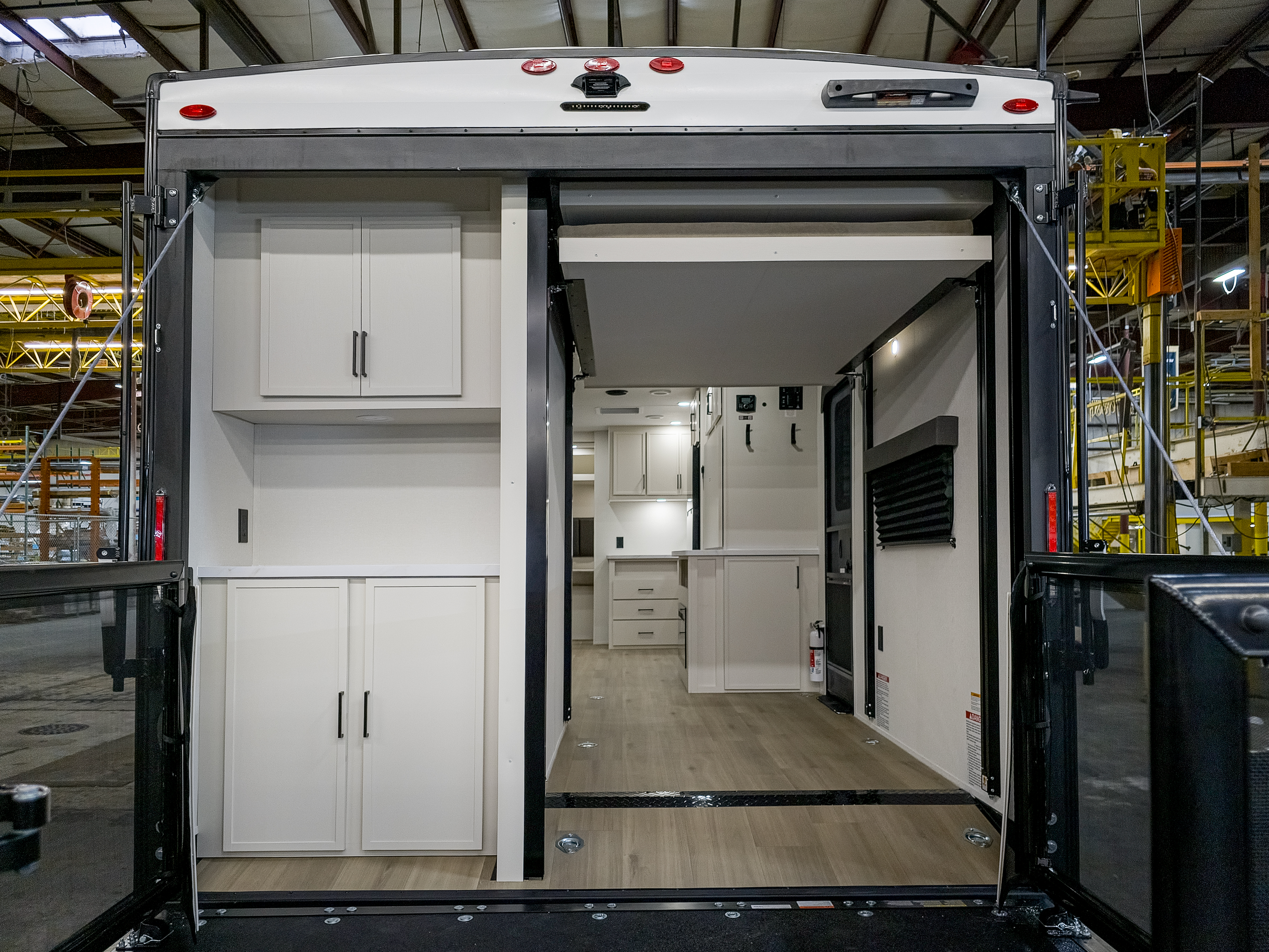

        GARAGE

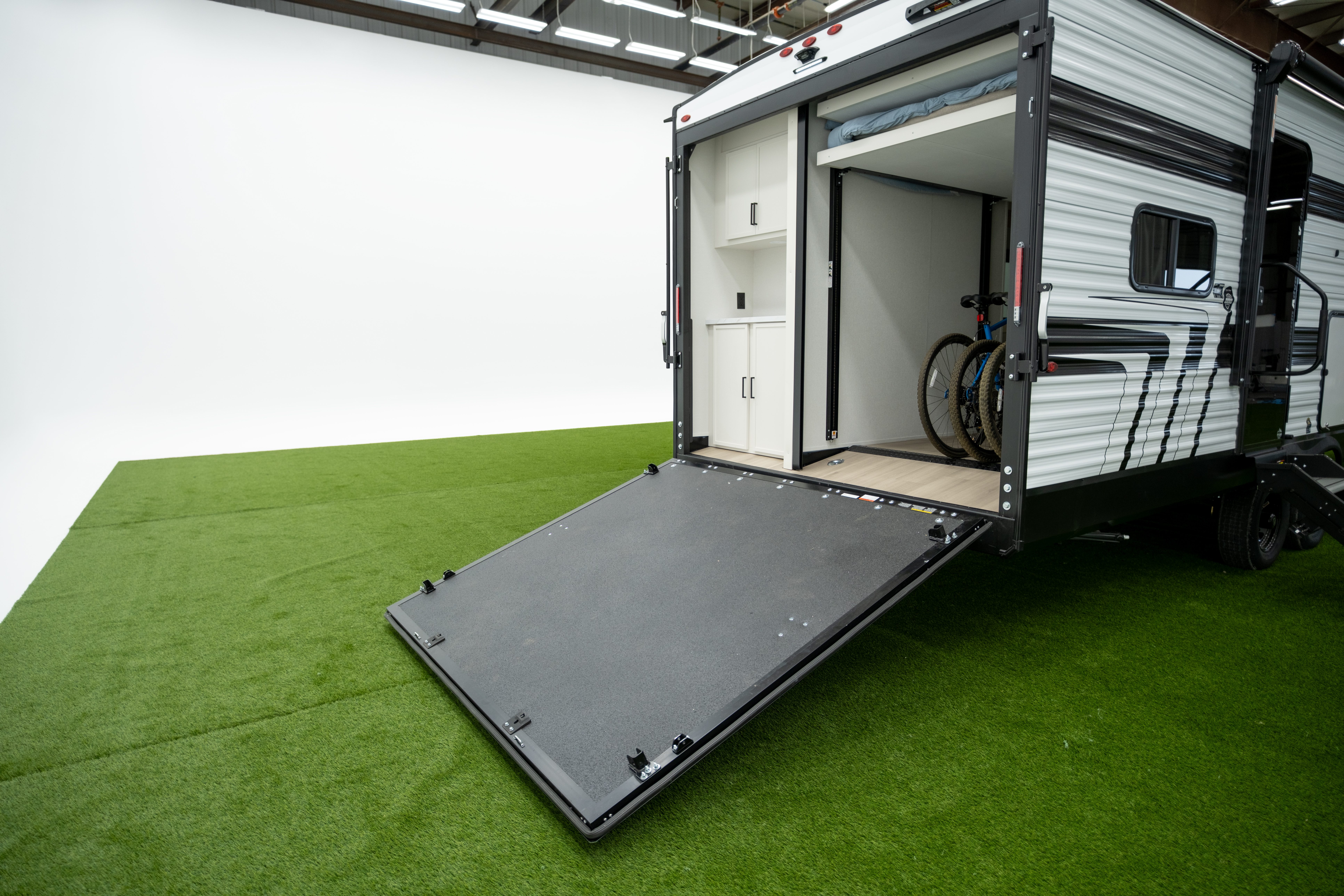

        • 24" DoveTail Loading Ramp
        • Patio System
        • Loading Lights

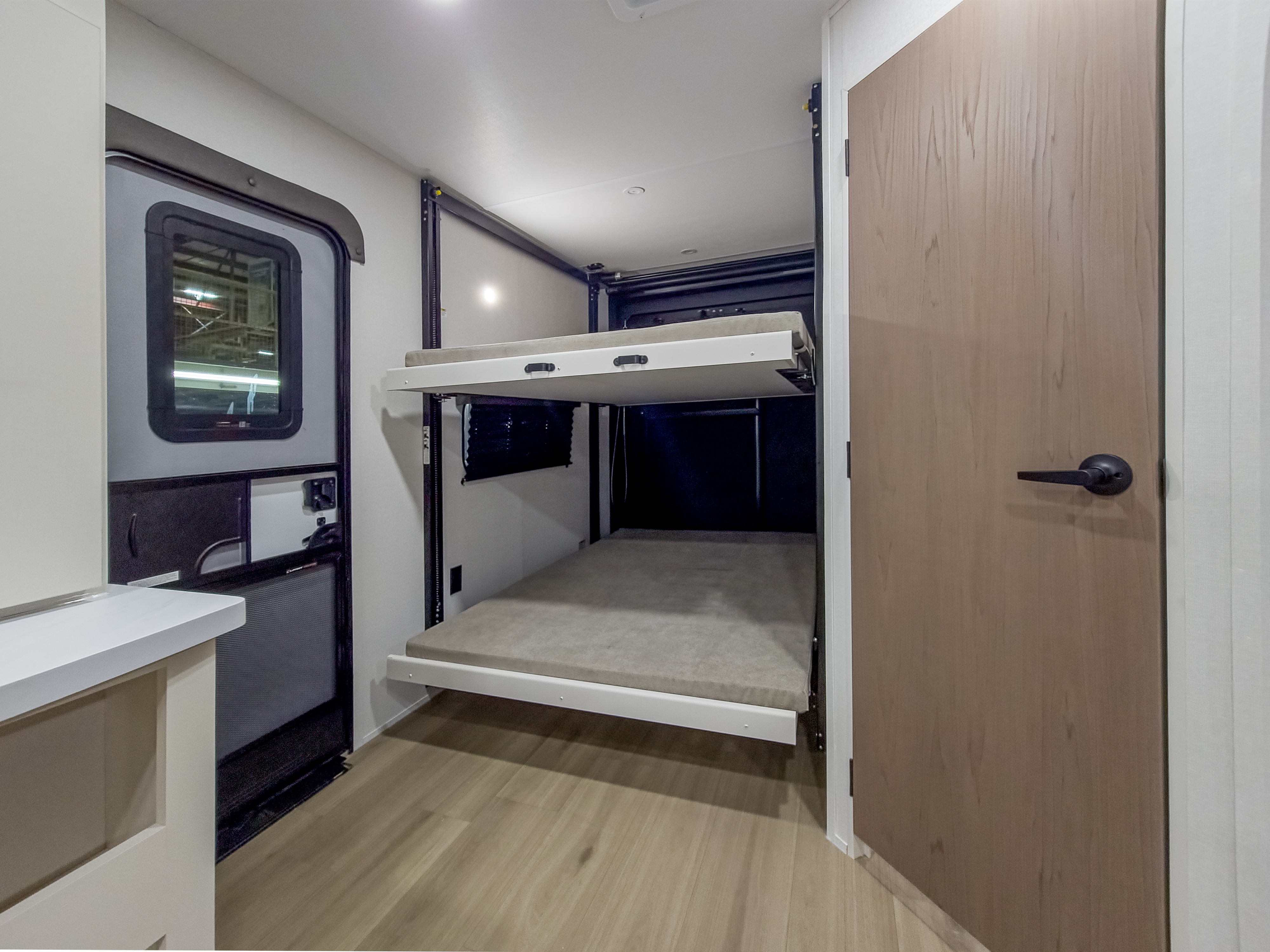

        • E-Z Lift Bunk Bed (N/A 17MAV & 22MAV)
        • Garage Pull Down Screen
        Exterior Package
        • Power Awning
        • Detachable 50AMP Power Cord (N/A 17MAV & 22MAV)
        • Battery Disconnect Switch
        • HD TV Antenna
        • Power Tongue Jack
        • Heated & Enclosed Underbelly w/Suspended Tanks
        • Dedicated Heat Duct to Subfloor
        • Hi-Density Roof Insulation w/Thermofoil
        • Moisture Barrier Floor Enclosure
        • Attic Vent
        • Dual 20#LP Tanks w/ Cover
        • EvenFlow Ductless Heating Throughout
        • Easy Winterization
        • All in One Utility Center
        • LP Quick Connect
        Solar Package
        • 180W Solar Panel
        • 40 Amp Charge Controller with Bluetooth
        • Battery Monitor
        • 12V Refrigerator
        Luxury Interior Package
        • 12V 8 Cu. Ft. Refer
        • Microwave
        • 3 Burner Range
        • 15K Main AC Ducted
        • 84" Interior Height
        • 60 x 80 Queen Bed (N/A 22MAV)
        • 90 Gal. Fresh Water Capacity
        • Undermount Spare Tire
        • Black Tank Flush
        • Magnetic Storage Door Catches
        • Foot Flush Toilet
        • Extended Grab Handle
        • Gas Strut Lift Bed Storage (27MAV)
        • Tinted Windows
        • High Rise Faucet
        • Solid Wood Drawer Fronts
        • On Demand Water Heater
        • Deep Seated Stainless Steel Sink
        • TV Prep with Backer
        • LED Interior Lights
        • Motion Sensor Lights in Key Areas
        • 30K BTU Furnace
        • Radial Tires
        Garage / Cargo Package
        • 24" DoveTail Loading Ramp
        • 2,500lbs Tie Downs Anchored into Chassis

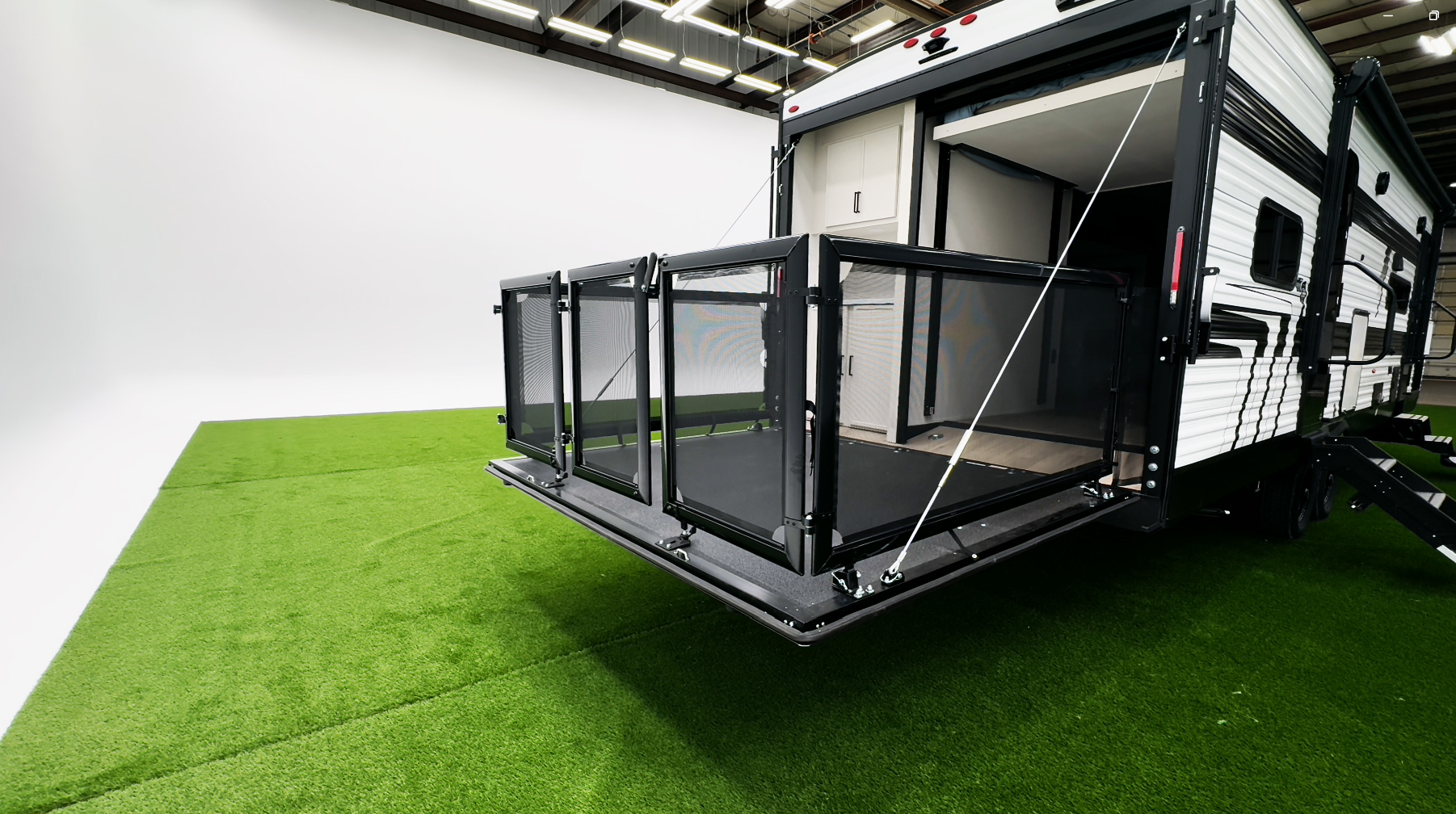

        • Patio System
        • Loading Lights
        • No Wheel Wells in Garage
        • E-Z Lift Bunk Bed (N/A 17MAV & 22MAV)
        • Garage Pull Down Screen
