| OVERALL SIZE | |
|---|---|
| Exterior Height | 13' 6" |
| Exterior Height (w/opt. AC) | 13' 6" |
| Exterior Length | 46' 4" |
| Exterior Width | 8' 5" |
| Exterior Width (w/ slide out) | N/A |
| Interior Height | 8' 5" |
| WEIGHTS | |
| Hitch / Pin Weight | 3,760 lbs. |
| UVW | 19,100 lbs. |
| GVWR | 23,500 lbs. |
| CAPACITY | |
| Fresh Water Capacity | 140 gal. |
| Gray Water Capacity | 78 gal. |
| Waste Water Capacity | 78 gal. |
| Propane Tanks | 2 |
| LPG | 60 |
| Sleeping Capacity | 7 |
| Fuel Capacity | 60 |
| APPLIANCES | |
|---|---|
| Water Heater | Tankless |
| Refrigerator | 20 cu. ft. |
| Furnace | 35,000 BTU |
| AC | 30,000 BTU |
| RUNNING GEAR | |
| Axles w/ Independent Suspension | 3 |
| Wheel Size | 17.50 in. |
| Tire Size | ST215/75R17.5R LRH |
| CONSTRUCTION | |
| Construction Type | Aluminum Cage |
| Floor R-Value | R-45 |
| Wall R-Value | R-11 |
| Roof R-Value | R-40 |
| Slide Room R-Value | R-11 |
| Garage R-Value | R-40 |
| DIMENSIONS | |
|---|---|

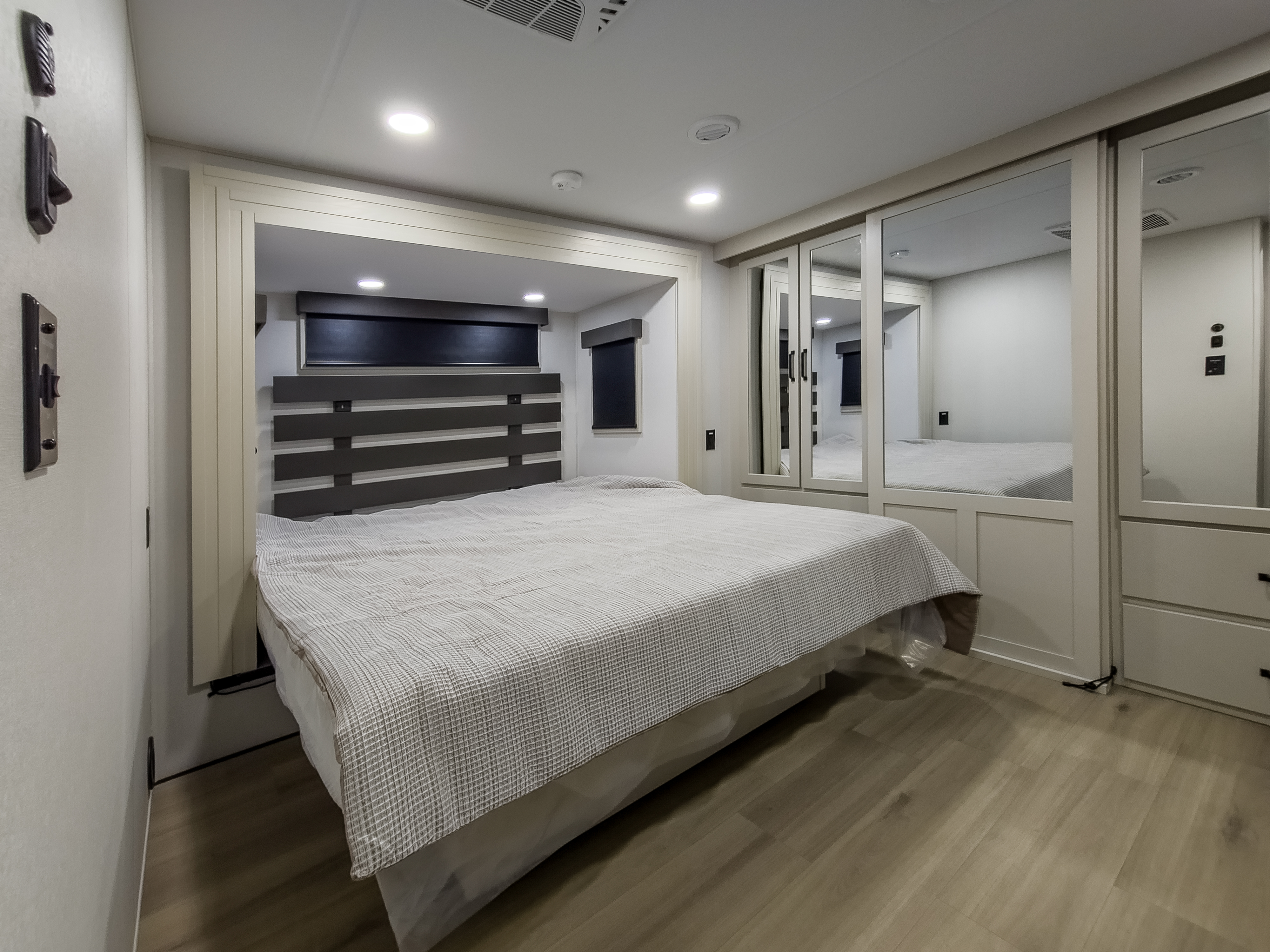

| Standard Bed | 60 X 80 Queen Bed (King Opt.) |
| Standard Bunk | N/A |

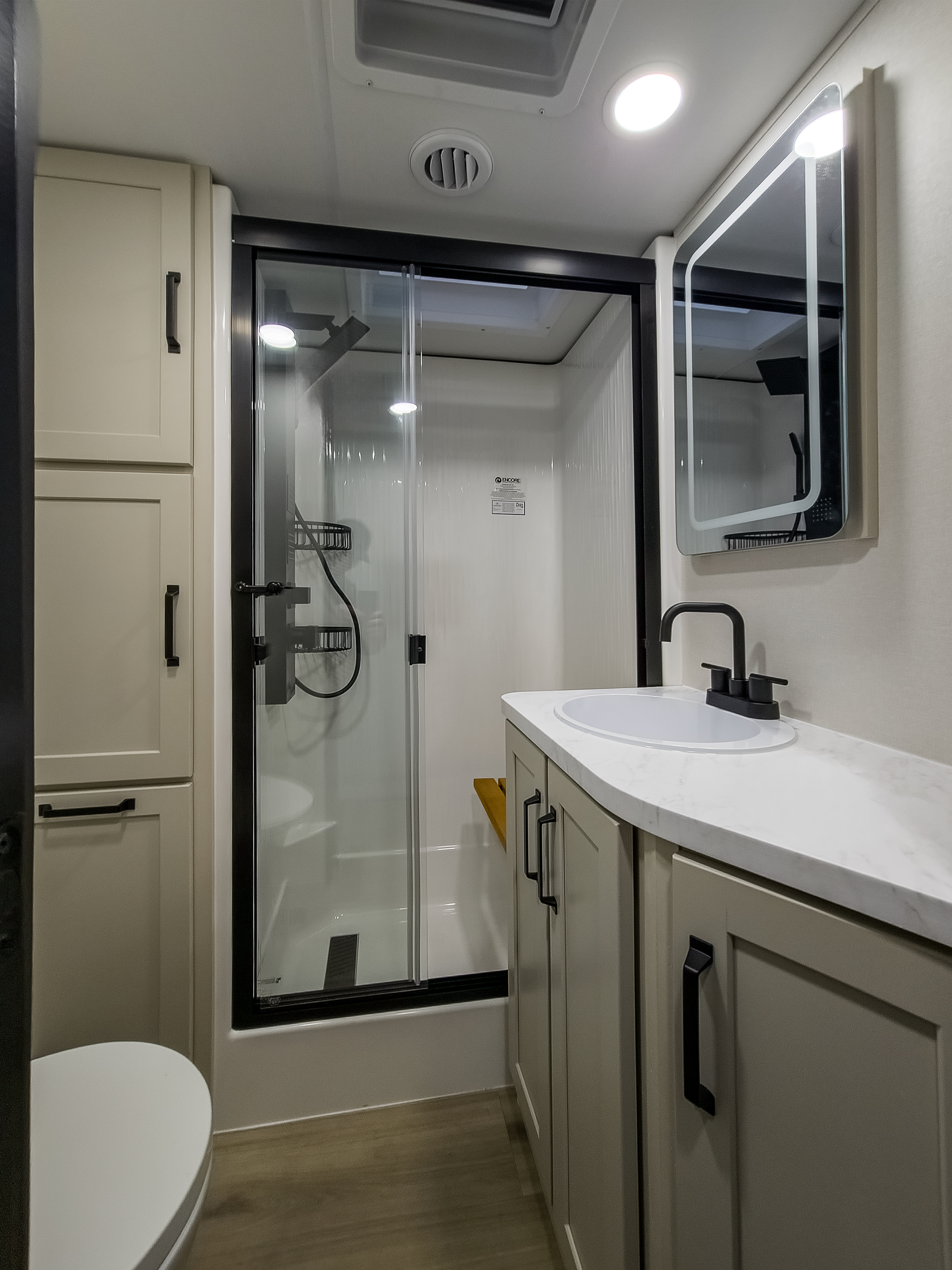

| Shower | 40" x 30" |

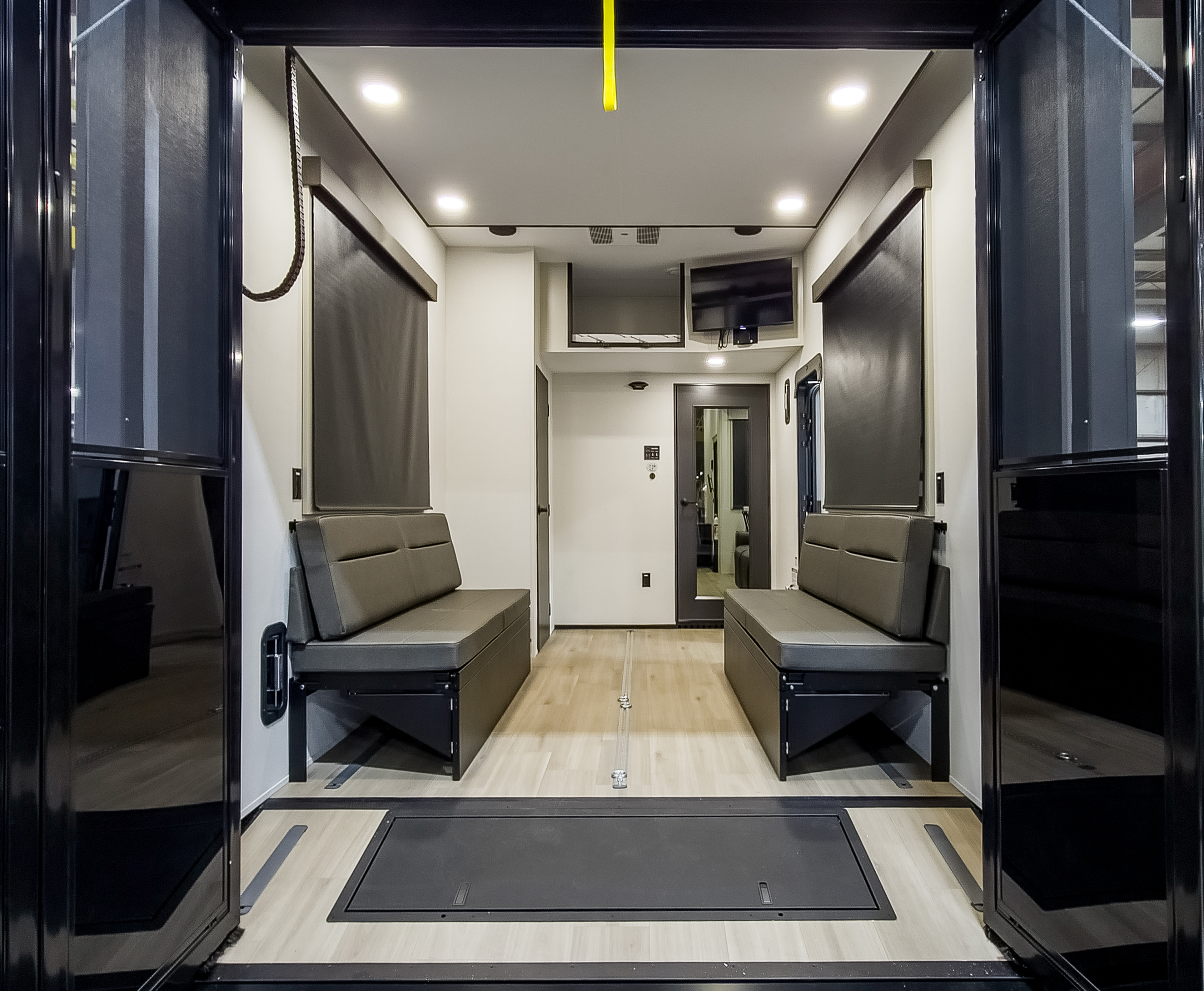

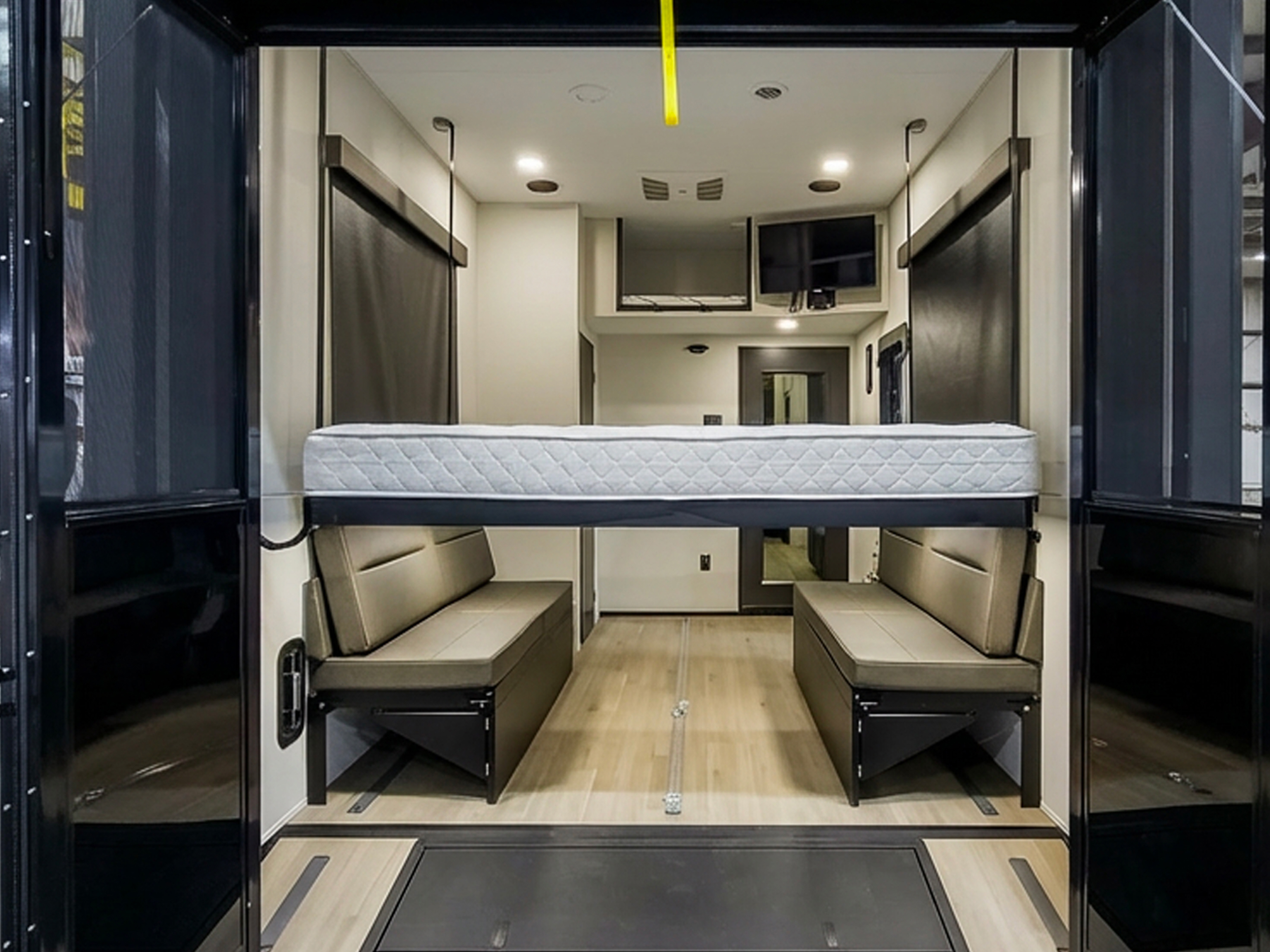

| Garage Length | 14 |
| EXTERIOR | |
| Slides | 3 |
| Awnings | 2 |
| Awning Length |
|
| EXTERIOR |
|---|
|
| CONSTRUCTION |
|
| RUNNING GEAR |
|
| FRAME & CHASSIS |
|
| INTERIOR |
|---|
|
| KITCHEN |
|
| ELECTRICAL |
|
| HVAC |
|
| PLUMBING |
|---|
|
| BEDROOM |
|
| BATHROOM |
|
| APPLIANCE |
|
| ELECTRONICS |
|
| Exterior Package |
|---|
|
| Luxury Interior Package |
|---|
|
| Garage Package |
|---|
|
| Weather-Tek Package |
|---|
|
