This travel trailer floorplan features a rear bathroom and kitchen with front Murphy Bed.

    Hitch
    480
    UVW
    4,674
    GVWR
    6,395
    Length
    21' 11"
    Height
    10' 10"
    Sleeps
    4
    MSRP
    $41,358
    DOWNLOAD SPEC SHEET

    OVERALL SIZE
    Exterior Height10' 10"
    Exterior Length21' 11"
    Exterior Width8'
    Exterior Width (w/ slide out)10' 6"
    Interior Height78

    WEIGHTS
    Hitch / Pin Weight480
    UVW4,674
    GVWR6,395

    CAPACITY
    Fresh Water Capacity43
    Grey Water Capacity45
    Waste Water Capacity37
    Propane Tanks2
    LPG40
    Sleeping Capacity4
    APPLIANCES
    Water HeaterTankless
    Refrigerator10 cu. ft.
    Furnace25,000 BTU
    AC15,000 BTU

    RUNNING GEAR
    Axles2
    Wheel Size14 in.
    Tire SizeST205/75R14LRD

    CONSTRUCTION
    Construction TypeAluminum Cage
    Floor R-ValueR-30
    Wall R-ValueR-7
    Roof R-ValueR-40
    Slide Room R-ValueR-7
    DIMENSIONS
    Standard Bed60x76
    Standard BunkN/A
    Shower27x36

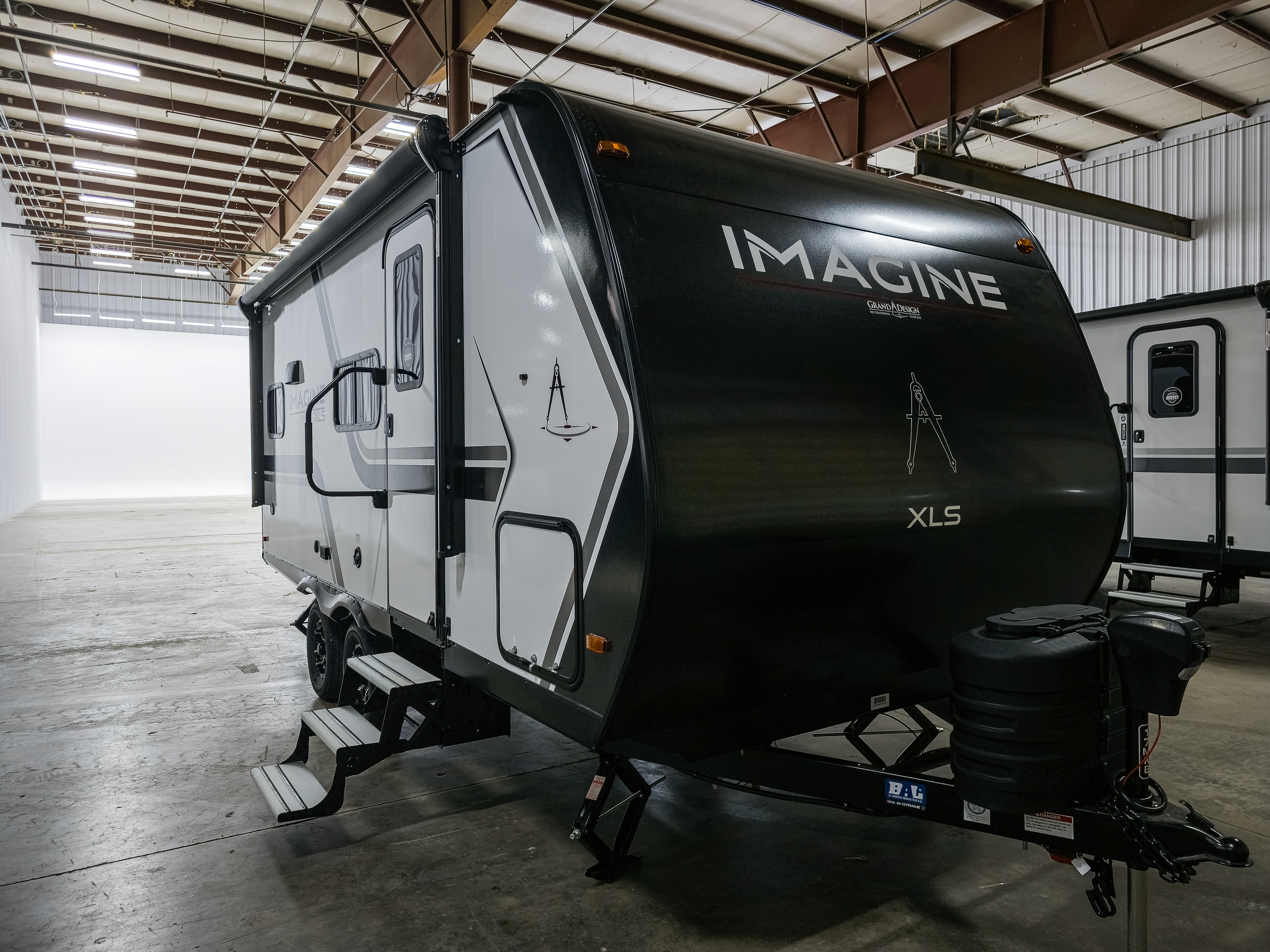

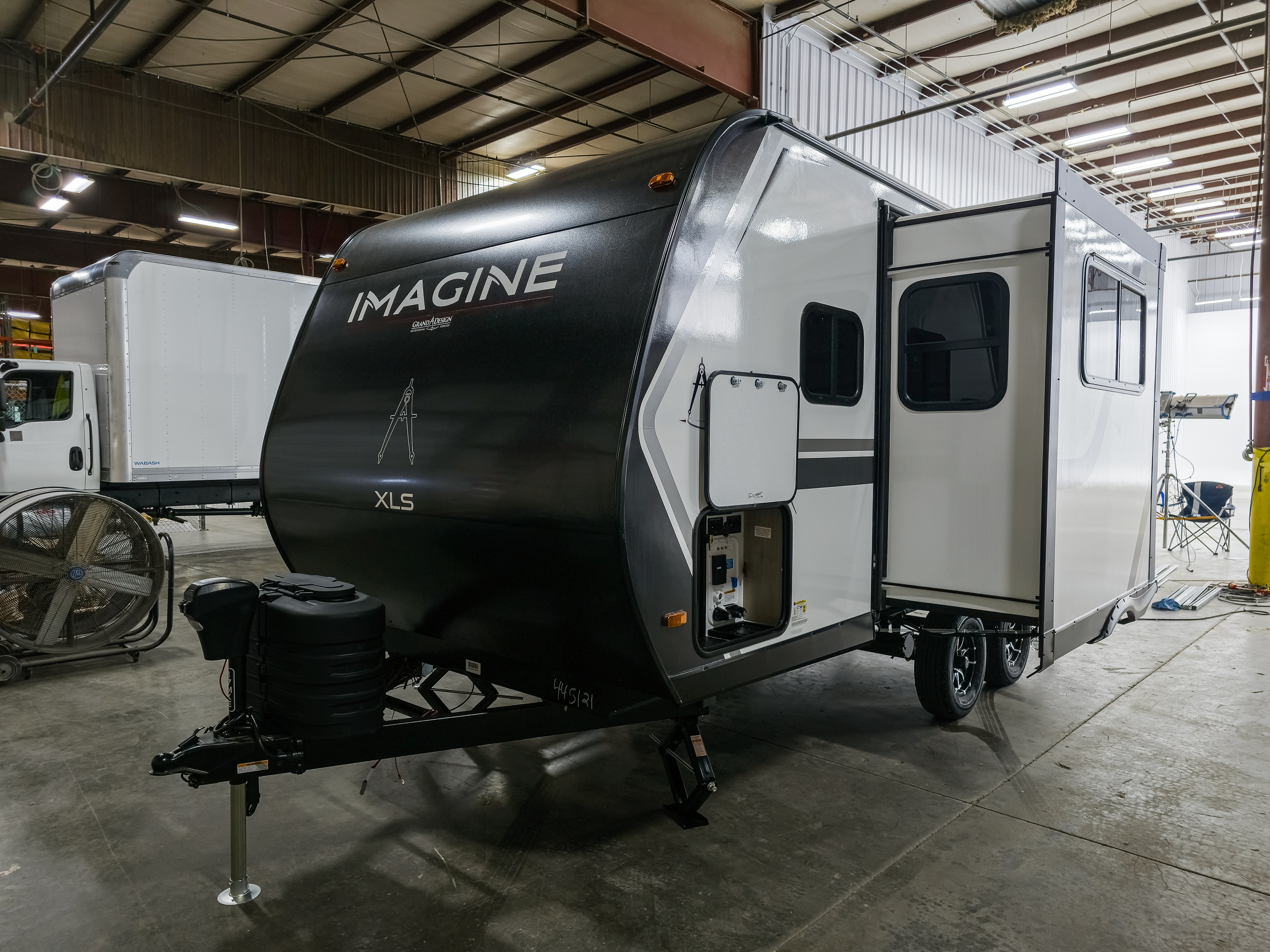

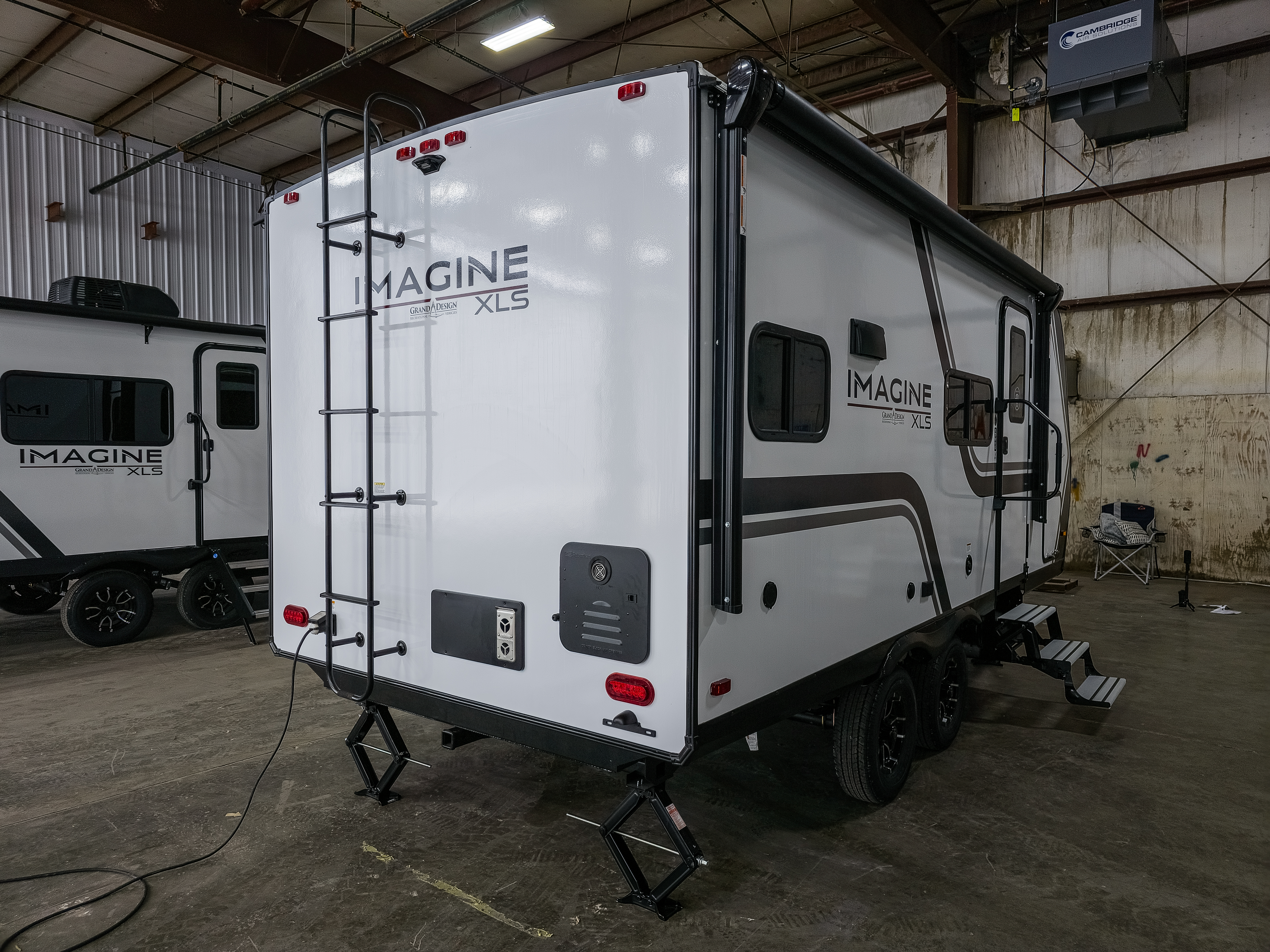

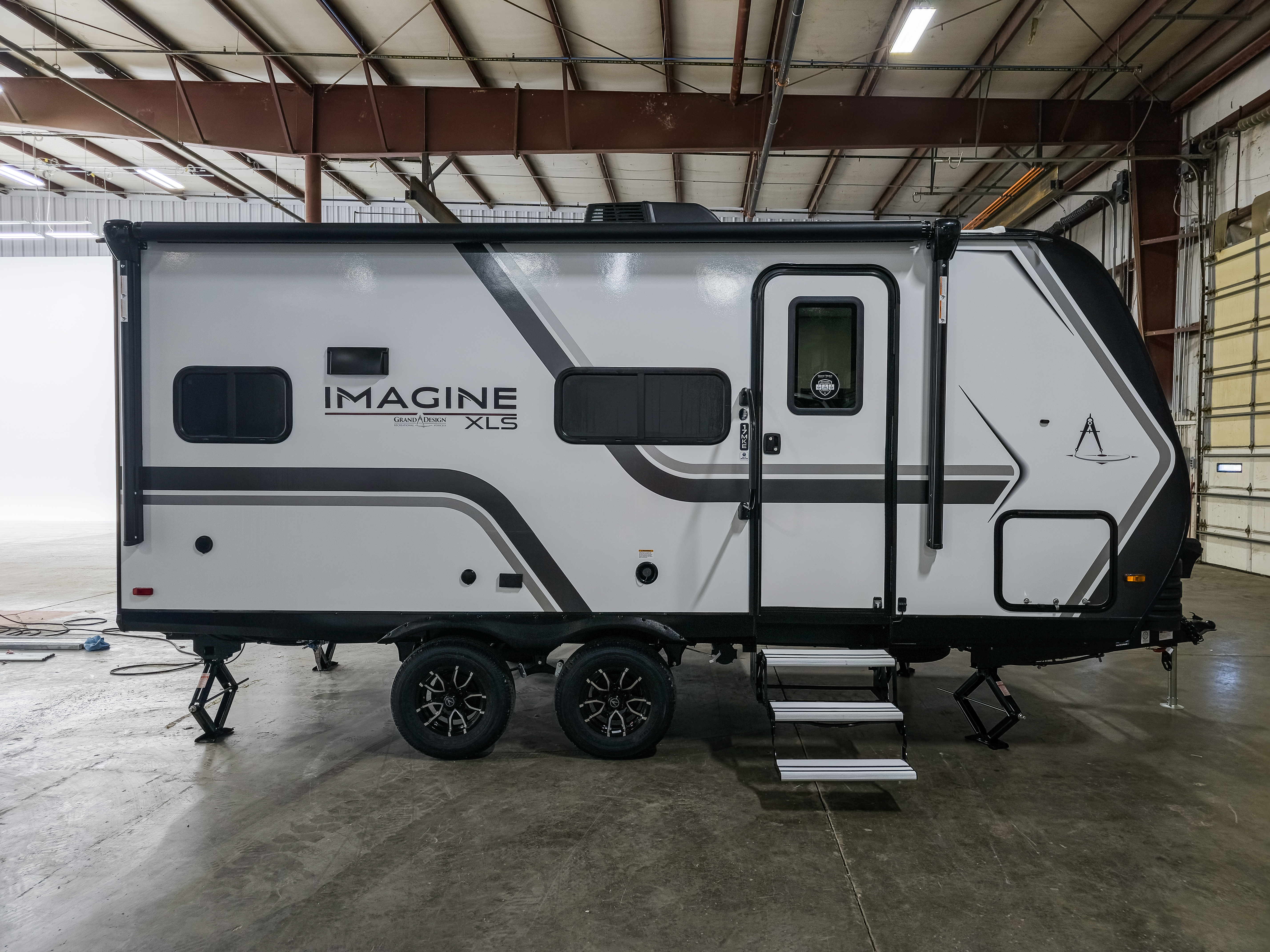

    EXTERIOR
    Slides1
    Awnings1
    Awning Length14'
    EXTERIOR
    • 80% Tint Radius Safety Glass Windows
    • 20# LP Bottles (2) w/ Level Gauges
    • 28" Radius Entry Door
    • Extra Large 2” Fresh Water Drain Valve
    • Adjustable Power Awning w/ LED Lights
    • Power Tongue Jack
    • Aluminum Entry Steps
    • Spare Tire & Carrier
    • 6' Coiled Break Away Cable

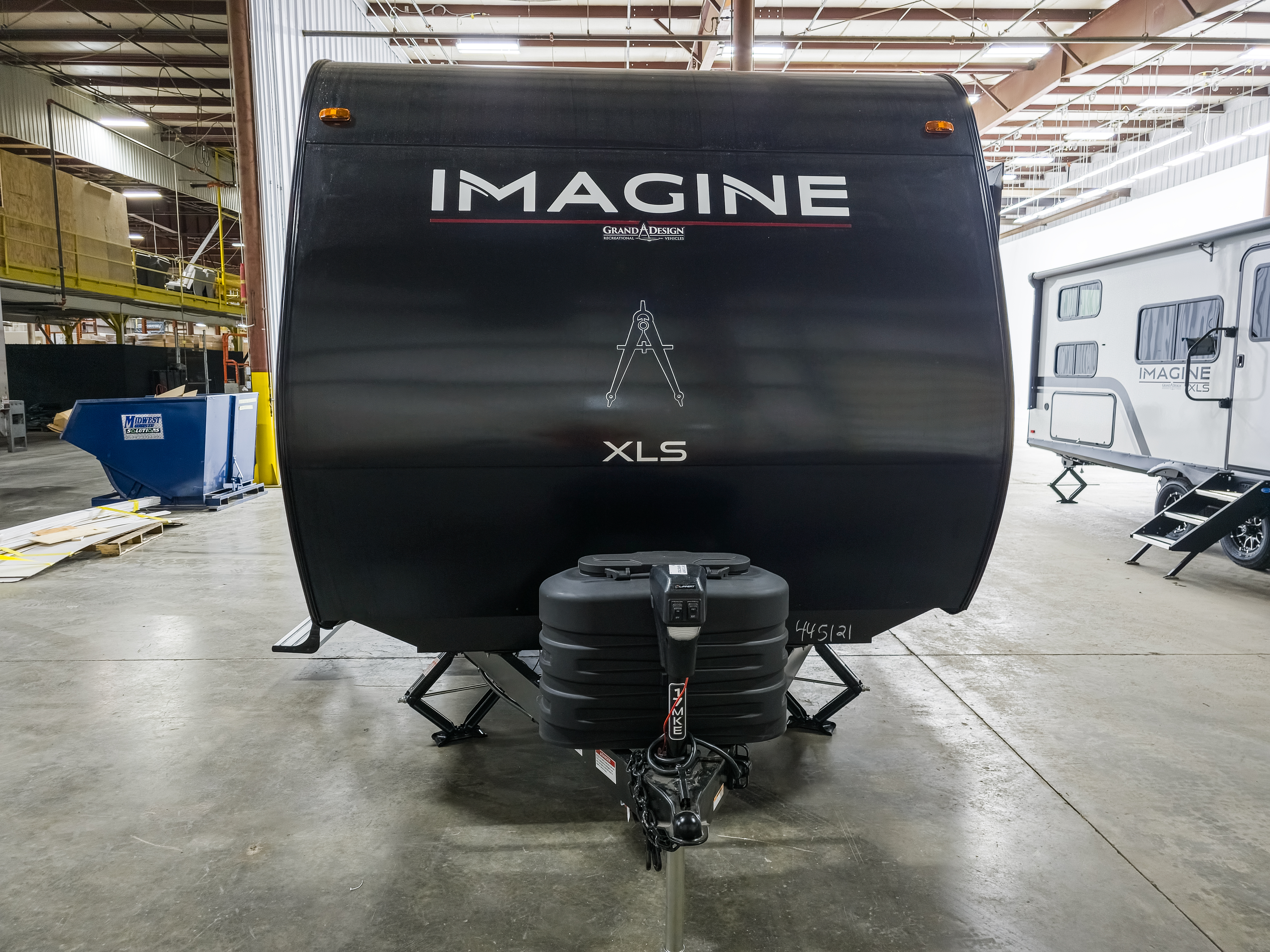

    • Front Rock Guard

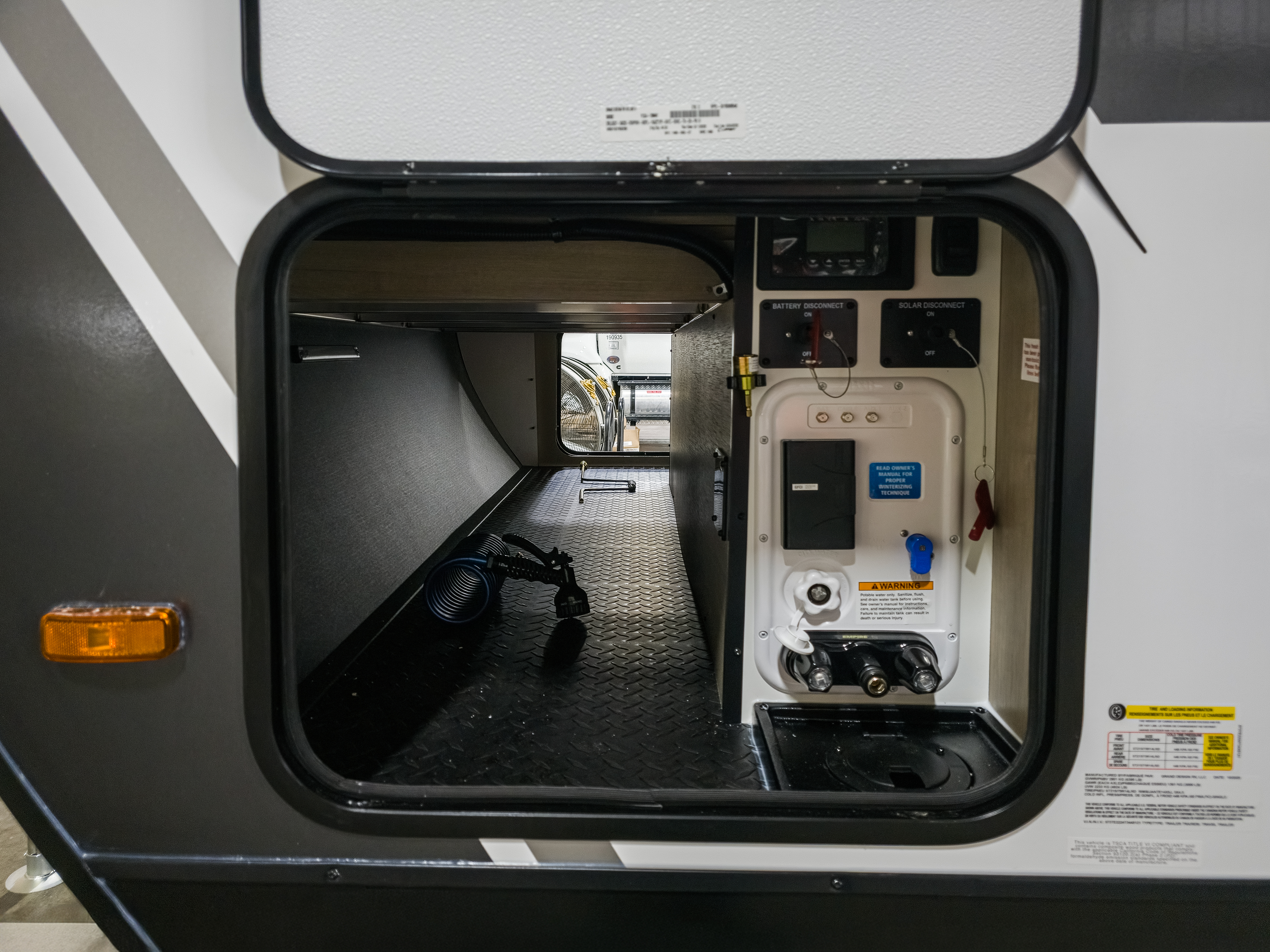

    • Tuff-Ply Pass Thru Flooring
    • Sewer Hose Carrier

    CONSTRUCTION
    • Gel Coated Fiberglass Exterior
    • One-Piece Roof Membrane with Limited Lifetime Warranty
    • Easy Access Low Point Drain Valves
    • Friction Hinge Entry Door
    • Magnetic Storage Door Catches
    • Laminated Aluminum Framed Rear Wall (R-7)
    • Laminated Aluminum Framed Side Walls (R-7)
    • Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-7)
    • Laminated Aluminum Framed Main Floor (R-30)
    • 5" Radius Wood Framed Roof (R-40)
    • Heated & Enclosed Underbelly w/ Suspended Tanks
    • Double Insulated Roof & Front Wall
    • Heated & Enclosed Dump Valves
    • High Density Roof Insulation w/ Attic Vent
    • Moisture Barrier Floor Enclosure

    RUNNING GEAR
    • Tire Linc TPMS Prep
    • Aluminum Rims
    • Anti-Lock Braking System

    FRAME & CHASSIS
    • 2'' Accessory Hitch Receiver

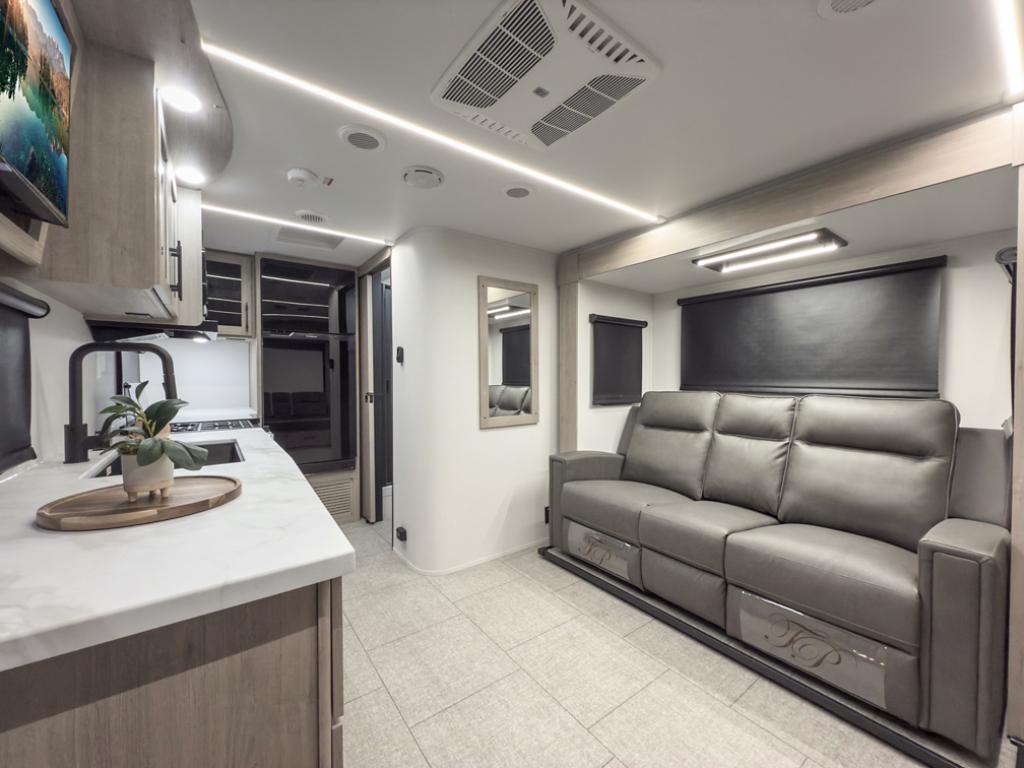

    INTERIOR
    • Solid Drawer Fronts
    • Glass Cabinet Door Inserts (Select Overhead Cabinets)
    • Solid Core Cabinet Stiles
    • Pre-Drilled and Screwed Face Frames
    • Ball Bearing Full Extension Drawer Glides
    • Large Panoramic Window
    • Telescoping Dinette Table
    • LED Interior Lighting
    • Wireless Pop-Up Charger w/ 2 USB Outlets

    KITCHEN
    • Sink Cover
    • Residential Countertops
    • Deep Seated Stainless Steel Sink
    • Residential Pulldown Sprayer Faucet

    ELECTRICAL
    • Battery Kill Switch (Pass Thru)
    • Monitor Panel w/ One Touch Compass Connect
    • 180W Roof Mounted Solar Panel
    • Roof Mounted Quick Connect Plugs
    • 40 AMP Charge Controller
    • 30 Amp Service
    • Detachable Power Cord
    • Motion Sensor LED Entry Lighting

    HVAC
    • High Capacity Furnace
    • Designated Heat to Subfloor
    • Residential (Ductless) Heating System Throughout
    • Ducted Main A/C
    PLUMBING
    • High-Capacity Water Pump
    • Oversized Tank Capacities

    BEDROOM
    • Queen Murphy Bed w/ Storage Drawers (17MKE, 22BHE)
    • Residential Bedspread
    • Master Suite with Queen Bed (22MLE, 22RBE, 23LDE, 24BSE, 24SDE, 25DBE)
    • Built-in Wardrobe Cubby Storage w/USB-C Charging Station and 110V Outlet

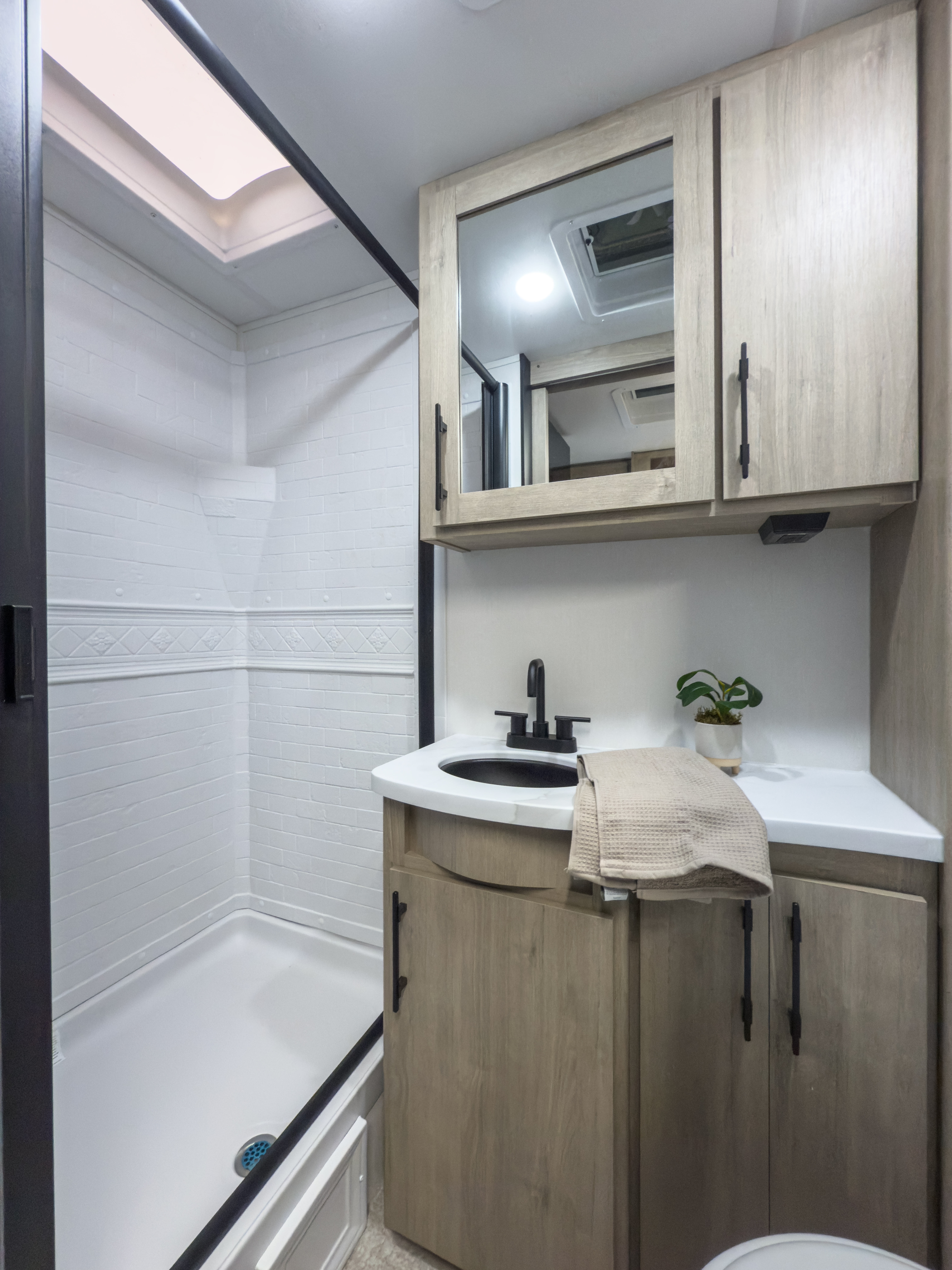

    BATHROOM
    • Residential Walk-In Shower
    • Skylight Over Shower
    • Power Vent Fan
    • Medicine Cabinet with Mirror

    APPLIANCE
    • Microwave
    • 3-Burner Range with Oven
    • 12V 10 CU FT Refrigerator

    ELECTRONICS
    • Backup Camera Prep
    • TV and Cable Prep
    • High Definition LED TV
    • Exterior Cable Hookup
    Peace of Mind Package
    • Aluminum Entry Steps
    • Deep Seated Stainless Steel Sink
    • Residential Pull-Down Sprayer Faucet
    • Residential Cabinetry
    • Universal Docking Station
    • On Demand Tankless Water Heater
    • Black Tank Flush
    • Aluminum Rims
    • Spare Tire and Carrier
    • Front Rock Guard
    • Premium Window Treatments
    • 6' Coiled Break Away Cable
    • 2” Accessory Hitch
    • Sewer Hose Carrier
    • Tuff-Ply Pass Through Flooring
    • Dual LP Tank Monitors
    Ultimate Power Package
    • Adjustable Power Awning w/ LED Lights
    • LED Interior Lighting
    • 30 AMP Service
    • High Definition LED Television
    • LED Motion Sensor Entry Lighting
    • Detachable Power Cord
    • Ducted Main AC
    • Power Tongue Jack
    • Compass Connect
    • Tire Linc TPMS Prep
    • Exterior Cable Hookup
    • Full Width Pass-Thru Storage LED Strip Light w/Dual Power Pressure Switches
    • Wireless Pop-Up Charger w/Dual USB Ports
    Four Season Protection Package
    • High Capacity Furnace
    • Heated and Enclosed Underbelly with Suspended Tanks
    • Designated Heat Duct to Subfloor
    • High Density Roof Insulation with Attic Vent
    • Moisture Barrier Floor Enclosure
    • Residential (Ductless) Heating System Throughout
    • Double Insulated Roof and Front Wall
    • Heated and Enclosed Dump Valves
    XLS Solar Package
    • 180W Roof Mounted Solar Panel
    • Roof Mounted Quick Connect Plugs
    • 40 AMP Charge Controller
    • 12V 10 Cu. Ft. Refrigerator
