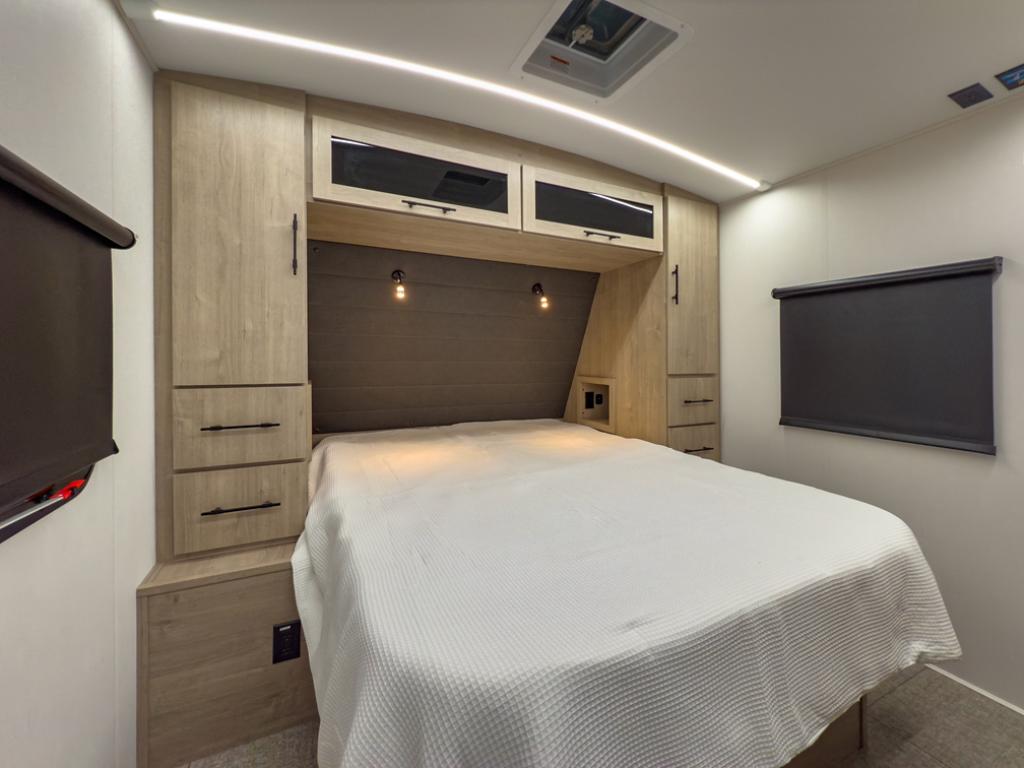

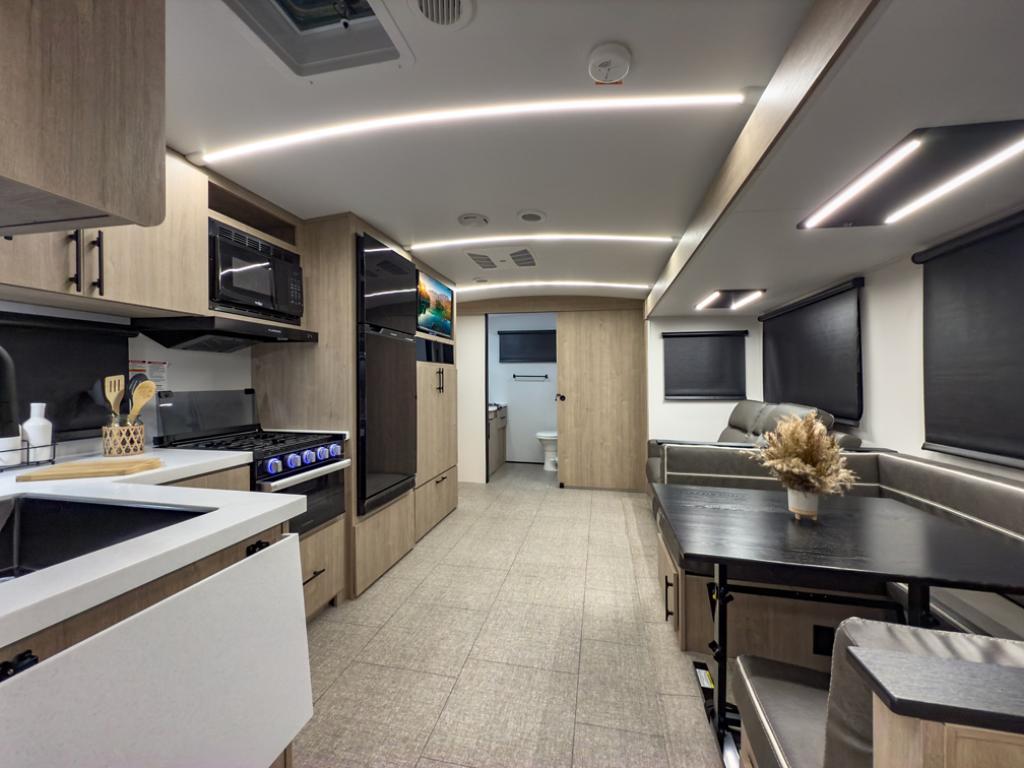

This travel trailer floorplan features a rear bathroom with U-Shaped Dinette and front Queen Bed.

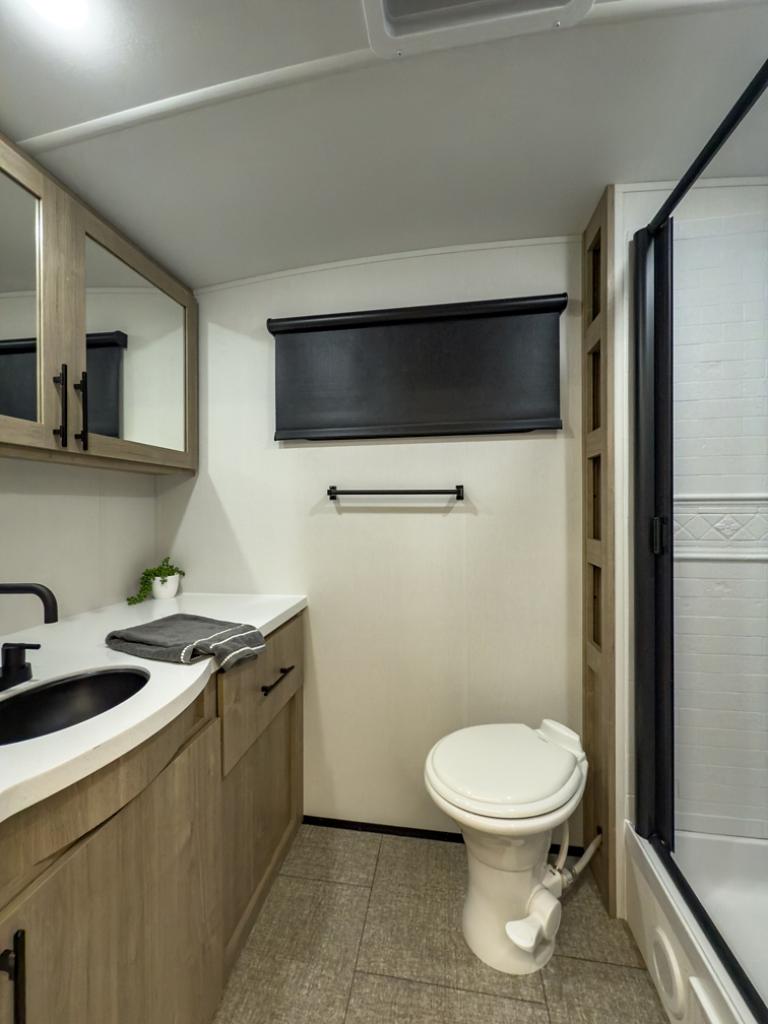

Get more room in your bathroom. This rear bath travel trailer is perfect for couples who want a sweeter bathroom suite, all without sacrificing living and bed space.

Hitch
594
UVW
5,795
GVWR
7,850
Length
29' 8"
Height
11' 2"
Sleeps
6
MSRP
$48,837

OVERALL SIZE
Exterior Height11' 2"
Exterior Height (w/opt. AC)   11' 2"
Exterior Length29' 8"
Exterior Width8'
Exterior Width (w/ slide out)11'
Interior Height81

WEIGHTS
Hitch / Pin Weight594
UVW5,795
GVWR7,850

CAPACITY
Fresh Water Capacity52
Gray Water Capacity82
Waste Water Capacity45
Propane Tanks2
LPG40
Sleeping Capacity6
APPLIANCES
Water HeaterTankless
Refrigerator10 cu. ft.
Furnace30,000 BTU
AC15,000 BTU

RUNNING GEAR
Axles2
Wheel Size15 in.
Tire SizeST225/75R15LRE

CONSTRUCTION
Construction TypeAluminum Cage
Floor R-ValueR-30
Wall R-ValueR-7
Roof R-ValueR-40
Slide Room R-ValueR-7
DIMENSIONS
Standard Bed60 X 80 Queen Bed
Standard BunkN/A
Shower30x36

EXTERIOR
Slides1
Awnings1
Awning Length21'
