Hitch
    490
    UVW
    3,600
    GVWR
    4,420
    Length
    19' 8"
    Height
    10' 3"
    Sleeps
    4
    MSRP
    $28,141
    DOWNLOAD SPEC SHEET
    OVERALL SIZE
    Exterior Height10' 3"
    Exterior Length19' 8"
    Exterior Width8'
    Exterior Width (w/ slide out)N/A
    Interior Height6' 6"

    WEIGHTS
    Hitch / Pin Weight490
    UVW3,600
    GVWR4,420

    CAPACITY
    Fresh Water Capacity37
    Gray Water Capacity37
    Waste Water Capacity37
    Propane Tanks1
    LPG40
    Sleeping Capacity4
    APPLIANCES
    Water Heater6 Gal. Gas/Electric
    Refrigerator3.30 cu. ft.
    Furnace20,000 BTU
    AC13,500 BTU

    RUNNING GEAR
    Axles1
    Wheel Size14 in.
    Tire SizeST215/75R14LRD

    CONSTRUCTION
    Construction TypeTraditional
    Floor R-ValueR-30
    Wall R-ValueR-7
    Roof R-ValueR-40
    Slide Room R-ValueR-7
    DIMENSIONS
    Standard Bed59 x 76"
    Standard BunkN/A
    Shower24 x 32"

    EXTERIOR
    SlidesN/A
    Awnings1
    Awning Length10'
    EXTERIOR
    • 1.25" Frame Reciever Hitch
    • Black Tank Flush
    • 20# LP Bottle
    • Friction Hinge Entry Door
    • Walk-On Roof
    • Easy Access Low Point Drain Valves
    • Spare Tire w/ Carrier
    • Magnetic Storage Door Catches
    • Extended Grab Handle
    • Tinted Windows
    • Leash Link/Bottle Opener
    • LP Quick Connect
    • Ladder Prep

    CONSTRUCTION
    • Balancing Beads
    • TPO Roof Membrane w/ Limited Lifetime Warranty
    • Insulated Storage Doors
    • Rear Wall Insulation (R-9)
    • Side Walls Insulation (R-9)
    • Slideroom Roof and End Wall Insulation (R-9)
    • Main Floor Insulation (R-11)
    • Roof Insulation (R-40)
    • Heated and Enclosed Underbelly w/ Suspended Tanks
    • Designated Heat Duct to Subfloor
    • Thermofoil Over Roof & Front Cap
    • Moisture Barrier Floor Enclosure
    • 8' Wide Huck Bolted Frame

    ELECTRICAL
    • Battery Kill Switch (Pass-Thru)
    • USB Ports (2)
    • More Power Outlets
    • Detachable Power Cord w/ LED Light
    • Motion Sensor Lights in Key Areas
    • Power Awning w/ Fusion Light
    INTERIOR

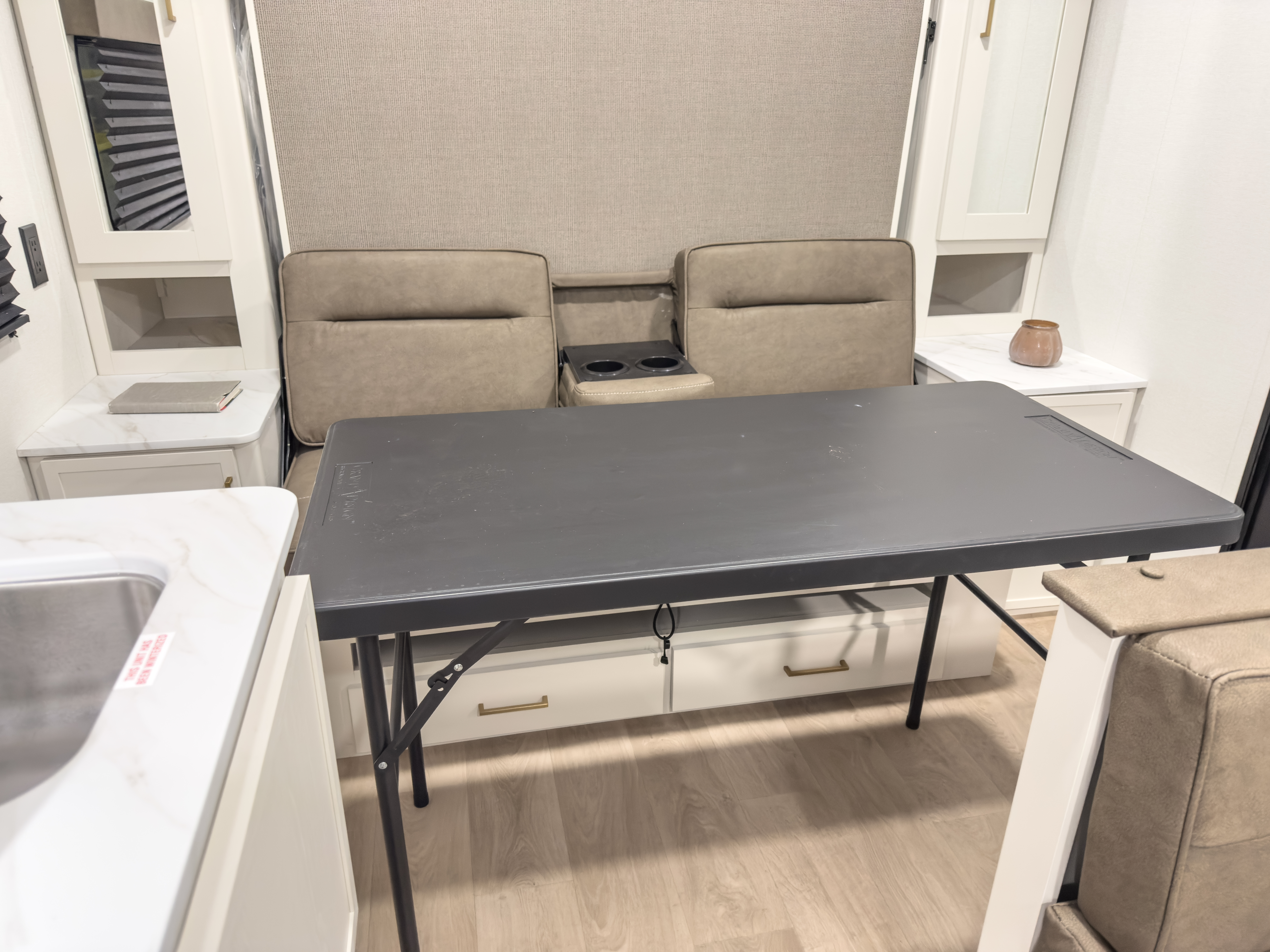

    • Fold-Up Table
    • Magnetic Door Catches
    • Recessed Lighting
    • Solid Core Cabinet Stiles
    • Pre-Drilled and Screwed Cabinetry
    • Ball Bearing Full Extension Drawer Glides
    • Residential Countertops
    • Upgraded Residential Furniture
    • 6' 6" Interior Height

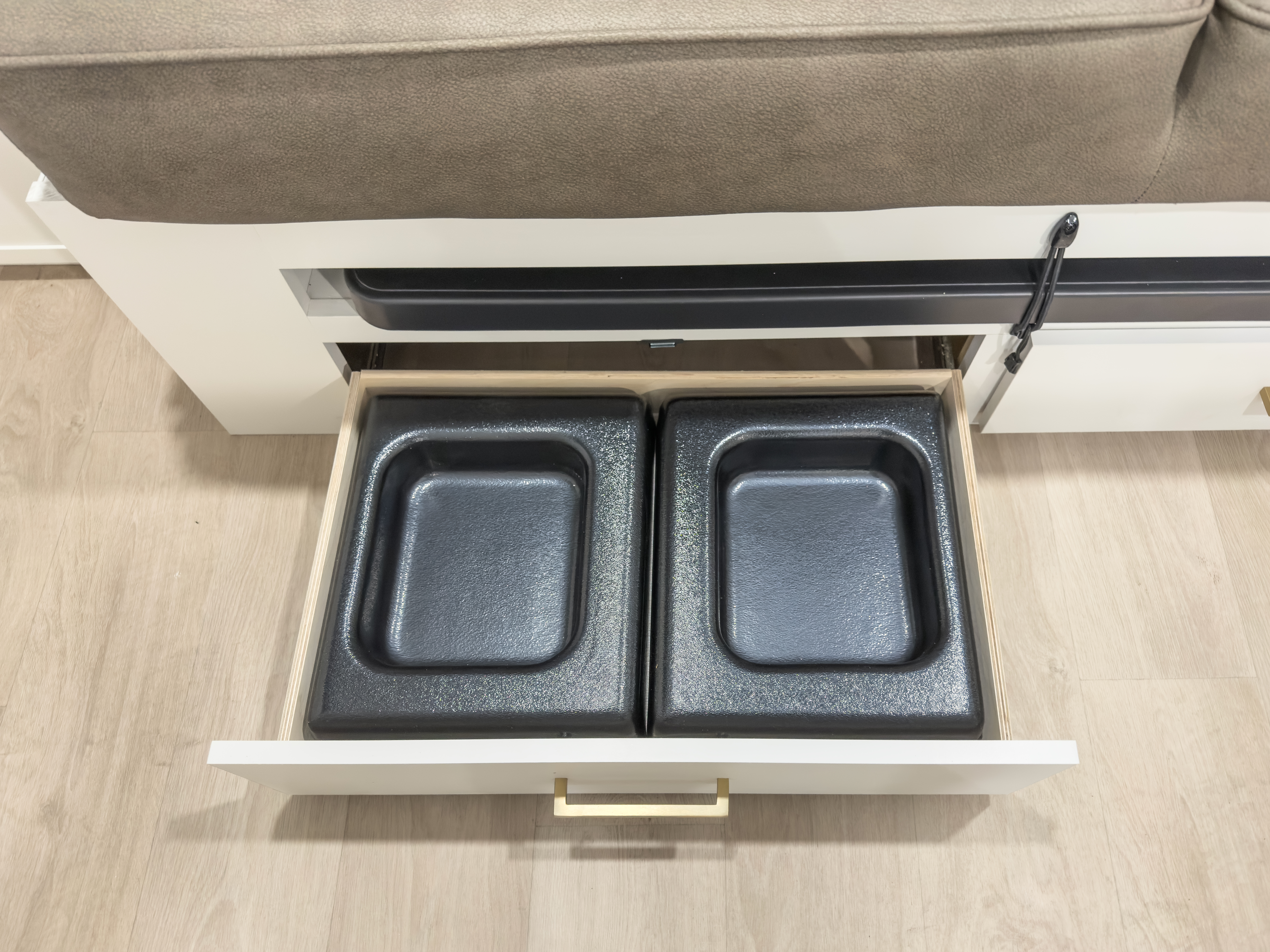

    • Pet-Friendly Dog Bowls

    KITCHEN

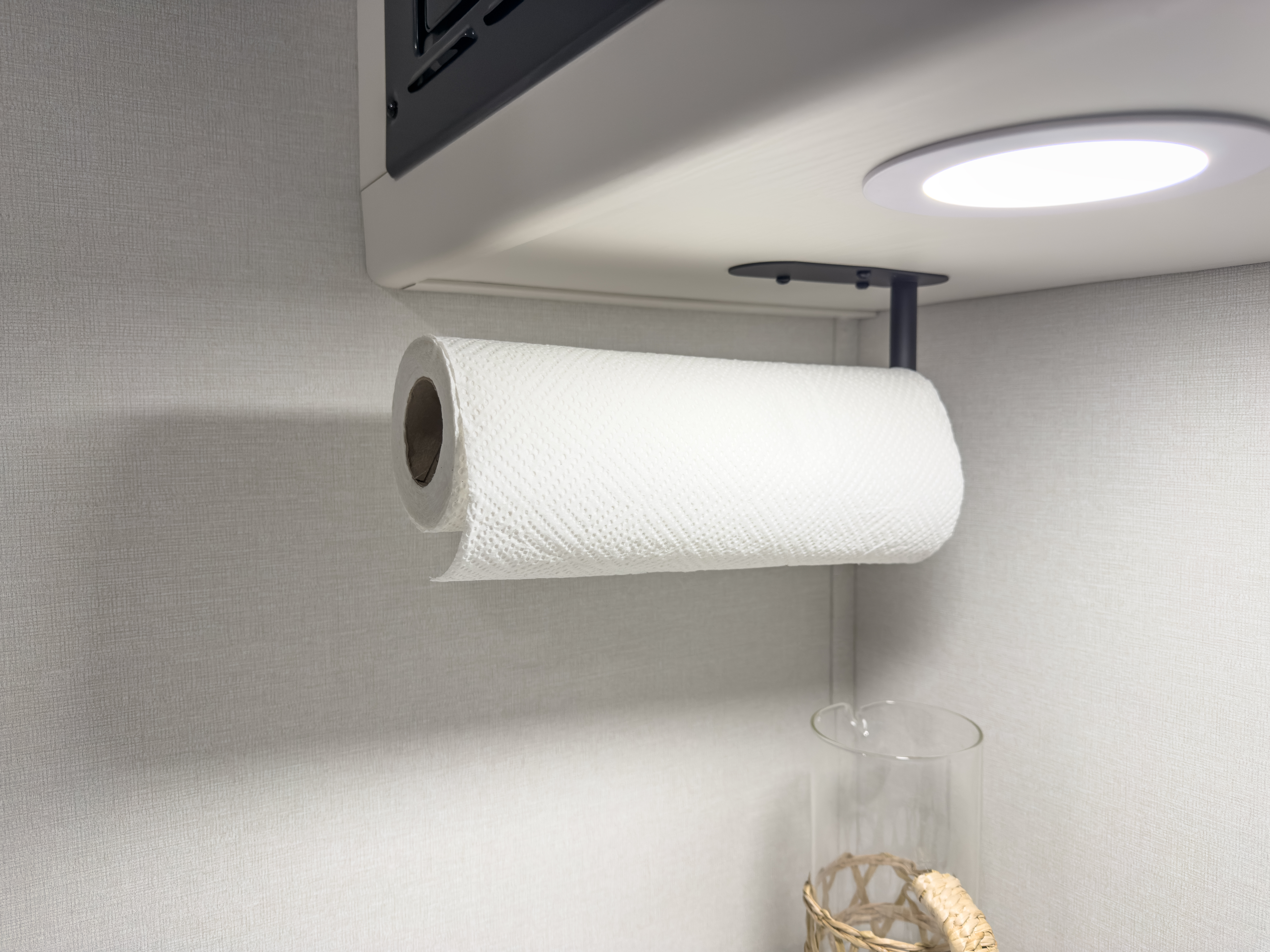

    • Paper Towel Holder
    • Residential Cabinet Doors
    • Kitchen Drawers

    BEDROOM
    • Storage Nook
    • Residential Bedspread
    • Master Suite w/ 60" x 80" Queen Bed
    • E-Z Lift Bed Storage w/ Struts
    • (2) USB & 110v Outlets

    BATHROOM
    • Walk-In Shower
    • ABS Tub Surround
    • Foot Flush Toilet
    SOLAR
    • 600W Solar Prep
    • Roof Mounted Quick Connect Plugs
    • 30 AMP Solar Controller Prep
    • Solar Disconnect
    • 2000W Inverter Prep

    PLUMBING
    • High-Capacity Water Pump
    • Exrra Large 2" Fresh Water Drain Valve
    • Oversized Tank Capacities (37 Gallons)
    • 37 Gallon Fresh Water Capacity
    • E-Z Winterization
    • All-In-One Utility Center

    ELECTRONICS
    • JBL Sound System
    • Cable/Sat Prep
    • Backup Camera Prep
    • HD TV Antenna

    APPLIANCE
    • Microwave
    • 2-Burner Range
    • 3.3cu Glass Front 12V Refer

    HVAC
    • 20K BTU High Capacity Furnace
    • Attic Vent
    • 13.5K Roof Mounted A/C
    • EvenFlow Ductless Heating System Throughout
    Construction and Convenience Package
    • 8' Width
    • 6'6" Interior Height
    • Fully Walkable Roof
    • 13.5K Roof Mount A/C
    • Radial Tires w/ Counteract Balancing Beads
    • Lumbercore Screwed Cabinet Styles
    • Magnetic Storage Door Catches
    • Extended Grab Handle
    • Tinted Windows
    • 6 Gal. Gas & Electric Water Heater
    • Black Automotive Glass Door
    • Galvanized Wheel Wells
    • Motion Sensor Lights in Passthrough
    • Backup Camera Prep
    • Spare Tire w/ Carrier
    • Black Tank Flush
    • Rear Ladder Prep
    Lifestyle Protection Package
    • 60 x 80 Queen Bed
    • Interior/Exterior Fold Up Table
    • Pull Out Pet Bowls in Dedicated Drawer
    • Exterior Leash Link
    • Exterior Bottle Opener
    • Shoe Nook Storage
    • Hinged Interior Hidden Storage/Bedside Storage Nooks
    • LP Quick Connect
    4-Season Protection Package
    • Heated & Enclosed Underbelly w/ Suspended Tanks
    • Dedicated Heat Duct to Subfloor
    • Thermofoil Over Roof & Front Cap
    • Moisture Barrier Floor Enclosure
    • 20K BTU Furnace
    • Attic Vent
    • 20#LP Tank
    • EvenFlow Ductless Heating Throughout
    • E-Z Winterization
    • Universal Docking Station
    Solar Prep Package
    • 600W Universal Solar Prep
    • 30AMP Solar Controller Prep
    • 2000W Inverter Prep
    • Solar Disconnect Switch
    • Battery Disconnect Switch
    Power and Entertainment Package
    • JBL Head Unit
    • JBL Interior and Exterior Speakers
    • Recessed LED Interior Lighting
    • Power Awning w/ Exterior Fusion Light
    • USB Ports
    • HD TV Antenna
    Elite Kitchen Package
    • 12V 3.3 Cube Refrigerator w/ Glass Front
    • Paper Towel Holder
    • Drawers w/ Metal Drawer Guides
    • Thermoformed and Seamless Countertop
    • 2-Burner Range w/ Glass Cover
    • Multiple Outlets
