Hitch
    454
    UVW
    4,446
    GVWR
    5,500
    Length
    23'
    Height
    10' 6"
    Sleeps
    7
    MSRP
    $31,252
    DOWNLOAD SPEC SHEET
    OVERALL SIZE
    Exterior Height10' 6"
    Exterior Length23'
    Exterior Width8'
    Exterior Width (w/ slide out)N/A
    Interior Height6' 6"

    WEIGHTS
    Hitch / Pin Weight454
    UVW4,446
    GVWR5,500

    CAPACITY
    Fresh Water Capacity37
    Gray Water Capacity74
    Waste Water Capacity37
    Propane Tanks2
    LPG20
    Sleeping Capacity7
    APPLIANCES
    Water HeaterTankless
    Refrigerator4.30 cu. ft.
    Furnace20,000 BTU
    AC8,000 BTU

    RUNNING GEAR
    Axles1
    Wheel Size15 in.
    Tire SizeST225/75R15LRE

    CONSTRUCTION
    Construction TypeTraditional
    Floor R-ValueR-30
    Wall R-ValueR-7
    Roof R-ValueR-40
    Slide Room R-ValueR-7
    DIMENSIONS
    Standard Bed60 X 80

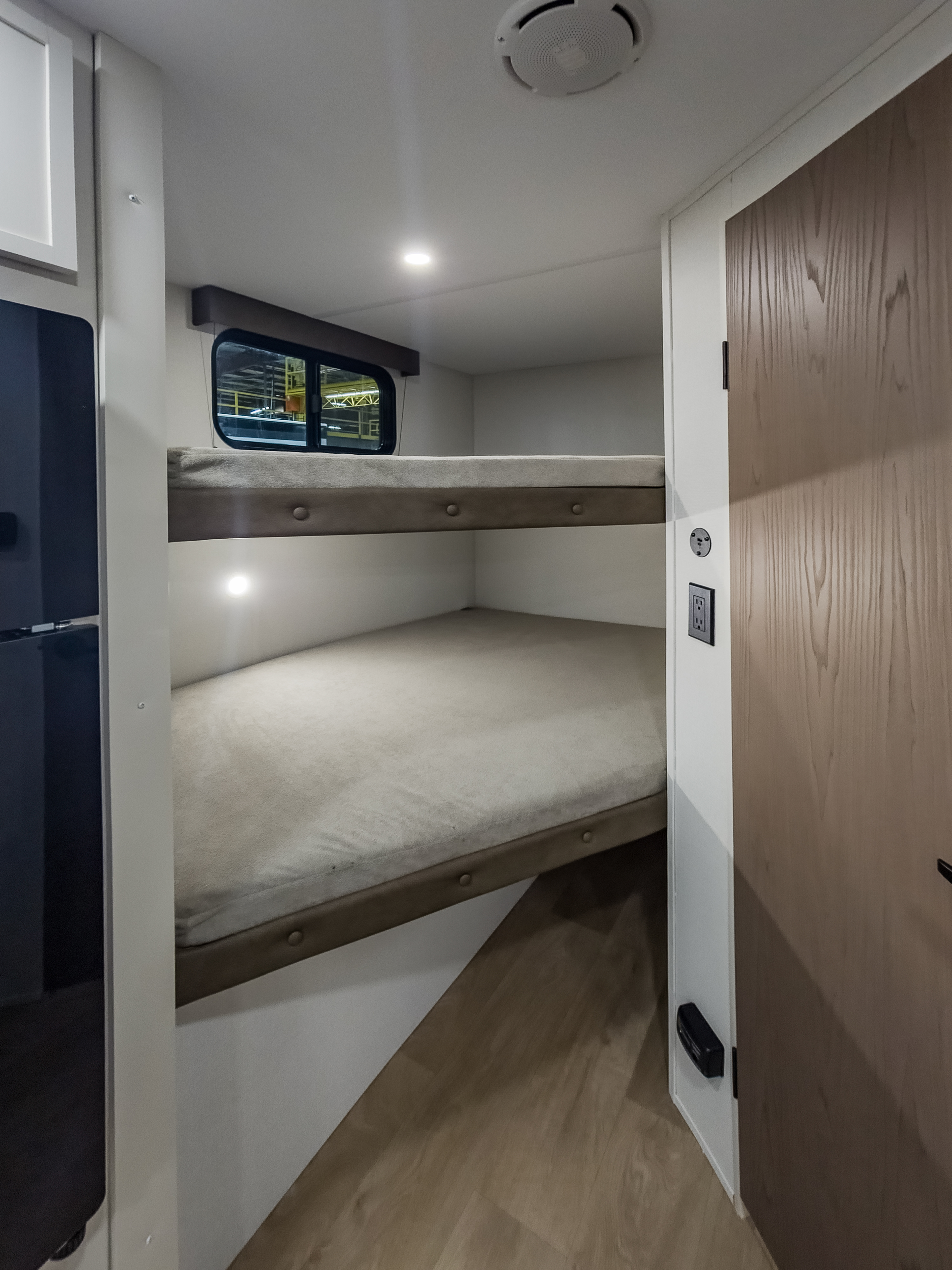

    Standard Bunk46 X 76
    Shower27 X 36

    EXTERIOR
    Slides1
    Awnings1
    Awning Length15'
    EXTERIOR
    • 1.25" Frame Reciever Hitch
    • Black Tank Flush
    • 20# LP Bottle
    • Friction Hinge Entry Door
    • Walk-On Roof
    • Easy Access Low Point Drain Valves
    • Spare Tire w/ Carrier
    • Magnetic Storage Door Catches
    • Extended Grab Handle
    • Tinted Windows
    • Leash Link/Bottle Opener
    • LP Quick Connect
    • Ladder Prep

    CONSTRUCTION
    • Balancing Beads
    • TPO Roof Membrane w/ Limited Lifetime Warranty
    • Insulated Storage Doors
    • Rear Wall Insulation (R-9)
    • Side Walls Insulation (R-9)
    • Slideroom Roof and End Wall Insulation (R-9)
    • Main Floor Insulation (R-11)
    • Roof Insulation (R-40)
    • Heated and Enclosed Underbelly w/ Suspended Tanks
    • Designated Heat Duct to Subfloor
    • Thermofoil Over Roof & Front Cap
    • Moisture Barrier Floor Enclosure
    • 8' Wide Huck Bolted Frame

    ELECTRICAL
    • Battery Kill Switch (Pass-Thru)
    • USB Ports (2)
    • More Power Outlets
    • Detachable Power Cord w/ LED Light
    • Motion Sensor Lights in Key Areas
    • Power Awning w/ Fusion Light
    INTERIOR
    • Fold-Up Table
    • Magnetic Door Catches
    • Recessed Lighting
    • Solid Core Cabinet Stiles
    • Pre-Drilled and Screwed Cabinetry
    • Ball Bearing Full Extension Drawer Glides
    • Residential Countertops
    • Upgraded Residential Furniture
    • 6' 6" Interior Height
    • Pet-Friendly Dog Bowls

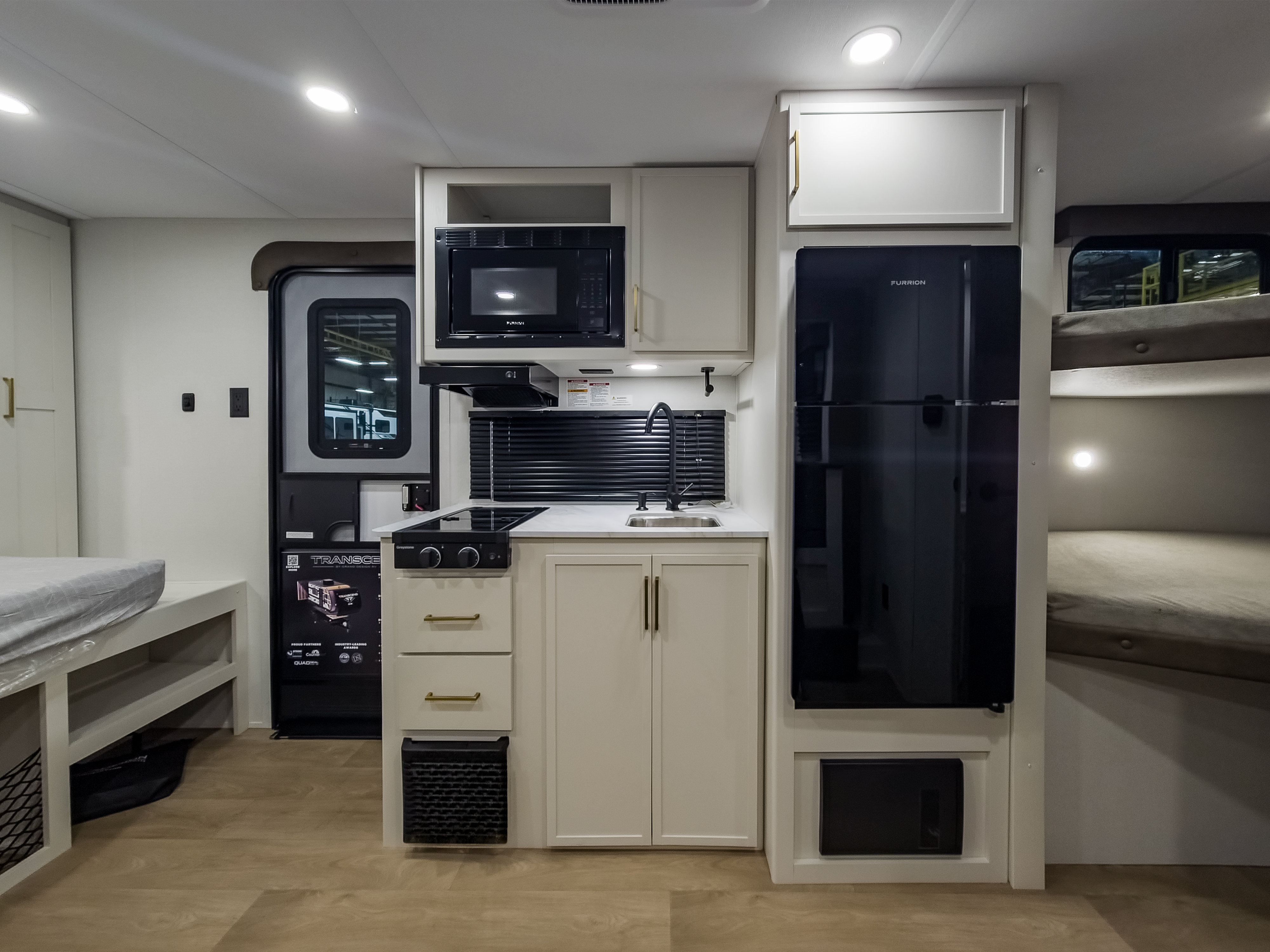

    KITCHEN
    • Paper Towel Holder
    • Residential Cabinet Doors
    • Kitchen Drawers

    BEDROOM
    • Storage Nook
    • Residential Bedspread
    • Master Suite w/ 60" x 80" Queen Bed
    • E-Z Lift Bed Storage w/ Struts
    • (2) USB & 110v Outlets

    BATHROOM
    • Walk-In Shower
    • ABS Tub Surround
    • Foot Flush Toilet
    SOLAR
    • 600W Solar Prep
    • Roof Mounted Quick Connect Plugs
    • 30 AMP Solar Controller Prep
    • Solar Disconnect
    • 2000W Inverter Prep

    PLUMBING
    • High-Capacity Water Pump
    • Exrra Large 2" Fresh Water Drain Valve
    • Oversized Tank Capacities (37 Gallons)
    • 37 Gallon Fresh Water Capacity
    • E-Z Winterization
    • All-In-One Utility Center

    ELECTRONICS
    • JBL Sound System
    • Cable/Sat Prep
    • Backup Camera Prep
    • HD TV Antenna

    APPLIANCE
    • Microwave
    • 2-Burner Range
    • 3.3cu Glass Front 12V Refer

    HVAC
    • 20K BTU High Capacity Furnace
    • Attic Vent
    • 13.5K Roof Mounted A/C
    • EvenFlow Ductless Heating System Throughout
    Construction and Convenience Package
    • 8' Width
    • 6'6" Interior Height
    • Fully Walkable Roof
    • 13.5K Roof Mount A/C
    • Radial Tires w/ Counteract Balancing Beads
    • Lumbercore Screwed Cabinet Styles
    • Magnetic Storage Door Catches
    • Extended Grab Handle
    • Tinted Windows
    • 6 Gal. Gas & Electric Water Heater
    • Black Automotive Glass Door
    • Galvanized Wheel Wells
    • Motion Sensor Lights in Passthrough
    • Backup Camera Prep
    • Spare Tire w/ Carrier
    • Black Tank Flush
    • Rear Ladder Prep
    Lifestyle Protection Package
    • 60 x 80 Queen Bed
    • Interior/Exterior Fold Up Table
    • Pull Out Pet Bowls in Dedicated Drawer
    • Exterior Leash Link
    • Exterior Bottle Opener
    • Shoe Nook Storage
    • Hinged Interior Hidden Storage/Bedside Storage Nooks
    • LP Quick Connect
    4-Season Protection Package
    • Heated & Enclosed Underbelly w/ Suspended Tanks
    • Dedicated Heat Duct to Subfloor
    • Thermofoil Over Roof & Front Cap
    • Moisture Barrier Floor Enclosure
    • 20K BTU Furnace
    • Attic Vent
    • 20#LP Tank
    • EvenFlow Ductless Heating Throughout
    • E-Z Winterization
    • Universal Docking Station
    Solar Prep Package
    • 600W Universal Solar Prep
    • 30AMP Solar Controller Prep
    • 2000W Inverter Prep
    • Solar Disconnect Switch
    • Battery Disconnect Switch
    Power and Entertainment Package
    • JBL Head Unit
    • JBL Interior and Exterior Speakers
    • Recessed LED Interior Lighting
    • Power Awning w/ Exterior Fusion Light
    • USB Ports
    • HD TV Antenna
    Elite Kitchen Package
    • 12V 3.3 Cube Refrigerator w/ Glass Front
    • Paper Towel Holder
    • Drawers w/ Metal Drawer Guides
    • Thermoformed and Seamless Countertop
    • 2-Burner Range w/ Glass Cover
    • Multiple Outlets
