Hitch
    803
    UVW
    7,383
    GVWR
    8,995
    Length
    35' 11"
    Height
    11'
    Sleeps
    10
    MSRP
    $53,582
    DOWNLOAD SPEC SHEET
    OVERALL SIZE
    Exterior Height11'
    Exterior Length35' 11"
    Exterior Width8'
    Exterior Width (w/ slide out)11'
    Interior Height6' 6"

    WEIGHTS
    Hitch / Pin Weight803
    UVW7,383
    GVWR8,995

    CAPACITY
    Fresh Water Capacity56
    Gray Water Capacity78
    Waste Water Capacity39
    Propane Tanks2
    LPG40
    Sleeping Capacity10
    APPLIANCES
    Water HeaterTankless
    Refrigerator10.70 cu. ft.
    Furnace35,000 BTU
    AC15,000 BTU

    RUNNING GEAR
    Axles2
    Wheel Size15 in.
    Tire SizeST225/75R15LRE

    CONSTRUCTION
    Construction TypeTraditional
    Floor R-ValueR-11
    Wall R-ValueR-9
    Roof R-ValueR-40
    Slide Room R-ValueR-9
    DIMENSIONS
    Standard Bed60 X 80 Queen Bed
    Standard Bunk30x38" and 32x92" over 54x75" Full Bed
    Shower27" x 36"

    EXTERIOR
    Slides1
    Awnings1
    Awning Length20'
    EXTERIOR

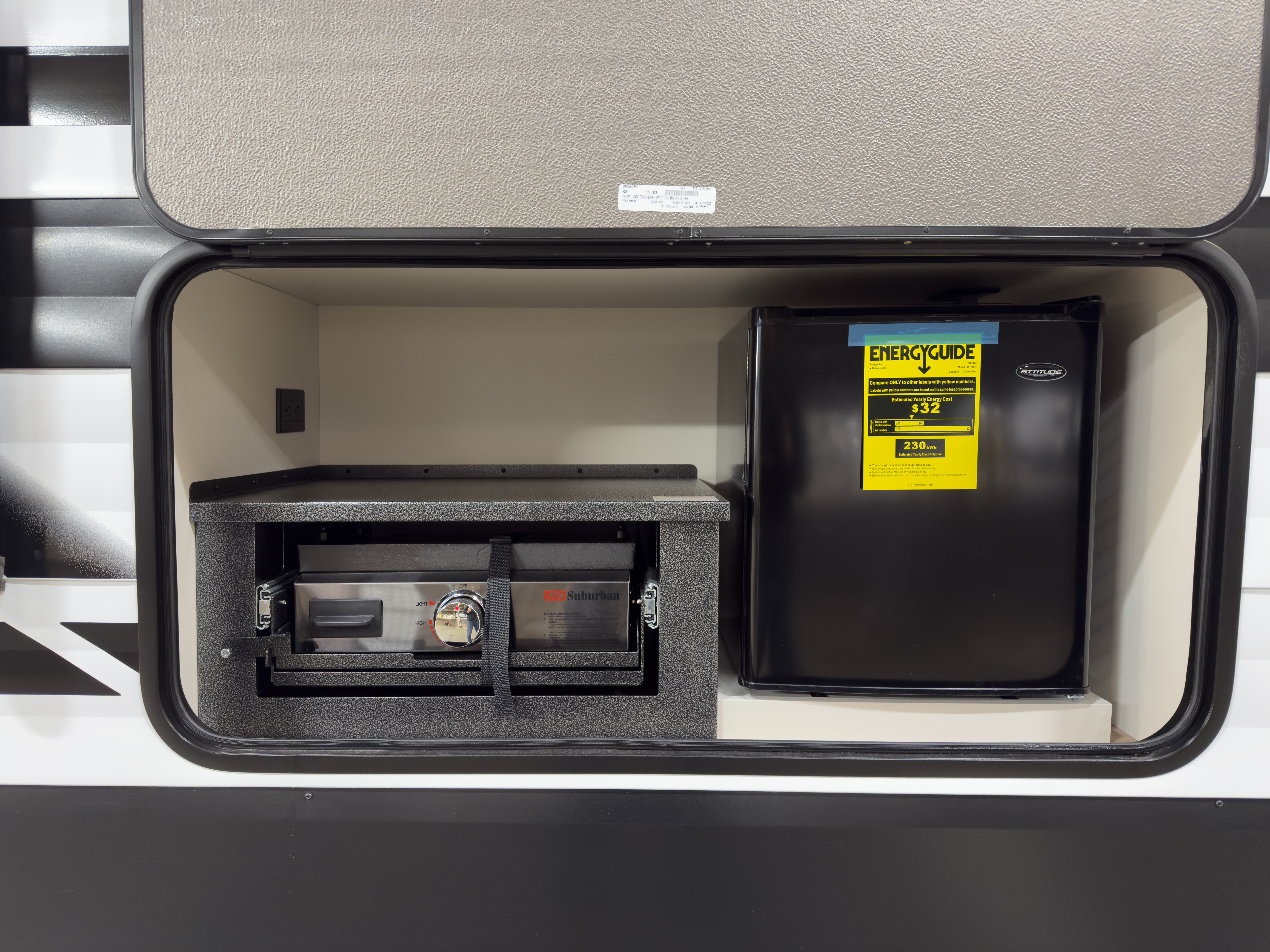

    • Exterior Camp Kitchen with Griddle and 1.7cu Refer
    • Power Tongue Jack
    • Solar Power Inlet
    • Black Tank Flush
    • 20# LP Bottles (2) with Cover
    • Friction HInge Entry Door
    • Walk-On Roof
    • Easy Access Low Point Drain Valves

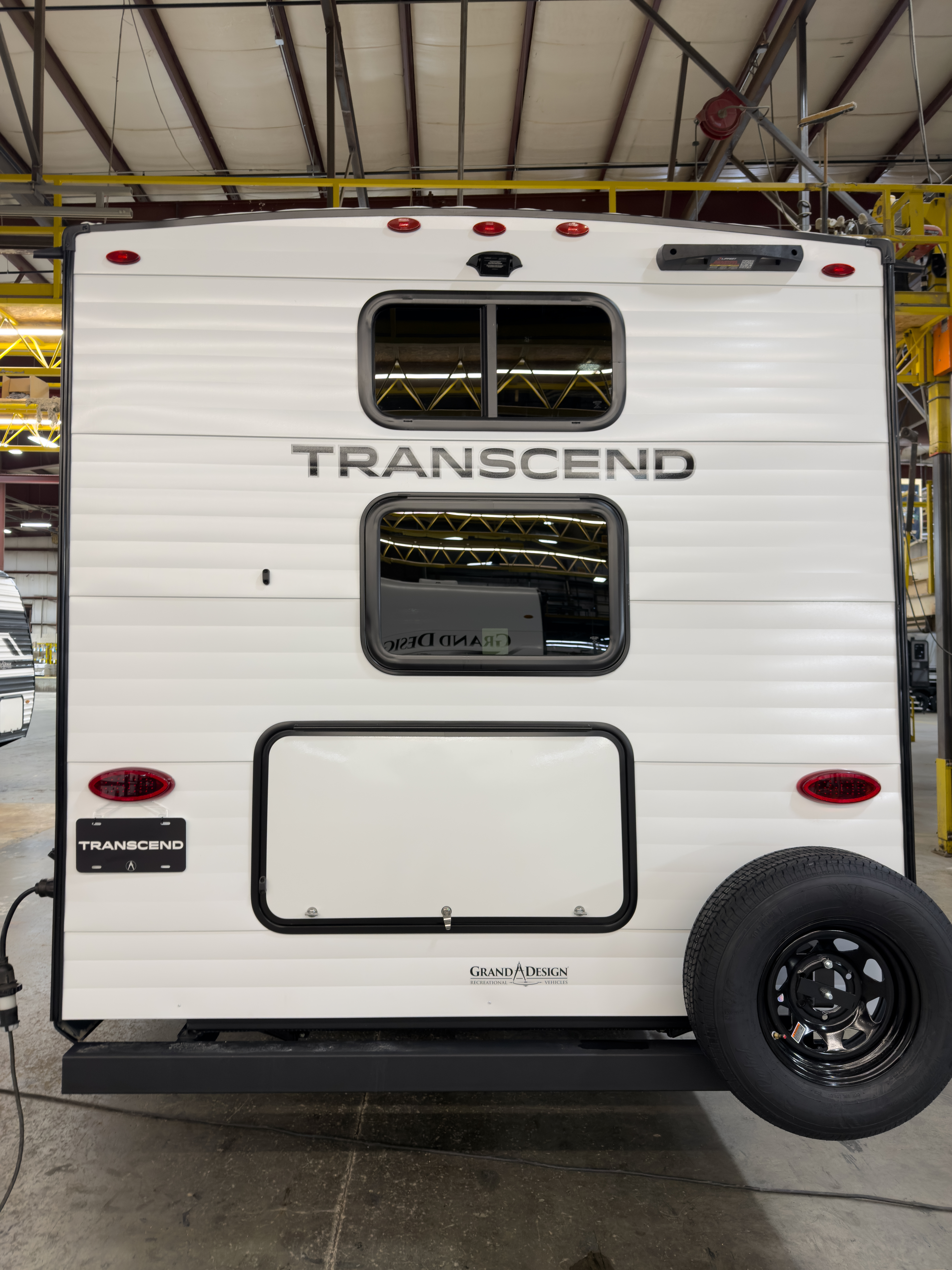

    • Spare Tire with Carrier
    • Magnetic Storage Door Catches
    • Safe-T-Rail Assist
    • Tinted Windows
    • Leash Link/Bottle Opener
    • 0.030 Toughcoat Metal

    CONSTRUCTION
    • 15K Standard A/C
    • TPO Roof Membrane with Limited Lifetime Warranty

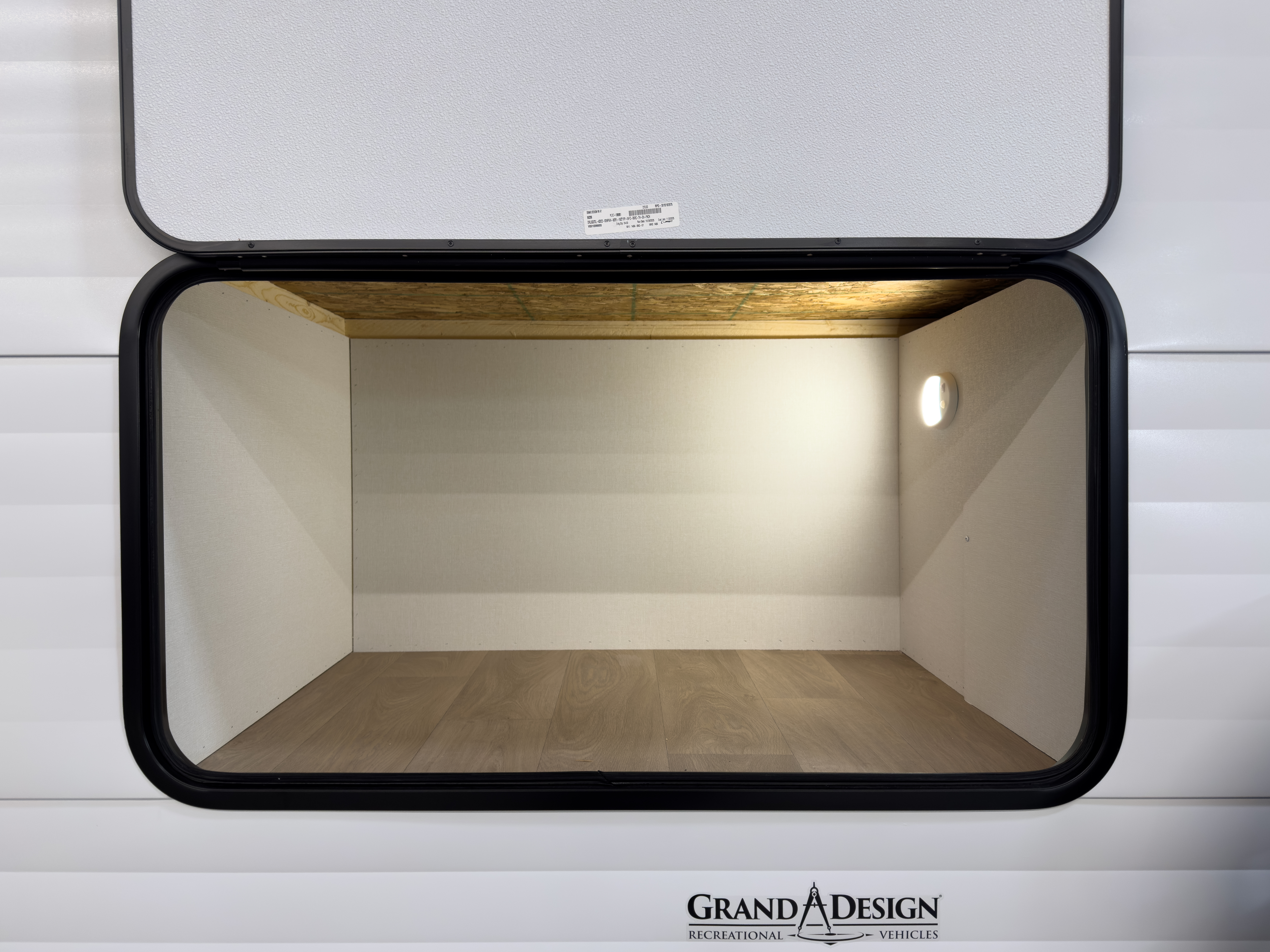

    • Insulated Storage Doors
    • Rear Wall Insulation (R-9)
    • Side Walls Insulation (R-9)
    • Slideroom Roof and End Wall Insulation (R-9)
    • Main Floor Insulation (R-11)
    • Roof Insulation (R-40)
    • Heated and Enclosed Underbelly with Suspended Tanks
    • Designated Heat Duct to Subfloor
    • Thermofoil Over Roof & Front Cap
    • Moisture Barrier Floor Enclosure
    • Aluminum Rims
    • Balancing Beads
    • Quad Seal Technology

    ELECTRICAL
    • Battery Kill Switch (Pass-Through)
    • USB Ports (2)
    • More Power Outlets
    • Power Awning with LED Light
    • Detachable Power Cord with LED Light
    • Motion Sensor Lights in Key Areas
    INTERIOR
    • Pet Friendly
    • Interior/Exterior Pop-Up Table
    • Power Vent Fan in Bath
    • Solid hardwood Drawer Fronts
    • Solid Core Cabinet Stiles
    • Pre-Drilled and Screwed Cabinetry
    • Ball-Bearing Full Extension Drawer Glides
    • Residential Countertops
    • Upgraded Residential Furniture
    • 6'6" Interior Height
    • Strip Lighting with Dimmer Switch

    KITCHEN
    • Pull-Out Trash Can Storage
    • 3-Burner Range

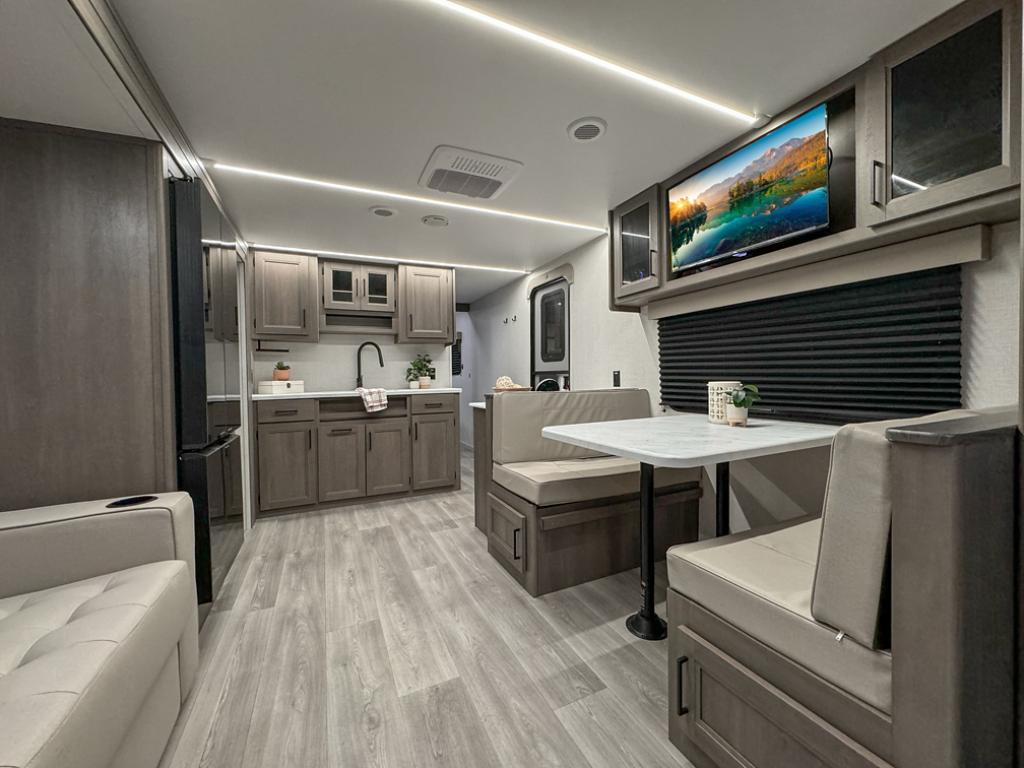

    • Residential Booth Dinette
    • Residential Cabinet Doors
    • Deep Seated Stainless Steel Sink

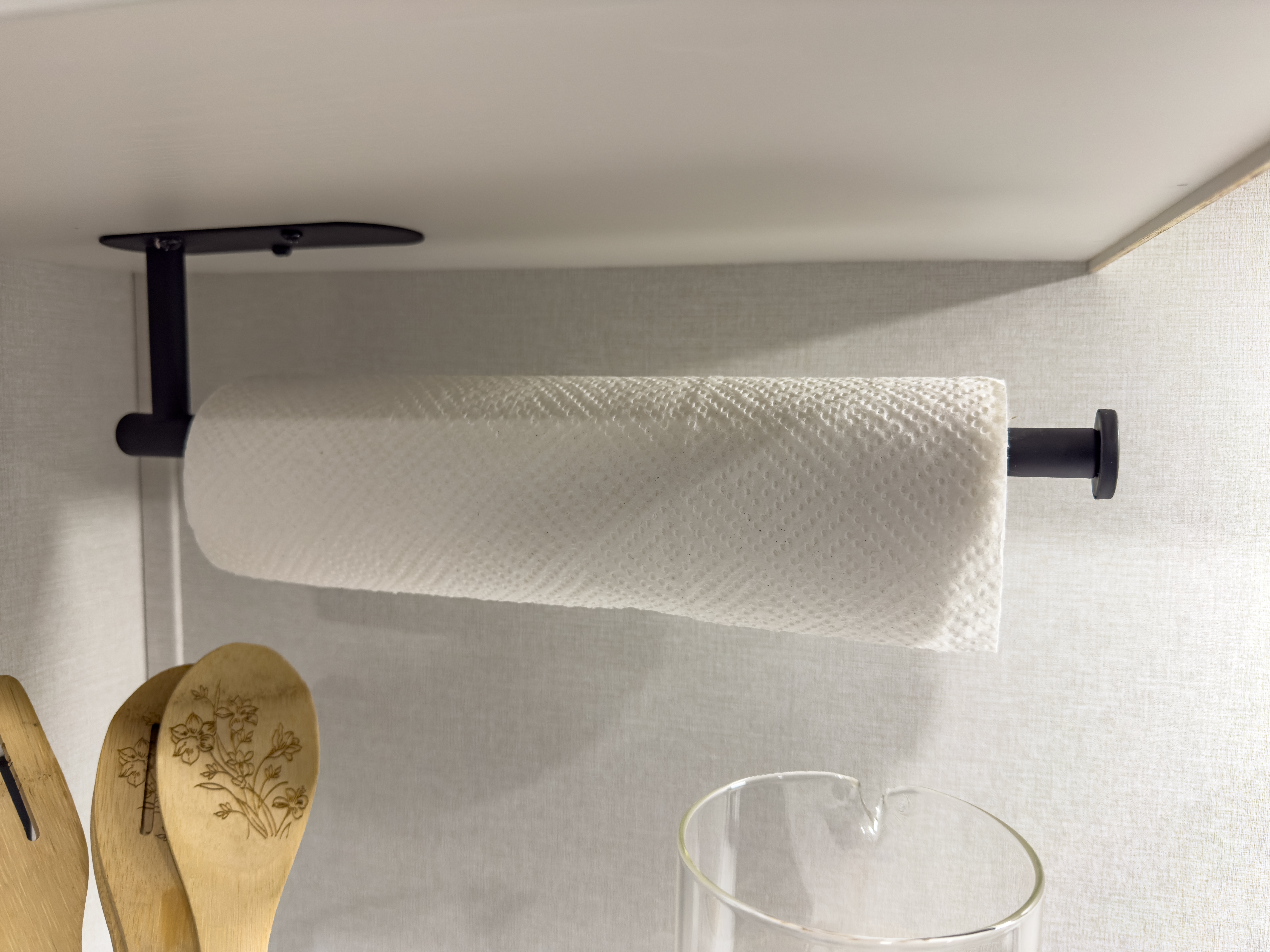

    • Paper Towel Holder
    • Pots & Pans Storage Drawers

    BEDROOM
    • CPAP Prep
    • Residential Bedspread
    • Master Suite with 60x80" Queen Bed (King Bed Available on Certain Floorplans)
    • E-Z Lift Bed Storage with Struts
    • Laundry Chute
    • Washer/Dryer Prep (Available on Certain Floorplans)

    BATHROOM
    • Porcelain Toilet
    • Walk-In Shower
    • ABS Tub Surround
    • Foot Flush Toilet
    SOLAR
    • 200W Solar Panel (Wired for 600W)
    • 30AMP Solar Controller
    • 2000W Inverter Prep
    • Solar Disconnect
    • Roof Mounted Quick Connect Plugs

    PLUMBING
    • High Capacity
    • Extra Large 2" Fresh Water Drain Valve
    • Oversized Tank Capacities
    • 56 Gallon Fresh Water Capacity
    • High Rise Faucet with Pull-Down Sprayer
    • E-Z Winterization
    • All-In-One Utility Center

    ELECTRONICS
    • Cable/Sat Prep
    • JBL Bluetooth Exterior Speaker
    • Backup Camera Prep
    • HD TV Antenna w/ Swing Arm Bracket

    APPLIANCE
    • 60K On-Demand Water Heater
    • Air Fryer/Convection/Microwave
    • 12V 10 Cu French Door Refrigerator

    HVAC
    • 35K BTU High Capacity Furnance
    • Attic Vent
    • Main A/C Ducted
    • EvenFlow Ductless Heating System Throughout
    Construction and Convenience Package
    • 50AMP Service Wired & Framed for 2nd A/C
    • 15K Roof Mounted Ducted A/C
    • 60K Furrion Tankless Water Heater
    • Aluminum Rims
    • Radial Tires w/ Counteract Balancing Beads
    • Safe-T-Rail Entry Assist on Main Entry Door
    • Quad Seal Technology
    • Magnetic Exterior Door Catches
    • Tinted Windows
    • Black Automotive Glass Door
    • Galvanized Wheel Wells
    • Motion Sensor Lights in Passthrough
    • Backup Camera Prep
    • Spare Tire w/ Carrier
    • Black Tank Flush
    • Rear Ladder Prep
    • 6'6" Interior Height
    Lifestyle Protection Package
    • Pull-Out Trash Can Storage w/ Removable Trash Can
    • 60x80 Queen Bed (King Bed on Select Models)
    • Interior/Exterior Fold-Up Table

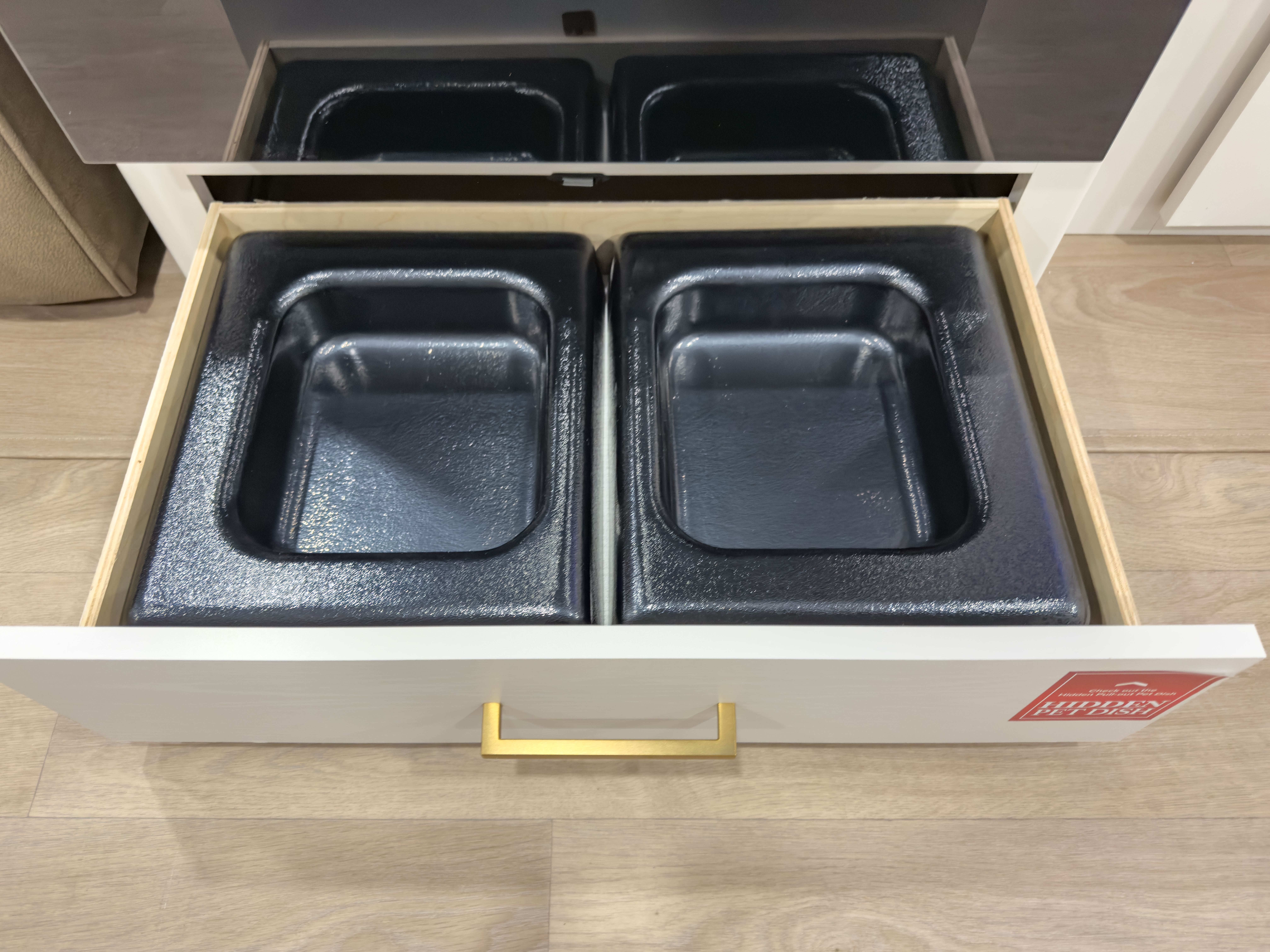

    • Pull Out Pet Bowls in Dedicated Drawer
    • Exterior Leash Link
    • Exterior Bottle Opener
    • Bedroom Laundry Chute
    • Bedroom C-PAP and Electronics Nook
    • Bedroom Hanging and Folding Storage w/ Overhead Cabinet Doors
    • 32" TV and Swing Arm Bracket
    • Porcelain Toilet
    • Magnetic Interior Door
    4-Season Protection Package
    • Heated & Enclosed Underbelly w/ Suspended Tanks
    • Dedicated Heat Duct to Subfloor
    • Thermofoil Over Roof & Front Cap
    • Moisture Barrier Floor Enclosure
    • 35K BTU Furnace
    • Attic Vent
    • 2 x 20 LP Tank w/ Upgraded Cover
    • EvenFlow Ductless Heating Throughout
    • E-Z Winterization
    • Universal Docking Station
    Solar Prep Package
    • 200W Solar Panel (Wired for Up To 600W)
    • 30AMP PWM Bluetooth Solar Controller
    • 2000W Inverter Prep
    • Solar Disconnect Switch
    • Battery Disconnect Switch
    Power and Entertainment Package
    • JBL Head Unit
    • JBL Interior and Exterior Speakers
    • Dimmable LED Strip Lights
    • Power Awning w/ Exterior Light
    • USB Ports
    • HD TV Antenna
    • Exterior Rear Porch Light (265BHT Only)
    • Power Tongue Jack
    Elite Kitchen Package
    • 12V 10.2Cu French Door Refrigerator w/ Glass Front and Bottom Freezer
    • Paper Towel Holder
    • Dedicated Pots and Pans Storage Drawers
    • Drawers w/ Metal Drawer Glides
    • Convection Microwave w/ Combo Air Fryer
    • 3-Burner Range w/ Glass Cover
    • Stainless Steel Kitchen Sink
    • Pull-Down Spray Faucet
    • Multiple Outlets
    • Thermoformed and Seamless Countertop
