Hitch
    1,170
    UVW
    10,300
    GVWR
    11,295
    Length
    37' 9"
    Height
    11' 11"
    Sleeps
    4
    MSRP
    Coming Soon
    DOWNLOAD SPEC SHEET
    OVERALL SIZE
    Exterior Height11' 11"
    Exterior Height (w/opt. AC)
      Exterior Length37' 9"
      Exterior Width8'
      Exterior Width (w/ slide out)N/A
      Interior HeightN/A

      WEIGHTS
      Hitch / Pin Weight1,170
      UVW10,300
      GVWR11,295

      CAPACITY
      Fresh Water Capacity54
      Gray Water Capacity86
      Waste Water Capacity43
      Propane Tanks2
      LPG60
      Sleeping Capacity4
      APPLIANCES
      Water HeaterTankless
      Refrigerator16 cu. ft.
      Furnace35 BTU
      AC15,000 BTU

      RUNNING GEAR
      Axles2
      Wheel Size16 in.
      Tire SizeST235/80R16 LRE

      CONSTRUCTION
      Construction TypeN/A
      Floor R-ValueN/A
      Wall R-ValueN/A
      Roof R-ValueN/A
      Slide Room R-ValueN/A
      DIMENSIONS
      Standard Bed60 X 80
      Standard BunkN/A
      ShowerN/A

      EXTERIOR
      Slides3
      Awnings2
      Awning Length
      • 10' 6"
      • 10'
      EXTERIOR
      • 80% Tint Radius Safety Glass Windows

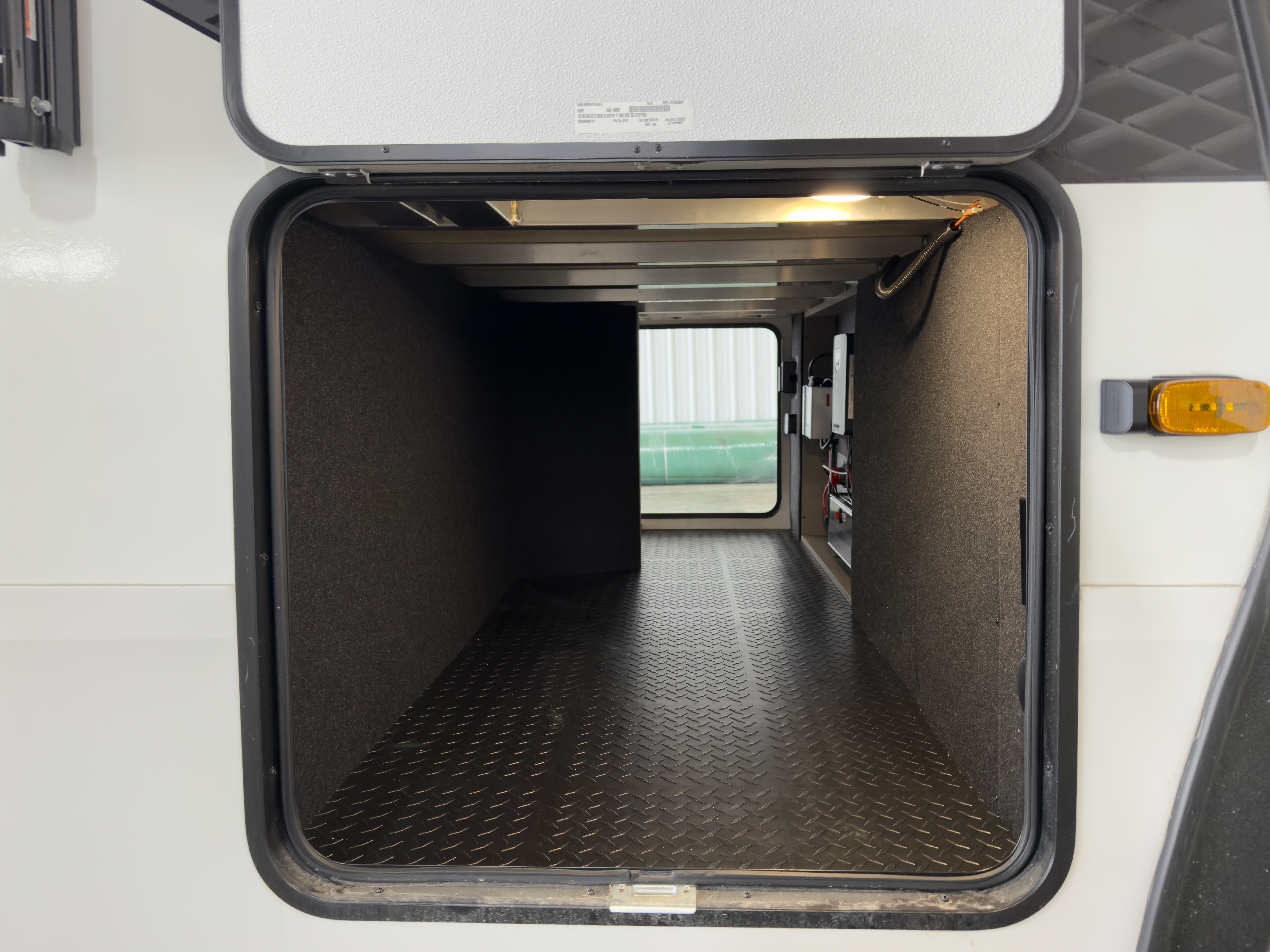

      • Battery Kill Switch in Pass Thru Storage Area
      • 30# LP Bottles (2) with cover
      • 30" Radius Entry Door
      • Outside Shower
      • Factory Installed Roof Ladder
      • Marine Grade LED Hitch Light

      CONSTRUCTION
      • Gel Coat Exterior Sidewalls
      • Walk On Roof Decking
      • Residential 5" Truss Rafters (16" O.C.)
      • Fiberglass and Radiant Foil Roof and Front Cap Insulation
      • One-Piece TPO Roof Membrane with Limited Lifetime Warranty
      • Easy Access Low Point Drain Valves
      • Laminated Aluminum Framed Side Walls (R-9)
      • Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-9)
      • Aluminum Framed Main Floor (R-30*)
      • Residential Wood Framed Roof (R-40*)
      • Laminated Aluminum Framed Rear Wall (R-9)

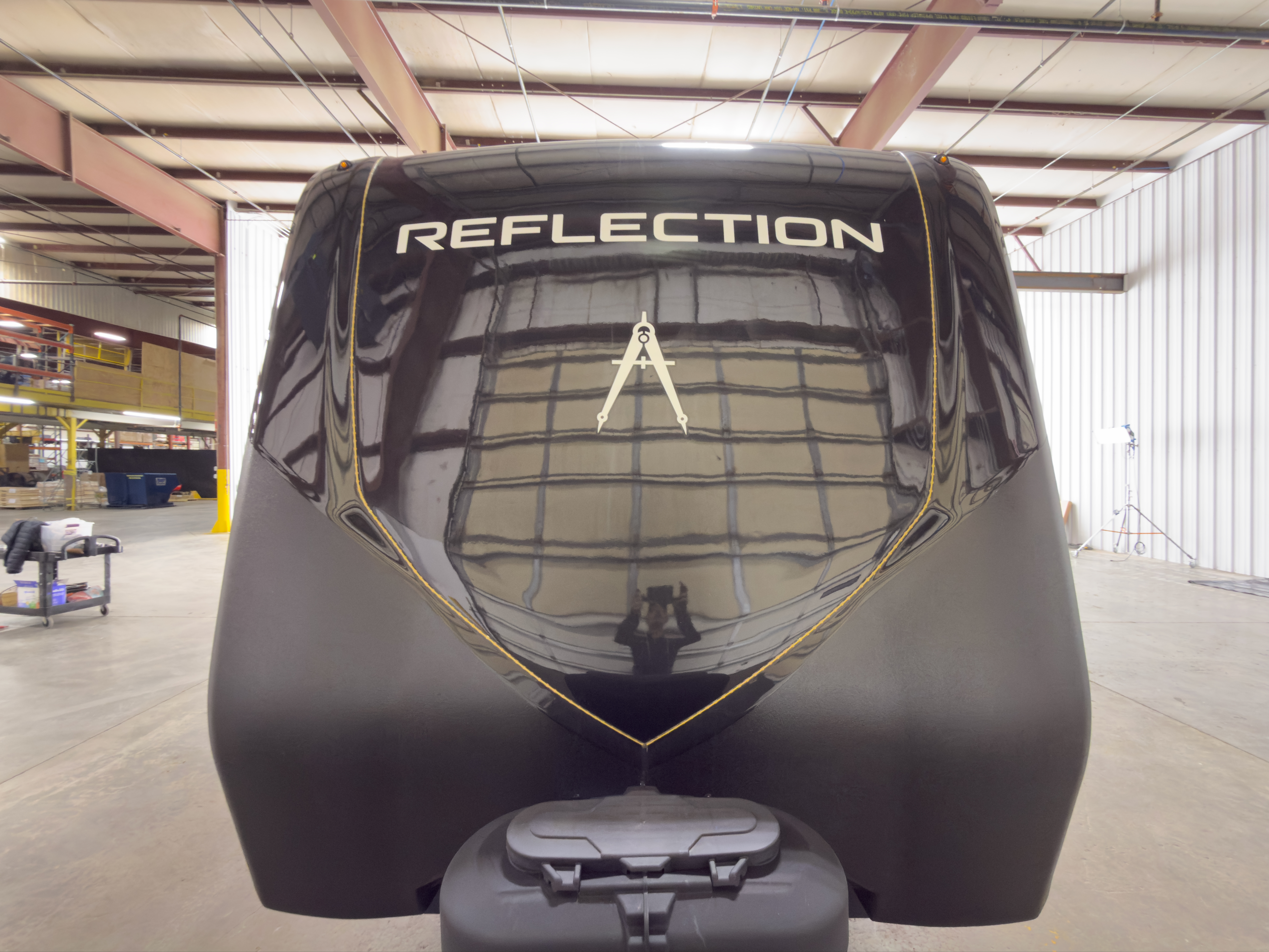

      • Aerodynamic Front Cap w/ Max Turn Radius and Integrated LED Lights
      • Heated & Enclosed Dump Valves

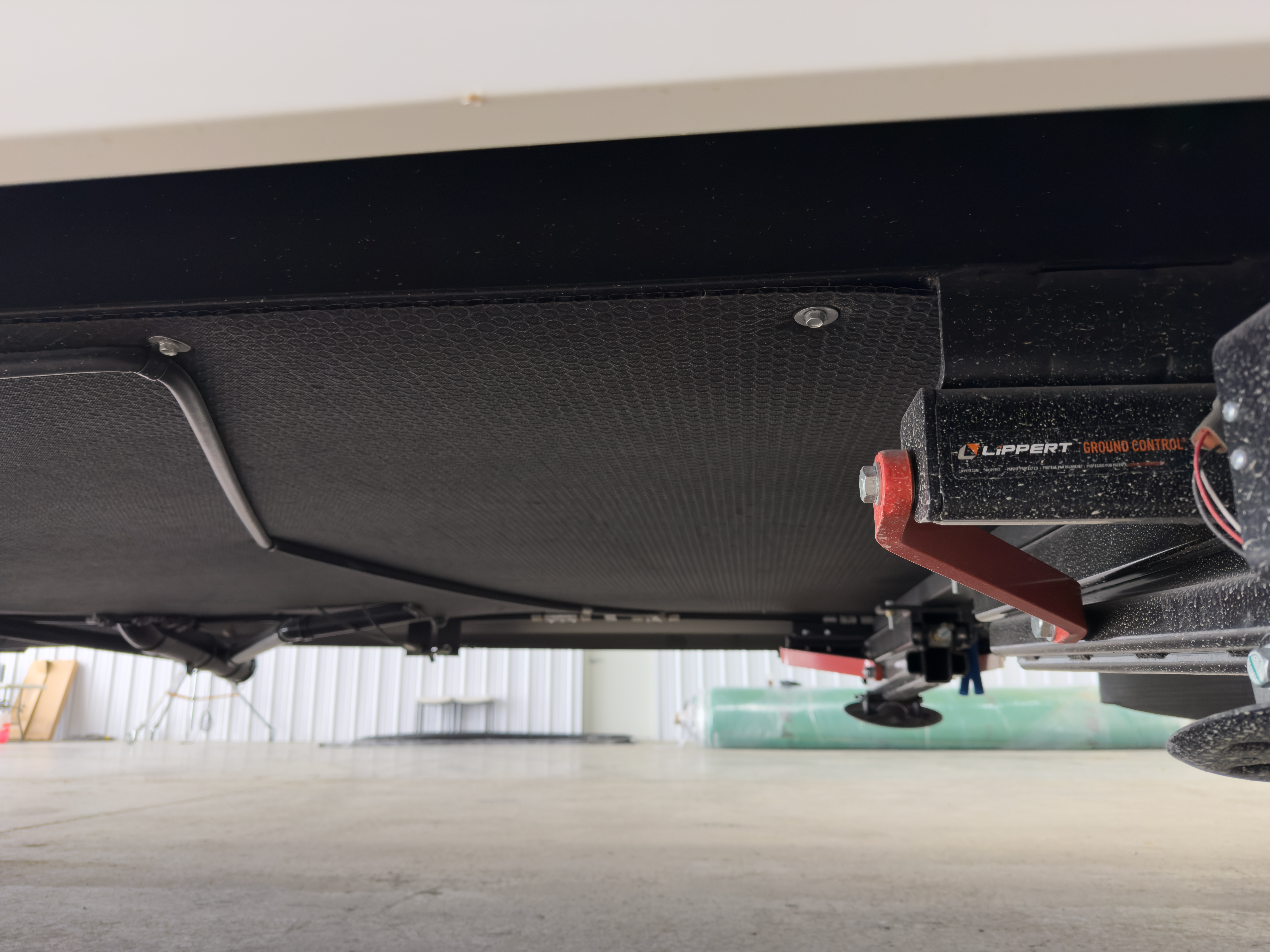

      • Heated & Enclosed Underbelly w/ Circulating Heat
      • Thermofoil Insulation Under Holding Tanks
      • EZ Winterization Valve in Utility Center
      • Insulated Slideout Floors

      RUNNING GEAR
      • Aluminum Wheels with Goodyear Endurance Tires
      INTERIOR
      • Residential Hardwood Cabinet Doors
      • Solid Hardwood Drawer Fronts
      • Solid Core Cabinet Stiles
      • Pre-drilled and Screwed Cabinetry

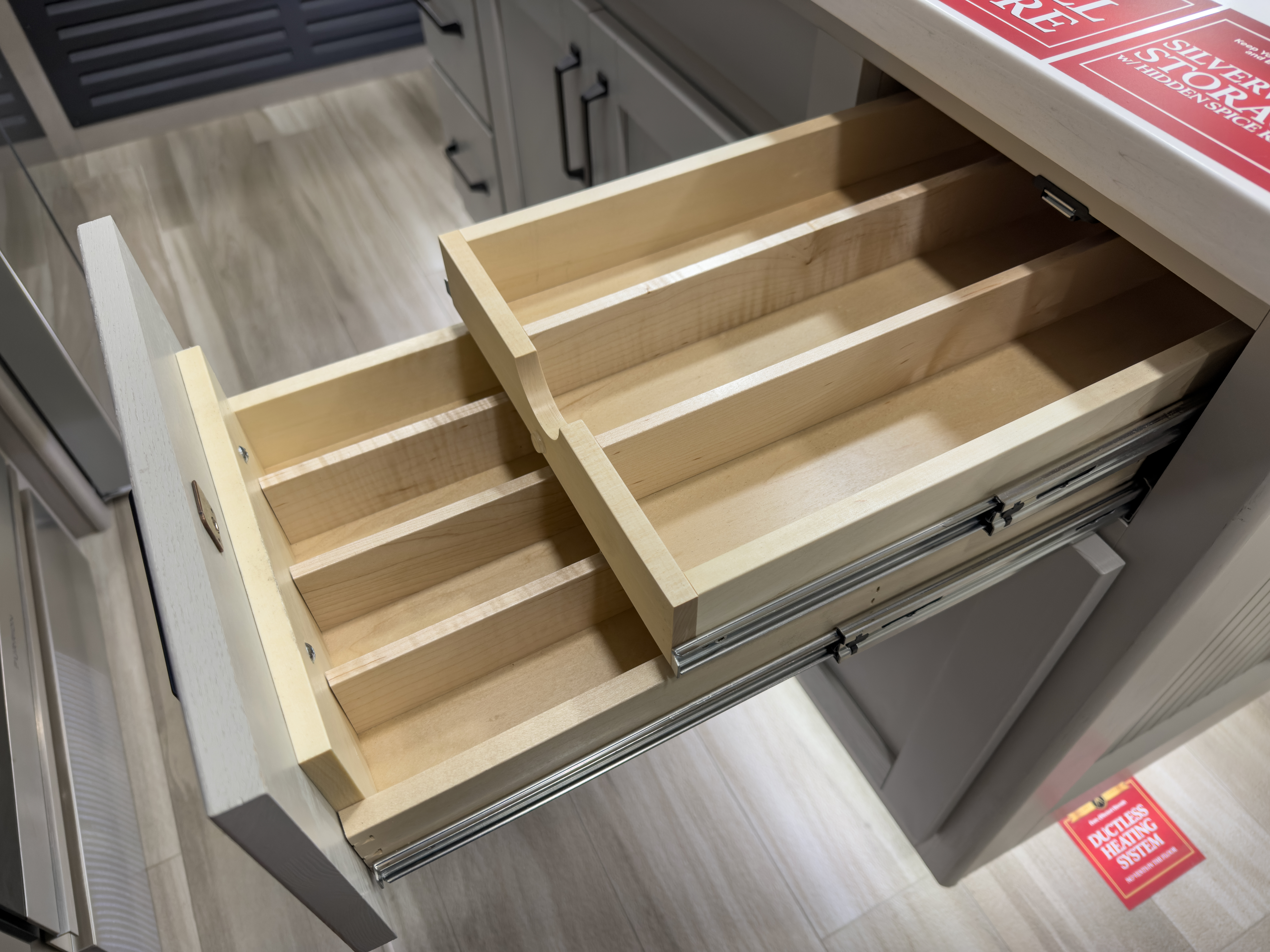

      • Ball Bearing Full Extension Drawer Glides
      • Large Panoramic Slide Room Windows
      • Premium Congoleum Flooring
      • Ductless Flooring Throughout Living Area
      • Residential Style Window Treatment
      • LED Lighting with Motion Sensors (Key Areas)
      • Residential Matte Black Cabinet Hardware
      • Hardwood Galley Slide Trim Moldings
      • Adjustable A/C Vents

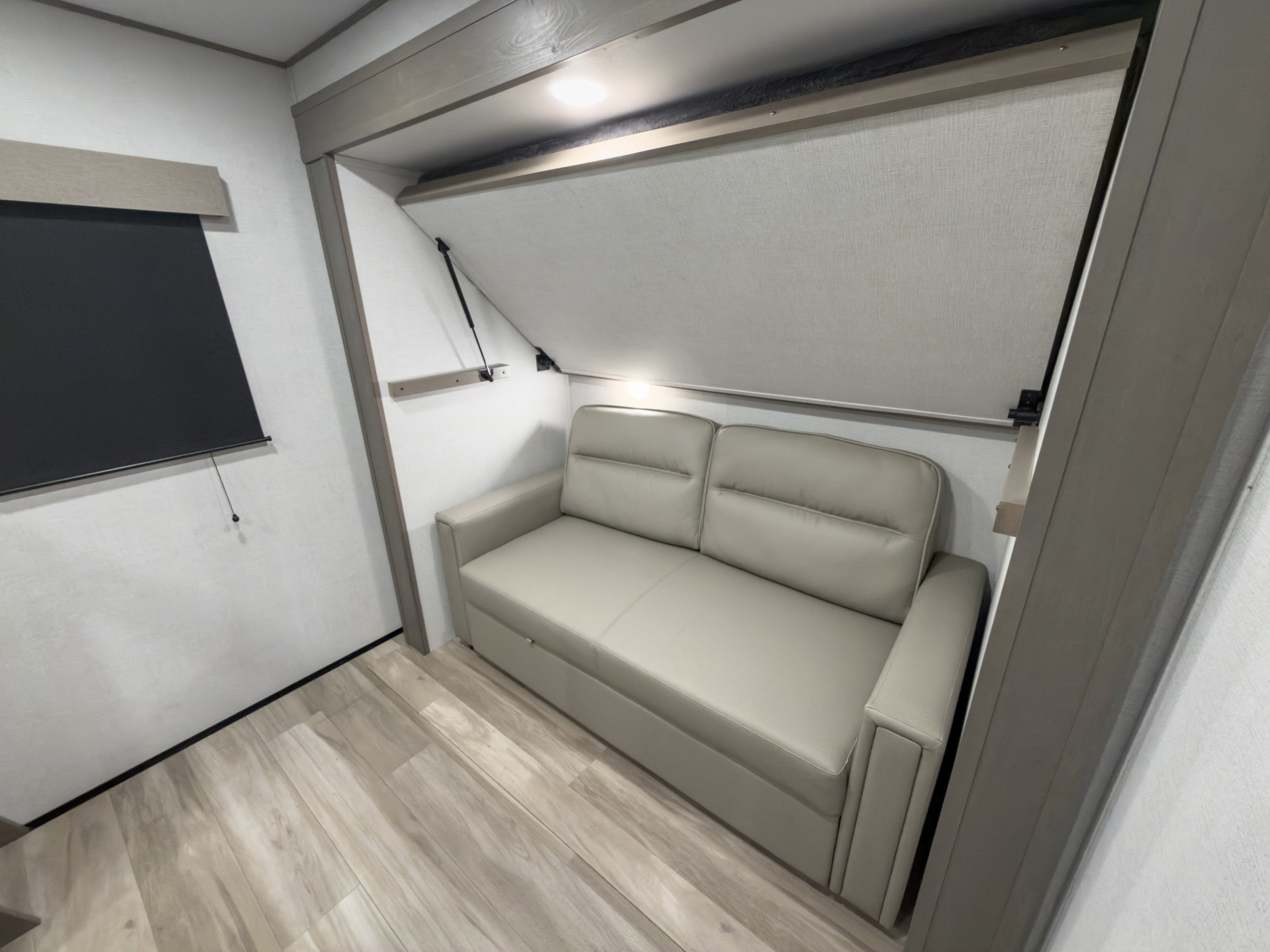

      • Tri-Fold Hide-A-Bed Sofa (Model Specific)
      • Blackout Roller Shade

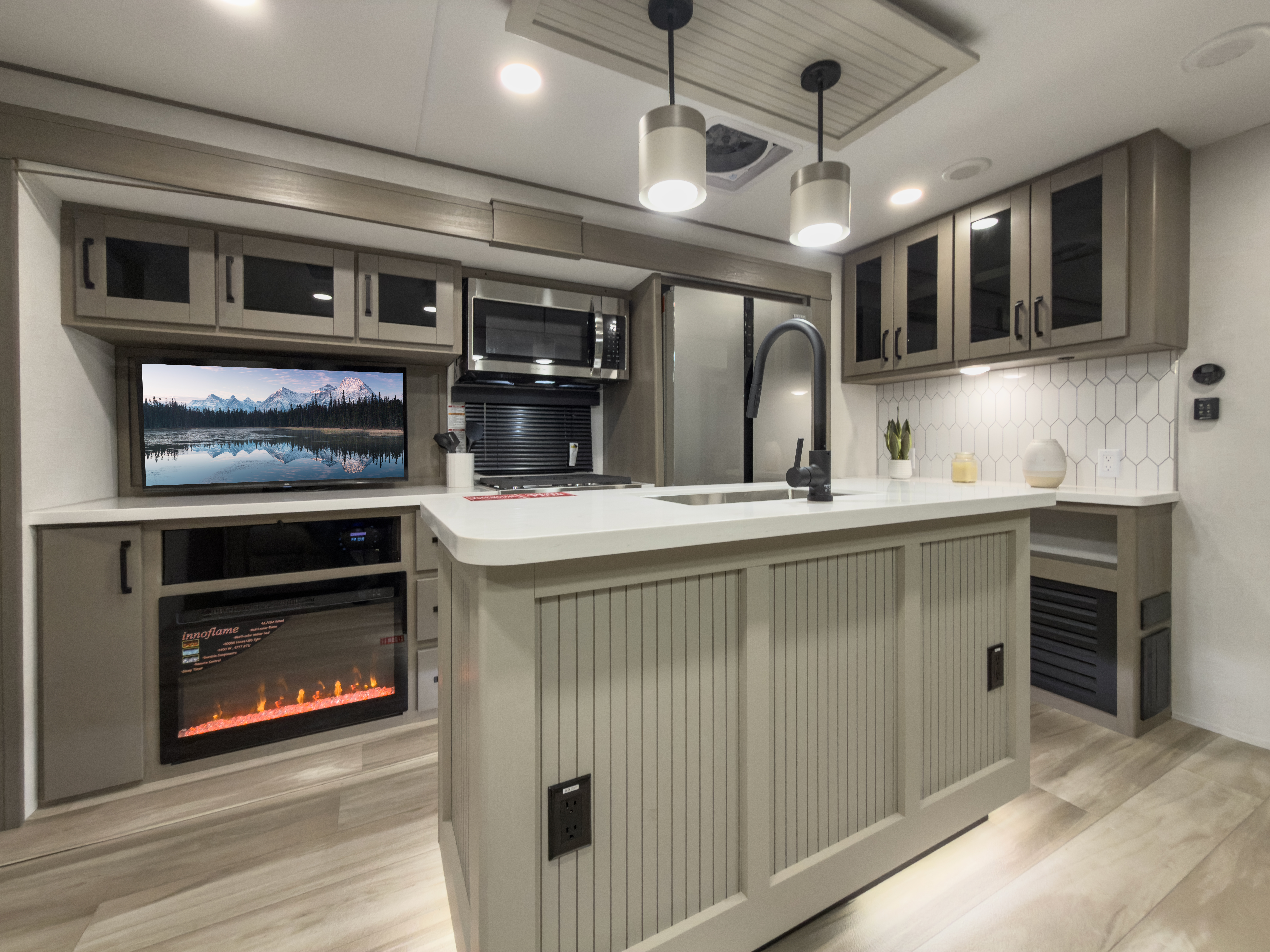

      KITCHEN
      • Deep Seated Stainless Steel Sink
      • Modern Glass Refrigerator Door Fronts

      ELECTRICAL
      • Integrated Front Cap LED Lights
      • 180W Roof Mounted Solar Panel
      • Roof Mounted Quick Connect Plugs
      • 60 Amp Charge Controller
      • Solar Disconnect

      HVAC
      • Heat Duct and A/C Vents in Bathroom
      • 35K BTU High Capacity Furnace
      PLUMBING
      • High-Capacity Water Pump with Interior and Exterior Switch
      • Extra Large 2" Fresh Water Drain Valve

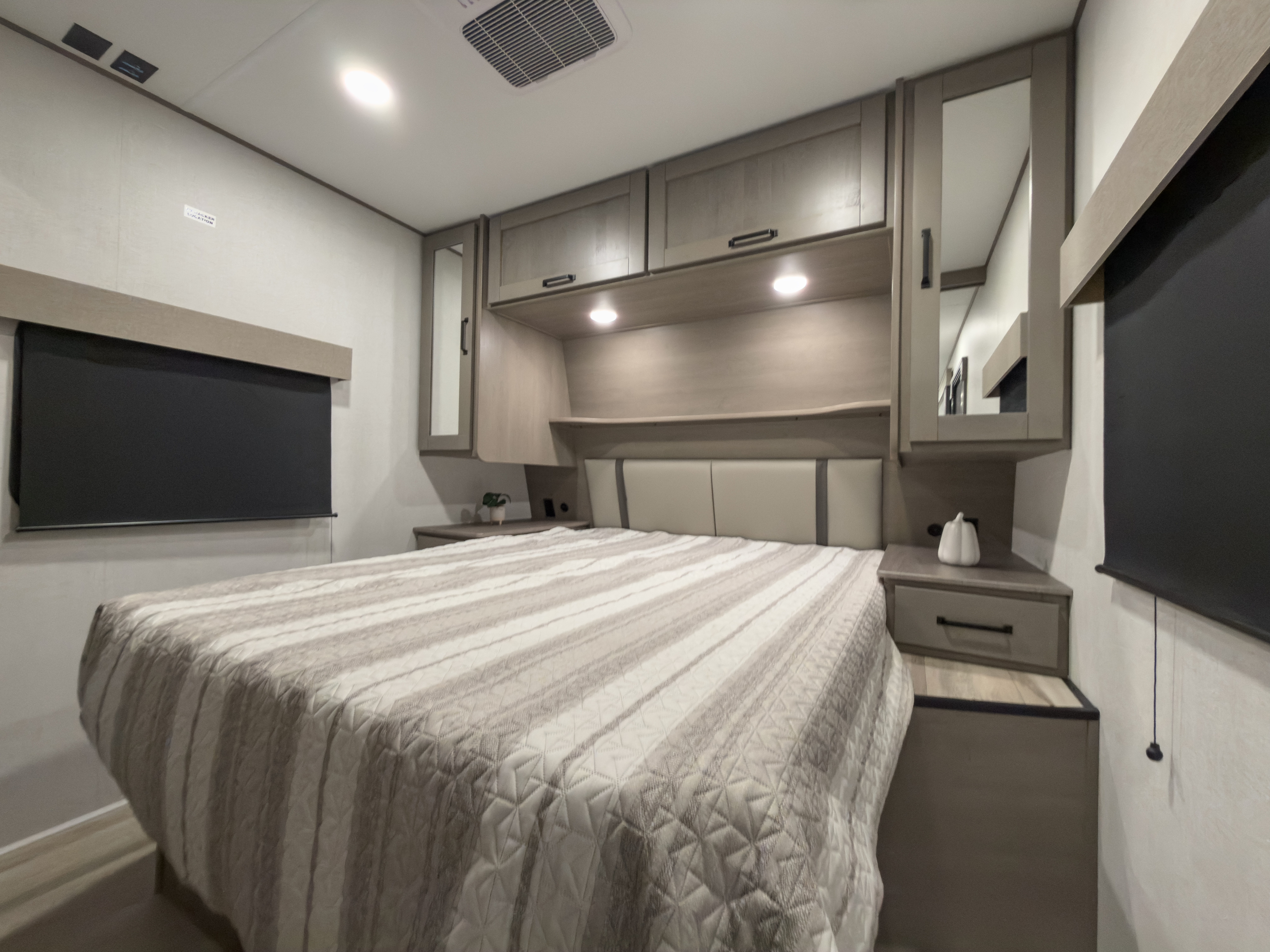

      BEDROOM
      • Functional Wardrobe Closet
      • 60 x 80 Mattress with Residential Bedspread

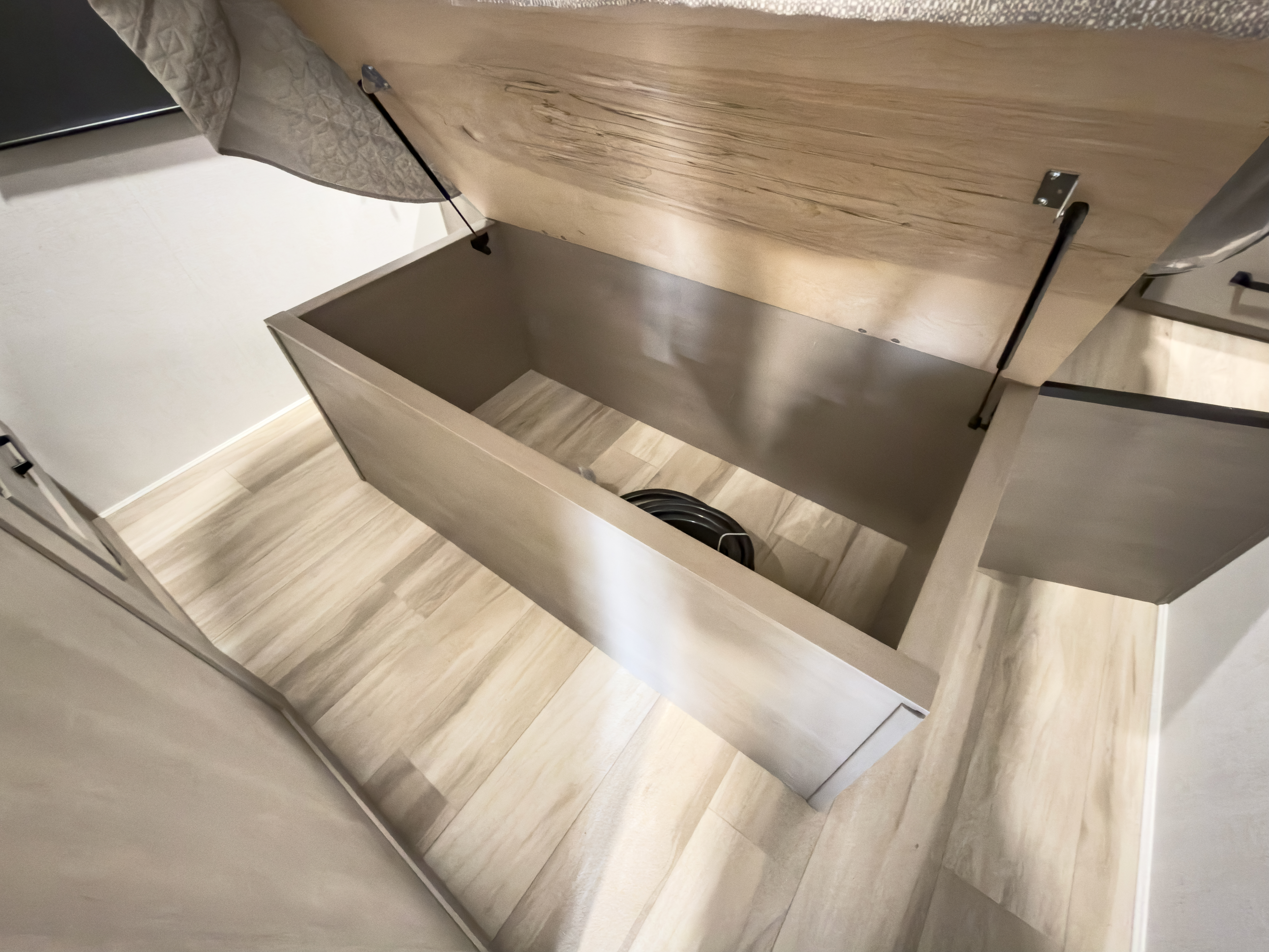

      • Oversized Bed Base Storage
      • Bedroom Heat Registers

      BATHROOM

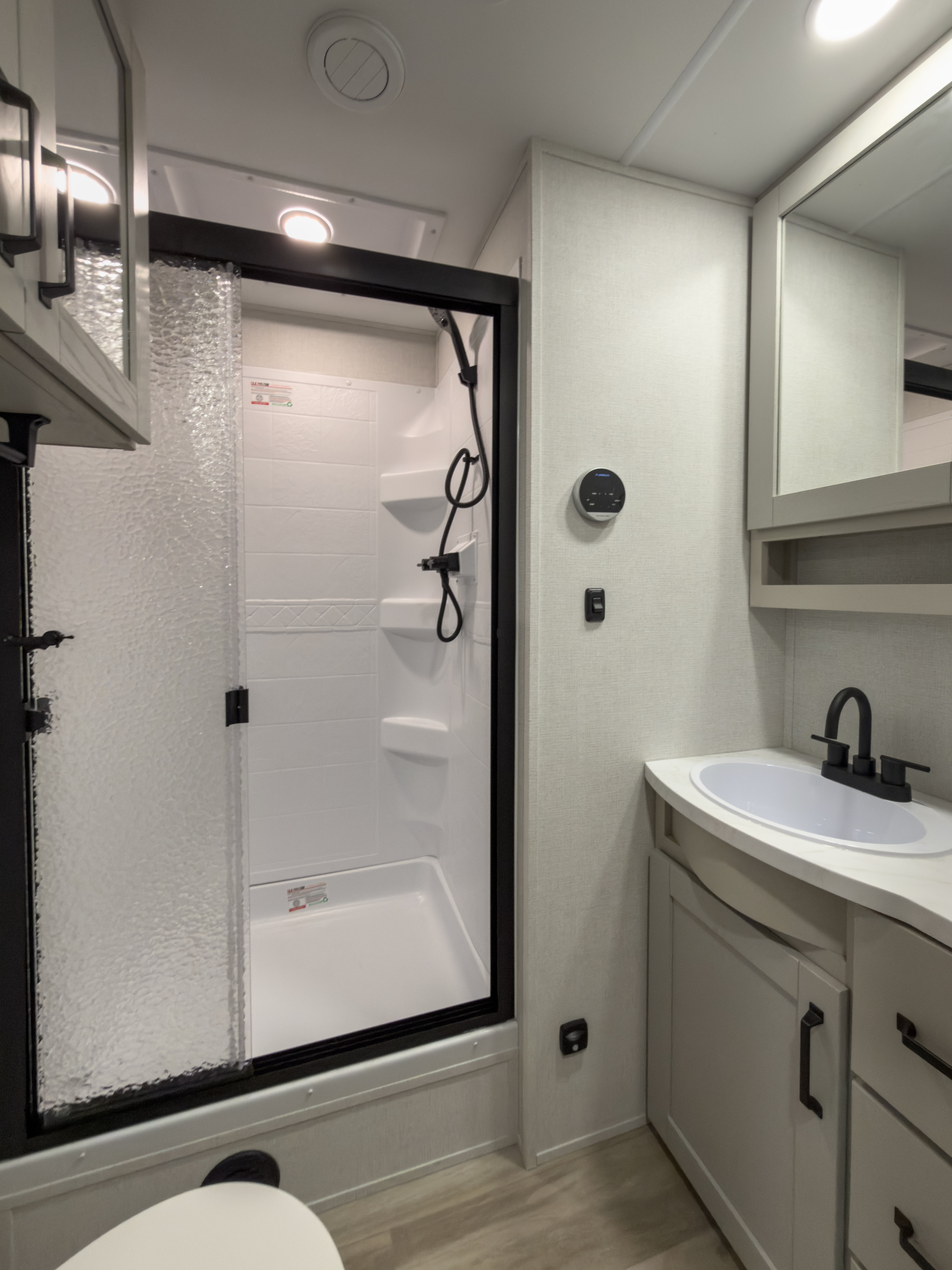

      • Spacious Shower with Glass Door
      • Power Vent Fan
      • Large Vanity Top w/ Deep Sink
      • Large Medicine Cabinet with Mirror

      APPLIANCE
      • 12V 10 or 16 Cu.Ft. Refrigerator (Floorplan Specific)

      ELECTRONICS
      • Cable/SAT Prep
      • TravlFi On-Board WiFi Ready
      Peace of Mind Package
      • Residential Cabinetry
      • Universal All-In-One Docking Station
      • Metal Slam Latch Front Cargo Doors
      • On Demand Tankless Water Heater
      • Porcelain Toilet with Foot Flush
      • High-Rise Faucet with Pullout Sprayer
      • Aluminum Entry Steps
      • Theater Seats
      • Painted Fiberglass Front Cap
      • Residential Booth Dinette
      • LP Quick Connect
      • Anti-Lock Breaking System
      • Roller Shades
      • 6' Coiled Break Away Cable
      • Deep Seated Stainless Steel Kitchen Sink
      • Walk-on Roof
      • Aluminum Rims
      • Spare Tire & Carrier
      • 2” Receiver Hitch Upgrade
      • Solid Surface Countertops
      • Solid Surface Sink Covers
      Ultimate Power Package
      • 30" Stainless Steel Microwave
      • 15K Ducted Main A/C
      • "One-Touch" Electric LED Awning
      • Maxx Air Fan
      • AM/FM//HDMI/Bluetooth Stereo
      • 50 AMP Service, Wired and Framed for 2nd A/C
      • High Definition LED TV
      • Detachable Power Cord with LED Light
      • Power Front & Rear Stabilizer Jacks
      • LED Interior Lighting
      • Motion Sensor Entry Lighting (LED)
      • Compass Connect
      • Tire Linc TPMS
      Arctic 4-Seasons Protection Package
      • 35K BTU High Capacity Furnace
      • Double Insulated Roof and Front Cap
      • Heated and Enclosed Dump Valves
      • Heated and Enclosed Underbelly w/ Circulating Heat
      • Thermofoil Insulation under Holding Tanks
      • EZ Winterization Valve in Utility Center
      • Insulated Slide-out Floors
      • Dual Attic Vents
      • 12v Heat Pads on Holding Tanks
      Solar Package
      • 180W Roof Mounted Solar Panel
      • Roof Mounted Quick Connect Plugs
      • 60 Amp Charge Controller
      • 12V 10 Cu. Ft. Refrigerator
      • Inverter Prep
      • Solar Disconnect
