Hitch
    2,728
    UVW
    14,798
    GVWR
    16,800
    Length
    40' 4"
    Height
    13' 5"
    Sleeps
    8
    MSRP
    $108,121
    DOWNLOAD SPEC SHEET
    OVERALL SIZE
    Exterior Height13' 5"
    Exterior Height (w/opt. AC)   13' 5"
    Exterior Length40' 4"
    Exterior Width8' 5"
    Exterior Width (w/ slide out)13' 8"
    Interior Height8' 5"

    WEIGHTS
    Hitch / Pin Weight2,728
    UVW14,798
    GVWR16,800

    CAPACITY
    Fresh Water Capacity81
    Gray Water Capacity106
    Waste Water Capacity106
    Propane Tanks2
    LPG60
    Sleeping Capacity8
    APPLIANCES
    Water HeaterTankless
    Refrigerator16 cu. ft.
    Furnace35,000 BTU
    AC15,000 BTU

    RUNNING GEAR
    Axles2
    Wheel Size17.50 in.
    Tire SizeST215/75R 17.5 LRH

    CONSTRUCTION
    Construction TypeLaminated
    Floor R-ValueR-45
    Wall R-ValueR-11
    Roof R-ValueR-40
    Slide Room R-ValueR-11
    DIMENSIONS
    Standard Bed60 X 80 Queen Bed (King Opt.)

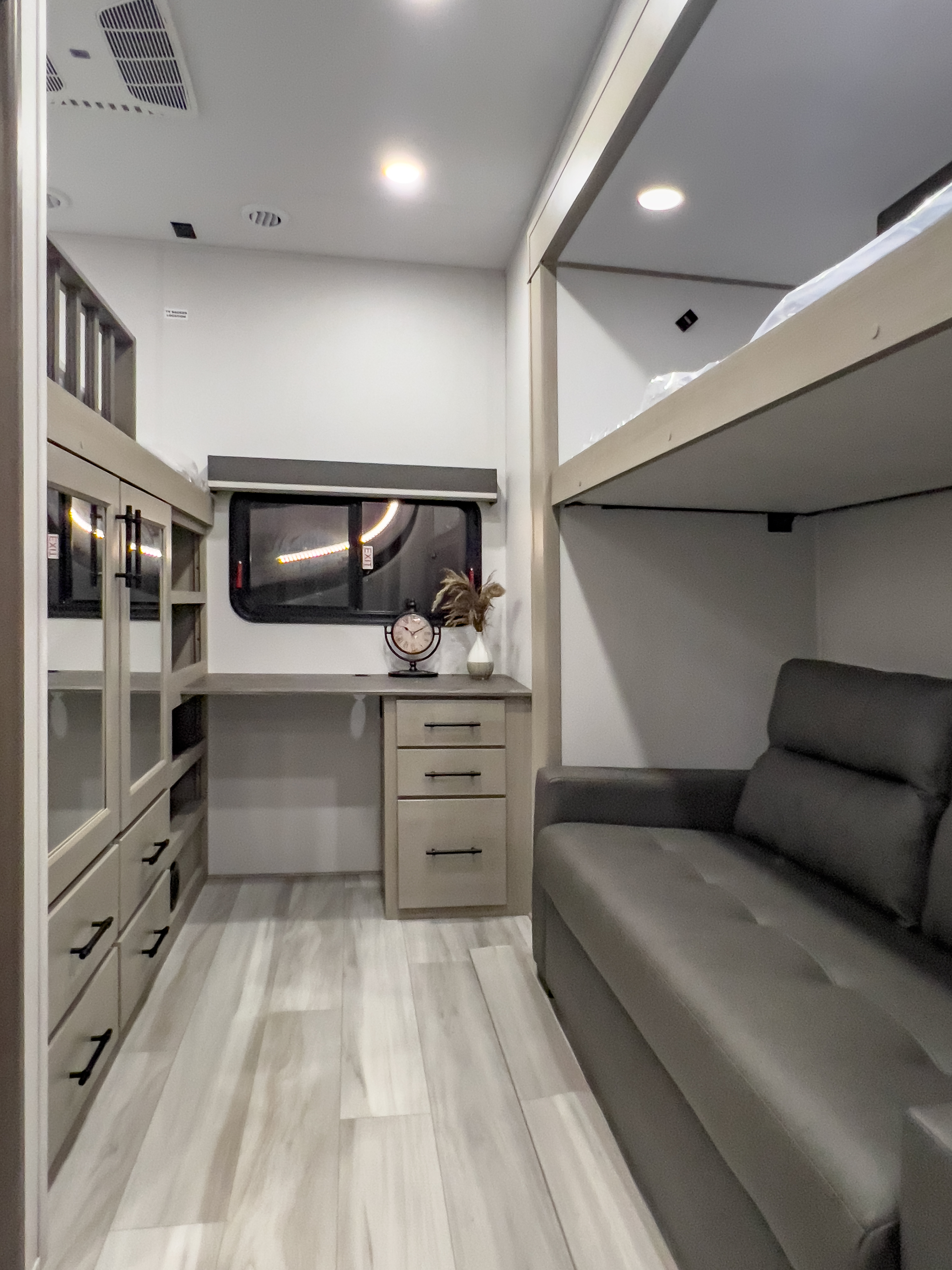

    Standard Bunk54" x 72"
    Shower48x30

    EXTERIOR
    Slides4
    Awnings2
    Awning Length
    • 14' 5"
    • 10' 4"
    EXTERIOR
    • Exterior Spray Port (Door Side)
    • Influence Solar Package (330w Solar Panel, Controller, Inverter Prep)
    • Gel Coat Exterior Sidewalls
    • Color Matched Fender Skirt
    • TPO Roof Covering w/ Limited Lifetime Warranty
    • Slam-Latch Baggage Doors
    • Magnetic Entry and Baggage Door Catches
    • Entry Door w/Privacy Glass
    • Framed Tinted Window
    • Painted Gel Coat Fiberglass Front Cap
    • Exterior Security Light
    • Roof Ladder
    • 17.5" Spare Tire (Undermount)
    • Power Patio Awning with Integrated LED Lighting
    • Sewer Hose Storage Area
    • Keyed Alike
    • MORryde Strut Assist Entry Steps

    CONSTRUCTION
    • 5-Side Aluminum Cage Construction
    • Walk-On Roof
    • Fully Enclosed Underbelly w/ Heated Tanks and Storage

    RUNNING GEAR
    • Heavy Duty 17.5 H-Rated Tires
    • Heavy Duty 7,000 lb. Axles
    • MORryde® CRE3000 Suspension System
    • Tow Assist ABS & Sway Mitigation System

    FRAME & CHASSIS
    • Upgraded Axle Hangers
    • 6-Point Electric Leveling System (4-Point on 2903RL)
    • 101" Widebody Construction

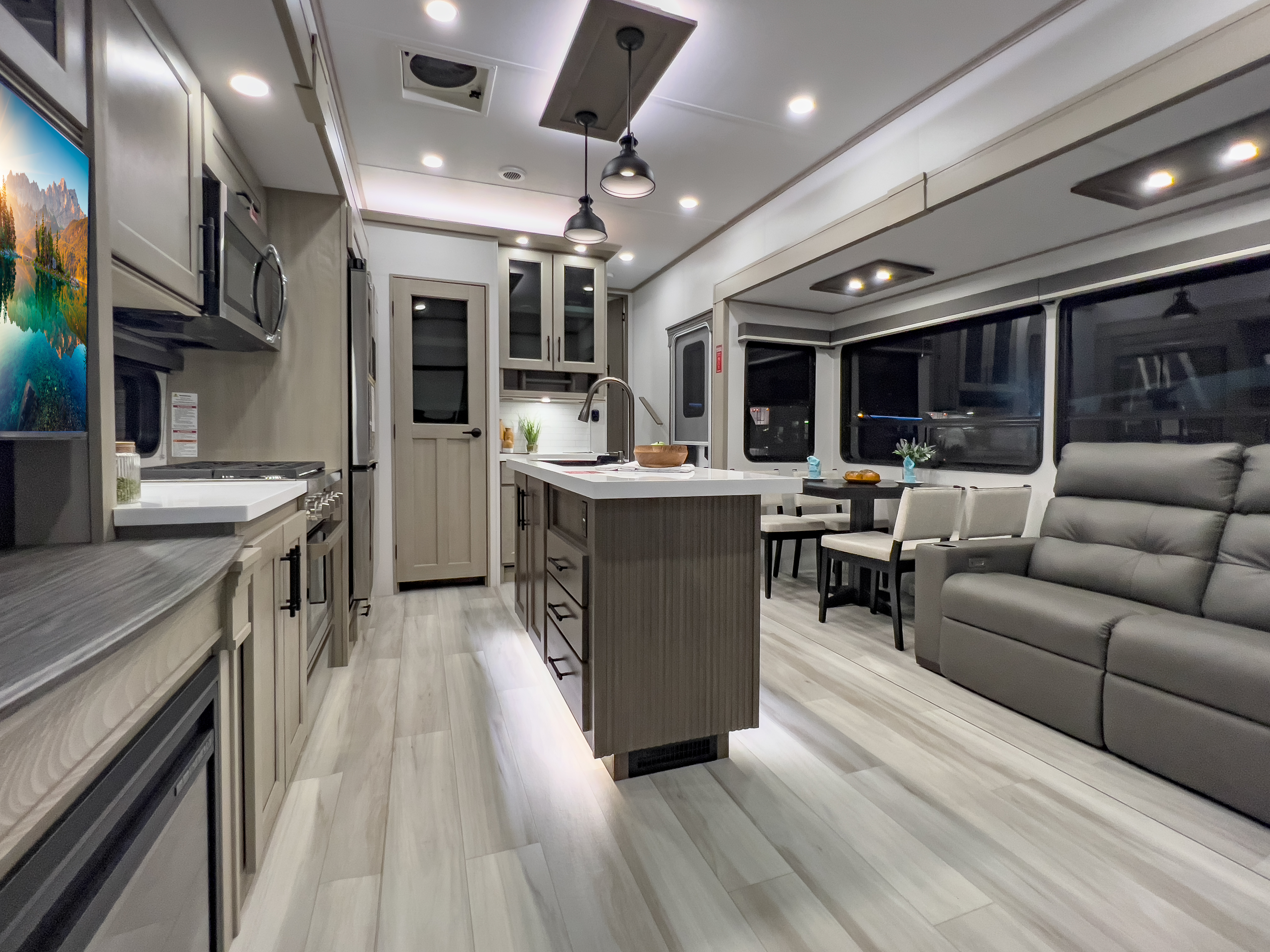

    INTERIOR
    • Glass Cabinet Door Inserts (Select Areas)
    • Under Step Shoe Storage
    • Plywood Drawer Bottoms
    • Fireplace with Electric Heater
    • Easy Clean Solid Surface Steps
    • Premium Roller Shades
    • Congoleum Flooring w/ 3-Year Warranty
    • Hallway Handrail
    • Recessed LED Ceiling Lighting
    • Interior LED Accent Lighting

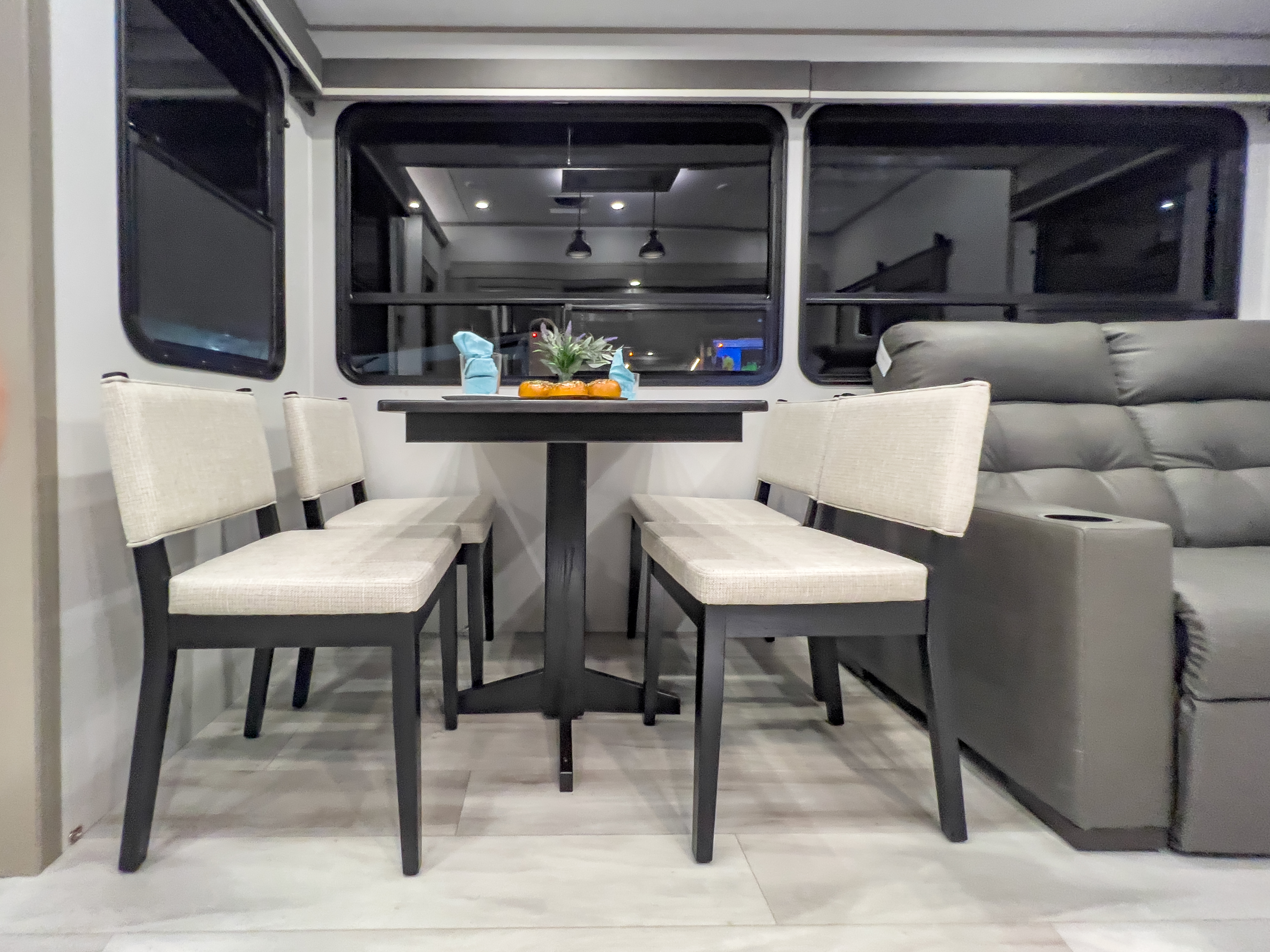

    • Signature Dinette Table w/ 4 Padded Chairs
    • Theatre Seating
    • Tri-Fold Hide-A-Bed Sofa (2903RL, 3503GK)
    • L-Shaped Sofa (3203GK, 3804DS)
    • Smoke Detector, LP Alarm, Carbon Monoxide Alarm

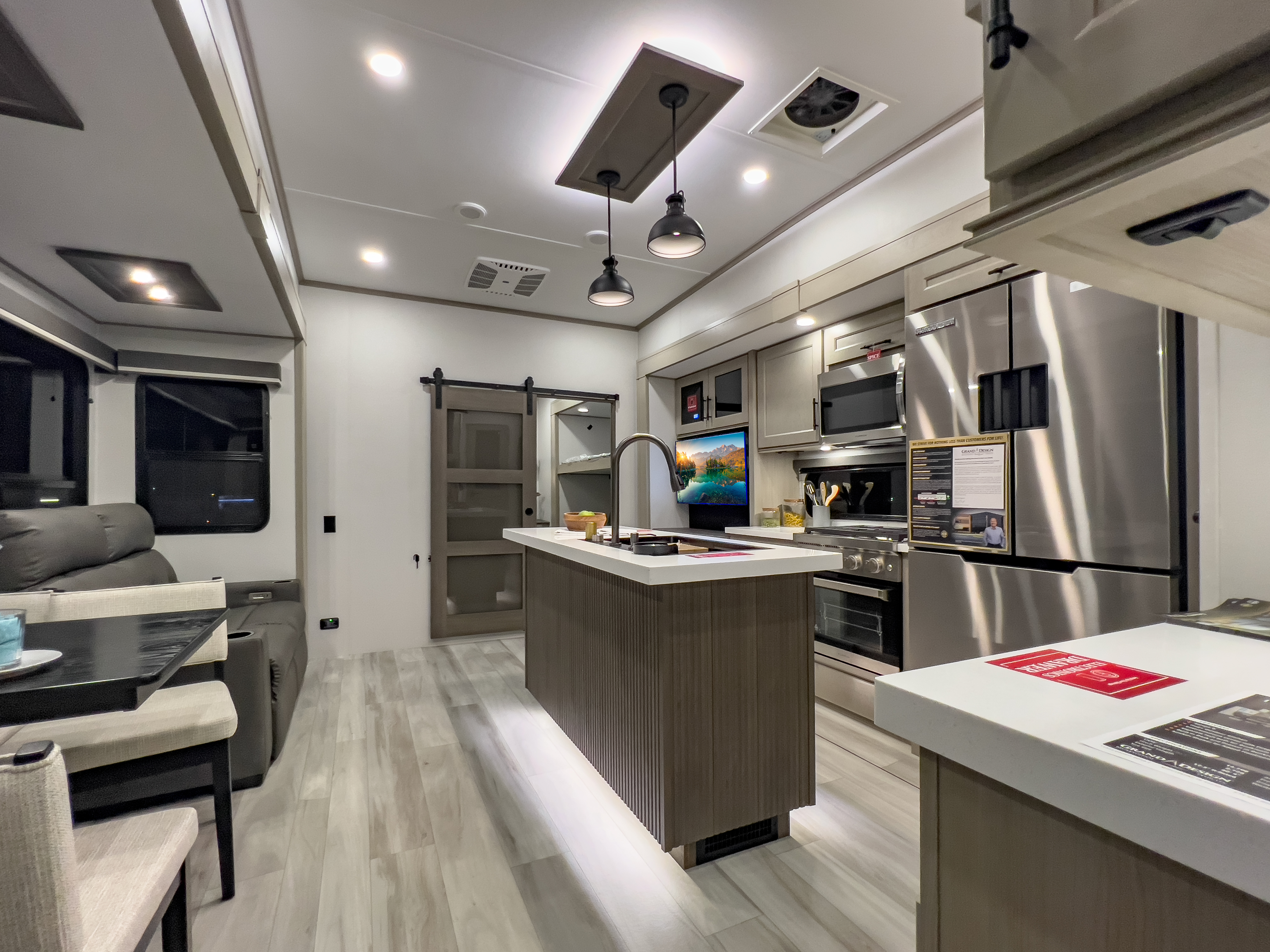

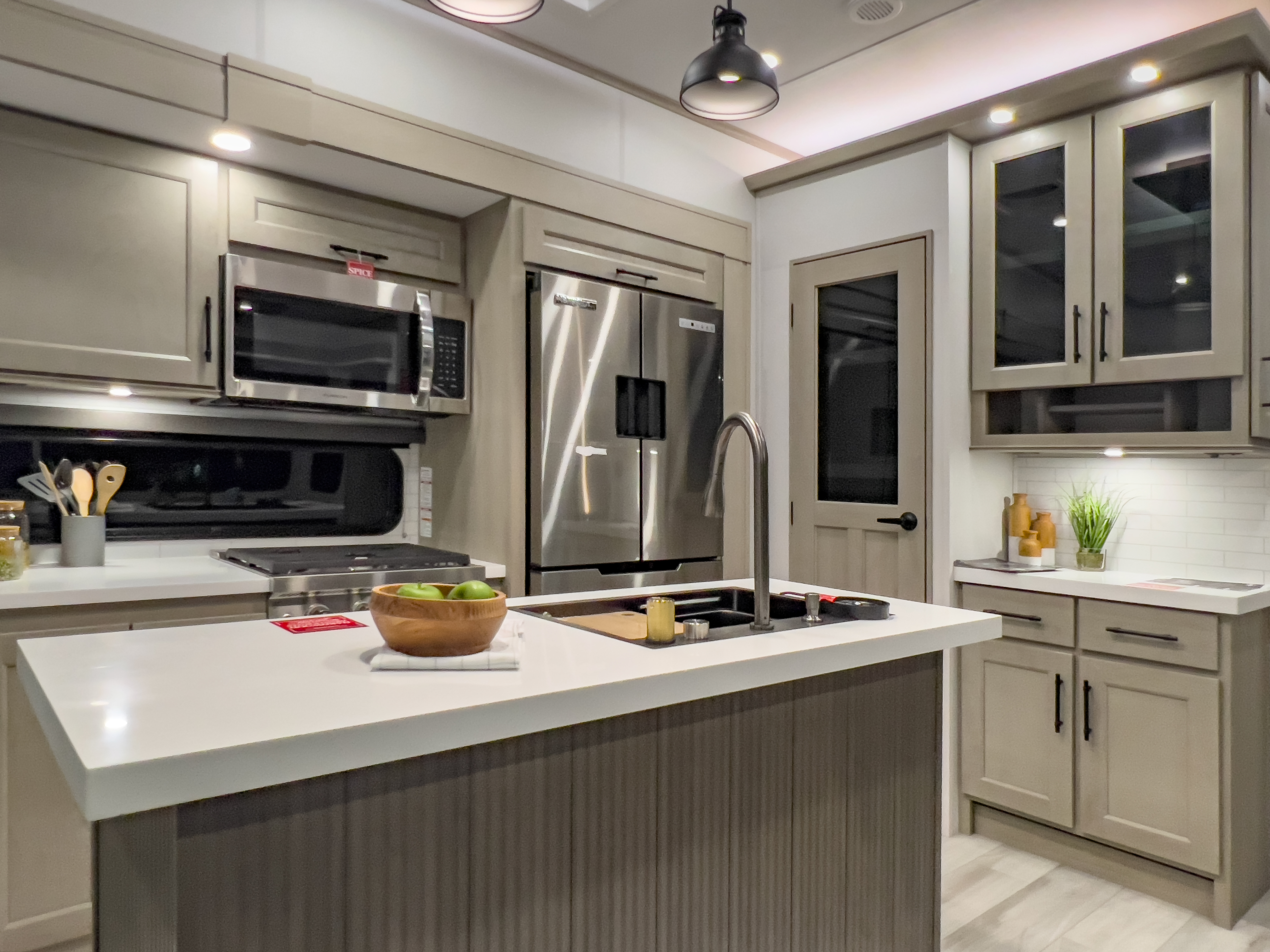

    KITCHEN
    • Oversized Kitchen Pantry
    • LED Rope Lighting in Pantry
    • Residential Kitchen Faucet with Pullout Sprayer
    • Hardwood Kitchen Light Soffit
    • Washer/Dryer Prep
    • Hardwood Cabinet Doors
    • Solid Surface Countertops
    • Smart Sink w/ removeable cutting board, produce strainer and glass rinser

    ELECTRICAL
    • 55 Amp Converter
    • 50 Amp Service w/Detachable Power Cord
    • 12-Volt Battery Disconnect

    HVAC
    • 12-Volt High Power MaxxAir Fan with Rain Sensor
    • Stealth A/C System
    • 35K BTU High Capacity Furnace
    • Attic Vent
    • High Capacity Heat Ducts
    PLUMBING
    • On Demand Tankless Water Heater
    • 12V Tank Heaters
    • All-In-One Enclosed and Heated Utility Center

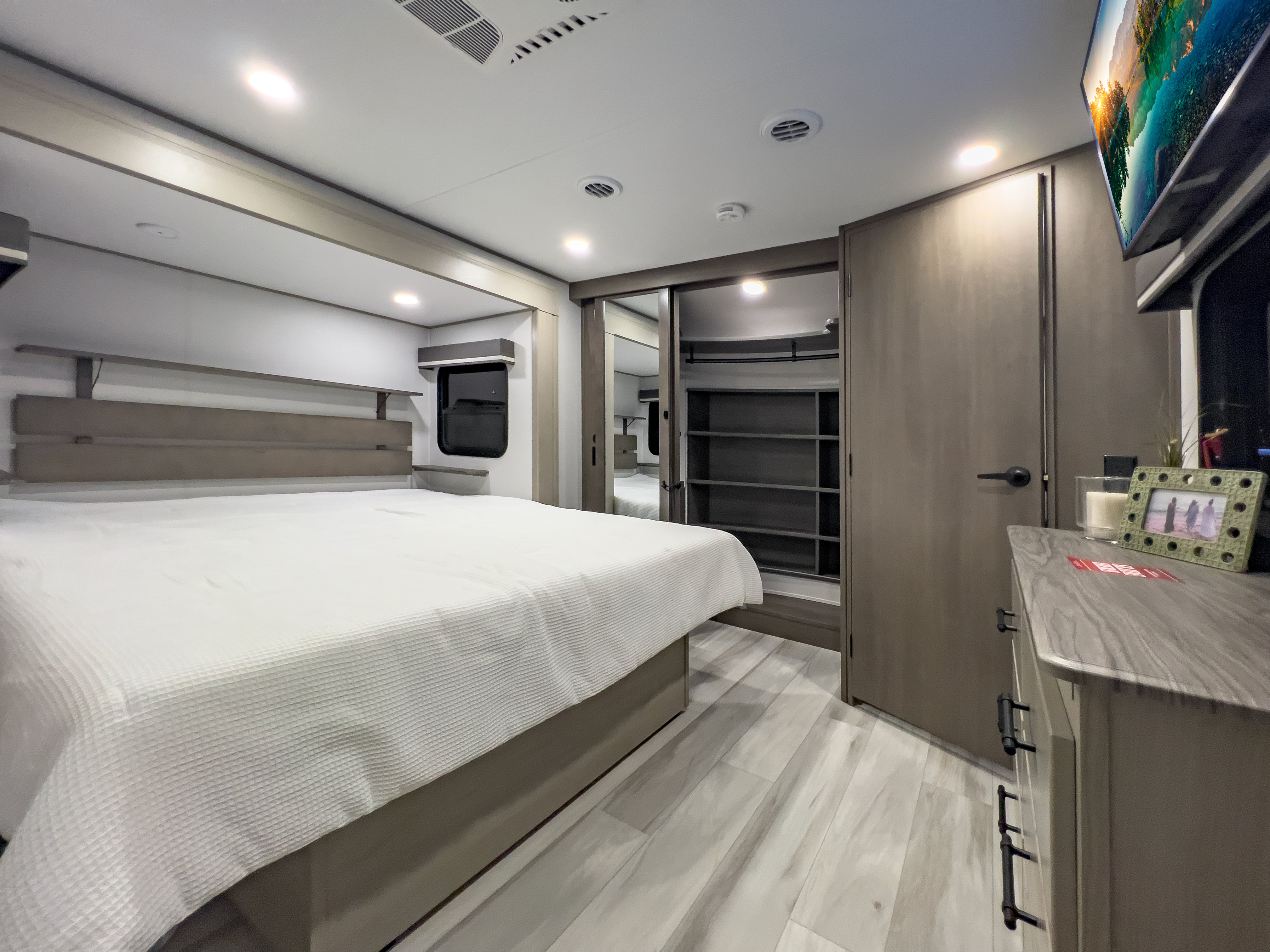

    BEDROOM
    • Residential Style Headboard
    • Under Bed Storage Area
    • Individually Switched Reading Lights Over Bed
    • 60" x 80" Queen Bed
    • Window Above Master Bed Headboard
    • Dresser w/ Slide-Top Hidden Storage
    • Night Stands with USB Ports
    • Bedside 110-Volt Outlets (2)

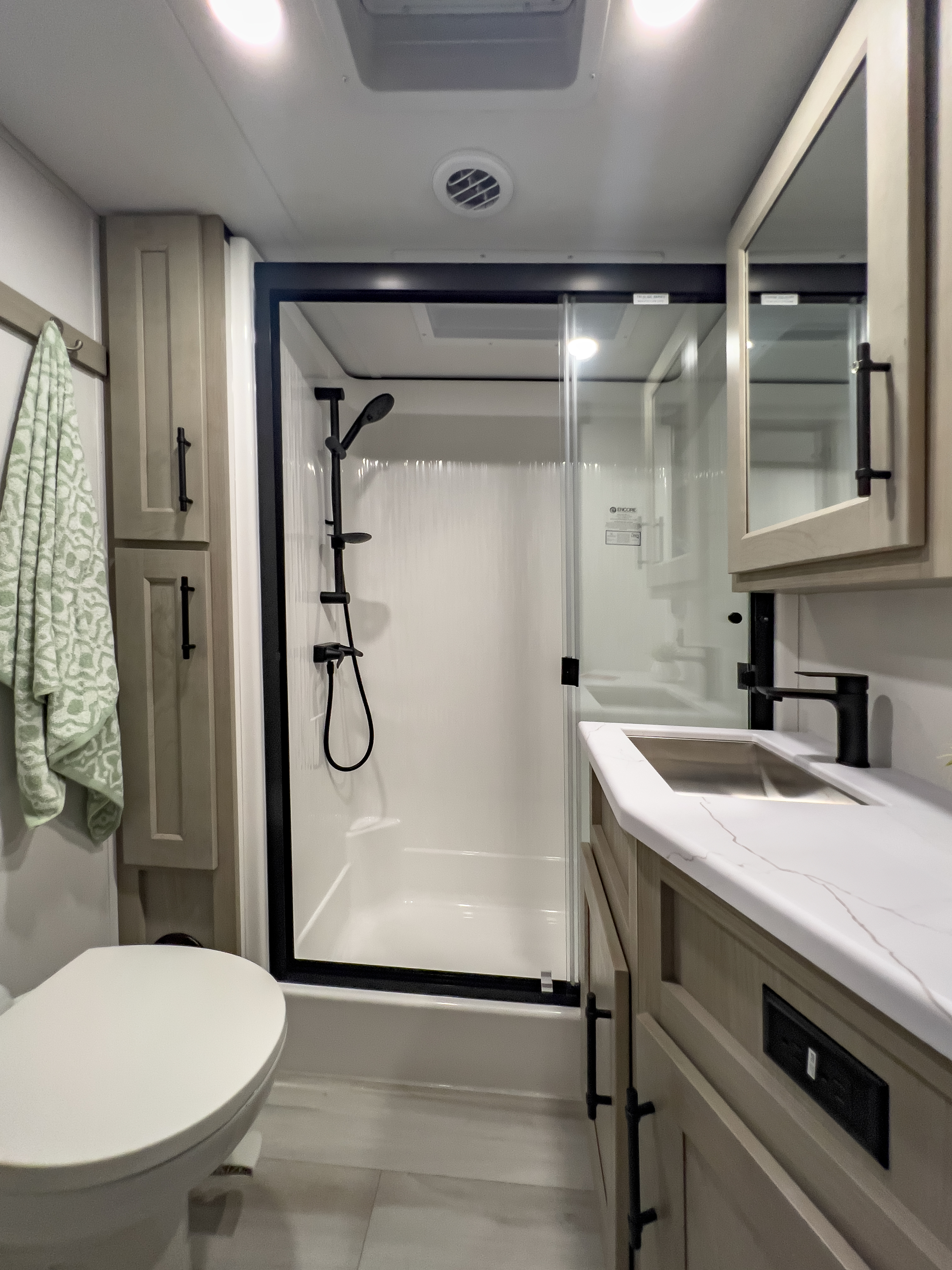

    BATHROOM
    • One-Piece Fiberglass Shower with Glass Door
    • Porcelain Toilet
    • Undermount Lav Sink

    APPLIANCE
    • Professional Grade Stainless Steel Cooktop w/ Built-in Oven
    • 12-Volt 16 Cu. Ft. Refrigerator
    • Microwave

    ELECTRONICS
    • Under Unit LED Light Kit
    • TravlFi On-Board WiFi Ready
    • Winegard Antenna
    • Back-Up Camera Prep
    • Tire Linc TPMS System
    • LED TV in Master Bedroom
    • Satellite/Cable Prep
    • Exterior Cable/Satellite Plug-In
    • LED Smart TV in Living Area
    • Rockford Fosgate Stereo Ent. System w/ HDMI and App Controls
    • Exterior Speakers
    Peace of Mind Package
    • Exterior Cable/Satellite Plug-In
    • Dresser w/ Slide-Top Hidden Storage
    • MORryde® CRE3000 Suspension System
    • Tow Assist ABS & Sway Mitigation System
    • 17.5" Spare Tire (Undermount)
    • Power Patio Awning with Integrated LED Lighting
    • Sewer Hose Storage Area
    • Kitchen 12-Volt High Power MaxxAir Fan with Rain Sensor
    • Washer/Dryer Prep
    • Easy Clean Solid Surface Steps
    Max Built Construction Package
    • Satellite/Cable Prep
    • 101" Widebody Construction
    • Heavy Duty 7,000 lb. Axles
    • 17.5" H- Rated Aluminum Wheels
    • Gel Coat Exterior Sidewalls
    • Color Matched Fender Skirt
    • 5-Side Aluminum Cage Construction
    • Walk-On Roof
    • TPO Roof Covering w/ Limited Lifetime Warranty
    • Slam-Latch Baggage Doors
    • Magnetic Entry and Baggage Door Catches
    • Entry Door w/Privacy Glass
    • Framed Tinted Windows
    • Painted Gel Coat Fiberglass Front Cap
    • Exterior Security Light
    • Roof Ladder
    • 50 Amp Service w/Detachable Power Cord
    • 12-Volt Battery Disconnect
    Residential Living Package
    • LED Smart TV in Living Area
    • Rockford Fosgate Stereo Ent. System w/ HDMI and App Controls
    • Exterior Speakers
    • Night Stands with USB Ports
    • Bedside 110-Volt Outlets (2)
    • Keyed Alike (One Key For All Entry and Baggage Doors)
    • SolidStep Quad Entry Steps
    • Stealth A/C System
    • Roller Shade Window Coverings
    • Congoleum Flooring w/ 3-Year Warranty
    • Hallway Handrail
    • Recessed LED Ceiling Lighting
    • Interior LED Accent Lighting
    • Hardwood Cabinet Doors
    • Signature Dinette Table w/ 4 Padded Chairs
    • Theatre Seating
    • Tri-Fold Hide-A-Bed Sofa
    • Smoke Detector, LP Alarm, Carbon Monoxide Alarm
    • Solid Surface Countertops
    • Smart Sink w/ removeable cutting board, produce strainer and glass rinser
    Weather-Tek Package
    • 35K BTU High Capacity Furnace
    • Fully Enclosed Underbelly w/ Heated Tanks and Storage
    • Attic Vent
    • High Capacity Heat Ducts
    • All-In-One Enclosed and Heated Utility Center
