The Transcend 240ML Floorplan features a rear kitchen and a rear bath plus a tri-fold sofa and booth dinette.

Fur-baby friendly and couple compatible. With ample space, seating, and storage, this floorplan gives you the flexibility to travel with a pet, guest, or family member.

Hitch
598
UVW
6,265
GVWR
7,495
Length
29' 9"
Height
11'
Sleeps
6
MSRP
$38,961
DOWNLOAD SPEC SHEET

OVERALL SIZE
Exterior Height11'
Exterior Height (w/opt. AC)   0'
Exterior Length29' 9"
Exterior Width8'
Exterior Width (w/ slide out)11'
Interior Height78"

WEIGHTS
Hitch / Pin Weight598
UVW6,265
GVWR7,495

CAPACITY
Fresh Water Capacity62
Grey Water Capacity57
Waste Water Capacity39
Propane Tanks2
LPG40
Sleeping Capacity6
APPLIANCES
Water Heater
Refrigerator8 cu. ft.
Furnace35,000 BTU
AC15,000 BTU

RUNNING GEAR
Axles2
Wheel Size15 in.
Tire SizeST205/75R15LRD

CONSTRUCTION
Construction TypeTraditional
Floor R-ValueR-11
Wall R-ValueR-9
Roof R-ValueR-40
Slide Room R-ValueR-9
DIMENSIONS
Standard Bed60 X 80 Queen Bed
Standard BunkN/A
Shower27 x 36

EXTERIOR
Slides1
Awnings1
Awning Length17'
EXTERIOR
  • Power Tongue Jack
  • Solar Power Inlet
  • Black Tank Flush
  • 20# LP Bottles (2) with Cover
  • Friction Hinge Entry Door
  • Walk-on Roof
  • Easy Access Low Point Drain Valves
  • Spare Tire w/ Carrier
  • Magnetic Storage Door Catches
  • Extended Grab Handle
  • Rear Ladder
  • Tinted Windows
  • Upgraded STRONGWALL Metal Exterior

CONSTRUCTION
  • TPO Roof Membrane w/ 18 Year Warranty
  • Insulated Storage Doors
  • Rear Wall Insulation (R-9)
  • Side Walls Insulation (R-9)
  • Slideroom Roof and End Wall Insulation (R-9)
  • Main Floor Insulation (R-11)
  • Roof Insulation (R-40)
  • Heated and Enclosed Underbelly w/ Suspended Tanks
  • Designated Heat Duct to Subfloor
  • High Density Roof Insulation w/ Thermofoil
  • Moisture Barrier Floor Enclosure

ELECTRICAL
  • Battery Kill Switch (Pass Thru)
  • USB Ports (2)
  • More Power Outlets
  • LED Interior Lighting
  • Power Awning
  • Detachable Power Cord w/ LED Light
  • Motion Sensor Lights in Key Areas
  • 165W Roof Mounted Solar Panel
  • Roof Mounted Quick Connect Plugs
  • Solar Charge Controller
INTERIOR
  • Large Solid Bedroom Door (Master Suite)
  • Power Vent Fan in Bath and Living Room
  • Solid Hardwood Drawer Fronts
  • Solid Core Cabinet Stiles
  • Pre-Drilled and Screwed Cabinetry
  • Ball Bearing Full Extension Drawer Glides
  • Residential Countertops
  • Upgraded Residential Furniture
  • 78" Interior Height

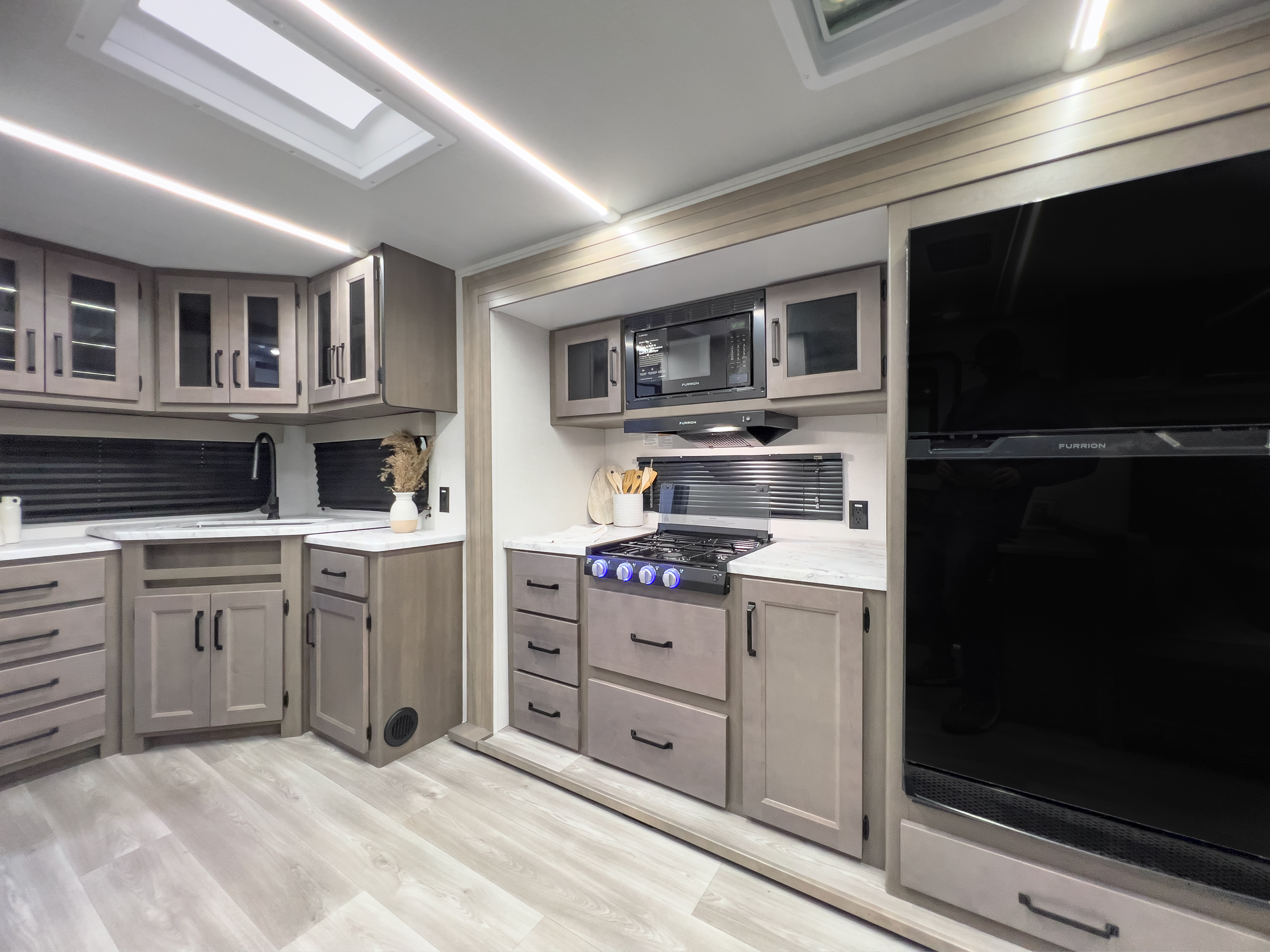

KITCHEN

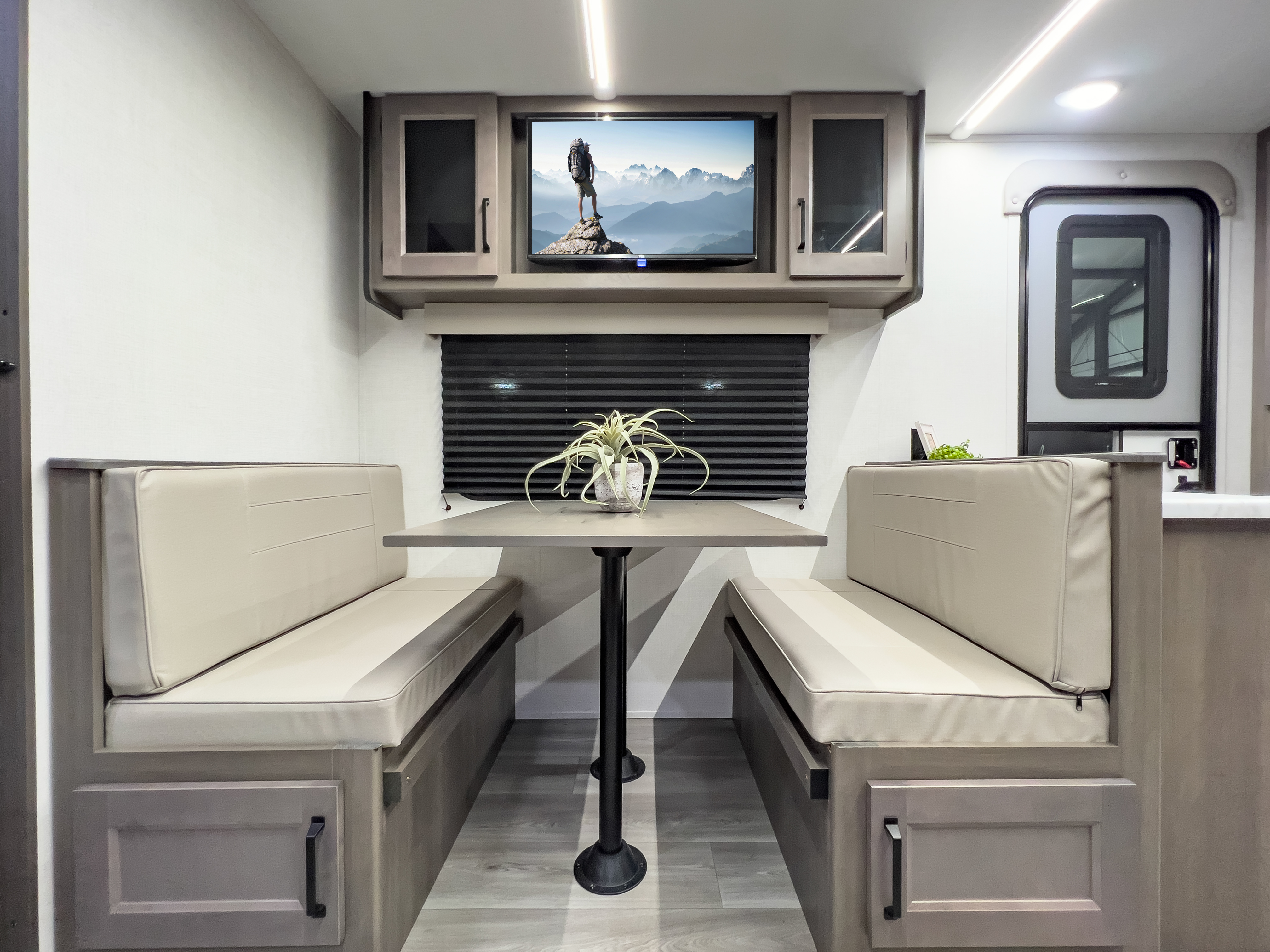

  • Residential Booth Dinette
  • Residential Cabinet Doors
  • Deep Seated Stainless Steel Sink

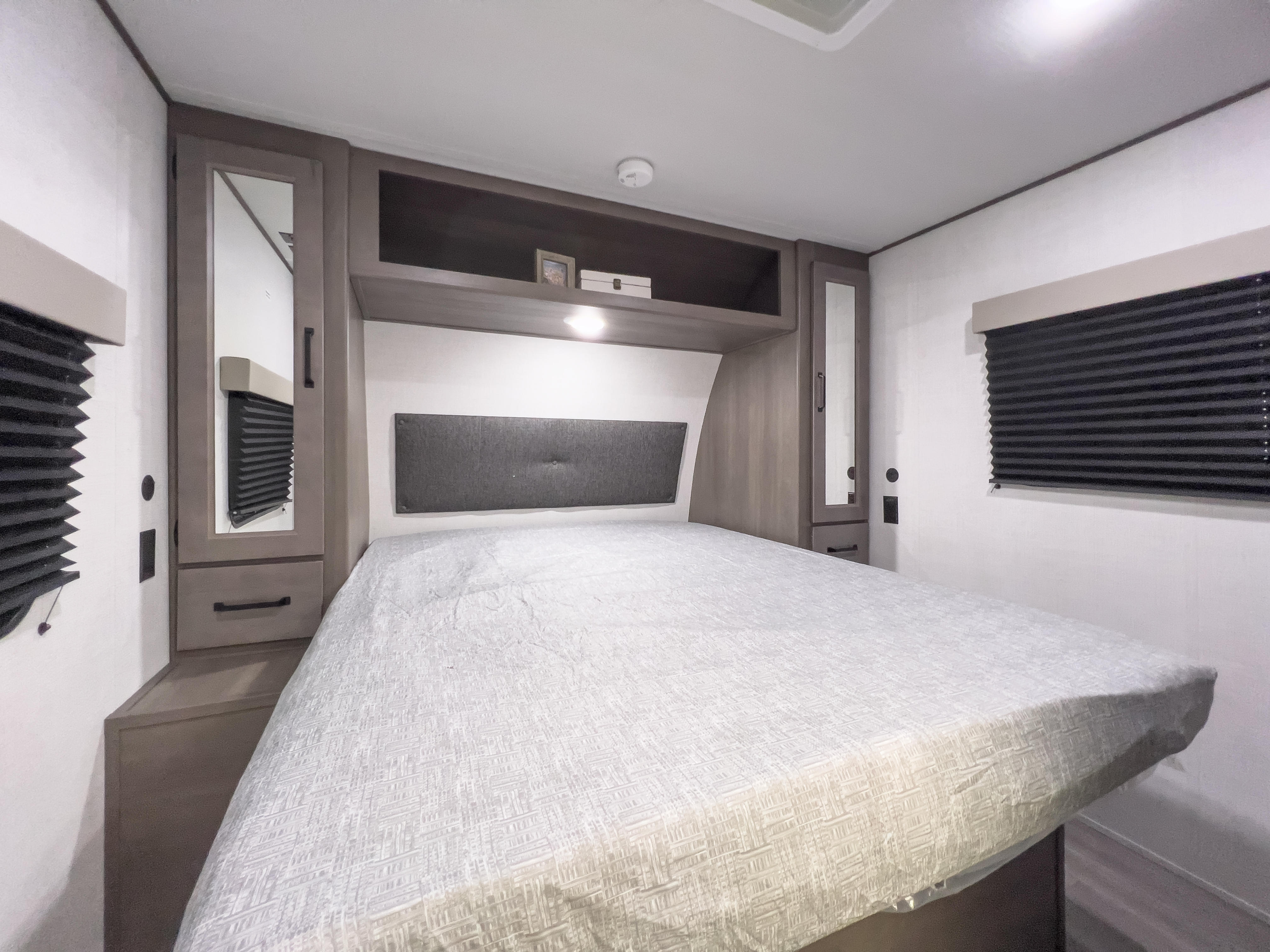

BEDROOM
  • Residential Bedspread
  • Master Suite w/ 60" x 80" Queen Bed
  • E-Z Lift Bed Storage w/ Struts

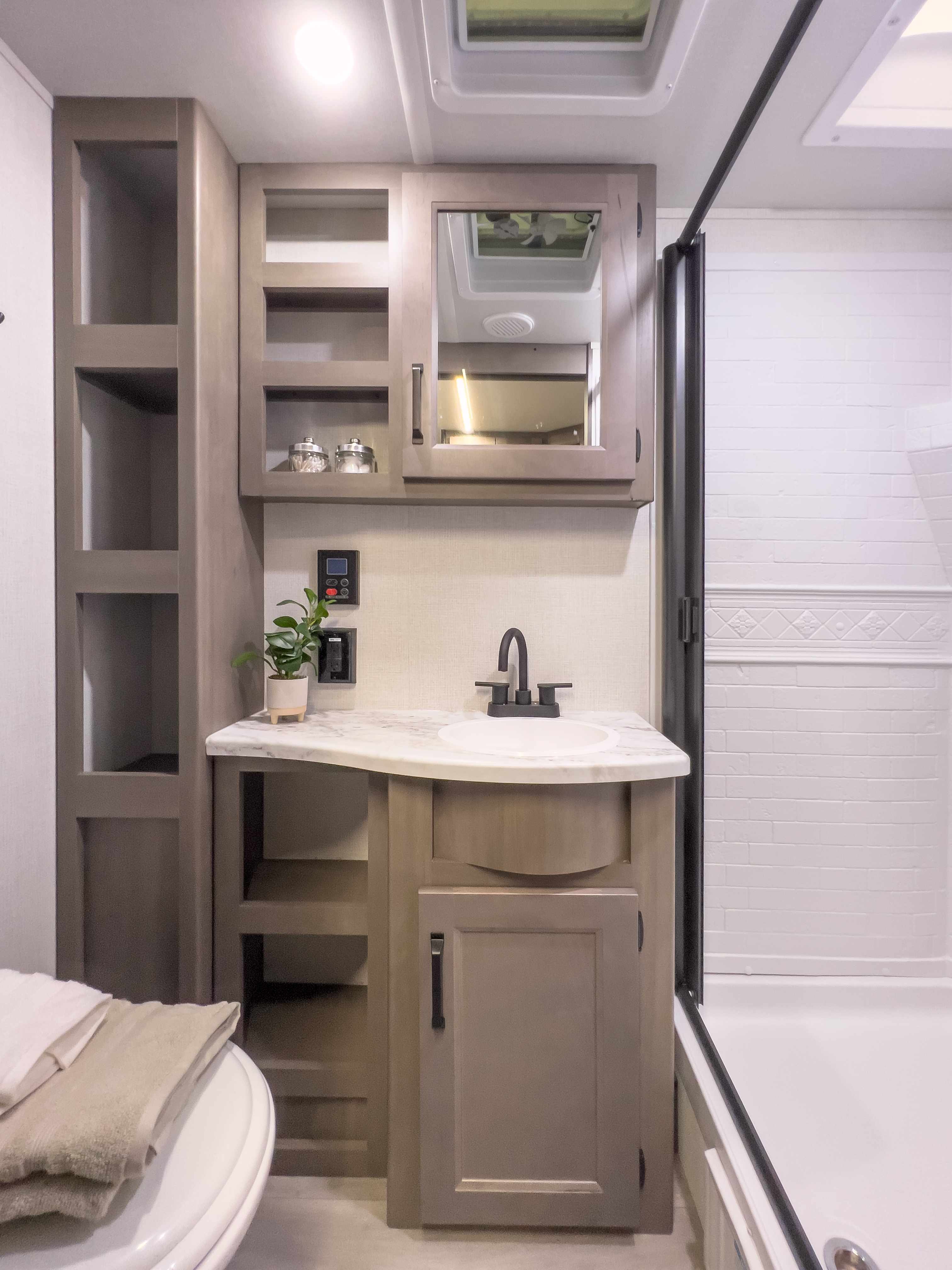

BATHROOM
  • Walk-in Shower
  • Medicine Cabinet with Mirror
  • ABS Tub Surround
  • Foot Flush Toilet
PLUMBING
  • High-Capacity Water Pump
  • Extra Large 2" Fresh Water Drain Valve
  • Oversized Tank Capacites
  • 62 Gallon Fresh Water Capacity
  • High Rise Faucet with Pull Down Sprayer
  • 6 Gal DSI Quick Recovery Water Heater
  • E-Z Winterization
  • All-in-One Utility Center

ELECTRONICS
  • Cable/Sat Prep
  • AM/FM/Bluetooth Stereo
  • Exterior Speakers
  • Backup Camera Prep
  • HD LED TV
  • HD TV Antenna

APPLIANCE
  • Microwave
  • 3-Burner Range with Oven
  • 12V 8 cu. ft. Refrigerator

HVAC
  • 35K BTU High Capacity Furnace
  • Attic Vent
  • Main A/C Ducted
  • EvenFlow Ductless Heating System Throughout

RUNNING GEAR
  • Nitrogen Filled Radial Tires
Elevation Package
  • 78” Interior Height
  • Master Suite w/ 60” x 80” Queen Bed
  • 62 Gallon Fresh Water Capacity
  • Spare Tire w/ Carrier
  • Black Tank Flush
  • Nitrogen Filled Radial Tires
  • Magnetic Storage Door Catches
  • Foot Flush Toilet
  • Residential Booth Dinette
  • Extended Grab Handle
  • Rear Ladder
  • E-Z Lift Bed Storage w/ Struts
  • Tinted Windows
  • High Rise Faucet with Pull Down Sprayer
  • Residential Cabinet Doors
  • 6 Gal DSI Quick Recovery Water Heater
  • Deep Seated Stainless Steel Sink
  • Solid Wood Drawer Fronts
  • Upgraded STRONGWALL Metal Exterior
Season Protection Package
  • Heated and Enclosed Underbelly w/ Suspended Tanks
  • Designated Heat Duct to Subfloor
  • High Density Roof Insulation w/ Thermofoil
  • Moisture Barrier Floor Enclosure
  • 35k BTU High Capacity Furnace
  • Attic Vent
  • Main A/C Ducted
  • Dual 20# LP Tanks with Cover
  • EvenFlow Ductless Heating System Throughout
  • E-Z Winterization
  • All-in-One Utility Center
Power Package
  • LED Interior Lighting
  • Power Tongue Jack
  • Power Awning
  • AM/FM/Bluetooth Stereo
  • Exterior Speakers
  • Detachable Power Cord w/ LED Light
  • USB Port
  • Motion Sensor Lights in Key Areas
  • Backup Camera Prep
  • Battery Disconnect Switch
  • HD LED TV
  • HD TV Antenna
Solar Package
  • 165W Roof Mounted Solar Panel
  • Roof Mounted Quick Connect Plugs
  • Solar Charge Controller
  • 12V 8 cu. ft. Refrigerator
