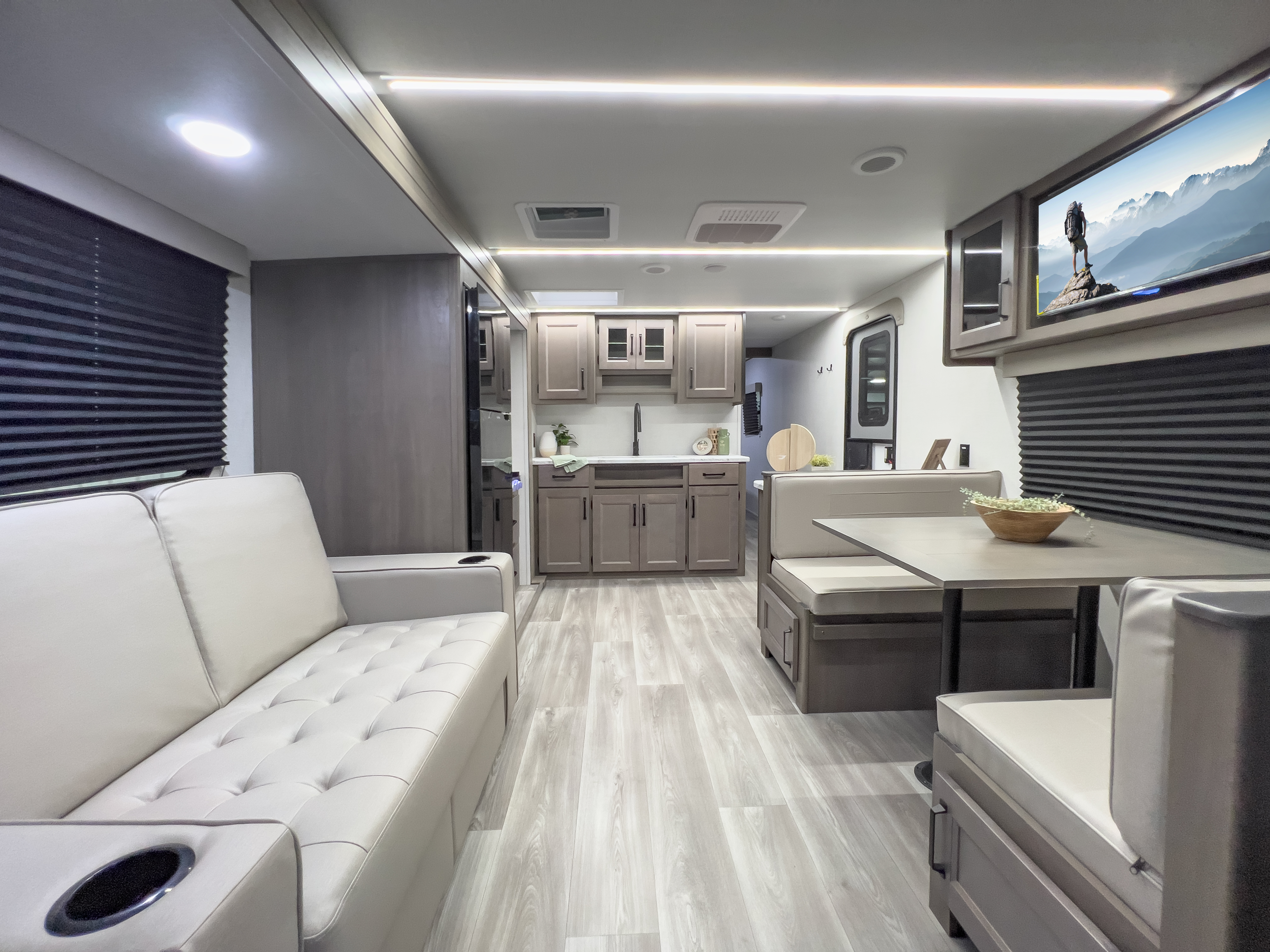

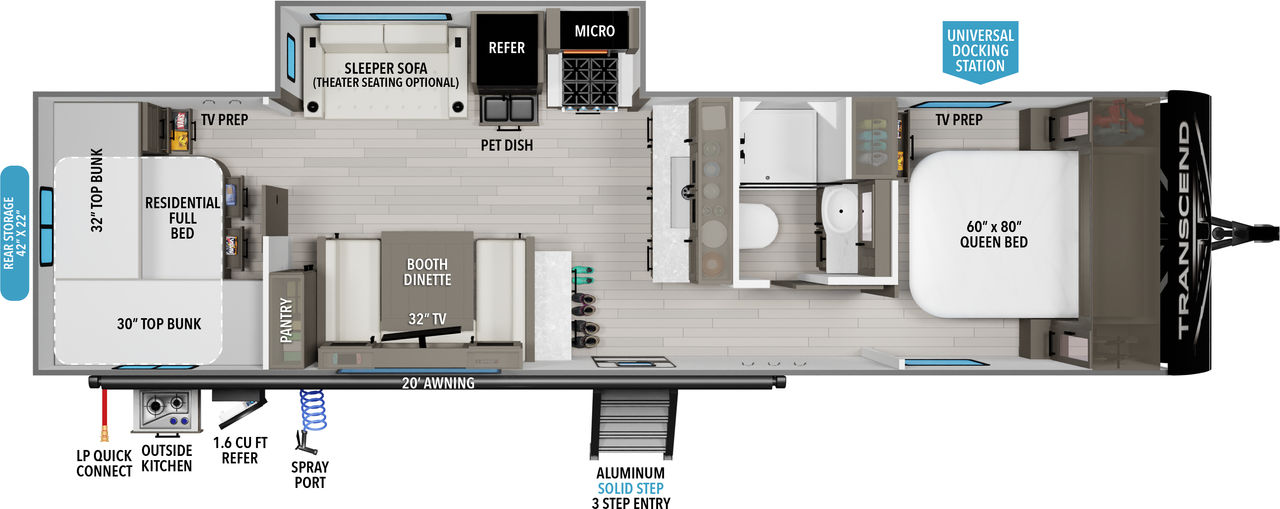

This travel trailer floorplan features a rear bunk room with mid living area and front queen bed.

    Hitch
    803
    UVW
    7,383
    GVWR
    8,995
    Length
    35' 11"
    Height
    11'
    Sleeps
    10
    MSRP
    $40,116
    DOWNLOAD SPEC SHEET

    OVERALL SIZE
    Exterior Height11'
    Exterior Height (w/opt. AC)   N/A'
    Exterior Length35' 11"
    Exterior Width8'
    Exterior Width (w/ slide out)11'
    Interior Height78"

    WEIGHTS
    Hitch / Pin Weight803
    UVW7,383
    GVWR8,995

    CAPACITY
    Fresh Water Capacity56
    Grey Water Capacity78
    Waste Water Capacity39
    Propane Tanks2
    LPG40
    Sleeping Capacity10
    APPLIANCES
    Water HeaterTankless
    Refrigerator8 cu. ft.
    Furnace35 BTU
    AC15,000 BTU

    RUNNING GEAR
    Axles2
    Wheel Size15 in.
    Tire SizeST205/75R15LRD

    CONSTRUCTION
    Construction TypeTraditional
    Floor R-ValueR-11
    Wall R-ValueR-9
    Roof R-ValueR-40
    Slide Room R-ValueR-9
    DIMENSIONS
    Standard Bed60 X 80 Queen Bed

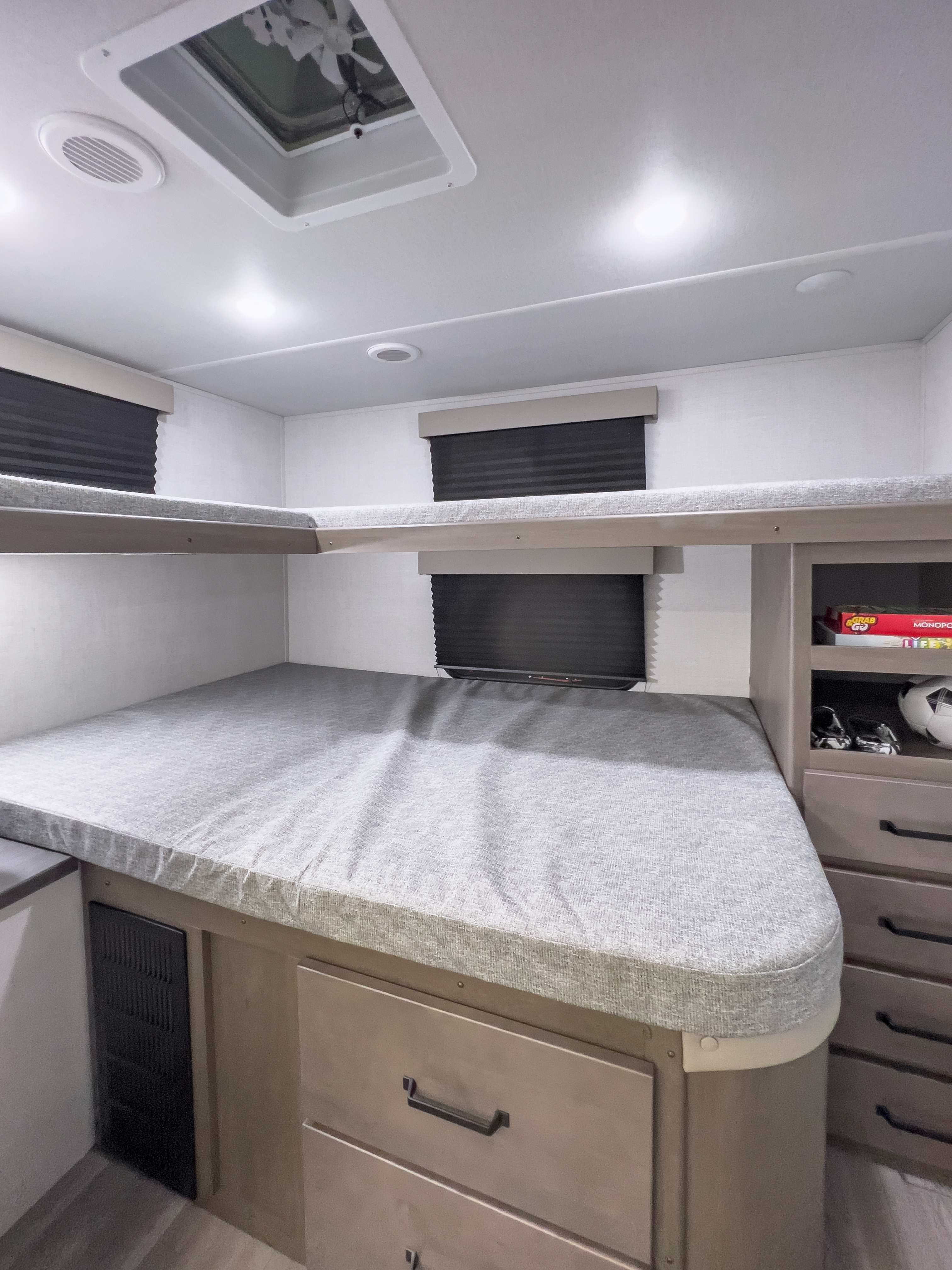

    Standard Bunk32" x 72"
    Shower27" x 36"

    EXTERIOR
    Slides1
    Awnings1
    Awning Length20'
    EXTERIOR
    • Power Tongue Jack
    • Solar Power Inlet
    • Black Tank Flush
    • 20# LP Bottles (2) with Cover
    • Friction Hinge Entry Door
    • Walk-on Roof
    • Easy Access Low Point Drain Valves
    • Spare Tire w/ Carrier
    • Magnetic Storage Door Catches
    • Extended Grab Handle
    • Rear Ladder
    • Tinted Windows
    • Upgraded STRONGWALL Metal Exterior

    CONSTRUCTION
    • TPO Roof Membrane w/ Limited Lifetime Warranty
    • Insulated Storage Doors
    • Rear Wall Insulation (R-9)
    • Side Walls Insulation (R-9)
    • Slideroom Roof and End Wall Insulation (R-9)
    • Main Floor Insulation (R-11)
    • Roof Insulation (R-40)
    • Heated and Enclosed Underbelly w/ Suspended Tanks
    • Designated Heat Duct to Subfloor
    • Thermofoil over Roof & Front Cap
    • Moisture Barrier Floor Enclosure

    ELECTRICAL
    • Battery Kill Switch (Pass Thru)
    • USB Ports (2)
    • More Power Outlets
    • Dimmable LED Strip Lighting
    • Power Awning
    • Detachable Power Cord w/ LED Light
    • Motion Sensor Lights in Key Areas
    • 165W Roof Mounted Solar Panel
    • Roof Mounted Quick Connect Plugs
    • 40 AMP Charge Controller with Bluetooth
    • Solar Disconnect
    INTERIOR
    • Large Solid Bedroom Door (Master Suite)
    • Power Vent Fan in Bath and Living Room
    • Solid Hardwood Drawer Fronts
    • Solid Core Cabinet Stiles
    • Pre-Drilled and Screwed Cabinetry
    • Ball Bearing Full Extension Drawer Glides
    • Residential Countertops
    • Upgraded Residential Furniture
    • 78" Interior Height

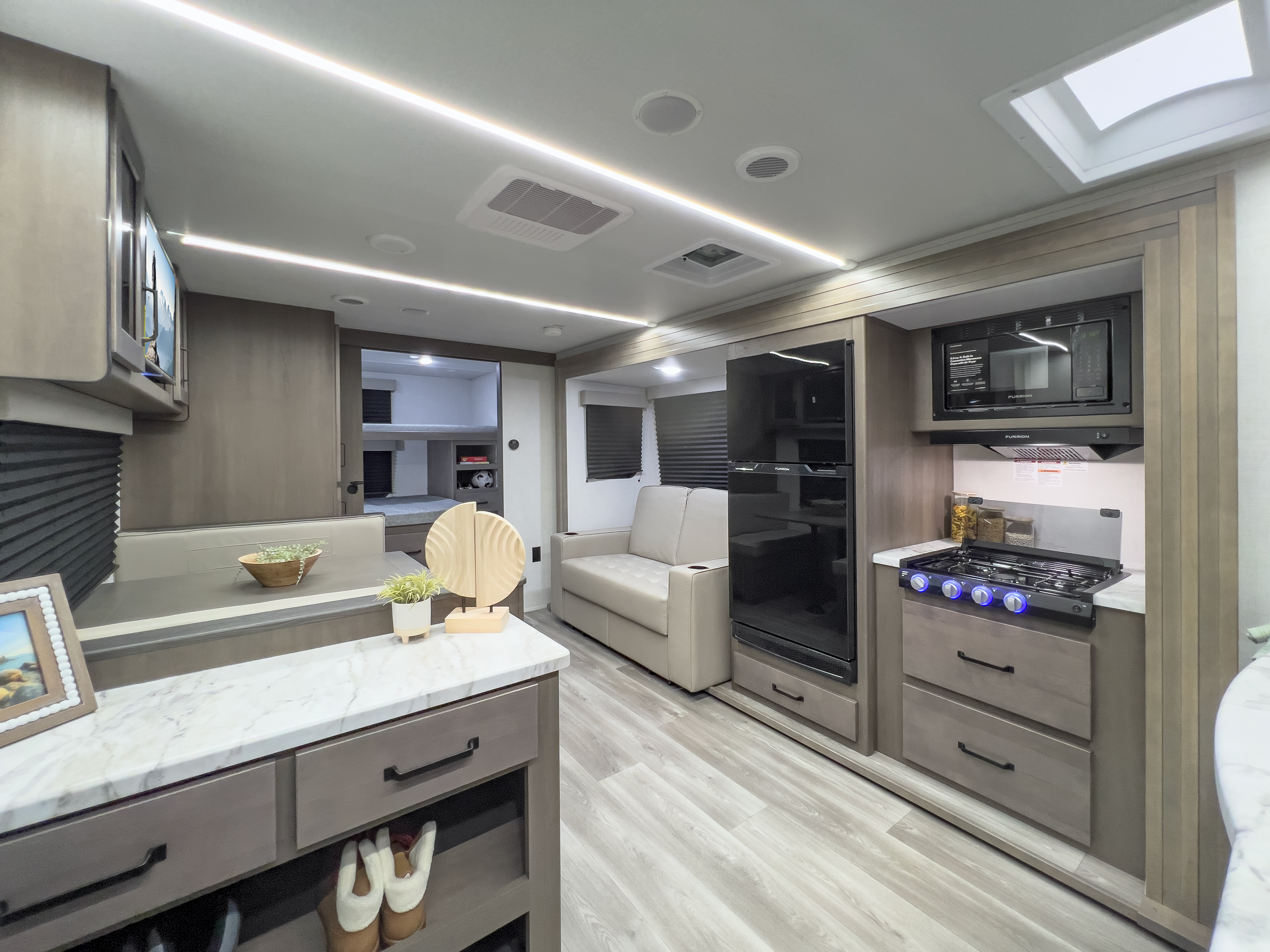

    KITCHEN

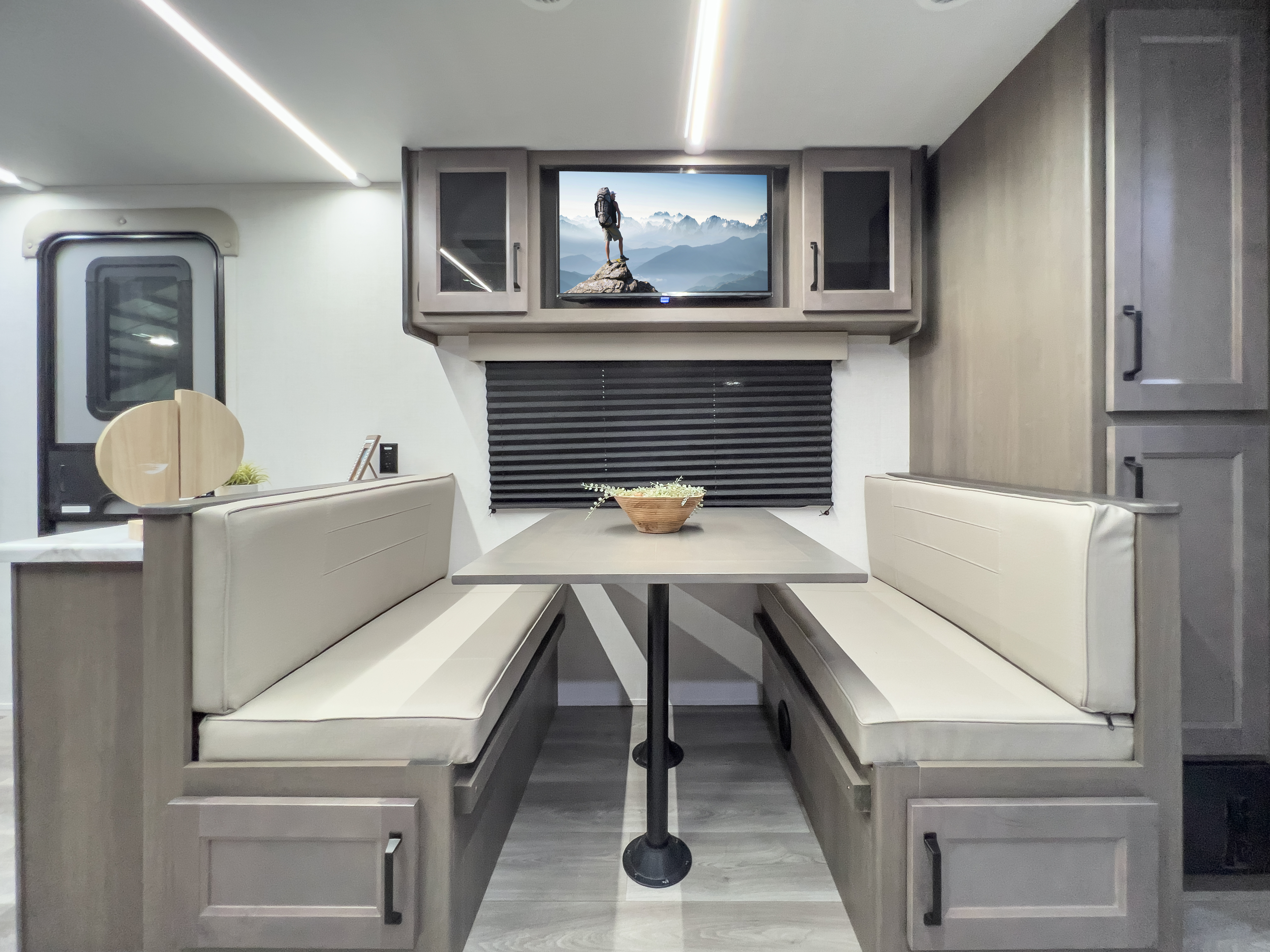

    • Residential Booth Dinette
    • Residential Cabinet Doors
    • Deep Seated Stainless Steel Sink

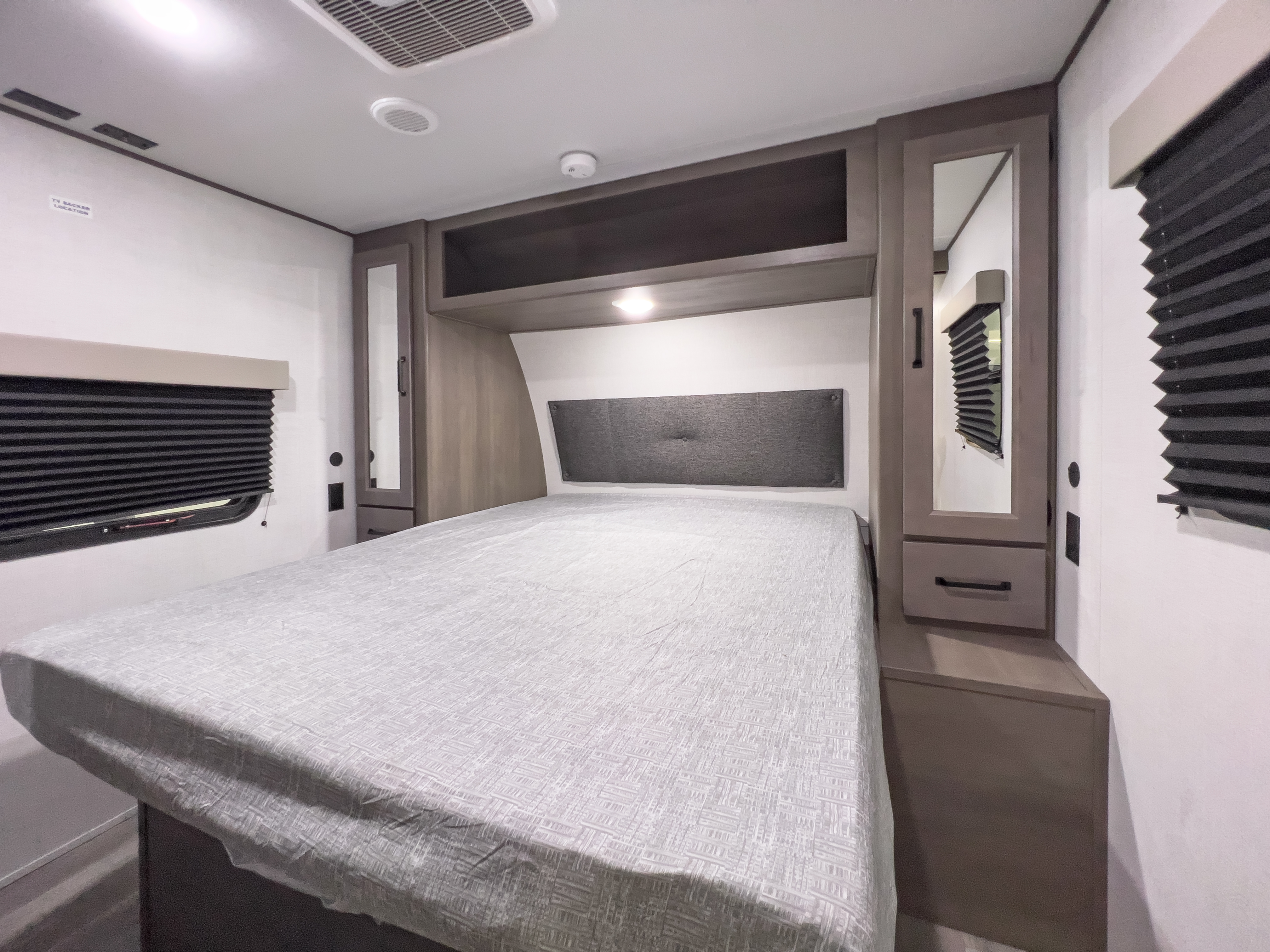

    BEDROOM
    • Residential Bedspread
    • Master Suite w/ 60" x 80" Queen Bed
    • E-Z Lift Bed Storage w/ Struts

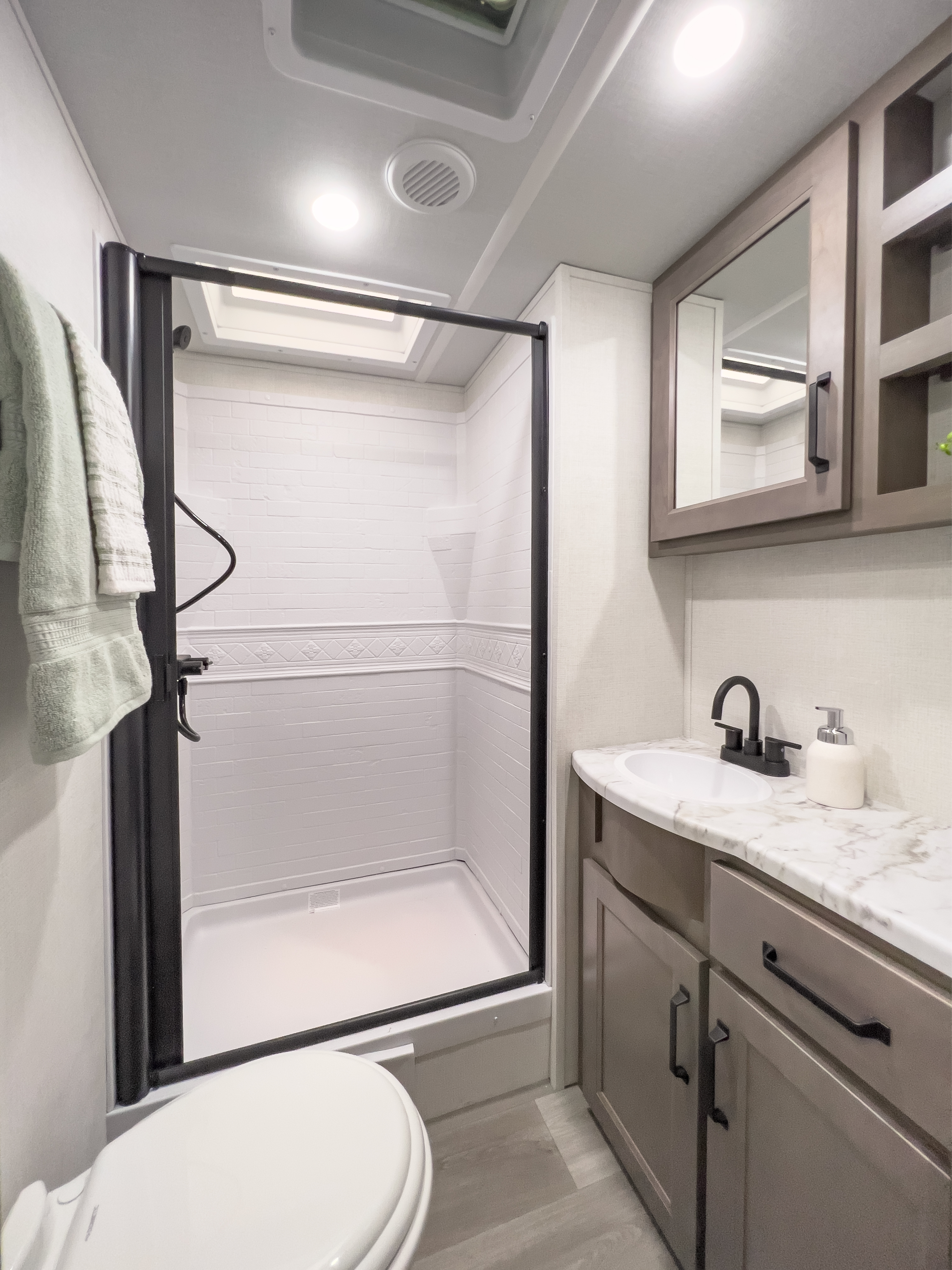

    BATHROOM
    • Walk-in Shower
    • Medicine Cabinet with Mirror
    • ABS Tub Surround
    • Foot Flush Toilet
    PLUMBING
    • High-Capacity Water Pump
    • Extra Large 2" Fresh Water Drain Valve
    • Oversized Tank Capacites
    • 56 Gallon Fresh Water Capacity
    • High Rise Faucet with Pull Down Sprayer
    • E-Z Winterization
    • All-in-One Utility Center

    ELECTRONICS
    • Cable/Sat Prep
    • AM/FM/Bluetooth Stereo
    • Exterior Speakers
    • Backup Camera Prep
    • HD LED TV
    • HD TV Antenna

    APPLIANCE
    • Microwave
    • 3-Burner Range with Oven
    • 12V 8 Cu. Ft. Refrigerator

    HVAC
    • 35K BTU High Capacity Furnace
    • Attic Vent
    • Main A/C Ducted
    • EvenFlow Ductless Heating System Throughout
    Elevation Package
    • 78” Interior Height
    • Master Suite w/ 60” x 80” Queen Bed
    • Spare Tire w/ Carrier
    • Black Tank Flush
    • Magnetic Storage Door Catches
    • Foot Flush Toilet
    • Residential Booth Dinette
    • Extended Grab Handle
    • Rear Ladder
    • E-Z Lift Bed Storage w/ Struts
    • Tinted Windows
    • High Rise Faucet with Pull Down Sprayer
    • Residential Cabinet Doors
    • Deep Seated Stainless Steel Sink
    • Solid Wood Drawer Fronts
    • Upgraded STRONGWALL Metal Exterior
    • Tankless Water Heater
    • Black Automotive Glass Entry Door
    • Galvanized Steel Wheel Wells
    Season Protection Package
    • Heated and Enclosed Underbelly w/ Suspended Tanks
    • Designated Heat Duct to Subfloor
    • Thermofoil over Roof & Front Cap
    • Moisture Barrier Floor Enclosure
    • 35k BTU High Capacity Furnace
    • Attic Vent
    • Main A/C Ducted
    • Dual 20# LP Tanks with Cover
    • EvenFlow Ductless Heating System Throughout
    • E-Z Winterization
    • All-in-One Utility Center
    Power Package
    • Dimmable LED Strip Lighting
    • Power Tongue Jack
    • Power Awning
    • AM/FM/Bluetooth Stereo
    • Exterior Speakers
    • Detachable Power Cord w/ LED Light
    • USB Port
    • Motion Sensor Lights in Key Areas
    • Backup Camera Prep
    • Battery Disconnect Switch
    • HD LED TV
    • HD TV Antenna
    Solar Package
    • 165W Roof Mounted Solar Panel
    • Roof Mounted Quick Connect Plugs
    • 40 AMP Charge Controller With Bluetooth
    • 12V 8 Cu. Ft. Refrigerator
    • Solar Disconnect
