This travel trailer floorplan features a rear bunk beds with mid kitchen and front Queen Bed.

    Hitch
    694
    UVW
    6,716
    GVWR
    7,995
    Length
    32' 9"
    Height
    11'
    Sleeps
    8
    MSRP
    $39,720
    DOWNLOAD SPEC SHEET

    OVERALL SIZE
    Exterior Height11'
    Exterior Height (w/opt. AC)   N/A
    Exterior Length32' 9"
    Exterior Width8'
    Exterior Width (w/ slide out)11'
    Interior Height78

    WEIGHTS
    Hitch / Pin Weight694
    UVW6,716
    GVWR7,995

    CAPACITY
    Fresh Water Capacity56
    Gray Water Capacity78
    Waste Water Capacity39
    Propane Tanks2
    LPG40
    Sleeping Capacity8
    APPLIANCES
    Water HeaterTankless
    Refrigerator8 cu. ft.
    Furnace35,000 BTU
    AC15,000 BTU

    RUNNING GEAR
    Axles2
    Wheel Size15 in.
    Tire SizeST225/75R15LRE

    CONSTRUCTION
    Construction TypeTraditional
    Floor R-ValueR-11
    Wall R-ValueR-9
    Roof R-ValueR-40
    Slide Room R-ValueR-9
    DIMENSIONS
    Standard Bed60 X 80 Queen Bed
    Standard BunkN/A
    Shower27" x 36"

    EXTERIOR
    Slides1
    Awnings1
    Awning Length16'
    EXTERIOR
    • Power Tongue Jack
    • Solar Power Inlet
    • Black Tank Flush
    • 20# LP Bottles (2) with Cover
    • Friction Hinge Entry Door
    • Walk-on Roof
    • Easy Access Low Point Drain Valves
    • Spare Tire w/ Carrier
    • Magnetic Storage Door Catches
    • Extended Grab Handle
    • Tinted Windows
    • Leash Link/Bottle Opener

    CONSTRUCTION
    • TPO Roof Membrane w/ Limited Lifetime Warranty
    • Insulated Storage Doors
    • Rear Wall Insulation (R-9)
    • Side Walls Insulation (R-9)
    • Slideroom Roof and End Wall Insulation (R-9)
    • Main Floor Insulation (R-11)
    • Roof Insulation (R-40)
    • Heated and Enclosed Underbelly w/ Suspended Tanks
    • Designated Heat Duct to Subfloor
    • Thermofoil over Roof & Front Cap
    • Moisture Barrier Floor Enclosure

    ELECTRICAL
    • Battery Kill Switch (Pass Thru)
    • USB Ports (2)
    • More Power Outlets
    • Power Awning w/ LED Light
    • Detachable Power Cord w/ LED Light
    • Motion Sensor Lights in Key Areas
    • 600W Solar Prep
    • Roof Mounted Quick Connect Plugs
    • 30 AMP Solar Controller Prep
    • Solar Disconnect
    • 2000W Inverter Prep
    INTERIOR
    • Power Vent Fan in Bath
    • Solid Hardwood Drawer Fronts
    • Solid Core Cabinet Stiles
    • Pre-Drilled and Screwed Cabinetry
    • Ball Bearing Full Extension Drawer Glides
    • Residential Countertops
    • Upgraded Residential Furniture
    • 78" Interior Height
    • Pull Out Trash Can Storage
    • Pet Friendly Dog Bowls

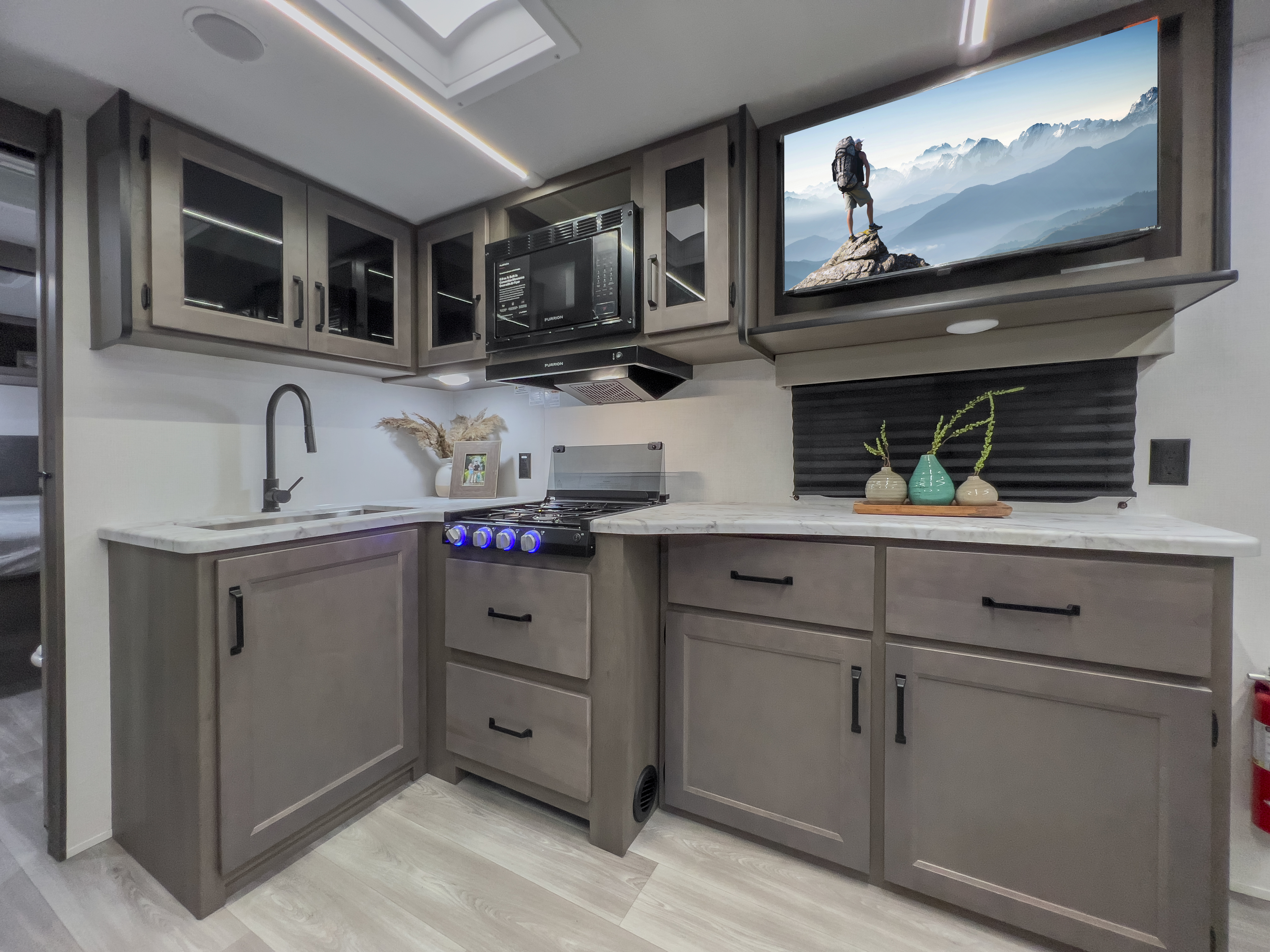

    KITCHEN

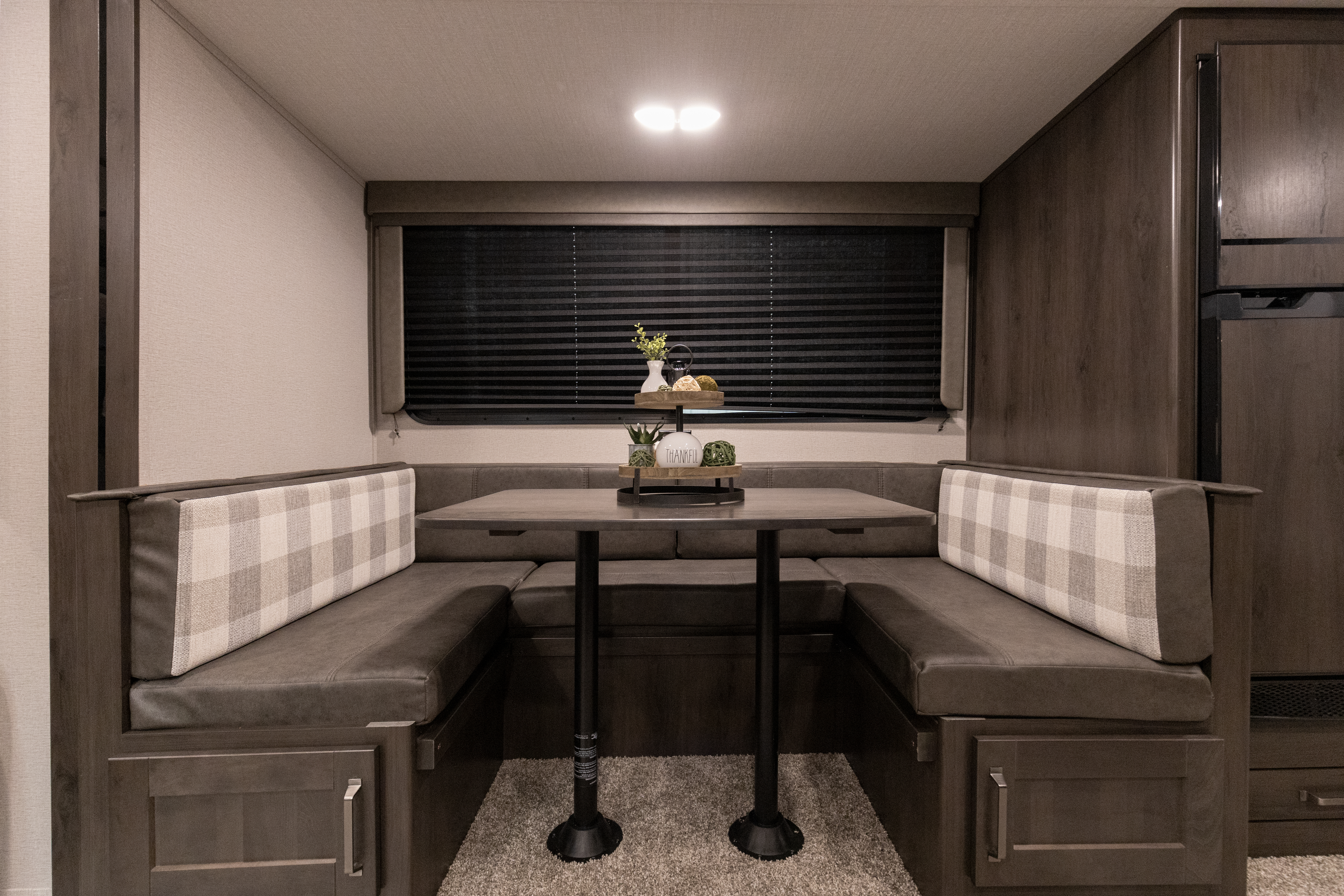

    • Residential Booth Dinette
    • Residential Cabinet Doors
    • Deep Seated Stainless Steel Sink

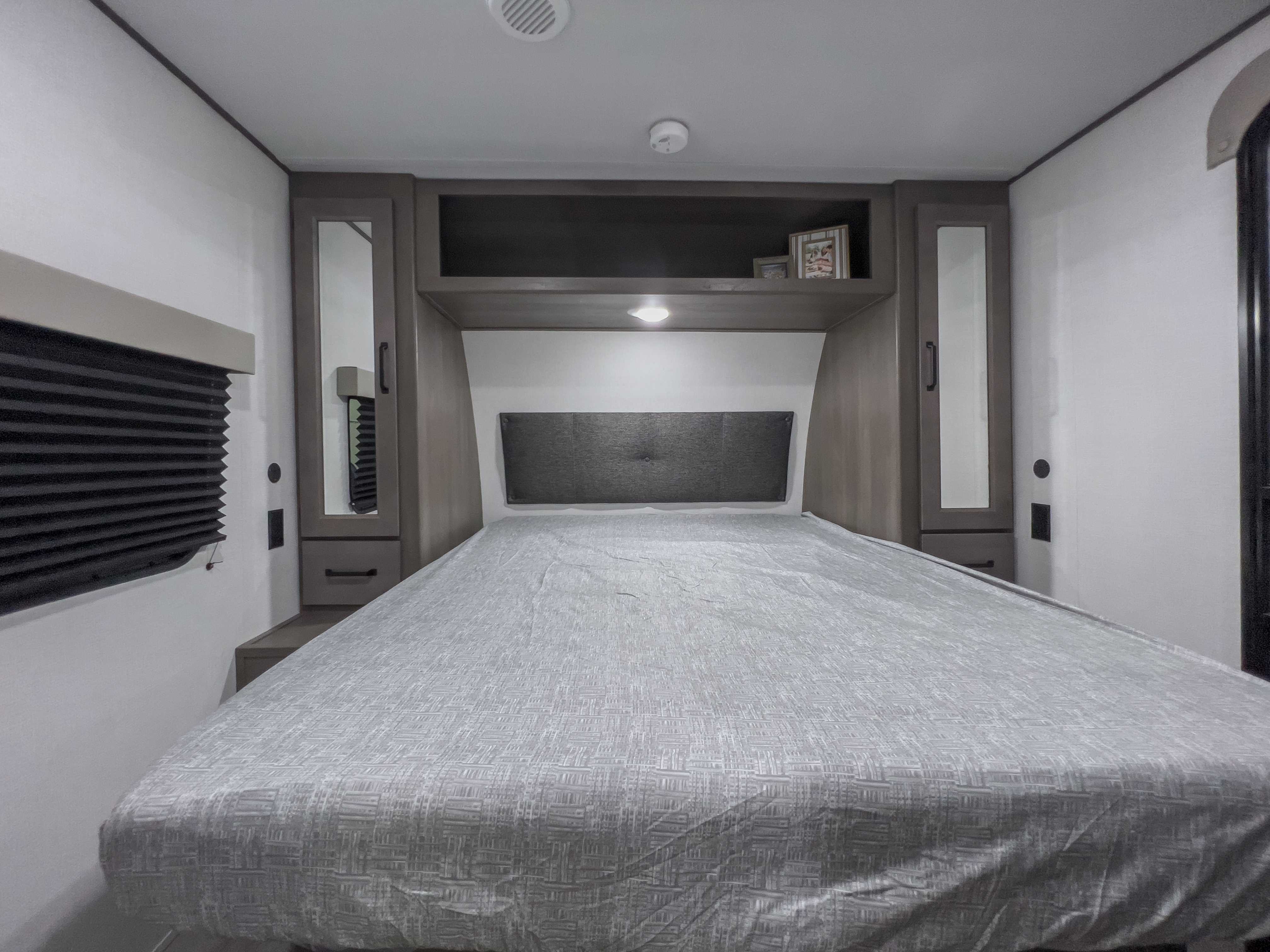

    BEDROOM
    • Residential Bedspread
    • Master Suite w/ 60" x 80" Queen Bed
    • E-Z Lift Bed Storage w/ Struts

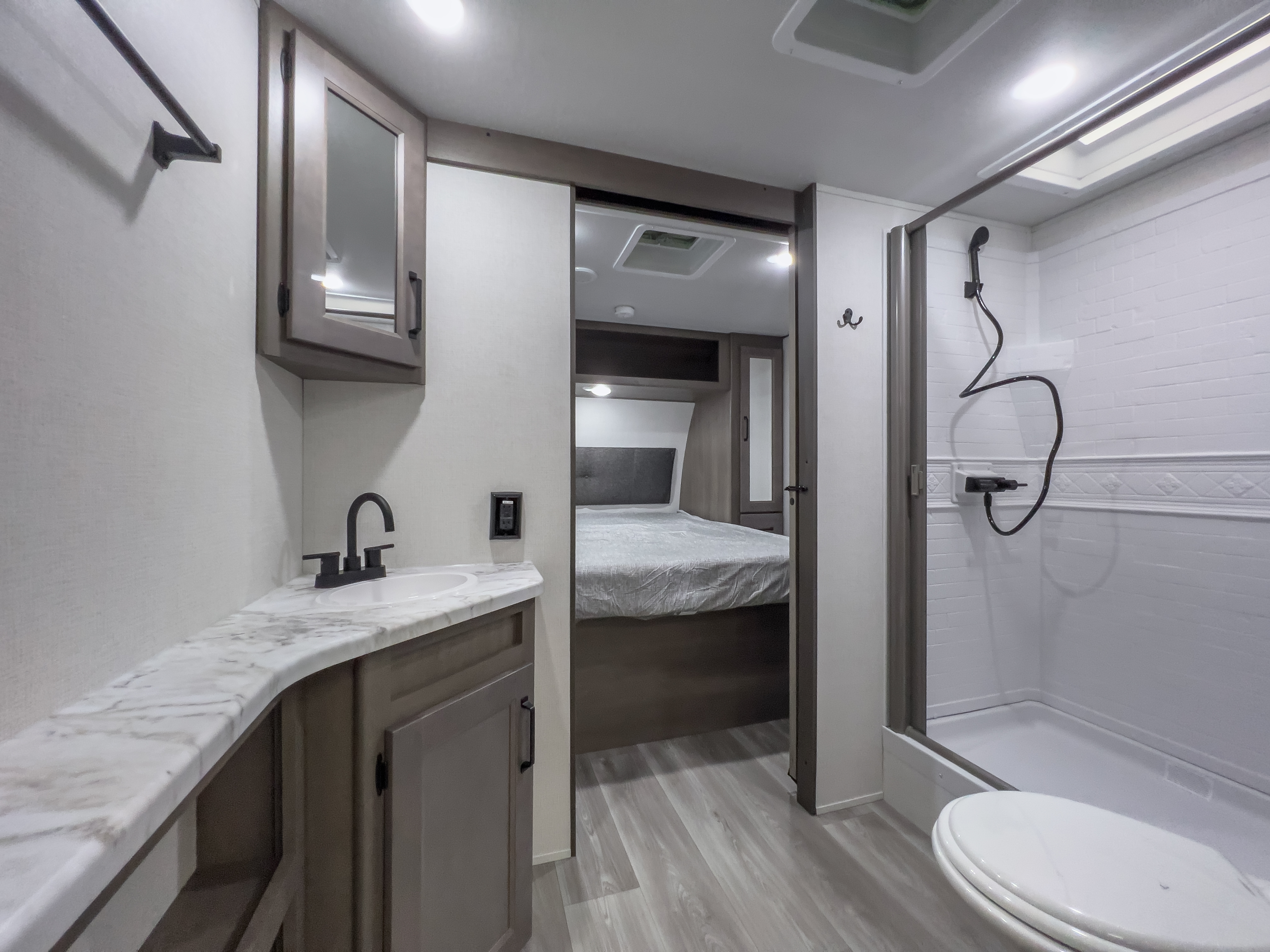

    BATHROOM
    • Walk-in Shower
    • ABS Tub Surround
    • Foot Flush Toilet
    PLUMBING
    • High-Capacity Water Pump
    • Extra Large 2" Fresh Water Drain Valve
    • Oversized Tank Capacites
    • 56 Gallon Fresh Water Capacity
    • High Rise Faucet with Pull Down Sprayer
    • E-Z Winterization
    • All-in-One Utility Center

    ELECTRONICS
    • Cable/Sat Prep
    • JBL Exterior Speaker
    • Backup Camera Prep
    • HD TV Antenna

    APPLIANCE
    • Microwave
    • 3-Burner Range
    • 12V 8 Cu. Ft. Refrigerator

    HVAC
    • 35K BTU High Capacity Furnace
    • Attic Vent
    • Main A/C Ducted
    • EvenFlow Ductless Heating System Throughout
    Elevation Package
    • 78” Interior Height
    • Master Suite w/ 60” x 80” Queen Bed
    • Spare Tire w/ Carrier
    • Black Tank Flush
    • Magnetic Storage Door Catches
    • Foot Flush Toilet
    • Residential Booth Dinette
    • Extended Grab Handle
    • E-Z Lift Bed Storage w/ Struts
    • Tinted Windows
    • High Rise Faucet with Pull Down Sprayer
    • Residential Cabinet Doors
    • Deep Seated Stainless Steel Sink
    • Solid Wood Drawer Fronts
    • Black Automotive Glass Entry Door
    • Galvanized Steel Wheel Wells
    Season Protection Package
    • Heated and Enclosed Underbelly w/ Suspended Tanks
    • Designated Heat Duct to Subfloor
    • Thermofoil over Roof & Front Cap
    • Moisture Barrier Floor Enclosure
    • 35K BTU High Capacity Furnace
    • Attic Vent
    • Main A/C Ducted
    • Dual 20# LP Tanks with Cover
    • EvenFlow Ductless Heating System Throughout
    • E-Z Winterization
    • All-in-One Utility Center
    Power Package
    • Power Tongue Jack
    • Power Awning w/ LED Light
    • JBL Head Unit
    • JBL Exterior Speaker
    • Detachable Power Cord w/ LED Light
    • USB Port
    • Motion Sensor Lights in Key Areas
    • Backup Camera Prep
    • Battery Disconnect Switch
    • HD TV Antenna
    Solar Package
    • 600W Solar Prep
    • 30 AMP Solar Controller Prep
    • 2000W Inverter Prep
    • Roof Mounted Quick Connect Plugs
    • 12V 8 Cu. Ft. Refrigerator
    • Solar Disconnect
